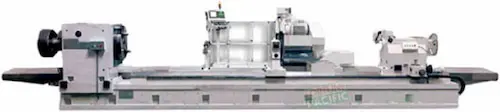

MCG800 Moving Head Cylindrical Grinding Machine
MCG800 Moving Head Cylindrical Grinder delivers high-precision OD grinding for max dia 800mm, CNC-controlled, with rigid design for industrial efficiency. Ideal for precision cylindrical grinding tasks.
- MCG800 Cylindrical Grinding Machine with Moving Grinding HeadDownload
Technical parameters of MCG800 Cylindrical Grinding Machine with Moving Grinding Head
Features
The well designed structure of MCG800 Cylindrical Grinding Machine with Moving Grinding Head ensures excellent processing capability.
The working table longitudinal travel is driven by hydraulic cylinder.
The base of the slide way is equipped with TF, and has been precisely manual scraped
Super strong wheel head spindle is support by bimetal shell bearing, and this structure makes the spindle have high rigidity and stability, as well as excellent finishing surface.
The wheel head could achieve power feed, and total feed could be set through adjusting the stop dog.
Head stock spindle is equipped with inverter motor; therefore the operator could adjust speed through the inverter panel quite easily.
Treadle which can spread or draw back the tail stock quill allows the operator to load workpiece by hand easily.
Standard accessories
1. Flange;
2. Three-jaw chuck;
3. Balance arbor;
4. Dog pole and arm;
5. Table swiveling wrench;
6. Alloy center;
7. Coolant tank;
8. Wheel;
9. Wheel extractor;
10. Wedge;
Optional accessories
1. Steady rest;
2. Radial dresser;
3. End dresser;
4. Balance stand;
Cylindrical grinder/MCG800 Moving Head Cylindrical Grinding Machine is a type of grinding machine used to shape the outside of an object. The cylindrical grinder can work on a variety of shapes, however the object must have a central axis of rotation. This includes but is not limited to such shapes as a cylinder, an ellipse, a cam, or a crankshaft.
A cylindrical grinder
Cylindrical grinder/Cylindrical Grinding Machine is defined as having four essential actions:
The work (object) must be constantly rotating;
The grinding wheel must be constantly rotating;
The grinding wheel is fed towards and away from the work;
Either the work or the grinding wheel is traversed with respect to the other.
While the majority of cylindrical grinders employ all four movements, there are grinders that only employ three of the four actions.
History of cylindrical grinder
The origins of the cylindrical grinder, as with all other modern machine tools, stem from the experimentation and invention of John Wilkinson and later Henry Maudslay who built the first horizontal boring machine and the first engine lathe, respectively. The cylindrical grinder owes much of its development from the onset of the Industrial Revolution, particularly to the advent of reliable, inexpensive steel production and later the improvement of the grinding wheel. The basis for the modern day cylindrical grinder was first built in the 1830s by two men working independently, Jonathan Bridges and James Wheaton . It is unclear as to which man had first produced the machine but both are closely tied to the first historical appearance of the modern day tool. It took another 40 years before further improvement and refinement of the tool occurred.
Types of cylindrical grinder/Cylindrical Grinding Machine
There are five different types of cylindrical grinding: outside diameter (OD) grinding, inside diameter (ID) grinding, plunge grinding, creep feed grinding, and centerless grinding.
Outside diameter grinding
OD grinding is grinding occurring on external surface a of an object between the centers. The centers are end units with a point that allow the object to be rotated. The grinding wheel is also being rotated in the same direction when it comes in contact with the object. This effectively means the two surfaces will be moving opposite directions when contact is made which allows for a smoother operation and less chance of a jam up.
Inside diameter grinding
ID grinding is grinding occurring on the inside of an object. The grinding wheel is always smaller than the width of the object. The object is held in place by a collet, which also rotates the object in place. Just as with OD grinding, the grinding wheel and the object rotated in opposite directions giving reversed direction contact of the two surfaces where the grinding occurs.
Plunge grinding
A form of OD grinding, however the major difference is that the grinding wheel makes continuous contact with a single point of the object instead of traversing the object.
Creep feed grinding
Creep Feed is a form of grinding where a full depth of cut is removed in a single pass of the wheel. Successful operation of this technique can reduce manufacturing time by 50%, but often the grinding machine being used must be designed specifically for this purpose. This form occurs in both cylindrical and surface grinding.
Centerless cylindrical grinder
A schematic of the centerless grinding process.
Centerless grinding is a form of grinding where there is no collet or pair of centers holding the object in place. Instead, there is a regulating wheel positioned on the opposite side of the object to the grinding wheel. A work rest keeps the object at the appropriate height but has no bearing on its rotary speed. The workblade is angled slightly towards the regulating wheel, with the workpiece centerline above the centerlines of the regulating and grinding wheel; this means that high spots do not tend to generate corresponding opposite low spots, and hence the roundness of parts can be improved. Centerless grinding is much easier to combine with automatic loading procedures than centered grinding; throughfeed grinding, where the regulating wheel is held at a slight angle to the part so that there is a force feeding the part through the grinder, is particularly efficient.
Control methods
There are three basics ways in which an operator can interact with a cylindrical grinder. Either manual manipulation of the machine, Numerical Control with a punched card system or using Computer Numerical Control using a pre existing interface designed for that machine or by using a PC as an interface to communicate with the grinder. The first two options are rarely if ever used today. CNC operated cylindrical grinders are the most technologically advanced, efficient, reliable systems in the manufacturing industry.
Applications
The cylindrical grinder is responsible for a plethora of innovations and inventions in the progression of science and technology. Any situation in which extremely precise metalworking is required, the cylindrical grinder is able to provide a high level of precision.[citation needed] From the automotive industry to military applications, the benefits of the cylindrical grinder are numerous.
| Main parameters | Unit | MCG800 |
|---|---|---|
| Distance between centers | mm | 5000; 6000; 8000; 10000 (197”; 236”; 315”; 394”) |
| Dia. Ground(O.D) | mm | Φ100~800 (3.9-31”) |
| Max length ground(O.D) | mm | 5000; 6000; 8000; 10000 (197”; 236”; 315”; 394”) |
| Max ground weight between centers | kg | 2000 |
| Max ground weight with support rest | kg | 6000; 10000 |
| Range of rest supporting | mm | 100~260; 260~400; 400~600 (3.9-10”; 10-16”; 16-24”) |
| Workhead center taper | Metric 100 | |
| Workhead spindle speed | r/min | 6~60 |
| Wheelhead hand feed per. gra | mm | 0.002; 0.02; 0.2 |
| Wheel size( OD x W x ID) | mm | Φ900x75x305 (35x3x12”) |
| Peripheral velocity | m/s | 35 |
| Cross saddle hand feed per. rev | mm | 1; 0.1; 0.01 |
| Longitudinal speed range of table | m/min | 0.05~4 |
| Tailstock center tape | Metric 100 | |
| Tailstock quill travel | mm | Manual: 100 |
| Cooling system flow | L/min | 100 |
| Wheelhead motor power | kW | 22 |
| Workhead motor power | kW | 22; 30 |
Features
The well designed structure of MCG800 Cylindrical Grinding Machine with Moving Grinding Head ensures excellent processing capability.
The working table longitudinal travel is driven by hydraulic cylinder.
The base of the slide way is equipped with TF, and has been precisely manual scraped
Super strong wheel head spindle is support by bimetal shell bearing, and this structure makes the spindle have high rigidity and stability, as well as excellent finishing surface.
The wheel head could achieve power feed, and total feed could be set through adjusting the stop dog.
Head stock spindle is equipped with inverter motor; therefore the operator could adjust speed through the inverter panel quite easily.
Treadle which can spread or draw back the tail stock quill allows the operator to load workpiece by hand easily.
Standard accessories
1. Flange;
2. Three-jaw chuck;
3. Balance arbor;
4. Dog pole and arm;
5. Table swiveling wrench;
6. Alloy center;
7. Coolant tank;
8. Wheel;
9. Wheel extractor;
10. Wedge;
Optional accessories
1. Steady rest;
2. Radial dresser;
3. End dresser;
4. Balance stand;
Cylindrical grinder/MCG800 Moving Head Cylindrical Grinding Machine is a type of grinding machine used to shape the outside of an object. The cylindrical grinder can work on a variety of shapes, however the object must have a central axis of rotation. This includes but is not limited to such shapes as a cylinder, an ellipse, a cam, or a crankshaft.
A cylindrical grinder
Cylindrical grinder/Cylindrical Grinding Machine is defined as having four essential actions:
The work (object) must be constantly rotating;
The grinding wheel must be constantly rotating;
The grinding wheel is fed towards and away from the work;
Either the work or the grinding wheel is traversed with respect to the other.
While the majority of cylindrical grinders employ all four movements, there are grinders that only employ three of the four actions.
History of cylindrical grinder
The origins of the cylindrical grinder, as with all other modern machine tools, stem from the experimentation and invention of John Wilkinson and later Henry Maudslay who built the first horizontal boring machine and the first engine lathe, respectively. The cylindrical grinder owes much of its development from the onset of the Industrial Revolution, particularly to the advent of reliable, inexpensive steel production and later the improvement of the grinding wheel. The basis for the modern day cylindrical grinder was first built in the 1830s by two men working independently, Jonathan Bridges and James Wheaton . It is unclear as to which man had first produced the machine but both are closely tied to the first historical appearance of the modern day tool. It took another 40 years before further improvement and refinement of the tool occurred.
Types of cylindrical grinder/Cylindrical Grinding Machine
There are five different types of cylindrical grinding: outside diameter (OD) grinding, inside diameter (ID) grinding, plunge grinding, creep feed grinding, and centerless grinding.
Outside diameter grinding
OD grinding is grinding occurring on external surface a of an object between the centers. The centers are end units with a point that allow the object to be rotated. The grinding wheel is also being rotated in the same direction when it comes in contact with the object. This effectively means the two surfaces will be moving opposite directions when contact is made which allows for a smoother operation and less chance of a jam up.
Inside diameter grinding
ID grinding is grinding occurring on the inside of an object. The grinding wheel is always smaller than the width of the object. The object is held in place by a collet, which also rotates the object in place. Just as with OD grinding, the grinding wheel and the object rotated in opposite directions giving reversed direction contact of the two surfaces where the grinding occurs.
Plunge grinding
A form of OD grinding, however the major difference is that the grinding wheel makes continuous contact with a single point of the object instead of traversing the object.
Creep feed grinding
Creep Feed is a form of grinding where a full depth of cut is removed in a single pass of the wheel. Successful operation of this technique can reduce manufacturing time by 50%, but often the grinding machine being used must be designed specifically for this purpose. This form occurs in both cylindrical and surface grinding.
Centerless cylindrical grinder
A schematic of the centerless grinding process.
Centerless grinding is a form of grinding where there is no collet or pair of centers holding the object in place. Instead, there is a regulating wheel positioned on the opposite side of the object to the grinding wheel. A work rest keeps the object at the appropriate height but has no bearing on its rotary speed. The workblade is angled slightly towards the regulating wheel, with the workpiece centerline above the centerlines of the regulating and grinding wheel; this means that high spots do not tend to generate corresponding opposite low spots, and hence the roundness of parts can be improved. Centerless grinding is much easier to combine with automatic loading procedures than centered grinding; throughfeed grinding, where the regulating wheel is held at a slight angle to the part so that there is a force feeding the part through the grinder, is particularly efficient.
Control methods
There are three basics ways in which an operator can interact with a cylindrical grinder. Either manual manipulation of the machine, Numerical Control with a punched card system or using Computer Numerical Control using a pre existing interface designed for that machine or by using a PC as an interface to communicate with the grinder. The first two options are rarely if ever used today. CNC operated cylindrical grinders are the most technologically advanced, efficient, reliable systems in the manufacturing industry.
Applications
The cylindrical grinder is responsible for a plethora of innovations and inventions in the progression of science and technology. Any situation in which extremely precise metalworking is required, the cylindrical grinder is able to provide a high level of precision.[citation needed] From the automotive industry to military applications, the benefits of the cylindrical grinder are numerous.
Features
The well designed structure of MCG800 Cylindrical Grinding Machine with Moving Grinding Head ensures excellent processing capability.
The working table longitudinal travel is driven by hydraulic cylinder.
The base of the slide way is equipped with TF, and has been precisely manual scraped
Super strong wheel head spindle is support by bimetal shell bearing, and this structure makes the spindle have high rigidity and stability, as well as excellent finishing surface.
The wheel head could achieve power feed, and total feed could be set through adjusting the stop dog.
Head stock spindle is equipped with inverter motor; therefore the operator could adjust speed through the inverter panel quite easily.
Treadle which can spread or draw back the tail stock quill allows the operator to load workpiece by hand easily.
The well designed structure of MCG800 Cylindrical Grinding Machine with Moving Grinding Head ensures excellent processing capability.
The working table longitudinal travel is driven by hydraulic cylinder.
The base of the slide way is equipped with TF, and has been precisely manual scraped
Super strong wheel head spindle is support by bimetal shell bearing, and this structure makes the spindle have high rigidity and stability, as well as excellent finishing surface.
The wheel head could achieve power feed, and total feed could be set through adjusting the stop dog.
Head stock spindle is equipped with inverter motor; therefore the operator could adjust speed through the inverter panel quite easily.
Treadle which can spread or draw back the tail stock quill allows the operator to load workpiece by hand easily.
Technical parameters of MCG800 Cylindrical Grinding Machine with Moving Grinding Head
| Main parameters | Unit | MCG800 |
|---|---|---|
| Distance between centers | mm | 5000; 6000; 8000; 10000 (197”; 236”; 315”; 394”) |
| Dia. Ground(O.D) | mm | Φ100~800 (3.9-31”) |
| Max length ground(O.D) | mm | 5000; 6000; 8000; 10000 (197”; 236”; 315”; 394”) |
| Max ground weight between centers | kg | 2000 |
| Max ground weight with support rest | kg | 6000; 10000 |
| Range of rest supporting | mm | 100~260; 260~400; 400~600 (3.9-10”; 10-16”; 16-24”) |
| Workhead center taper | Metric 100 | |
| Workhead spindle speed | r/min | 6~60 |
| Wheelhead hand feed per. gra | mm | 0.002; 0.02; 0.2 |
| Wheel size( OD x W x ID) | mm | Φ900x75x305 (35x3x12”) |
| Peripheral velocity | m/s | 35 |
| Cross saddle hand feed per. rev | mm | 1; 0.1; 0.01 |
| Longitudinal speed range of table | m/min | 0.05~4 |
| Tailstock center tape | Metric 100 | |
| Tailstock quill travel | mm | Manual: 100 |
| Cooling system flow | L/min | 100 |
| Wheelhead motor power | kW | 22 |
| Workhead motor power | kW | 22; 30 |
Discover the advanced MCG800 Cylindrical Grinding Machine, your premier solution for precision external and internal cylindrical grinding. This high-performance CNC cylindrical grinder features robust cast iron construction, a precision spindle with hydrodynamic bearings, and linear guideways ensuring exceptional rigidity and vibration damping. Engineered for demanding applications in automotive bearing production, aerospace component machining, hydraulic rod finishing, and tool manufacturing, it delivers micron-level accuracy (±0.001mm) and superior surface finishes. Key components include a user-friendly Siemens CNC control system, automatic wheel dressing unit, programmable coolant system, and integrated in-process gauging for unmatched efficiency. Optimize your production line with its rapid traverse rates, low maintenance requirements, and energy-efficient design, making it the top choice for high-volume precision grinding of shafts, rollers, sleeves, and complex profiles. Освойте высокоточное шлифование с универсальным круглошлифовальным станком MCG800 – идеальным оборудованием для обработки валов, втулок и сложных поверхностей. Этот прецизионный цилиндрический шлифовальный станок с ЧПУ оснащен жесткой станиной из чугуна, гидростатическими направляющими и мощным шпинделем, гарантируя минимальную вибрацию и высочайшую точность шлифования (±0.001 мм). Ключевые преимущества: автоматическая правка шлифовальных кругов, система подачи СОЖ под высоким давлением, встроенный измерительный прибор Siemens Sinumerik и возможность внутреннего шлифования. Применяется в серийном производстве подшипников, автомобильных компонентов, аэрокосмических деталей и гидравлических штоков. Надежность, высокая производительность и энергоэффективность делают его лучшим выбором для чистовой обработки металла. Maximice precisión y productividad con la rectificadora cilíndrica CNC MCG800, solución líder para rectificado exterior e interior de ejes, rodillos y piezas complejas. Esta máquina rectificadora de alta precisión ofrece robustez excepcional gracias a su bancada de fundición, guías lineales pre-tensionadas y husillo de alta velocidad con cojinetes hidrodinámicos. Logre tolerancias de ±0.001 mm y acabados superficiales Ra 0.1μm en aplicaciones automotrices (árboles de levas, cigüeñales), aeroespaciales, fabricación de moldes y componentes hidráulicos. Características clave: control Siemens intuitivo, sistema automático de dressado de muelas, bomba de refrigerante de alto caudal y opción de medición en proceso. Su diseño eficiente reduce tiempos de ciclo y costos operativos, siendo la elección óptima para talleres de mecanizado y producción en serie exigentes. Domine usinagem de precisão com a retificadora cilíndrica CNC MCG800, máquina essencial para retificação externa e interna de eixos, mancais e componentes complexos. Esta retificadora de alta performance combina estrutura rígida em ferro fundido, guias lineares com pré-carga e eixo-árvore hidrostático para acabamento superficial impecável (Ra 0.1μm) e tolerâncias apertadas (±0.001mm). Perfeita para indústria automotiva (bielas, virabrequins), aeroespacial, fabricação de moldes e ferramentas. Componentes principais: controle Siemens Sinumerik amigável, sistema automático de dressagem, bomba de refrigerante programável e medição integrada. Maximize eficiência na produção em série com baixo consumo energético e manutenção simplificada – ideal para oficinas mecânicas e linhas de manufatura. Открийте върховата точност със струговата машина MCG800 за цилиндрично шлифоване – перфектна за фина обработка на валове, гилзи и сложни профили. Този високопрецизен цилиндричен шлайфмашин с ЧПУ предлага здрава чугунена конструкция, хидростатични водачи и мощна шпиндела, гарантиращи минимална вибрация и изключителна точност на шлифоване (±0.001mm). Ключови предимства: автоматично заточване на шлифовъчните камъни, система за охлаждаща течност с високо налягане, интегрирана измерителна система Siemens Sinumerik и възможност за вътрешно шлифоване. Приложения: автомобилни лагери, аерокосмически компоненти, хидравлични пръти. Надеждността, високата производителност и енергийната ефективност го правят идеален за серийно производство. Оптимізуйте прецизне шліфування з універсальним круглошліфувальним верстатом MCG800 – ідеальним для обробки валів, втулок, конусів та гвинтових поверхонь. Цей високоточний циліндричний шліфувальний верстат з ЧПК має потужну чавунну станину, гідростатичні напрямні та шпиндель з гідродинамічними підшипниками, що забезпечує мікронну точність (±0.001 мм) та ідеальну чистоту поверхні (Ra 0.1 мкм). Застосовується у серійному виробництві підшипників, автомобільних компонентів, авіаційних деталей та гідроциліндрів. Ключові переваги: автоматична правка шліфувальних кругів, система подачі охолоджувальної рідини під тиском, інтуїтивне керування Siemens Sinumerik, опція внутрішнього шліфування. Надійність, енергоефективність та низькі експлуатаційні витрати роблять MCG800 оптимальним вибором для вимогливих виробництв. Побољшајте прецизну обраду са универзалним круглоглачалицом MCG800 – идеалном за спољно и унутрашње глодање осовина, лежајева и сложених профила. Ова високо прецизна цилиндрична глодалица са CNC управљањем садржи чврсту основу од сивог лива, хидростатске водице и снажни главни вратило, обезбеђујући минималне вибрације и изузетну тачност обраде (±0.001mm). Кључне предности: аутоматско оштрење глодаљки, високопритисни систем за хлађење, интегрисани мерни систем Siemens Sinumerik и могућност унутрашњег глодања. Применљива у производњи аутомобилских лежајева, аеро-компоненти, хидрауличних шипки. Поузданост, висока продуктивност и енергетска ефикасност чине га савршеним за серијску производњу. Zvyšte presnosť obrábania s CNC cylindrickou brúskou MCG800, určenou na vonkajšie aj vnútorné brúsenie hriadeľov, puzdier a tvarových plôch. Toto vysoko výkonné brúske stroje ponúka robustné liatinové telo, hydrostatické vedenie vretena a lineárne vedenia, zabezpečujúce brúsenie s toleranciou ±0.001 mm a povrchovou drsnosťou Ra 0.1μm. Využitie v automobilovom priemysle (čapy kľukových hriadeľov), leteckých komponentoch, výrobe foriem a hydraulických tyčí. Kľúčové komponenty: Siemens ovládací panel, automatický systém na ožarovanie brúsnych kolies, čerpadlo chladiacej kvapaliny a možnosť online merania. Vynikajúca produktivita, nízkych prevádzkových nákladov a spoľahlivosť z nej robia top voľbu pre sériovú výrobu. Unaprijedite precizno brušenje s CNC cilindričnom brusilicom MCG800, idealnom za vanjsko i unutarnje brušenje osovina, čahura i složenih profila. Ovaj visokoučinkoviti stroj za precizno brušenje sadrži čvrstu konstrukciju od sivog lijeva, hidrostatske vodilice i precizno glavno vreteno, osiguravajući tolerancije ±0.001 mm i izvrsnu kvalitetu površine (Ra 0.1μm). Primjenjiv u automobilskoj industriji (ležajevi), zrakoplovstvu, proizvodnji alata i hidrauličkih komponenti. Ključne prednosti: Siemens upravljačka jedinica, automatsko oštrenje brusnih kola, programabilni rashladni sustav i mogućnost unutarnjeg brušenja. Povećajte produktivnost serijske proizvodnje uz nisku potrošnju energije i jednostavno održavanje. Dosegli vrhunsko natančnost z valjno brusilnim strojem MCG800, zasnovanim za zunanje in notranje brušenje gredi, puš in kompleksnih oblik. Ta visoko natančna CNC valjna brusilna naprava združuje trdno litoželezno ogrodje, hidrostatične vodila in zmogljiv vreten za doseganje tolerance ±0.001 mm ter površinske hrapavosti Ra 0.1μm. Uporabna v avtomobilski industriji (ležaji), letalski komponenti, orodjarstvu in hidravličnih sistemih. Ključne lastnosti: Siemens krmilnik, avtomatski sistem za obdelavo brusilnih kolutov, visokotlačni sistem za hlajenje ter možnost integracije merilnega sistema. Zmanjšajte obratovalne stroške serijske proizvodnje z zanesljivostjo in energetsko učinkovitostjo.
