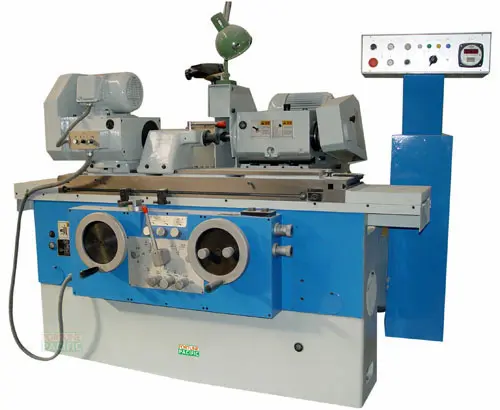

CG200SA Semi-automatic Cylindrical Grinding Machine
CG200SA Semi-Auto Cylindrical Grinder: Max grinding diameter 200mm, length 500mm. High precision (0.001mm), robust build, easy operation for industrial shafts and rods. Durable and efficient.
- CG200SA Semi-automatic Cylindrical Grinding MachineDownload
Technical parameters of CG200SA Semi-automatic Cylindrical Grinding Machine
Features
1. The hydraulic drive system uses screw pump which is of smooth running and low noise.
2. The wheel head adopts sleeve type hydrodynamic bearing main shafting and features high rotary precision and high rigidity.
3. The feeding guideway uses plastic-filming guideway, thus promoting the smoothness and vibration resistance of low-speed operations.
4. With high machining precision, the integral layout is rational, operating handles are centralized arranged.
5. CG200SA semi-automatic grinding machines can perform plunge or longitudinal grinding to conduct small-lot or batch production under the control of fixed-distance or automatic measuring instrument.
6. Various grinding functions and sequence of operation in processing cycle are controlled by PLC.
Standard accessories
1. Grinding wheel dresser;
2. Plane grinding wheel;
3. Balancing arbor;
4. Carbide tipped centers;
5. Single-head spanner;
6. Coolant tank;
Optional accessories
1. Open center rest;
2. Four-jaw chuck;
3. Diamond pen;
4. Grinding wheel balancing stand;
5. Automatic measuring instrument;
Cylindrical grinder/Cylindrical Grinding Machine is a type of grinding machine used to shape the outside of an object. The cylindrical grinder can work on a variety of shapes, however the object must have a central axis of rotation. This includes but is not limited to such shapes as a cylinder, an ellipse, a cam, or a crankshaft.
A cylindrical grinder
Cylindrical grinder/Cylindrical Grinding Machine is defined as having four essential actions:
The work (object) must be constantly rotating;
The grinding wheel must be constantly rotating;
The grinding wheel is fed towards and away from the work;
Either the work or the grinding wheel is traversed with respect to the other.
While the majority of cylindrical grinders employ all four movements, there are grinders that only employ three of the four actions.
History of cylindrical grinder
The origins of the cylindrical grinder, as with all other modern machine tools, stem from the experimentation and invention of John Wilkinson and later Henry Maudslay who built the first horizontal boring machine and the first engine lathe, respectively. The cylindrical grinder owes much of its development from the onset of the Industrial Revolution, particularly to the advent of reliable, inexpensive steel production and later the improvement of the grinding wheel. The basis for the modern day cylindrical grinder was first built in the 1830s by two men working independently, Jonathan Bridges and James Wheaton . It is unclear as to which man had first produced the machine but both are closely tied to the first historical appearance of the modern day tool. It took another 40 years before further improvement and refinement of the tool occurred.
Types of cylindrical grinder/Cylindrical Grinding Machine
There are five different types of cylindrical grinding: outside diameter (OD) grinding, inside diameter (ID) grinding, plunge grinding, creep feed grinding, and centerless grinding.
Outside diameter grinding
OD grinding is grinding occurring on external surface a of an object between the centers. The centers are end units with a point that allow the object to be rotated. The grinding wheel is also being rotated in the same direction when it comes in contact with the object. This effectively means the two surfaces will be moving opposite directions when contact is made which allows for a smoother operation and less chance of a jam up.
Inside diameter grinding
ID grinding is grinding occurring on the inside of an object. The grinding wheel is always smaller than the width of the object. The object is held in place by a collet, which also rotates the object in place. Just as with OD grinding, the grinding wheel and the object rotated in opposite directions giving reversed direction contact of the two surfaces where the grinding occurs.
Plunge grinding
A form of OD grinding, however the major difference is that the grinding wheel makes continuous contact with a single point of the object instead of traversing the object.
Creep feed grinding
Creep Feed is a form of grinding where a full depth of cut is removed in a single pass of the wheel. Successful operation of this technique can reduce manufacturing time by 50%, but often the grinding machine being used must be designed specifically for this purpose. This form occurs in both cylindrical and surface grinding.
Centerless cylindrical grinder
A schematic of the centerless grinding process.
Centerless grinding is a form of grinding where there is no collet or pair of centers holding the object in place. Instead, there is a regulating wheel positioned on the opposite side of the object to the grinding wheel. A work rest keeps the object at the appropriate height but has no bearing on its rotary speed. The workblade is angled slightly towards the regulating wheel, with the workpiece centerline above the centerlines of the regulating and grinding wheel; this means that high spots do not tend to generate corresponding opposite low spots, and hence the roundness of parts can be improved. Centerless grinding is much easier to combine with automatic loading procedures than centered grinding; throughfeed grinding, where the regulating wheel is held at a slight angle to the part so that there is a force feeding the part through the grinder, is particularly efficient.
Control methods
There are three basics ways in which an operator can interact with a cylindrical grinder. Either manual manipulation of the machine, Numerical Control with a punched card system or using Computer Numerical Control using a pre existing interface designed for that machine or by using a PC as an interface to communicate with the grinder. The first two options are rarely if ever used today. CNC operated cylindrical grinders are the most technologically advanced, efficient, reliable systems in the manufacturing industry.
Applications
The cylindrical grinder is responsible for a plethora of innovations and inventions in the progression of science and technology. Any situation in which extremely precise metalworking is required, the cylindrical grinder is able to provide a high level of precision.[citation needed] From the automotive industry to military applications, the benefits of the cylindrical grinder are numerous.
| Model | CG200 | |
|---|---|---|
| Type | SA | |
| Distance between centers mm | 520; 765; 1080 (20”; 30”; 43’) |
|
| Center height mm | 125 (4.9”) | |
| Max. swiveling diameter mm | Φ240 (9.4”) | |
| Max. grinding length mm | 500; 750; 1000 (20”; 30”; 39”) |
|
| Grinding range mm | Φ5~Φ200 (2-7.9”) | |
| Distance between workpiece center to ground mm | 1000 (39”) | |
| Max. weight of workpiece between centers kg | 50 | |
| Max. weight of workpiece in chuck kg | 30 | |
| Grinding wheel | Dimensions (OD × W × ID) mm | Φ400×(32~50)×203 (16x(1.3-2)x8”) |
| Max. linear velocity m/s | 35 | |
| Swiveling angle of table | Clockwise | 9°(500); 8°(750); 3° (1000) |
| Counter-clockwise | 9°(500); 8°(750); 7° (1000) | |
| Hydraulic control speed m/min | 0.1-3 | |
| Table movement per rev of hand wheel mm | 10 | |
| Swiveling angle of wheelhead | Clockwise | 3° |
| Counter-clockwise | 3° | |
| Travel mm | 150 (5.9”) | |
| Feed movement of manual control mm | 70 (2.8”) | |
| Rapid travel of hydraulic control mm | 35 (1.6”) | |
| Cross feed of wheelhead | Per rev of hand wheel mm | 1 |
| Micro feeding mm | 0.002 | |
| Rough feed cutting speed mm/min | 0.08-1; stepless | |
| Fine feed cutting speed mm/min | 0.06-0.5; stepless | |
| Automatic feed depth mm | 0.45 | |
| Automatic endpoint rough feed mm | 0.002-0.02 | |
| Automatic endpoint fine feed mm | 0.001-0.01 | |
| Workhead | Spindle speed r/min | 63/125/250/500 |
| Swiveling angle (counter-clockwise) | 90° | |
| Spindle taper | MT-4 | |
| Tailstock | Manual travel of center sleeve mm | 25 (1”) |
| Taper of center sleeve | MT-4 | |
| Cylindrical grinding motor power kW | 4 | |
| Cylindrical grinding motor speed r/min | 1500 | |
| Workhead motor power kW | 0.75 | |
| Workhead motor speed r/min | 1000 | |
| Oil pump motor power kW | 1.1 | |
| Oil pump motor speed r/min | 1500 | |
| Cooling pump motor power kW | 0.125 | |
| Cooling pump motor speed r/min | 3000 | |
| Net weight kg | 2500; 3000; 3500 | |
| Gross weight kg | 3100; 3600; 4100 | |
| Packing dimensions | L mm | 2750; 2870; 3700 |
| W mm | 2000 | |
| H mm | 2100 | |
Features
1. The hydraulic drive system uses screw pump which is of smooth running and low noise.
2. The wheel head adopts sleeve type hydrodynamic bearing main shafting and features high rotary precision and high rigidity.
3. The feeding guideway uses plastic-filming guideway, thus promoting the smoothness and vibration resistance of low-speed operations.
4. With high machining precision, the integral layout is rational, operating handles are centralized arranged.
5. CG200SA semi-automatic grinding machines can perform plunge or longitudinal grinding to conduct small-lot or batch production under the control of fixed-distance or automatic measuring instrument.
6. Various grinding functions and sequence of operation in processing cycle are controlled by PLC.
Standard accessories
1. Grinding wheel dresser;
2. Plane grinding wheel;
3. Balancing arbor;
4. Carbide tipped centers;
5. Single-head spanner;
6. Coolant tank;
Optional accessories
1. Open center rest;
2. Four-jaw chuck;
3. Diamond pen;
4. Grinding wheel balancing stand;
5. Automatic measuring instrument;
Cylindrical grinder/Cylindrical Grinding Machine is a type of grinding machine used to shape the outside of an object. The cylindrical grinder can work on a variety of shapes, however the object must have a central axis of rotation. This includes but is not limited to such shapes as a cylinder, an ellipse, a cam, or a crankshaft.
A cylindrical grinder
Cylindrical grinder/Cylindrical Grinding Machine is defined as having four essential actions:
The work (object) must be constantly rotating;
The grinding wheel must be constantly rotating;
The grinding wheel is fed towards and away from the work;
Either the work or the grinding wheel is traversed with respect to the other.
While the majority of cylindrical grinders employ all four movements, there are grinders that only employ three of the four actions.
History of cylindrical grinder
The origins of the cylindrical grinder, as with all other modern machine tools, stem from the experimentation and invention of John Wilkinson and later Henry Maudslay who built the first horizontal boring machine and the first engine lathe, respectively. The cylindrical grinder owes much of its development from the onset of the Industrial Revolution, particularly to the advent of reliable, inexpensive steel production and later the improvement of the grinding wheel. The basis for the modern day cylindrical grinder was first built in the 1830s by two men working independently, Jonathan Bridges and James Wheaton . It is unclear as to which man had first produced the machine but both are closely tied to the first historical appearance of the modern day tool. It took another 40 years before further improvement and refinement of the tool occurred.
Types of cylindrical grinder/Cylindrical Grinding Machine
There are five different types of cylindrical grinding: outside diameter (OD) grinding, inside diameter (ID) grinding, plunge grinding, creep feed grinding, and centerless grinding.
Outside diameter grinding
OD grinding is grinding occurring on external surface a of an object between the centers. The centers are end units with a point that allow the object to be rotated. The grinding wheel is also being rotated in the same direction when it comes in contact with the object. This effectively means the two surfaces will be moving opposite directions when contact is made which allows for a smoother operation and less chance of a jam up.
Inside diameter grinding
ID grinding is grinding occurring on the inside of an object. The grinding wheel is always smaller than the width of the object. The object is held in place by a collet, which also rotates the object in place. Just as with OD grinding, the grinding wheel and the object rotated in opposite directions giving reversed direction contact of the two surfaces where the grinding occurs.
Plunge grinding
A form of OD grinding, however the major difference is that the grinding wheel makes continuous contact with a single point of the object instead of traversing the object.
Creep feed grinding
Creep Feed is a form of grinding where a full depth of cut is removed in a single pass of the wheel. Successful operation of this technique can reduce manufacturing time by 50%, but often the grinding machine being used must be designed specifically for this purpose. This form occurs in both cylindrical and surface grinding.
Centerless cylindrical grinder
A schematic of the centerless grinding process.
Centerless grinding is a form of grinding where there is no collet or pair of centers holding the object in place. Instead, there is a regulating wheel positioned on the opposite side of the object to the grinding wheel. A work rest keeps the object at the appropriate height but has no bearing on its rotary speed. The workblade is angled slightly towards the regulating wheel, with the workpiece centerline above the centerlines of the regulating and grinding wheel; this means that high spots do not tend to generate corresponding opposite low spots, and hence the roundness of parts can be improved. Centerless grinding is much easier to combine with automatic loading procedures than centered grinding; throughfeed grinding, where the regulating wheel is held at a slight angle to the part so that there is a force feeding the part through the grinder, is particularly efficient.
Control methods
There are three basics ways in which an operator can interact with a cylindrical grinder. Either manual manipulation of the machine, Numerical Control with a punched card system or using Computer Numerical Control using a pre existing interface designed for that machine or by using a PC as an interface to communicate with the grinder. The first two options are rarely if ever used today. CNC operated cylindrical grinders are the most technologically advanced, efficient, reliable systems in the manufacturing industry.
Applications
The cylindrical grinder is responsible for a plethora of innovations and inventions in the progression of science and technology. Any situation in which extremely precise metalworking is required, the cylindrical grinder is able to provide a high level of precision.[citation needed] From the automotive industry to military applications, the benefits of the cylindrical grinder are numerous.
Features
1. The hydraulic drive system uses screw pump which is of smooth running and low noise.
2. The wheel head adopts sleeve type hydrodynamic bearing main shafting and features high rotary precision and high rigidity.
3. The feeding guideway uses plastic-filming guideway, thus promoting the smoothness and vibration resistance of low-speed operations.
4. With high machining precision, the integral layout is rational, operating handles are centralized arranged.
5. CG200SA semi-automatic grinding machines can perform plunge or longitudinal grinding to conduct small-lot or batch production under the control of fixed-distance or automatic measuring instrument.
6. Various grinding functions and sequence of operation in processing cycle are controlled by PLC.
1. The hydraulic drive system uses screw pump which is of smooth running and low noise.
2. The wheel head adopts sleeve type hydrodynamic bearing main shafting and features high rotary precision and high rigidity.
3. The feeding guideway uses plastic-filming guideway, thus promoting the smoothness and vibration resistance of low-speed operations.
4. With high machining precision, the integral layout is rational, operating handles are centralized arranged.
5. CG200SA semi-automatic grinding machines can perform plunge or longitudinal grinding to conduct small-lot or batch production under the control of fixed-distance or automatic measuring instrument.
6. Various grinding functions and sequence of operation in processing cycle are controlled by PLC.
Technical parameters of CG200SA Semi-automatic Cylindrical Grinding Machine
| Model | CG200 | |
|---|---|---|
| Type | SA | |
| Distance between centers mm | 520; 765; 1080 (20”; 30”; 43’) |
|
| Center height mm | 125 (4.9”) | |
| Max. swiveling diameter mm | Φ240 (9.4”) | |
| Max. grinding length mm | 500; 750; 1000 (20”; 30”; 39”) |
|
| Grinding range mm | Φ5~Φ200 (2-7.9”) | |
| Distance between workpiece center to ground mm | 1000 (39”) | |
| Max. weight of workpiece between centers kg | 50 | |
| Max. weight of workpiece in chuck kg | 30 | |
| Grinding wheel | Dimensions (OD × W × ID) mm | Φ400×(32~50)×203 (16x(1.3-2)x8”) |
| Max. linear velocity m/s | 35 | |
| Swiveling angle of table | Clockwise | 9°(500); 8°(750); 3° (1000) |
| Counter-clockwise | 9°(500); 8°(750); 7° (1000) | |
| Hydraulic control speed m/min | 0.1-3 | |
| Table movement per rev of hand wheel mm | 10 | |
| Swiveling angle of wheelhead | Clockwise | 3° |
| Counter-clockwise | 3° | |
| Travel mm | 150 (5.9”) | |
| Feed movement of manual control mm | 70 (2.8”) | |
| Rapid travel of hydraulic control mm | 35 (1.6”) | |
| Cross feed of wheelhead | Per rev of hand wheel mm | 1 |
| Micro feeding mm | 0.002 | |
| Rough feed cutting speed mm/min | 0.08-1; stepless | |
| Fine feed cutting speed mm/min | 0.06-0.5; stepless | |
| Automatic feed depth mm | 0.45 | |
| Automatic endpoint rough feed mm | 0.002-0.02 | |
| Automatic endpoint fine feed mm | 0.001-0.01 | |
| Workhead | Spindle speed r/min | 63/125/250/500 |
| Swiveling angle (counter-clockwise) | 90° | |
| Spindle taper | MT-4 | |
| Tailstock | Manual travel of center sleeve mm | 25 (1”) |
| Taper of center sleeve | MT-4 | |
| Cylindrical grinding motor power kW | 4 | |
| Cylindrical grinding motor speed r/min | 1500 | |
| Workhead motor power kW | 0.75 | |
| Workhead motor speed r/min | 1000 | |
| Oil pump motor power kW | 1.1 | |
| Oil pump motor speed r/min | 1500 | |
| Cooling pump motor power kW | 0.125 | |
| Cooling pump motor speed r/min | 3000 | |
| Net weight kg | 2500; 3000; 3500 | |
| Gross weight kg | 3100; 3600; 4100 | |
| Packing dimensions | L mm | 2750; 2870; 3700 |
| W mm | 2000 | |
| H mm | 2100 | |
Discover the CG200SA Semi-Automatic Cylindrical Grinding Machine your premier solution for high-precision external cylindrical and taper grinding. This robust OD grinder features a heavy-duty cast iron construction ensuring exceptional stability minimal vibration during operation. Key components include a precision spindle assembly with high-grade bearings a user-friendly hydraulic table feed system and variable speed workhead for optimal control over diverse workpieces. Engineered for demanding workshops this universal cylindrical grinder excels in machining automotive shafts hydraulic rods bearing races and precision tooling delivering micron-level accuracy consistently. Operators benefit from its semi-automatic cycle reducing manual intervention boosting productivity for batch production. Advantages encompass superior surface finish extended wheel life through efficient coolant management and remarkable reliability for continuous shop floor operation. Essential for toolrooms production lines and job shops seeking cost-effective precision grinding equipment that enhances efficiency minimizes downtime and delivers repeatable results batch after batch. Узнайте о высокоточном полуавтоматическом круглошлифовальном станке CG200SA идеальном решении для наружного шлифования цилиндрических и конических поверхностей. Этот надежный станок для наружного шлифования (круглошлифовальный станок) отличается массивной чугунной станиной обеспечивающей исключительную жесткость и виброустойчивость. Основные узлы: прецизионный шпиндель с высокоточными подшипниками удобная гидравлическая подача стола и регулируемая скорость вращения планшайбы для обработки разнообразных деталей. Этот универсальный шлифовальный станок предназначен для цехов обрабатывающих валы автомобильных двигателей штоки гидроцилиндров кольца подшипников и инструмент гарантируя микронную точность. Полуавтоматический цикл повышает производительность при серийном производстве сокращая ручной труд. Ключевые преимущества: превосходная чистота поверхности увеличенный срок службы шлифовальных кругов благодаря эффективной системе подачи СОЖ и высокая надежность для бесперебойной работы. Незаменим в инструментальных и производственных цехах для точного экономичного шлифования повышающего эффективность и обеспечивающего стабильное качество партий деталей. Descubra la CG200SA Rectificadora Cilíndrica Semiautomática su solución definitiva para el rectificado cilíndrico externo de alta precisión y el rectificado de conos. Esta robusta rectificadora para exteriores (rectificadora cilíndrica universal) cuenta con una construcción pesada en hierro fundido que garantiza estabilidad excepcional y mínima vibración. Componentes clave: un cabezal de husillo de precisión con rodamientos de alta calidad un sistema hidráulico de avance de mesa fácil de usar y una velocidad variable del cabezal para un control óptimo. Diseñada para talleres exigentes esta máquina de rectificado cilíndrico sobresale en el mecanizado de ejes automotrices vástagos hidráulicos pistas de rodamientos y herramientas ofreciendo precisión a nivel de micras. Su ciclo semiautomático aumenta la productividad en producción en serie reduciendo la intervención manual. Ventajas: acabado superficial superior larga vida útil de la muela gracias a un eficiente sistema de refrigeración y notable confiabilidad. Esencial para talleres de herramientas líneas de producción y trabajos bajo pedido que buscan equipos de rectificado cilíndrico precisos y rentables mejorando la eficiencia y garantizando resultados repetibles. Conheça a Retificadora Cilíndrica Semiautomática CG200SA sua solução premium para retificação cilíndrica externa de alta precisão e retificação cônica. Esta robusta retificadora externa (retificadora cilíndrica universal) apresenta construção em ferro fundido pesado garantindo estabilidade excepcional e vibração mínima. Componentes principais: montagem de fuso de precisão com rolamentos de alta qualidade sistema hidráulico de avanço de mesa intuitivo e cabeçote com velocidade variável para controle ideal. Projetada para oficinas exigentes esta máquina de retificação cilíndrica destaca-se no usinamento de eixos automotivos hastes hidráulicas pistas de rolamentos e ferramentas oferecendo precisão em nível de mícron. O ciclo semiautomático aumenta a produtividade para produção em série. Vantagens: acabamento superficial superior vida útil prolongada do rebolo graças ao sistema eficiente de refrigeração e confiabilidade notável. Essencial para ferramentarias linhas de produção e oficinas buscando equipamento de retificação cilíndrica preciso e econômico que aumenta eficiência e entrega resultados repetíveis. اكتشف آلة الطحن الأسطوانية شبه الأوتوماتيكية CG200SA الحل الأمير لطحن الأسطح الأسطوانية الخارجية بدقة عالية وطحن الأسطح المخروطية. تتميز هذه الآلة القوية للطحن الخارجي (آلة الطحن الأسطوانية العالمية) بتصميمها الصلب من الحديد الزهر مما يضمن استقراراً استثنائياً واهتزازاتٍ دنيا أثناء التشغيل. المكونات الرئيسية: تجميع محور دقيق مع محامل عالية الجودة نظام تغذية هيدروليكي سهّل الاستخدام لطاولة العمل ورأس دوار بسرعة متغيرة للتحكم الأمثل في المشغولات المتنوعة. صُممت هذه الآلة لورش العمل المطلوبة حيث تتفوق في تشغيل أعمدة السيارات قضبان الهيدروليك حلقات المحامل والأدوات الدقيقة لتقديم دقة بالميكرون. يستفيد المشغلون من دورة التشغيل شبه الأوتوماتيكية التي تقلل التدخل اليدوي وتعزز الإنتاجية للتشغيل على دفعات. تشمل المزايا: تشطيب سطحي فائق عمر طويل للعجلة الكاشطة من خلال نظام تبريد فعال وموثوقية ملحوظة لتشغيل مستمر. أساسية لورش الأدوات خطوط الإنتاج والمشاغل التي تبحث عن معدات طحن أسطوانية دقيقة وفعالة التكلفة تعزز الكفاءة وتقلل وقت التوقف وتضمن نتائج متكررة. Entdecken Sie die CG200SA halbautomatische Rundschleifmaschine Ihre Präzisionslösung für das Außenrundschleifen und Kegelschleifen. Diese robuste OD-Schleifmaschine (Universalschleifmaschine für Zylinder) überzeugt mit einem schweren Graugussgehäuse für außergewöhnliche Stabilität und minimale Schwingungen. Schlüsselkomponenten: Präzisions-Spindeleinheit mit Hochleistungslagern benutzerfreundlicher hydraulischer Tischvorschub und drehzahlvariables Spindelstock für optimale Bearbeitung. Konzipiert für anspruchsvolle Werkstätten wie Kfz-Wellen Hydraulikstangen Wälzlagerringe und Präzisionswerkzeuge erreicht diese Rundschleifmaschine Mikrometer-Genauigkeit. Halbautomatischer Arbeitszyklus steigert die Effizienz bei der Serienfertigung. Vorteile: Erstklassige Oberflächengüte verlängerte Schleifscheibenstandzeit durch effiziente Kühlmittelzufuhr und hohe Zuverlässigkeit für durchgängige Produktion. Unverzichtbar für Werkzeugbau Fertigungslinien und Reparaturbetriebe die wirtschaftliche Präzisionsschleifmaschinen zur Effizienzsteigerung und konstanten Qualitätssicherung suchen. Ontdek de CG200SA Halfautomatische Cilinderschuurmachine uw oplossing voor precisie-externe cilindrische en conische slijpbewerkingen. Deze robuuste rondslijpmachine (cilindrische slijpmachine) heeft een zware gietijzeren constructie voor uitzonderlijke stabiliteit en minimale trillingen. Belangrijke onderdelen: een precisie spilassemblage hoogwaardige lagers gebruiksvriendelijk hydraulisch tafelvoer en variabel toerental werkstukkop. Geschikt voor veeleisende werkplaatsen voor het bewerken van o.a. auto-assen hydraulische stangen lagerringen en gereedschap met micronnauwkeurigheid. Het halfautomatische proces verhoogt de productiviteit voor seriewerk. Voordelen: superieur oppervlak langere slijpschijvenlevensduur door efficiënte koelvloeistofbehandeling en opmerkelijke betrouwbaarheid. Essentieel voor gereedschapsmakerijen productielijnen en jobshops voor kosteneffectieve precisie slijpmachines die efficiëntie verhogen en herhaalbare resultaten garanderen. Poznaj Półautomatyczną Szlifierkę Do Wałków CG200SA Twoje rozwiązanie do precyzyjnego szlifowania zewnętrznego powierzchni cylindrycznych i stożkowych. Ta solidna szlifierka do wałków (uniwersalna szlifierka cylindryczna) charakteryzuje się ciężką konstrukcją żeliwną zapewniającą wyjątkową stabilność i minimalne wibracje. Kluczowe elementy: precyzyjny wrzeciono łożyska wysokiej jakości hydrauliczny posuw stołu oraz zmienna prędkość obrotowa głowicy. Idealna do obróbki wałów samochodowych tłoczysk hydraulicznych pierścieni łożysk i narzędzi gwarantuje dokładność na poziomie mikronów. Cykl półautomatyczny zwiększa wydajność produkcji seryjnej. Zalety: doskonała jakość powierzchni dłuższa żywotność ściernicy dzięki wydajnemu chłodziwu oraz wysoka niezawodność. Niezbędna w narzędziowniach i produkcji zapewnia ekonomiczne precyzyjne szlifowanie poprawiające efektywność i powtarzalność. Descoperă Mașina de Rectificat Cilindrică Semiautomată CG200SA soluția ta de precizie pentru rectificat cilindric exterior și conic. Această robustă mașină de rectificat exterior (rectificatoare cilindrice universale) are o construcție masivă din fontă asigurând stabilitate excepțională și vibrații minime. Componente cheie: ax principal de precizie cu rulmenți de calitate sistem hidraulic de avans a mesei ușor de utilizat și viteză variabilă a capului portpiesa. Proiectată pentru ateliere solicitante această mașină de rectificat cilindrică excelă în prelucrarea arborilor auto tijelor hidraulice inele de rulmenți și scule oferind precizie la nivel de micron. Ciclul semiautomat crește productivitatea. Avantaje: finisaj superficial superior durată de viață îmbunătățită a discului abraziv datorită sistemului eficient de răcire și fiabilitate remarcabilă. Esențială pentru atelierele de scule linii de producție și job-shop-uri căutând echipamente de rectificat cilindrică precise și rentabile care îmbunătățesc eficiența și oferă rezultate repetabile. Ismerd meg a CG200SA Félautomata Orsóköszörű Gépet a nagy pontosságú külső hengeres és kúpos köszörülés ideális megoldását. Ez a robusztus OD-köszörűgép (univerzális orsóköszörűgép) nehéz öntöttvas kivitelével kiváló stabilitást és minimális rezgést biztosít. Fő alkatrészek: precíziós orsóegység minőségi csapágyak felhasználóbarát hidraulikus asztalelőtolás és változtatható fordulatszámú munkadarab-fogó. Igényes műhelyekben alkalmazható autóalkatrészek hidraulika rudak csapágygyűrűk és szerszámok megmunkálására mikronos pontossággal. Félautomata ciklus növeli a sorozatgyártás hatékonyságát. Előnyök: kiváló felületi minőség hosszabb köszörűkorong élettartam hatékony hűtőrendszerrel és kiemelkedő megbízhatóság. Nélkülözhetetlen szerszámos műhelyekben gyártósorokon és job-shopokban gazdaságos precíziós köszörülést kínálva hatékonyságnövelő és ismételhető eredményekkel. Ανακαλύψτε το Ημι-Αυτόματο Ακροφύσιο CG200SA τη λύση ακριβείας για εξωτερική κυλινδρική και κωνική λείανση. Αυτό το ανθεκτικό μηχάνημα εξωτερικής λείανσης (καθολικό κυλινδρικό μηχάνημα λείανσης) διαθέτει βαριά χυτοσιδήρου κατασκευή εξασφαλίζοντας αξιοσημείωτη σταθερότητα και ελάχιστη δόνηση. Βασικά στοιχεία: ακριβές σύστημα ατράκτου με ρουλεμάν υψηλής ποιότητας υδραυλικό σύστημα τροφοδοσίας πίνακα εύχρηστο και μεταβλητή ταχύτητα περιστροφής κεφαλής εργασίας. Σχεδιασμένο για απαιτητικά εργαστήρια διακρίνεται στην κατεργασία αυτοκινητιστικών αξόνων υδραυλικών ράβδων δακτυλίων ρουλεμάν και εργαλείων παρέχοντας ακρίβεια μικρομέτρου. Ο ημι-αυτόματος κύκλος αυξάνει την παραγωγικότητα για μαζική παραγωγή. Πλεονεκτήματα: ανώτερη επιφανειακή ολοκλήρωση παρατεταμένη διάρκεια ζωής τροχού μέσω αποτελεσματικής διαχείρισης ψυκτικού και αξιοσημείωτη αξιοπιστία. Απαραίτητο για εργαστήρια εργαλείων γραμμές παραγωγής και εργαστήρια αναζητώντας οικονομικά αποδοτικούς εξοπλισμούς ακριβείας που βελτιώνουν την αποτελεσματικότητα και την επαναληψιμότητα. Objevte poloautomatickou brusku na válce CG200SA vaše špičkové řešení pro vysoce přesné vnější válcové a kuželové broušení. Tato robustní bruska na vnější plochy (univerzální válcová bruska) se vyznačuje těžkou litinovou konstrukcí zajišťující výjimečnou stabilitu a minimální vibrace. Klíčové součásti: přesné vřetenové soustrojí s vysoce kvalitními ložisky uživatelsky přívětivý hydraulický posuv stolu a variabilní rychlost obráběcí hlavy. Určena pro náročné dílny vyniká při broušení automobilových hřídelí hydraulických tyčí ložiskových kroužků a nástrojů s mikronovou přesností. Poloautomatický cyklus zvyšuje produktivitu pro sériovou výrobu. Výhody: vynikající povrchová úprava prodloužená životnost brusného kotouče díky účinnému chlazení a vynikající spolehlivost. Nezbytná pro nástrojárny výrobní linky a opravárenské dílny hledající nákladově efektivní brusky na válce pro zvýšení efektivity a opakovatelných výsledků.
