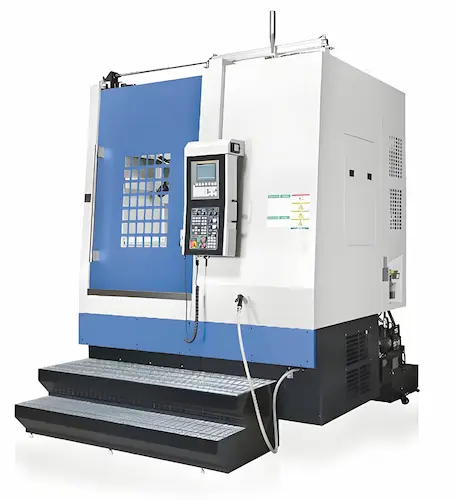

VNL80S CNC Vertical Lathe Machine specifications
VNL80S CNC vertical lathe is mainly used for high speed steel and carbide cutting tools. For coarse and fine machining of ferrous metals, non-ferrous metals and some non-metallic parts, internal and external cylindrical surfaces, internal and external conical surfaces, arcs, metric threads, and High-speed turning of various complex shapes of turning surfaces.
VNL80S CNC Vertical Lathe Equipments
VNL80S CNC Vertical Lathe Optional
VNL80S CNC Vertical Lathe Construction
Square size for base and column, integrated part, stable structure.
All structure by the finite element analysis, strive to structure optimization, and guarantee the stability of cutting precision 30% rigidity increased compared with the traditional design.
Heavy load and high rigidity box guide rail, with large bearing capacity. High precision, eliminate low speed crawling machine, Suitable for heavy cutting and high speed cutting.
Guide way model: RGH45/RGH55
Slide’s quantity: 2/2
The spindle adopt NSK screw special bearing.
Double roller cylindrical bearings
Angular contact ball bearing combination.
The spindle is flange structure and is fixed on a high-rigidity box base to minimize the influence of thermal deviation and vibration.
The spindle components of each machine are tested for dynamic balance, which guarantees the high-precision cutting of the machine.
Special labyrinth seals prevent the spindle from being damaged by dust and cutting fluid during machining.
Spindle motor and two-speed gearbox, in order to meet high-speed/low-speed cutting capability at the same time.
Spindle Torque Diagram
Turret:High-performance 12 station hydraulic turret as standard.
6T vertical servo turret as option.
| Item | VNL80S |
| Capacity | |
| Max turning dia. (axial/disc parts) | Φ650/850mm |
| Max. swing over dia. | Φ930mm |
| Max workpiece height | 770mm |
| X travel | 480mm |
| Z travel | 780mm |
| X axis servo motor torque | 20Nm |
| Z axis servo motor torque | 20Nm |
| X axis rapid traverse rate | 16m/min |
| Z axis rapid traverse rate | 16m/min |
| Cutting feed rate | 1~1,500mm/min |
| X/Z positioning accuracy | 0.008/0.012mm |
| X/Z repeatability accuracy | 0.006/0.008mm |
| Spindles | |
| Spindle type | A2-11 |
| Spindle bore dia. | Φ75mm |
| Spindle speed | 50~1500r/min |
| Torque | 1345Nm |
| Motor power | 22/30kW |
| Chuck | 18” hydraulic chuck (soft 3-jaw) |
| Turret | |
| Drive | Hydraulic |
| Tool number | Horizontal 12T |
| Tool size | 32x32mm |
| Others | |
| Power required | 35kVA |
| Coolant tank voltage | 340L |
| Machine gross weight | 9500kg |
| Floor space (L*W*H) | 2050x3840x3670mm |
VNL80S CNC vertical lathe is mainly used for high speed steel and carbide cutting tools. For coarse and fine machining of ferrous metals, non-ferrous metals and some non-metallic parts, internal and external cylindrical surfaces, internal and external conical surfaces, arcs, metric threads, and High-speed turning of various complex shapes of turning surfaces.
| Item 01 | Descriptions | |
| 01.01 | FANUC 0i TF(3B) Plus control with 10.4” display | |
| 01.02 | A2-11, 1500rpm belt-drive spindle with China-made servo motor 22/30kW | |
| 01.03 | 18” solid hydraulic chuck & 1 set of soft 3-jaw | |
| 01.04 | 12T horizontal hydraulic turret | |
| 01.05 | Air conditioner of electrical cabinet | |
| 01.06 | Auto chip conveyor & Chip cart | |
| 01.07 | Full enclosure splash guard | |
| 01.08 | Telescopic covers | |
| 01.09 | Cooling system | |
| 01.10 | Hydraulic system | |
| 01.11 | Automatic lubricating system | |
| 01.12 | Chip rushing system | |
| 01.13 | Air gun+ water gun | |
| 01.14 | Work light & Tri-color signal light | |
| 01.15 | Program and data protection key | |
| 01.16 | Lifting eye bolts | |
| 01.17 | Installation parts | |
| 01.18 | Spare parts (fuses & pull stud, etc.) | |
| 01.19 | Assembly & Operation tools | |
| 01.20 | Instruction manual, parts list, and electrical drawings |
| Item 02 | Descriptions | Note |
| 02.01 | FANUC 0I TF1 Plus with FANUC α servo motor 18.5kw | |
| 02.02 | SIEMENS 828D 240 with SIEMENS servo motor 27kw | |
| 02.03 | SIEMENS 828D 260 with SIEMENS servo motor 27kw | |
| 02.04 | SIEMENS 828D 280 with SIEMENS servo motor 27kw | |
| 02.05 | Shop turn | |
| 02.06 | Manual guide 0I | |
| 02.07 | Manual guide I | for FANUC TF1 |
| 02.08 | DATA SERVE 2GB | for FANUC TF1 |
| 02.09 | Memory of FANUC controller 2MB | |
| 02.10 | M30 auto power off | |
| 02.11 | 2 year FANUC warranty | |
| 02.12 | 2 year SIEMENS warranty | |
| 02.13 | 380V 50HZ/415V 50 HZ /220V 60 HZ | |
| 02.14 | Transformer | |
| 02.15 | 12T horizontal servo turret, 32x32 | |
| 02.16 | 6T vertical servo turret, 32x32 | |
| 02.17 | Boring tool holder | |
| 02.18 | End face turning tool holder + Installation block | |
| 02.19 | Manual hard jaw (21inch hydraulic chuck) | 1 set |
| 02.20 | Soft jaw (21inch hydraulic chuck) | 1 set |
| 02.21 | Manual hard jaw (24inch hydraulic chuck) | 1 set |
| 02.22 | Soft jaw (24inch hydraulic chuck) | 1 set |
| 02.23 | Manual hard jaw (32inch hydraulic chuck) | 1 set |
| 02.24 | Soft jaw (32inch hydraulic chuck) | 1 set |
| 02.25 | Manual hard jaw (40inch hydraulic chuck) | 1 set |
| 02.26 | Soft jaw (40inch hydraulic chuck) | 1 set |
| 02.27 | Change to 500mm manual chuck | Include 4 hard jaw |
| 02.28 | Change to 630mm manual chuck | Include 4 hard jaw |
| 02.29 | Change to 800mm manual chuck | Include 4 hard jaw |
| 02.30 | Change to 500mm hydraulic chuck + 3 soft jaw | AUTOBLOK |
| 02.31 | Change to 630mm hydraulic chuck + 3 soft jaw | AUTOBLOK |
| 02.32 | Change to 800mm hydraulic chuck + 3 soft jaw | AUTOBLOK |
| 02.33 | Change to 1000mm hydraulic chuck + 3 soft jaw | AUTOBLOK |
| 02.34 | Change to 24inch hydraulic chuck + 3 soft jaw | CHANDOX/Auto-Strong |
| 02.35 | Change to 32inch hydraulic chuck + 3 soft jaw | CHANDOX/Auto-Strong |
| 02.36 | Change to 40inch hydraulic chuck + 3 soft jaw | CHANDOX/Auto-Strong |
| 02.37 | Chuck water flash | |
| 02.38 | Coolant through turret | |
| 02.39 | Tool setter RENISHAW | manual plug type |
| 02.40 | Tool setter RENISHAW | auto swing type |
| 02.41 | Workpiece setter RENISHAW | |
| 02.42 | Linear scale X /Z axis | HEIDENHAIN |
| 02.43 | Remove ZF gear box | |
| 02.44 | Oil mister collector | |
| 02.45 | Auto-door (pneumatic control) | |
| 02.46 | Grease lubrication instead of oil | |
| 02.47 | Buzzer alarm | for tri-color light |
| 02.48 | CNC controller book manuals | |
| 02.49 | Water gun | |
| 02.50 | Electric switch for door | |
| 02.51 | Air conditioner of electrical cabinet | |
| 02.52 | CE standard |
- Machine body structure
Square size for base and column, integrated part, stable structure.
All structure by the finite element analysis, strive to structure optimization, and guarantee the stability of cutting precision 30% rigidity increased compared with the traditional design.
- X/ Z axis box way
Heavy load and high rigidity box guide rail, with large bearing capacity. High precision, eliminate low speed crawling machine, Suitable for heavy cutting and high speed cutting.
- Spindle unit
Guide way model: RGH45/RGH55
Slide’s quantity: 2/2
The spindle adopt NSK screw special bearing.
Double roller cylindrical bearings
Angular contact ball bearing combination.
- Spindle transmission system
The spindle is flange structure and is fixed on a high-rigidity box base to minimize the influence of thermal deviation and vibration.
The spindle components of each machine are tested for dynamic balance, which guarantees the high-precision cutting of the machine.
Special labyrinth seals prevent the spindle from being damaged by dust and cutting fluid during machining.
Spindle motor and two-speed gearbox, in order to meet high-speed/low-speed cutting capability at the same time.
Spindle Torque Diagram
- Chuck:
Turret:High-performance 12 station hydraulic turret as standard.
6T vertical servo turret as option.
