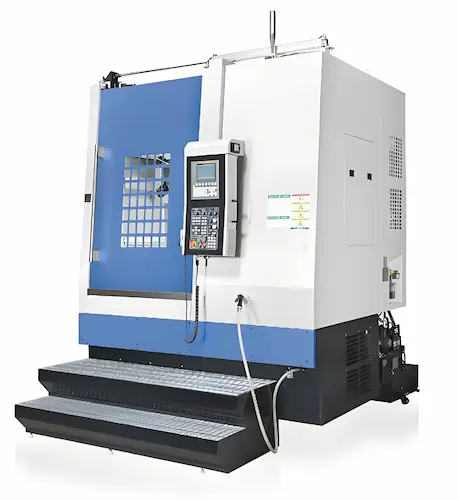

VNL80SK CNC Vertical Lathe Machine specifications
VNL80SK CNC vertical lathe is mainly used for high speed steel and carbide cutting tools. For coarse and fine machining of ferrous metals, non-ferrous metals and some non-metallic parts, internal and external cylindrical surfaces, internal and external conical surfaces, arcs, metric threads, and High-speed turning of various complex shapes of turning surfaces.
VNL80SK CNC Vertical Lathe Equipments
VNL80SK CNC Vertical Lathe Optional
VNL80SK CNC Vertical Lathe Construction
Square size for base and column, integrated part, stable structure.
All structure by the finite element analysis, strive to structure optimization, and guarantee the stability of cutting precision 30% rigidity increased compared with the traditional design.
Heavy load and high rigidity box guide rail, with large bearing capacity. High precision, eliminate low speed crawling machine, Suitable for heavy cutting and high speed cutting.
Guide way model: RGH45/RGH55
Slide’s quantity: 2/2
The spindle adopt NSK screw special bearing.
Double roller cylindrical bearings
Angular contact ball bearing combination.
The spindle is flange structure and is fixed on a high-rigidity box base to minimize the influence of thermal deviation and vibration.
The spindle components of each machine are tested for dynamic balance, which guarantees the high-precision cutting of the machine.
Special labyrinth seals prevent the spindle from being damaged by dust and cutting fluid during machining.
Spindle motor and two-speed gearbox, in order to meet high-speed/low-speed cutting capability at the same time.
VNL80H standard with FANUC α motor 18.5/22kW
VNL80S adopt FANUC 0i TF (5) with China-made double speed servo motor 24/30kW
VNL80S option FANUC 0i TF (5) with China-made servo motor 18.5/22kW
| Item | VNL80SK |
| Capacity | |
| Max turning dia. | Φ800mm |
| Max. swing over dia. | Φ1000mm |
| Max workpiece height | 600mm |
| Max workpiece weight | 2000kg |
| X travel | -50~635mm |
| Z travel | 600mm |
| X axis rapid traverse rate | 10m/min |
| Z axis rapid traverse rate | 10m/min |
| Cutting feed rate | 1~2,000mm/min |
| X/Z positioning accuracy | 0.023/0.023mm (per meter) |
| X/Z repeatability accuracy | 0.013/0.013mm |
| Worktable | |
| Worktable dia. | Φ630mm |
| Spindle type | A2-15 |
| Worktable speed | 20~600r/min |
| Motor power | 22kW |
| Chuck | φ630mm manual chuck (4-jaw) |
| Tool magazine | |
| Tool shank | BT50 |
| Pull stud | P50T-I (MAS403) |
| Ram size | 200x200mm |
| Tool change | Automatic |
| Tool number | 8T |
| Tool size | 32x32 |
| Max cutting tool size | 280Wx150Tx380L |
| Max tool weight | 35kg |
| Max tool magazine loading | 360kg |
| Tool change time (T-T) | 45Sec. |
| Others | |
| Air source/pressure | 500L/min, 6~8bar |
| Power required | 65kVA |
| Coolant tank voltage | 320L |
| Machine gross weight | 12000kg |
| Floor space (L*W*H) | 3350x4000x4500mm |
VNL80SK CNC vertical lathe is mainly used for high speed steel and carbide cutting tools. For coarse and fine machining of ferrous metals, non-ferrous metals and some non-metallic parts, internal and external cylindrical surfaces, internal and external conical surfaces, arcs, metric threads, and High-speed turning of various complex shapes of turning surfaces.
| Item 01 | Descriptions | |
| 01.01 | FANUC 0i TF(3B) Plus control with 10.4” display | |
| 01.02 | A2-15, 600rpm belt-drive spindle with spindle motor 22kW | |
| 01.03 | φ630mm manual chuck & 4-jaw | |
| 01.04 | 8-position ATC | |
| 01.05 | Turning tool holder, 32x32, 3 sets | |
| 01.06 | Boring tool holder, 25x25, 1 set | |
| 01.07 | Auto chip conveyor & Chip cart | |
| 01.08 | Full enclosure splash guard | |
| 01.09 | Telescopic covers | |
| 01.10 | Air conditioner of electrical cabinet | |
| 01.11 | Oil chiller | |
| 01.12 | Cooling system | |
| 01.13 | Hydraulic system | |
| 01.14 | Automatic lubricating system | |
| 01.15 | Chip rushing system | |
| 01.16 | Air gun+ water gun | |
| 01.17 | Work light & Tri-color signal light | |
| 01.18 | Program and data protection key | |
| 01.19 | Lifting eye bolts | |
| 01.20 | Installation parts | |
| 01.21 | Spare parts (fuses & pull stud, etc.) | |
| 01.22 | Assembly & Operation tools | |
| 01.23 | Instruction manual, parts list, and electrical drawings |
| Item 02 | Descriptions | Note |
| 02.01 | FANUC 0I TF5 Plus with China-made servo motor 24kw | VNL80S, spindle torque 2083Nm, no ZF gear box |
| 02.02 | FANUC 0I TF1 Plus with FANUC α servo motor 18.5kw | |
| 02.03 | SIEMENS 828D 240 with China-made servo motor 24kw | VNL80S, spindle torque 2083Nm, no ZF gear box |
| 02.04 | SIEMENS 828D 260 with SIEMENS servo motor 28kw | |
| 02.05 | SIEMENS 828D 280 with SIEMENS servo motor 28kw | |
| 02.06 | Shop turn | |
| 02.07 | Manual guide 0I | |
| 02.08 | Manual guide I | for FANUC TF1 |
| 02.09 | DATA SERVE 2GB | for FANUC TF1 |
| 02.10 | Memory of FANUC controller 2MB | |
| 02.11 | M30 auto power off | |
| 02.12 | 2 year FANUC warranty | |
| 02.13 | 2 year SIEMENS warranty | |
| 02.14 | 380V 50HZ/415V 50 HZ /220V 60 HZ | |
| 02.15 | Transformer | |
| 02.16 | 12T ATC | |
| 02.17 | Boring tool holder | |
| 02.18 | End face turning tool holder + Installation block | |
| 02.19 | Manual hard jaw (21inch hydraulic chuck) | 1 set |
| 02.20 | Soft jaw (21inch hydraulic chuck) | 1 set |
| 02.21 | Manual hard jaw (24inch hydraulic chuck) | 1 set |
| 02.22 | Soft jaw (24inch hydraulic chuck) | 1 set |
| 02.23 | Manual hard jaw (32inch hydraulic chuck) | 1 set |
| 02.24 | Soft jaw (32inch hydraulic chuck) | 1 set |
| 02.25 | Manual hard jaw (40inch hydraulic chuck) | 1 set |
| 02.26 | Soft jaw (40inch hydraulic chuck) | 1 set |
| 02.27 | Change to 500mm manual chuck | Include 4 hard jaw |
| 02.28 | Change to 630mm manual chuck | Include 4 hard jaw |
| 02.29 | Change to 800mm manual chuck | Include 4 hard jaw |
| 02.30 | Change to 500mm hydraulic chuck + 3 soft jaw | AUTOBLOK |
| 02.31 | Change to 630mm hydraulic chuck + 3 soft jaw | AUTOBLOK |
| 02.32 | Change to 800mm hydraulic chuck + 3 soft jaw | AUTOBLOK |
| 02.33 | Change to 1000mm hydraulic chuck + 3 soft jaw | AUTOBLOK |
| 02.34 | Change to 24inch hydraulic chuck + 3 soft jaw | CHANDOX/Auto-Strong |
| 02.35 | Change to 32inch hydraulic chuck + 3 soft jaw | CHANDOX/Auto-Strong |
| 02.36 | Change to 40inch hydraulic chuck + 3 soft jaw | CHANDOX/Auto-Strong |
| 02.37 | Chuck water flash | |
| 02.38 | Coolant through turret | |
| 02.39 | Tool setter RENISHAW | manual plug type |
| 02.40 | Tool setter RENISHAW | auto swing type |
| 02.41 | Workpiece setter RENISHAW | |
| 02.42 | Linear scale X /Z axis | HEIDENHAIN |
| 02.43 | Remove ZF gear box | |
| 02.44 | Oil mister collector | |
| 02.45 | Auto-door (pneumatic control) | |
| 02.46 | Grease lubrication instead of oil | |
| 02.47 | Buzzer alarm | for tri-color light |
| 02.48 | CNC controller book manuals | |
| 02.49 | Water gun | |
| 02.50 | Electric switch for door | |
| 02.51 | Air conditioner of electrical cabinet | |
| 02.52 | CE standard |
- Machine body structure
Square size for base and column, integrated part, stable structure.
All structure by the finite element analysis, strive to structure optimization, and guarantee the stability of cutting precision 30% rigidity increased compared with the traditional design.
- X/ Z axis box way
Heavy load and high rigidity box guide rail, with large bearing capacity. High precision, eliminate low speed crawling machine, Suitable for heavy cutting and high speed cutting.
- Spindle unit
Guide way model: RGH45/RGH55
Slide’s quantity: 2/2
The spindle adopt NSK screw special bearing.
Double roller cylindrical bearings
Angular contact ball bearing combination.
- Spindle transmission system
The spindle is flange structure and is fixed on a high-rigidity box base to minimize the influence of thermal deviation and vibration.
The spindle components of each machine are tested for dynamic balance, which guarantees the high-precision cutting of the machine.
Special labyrinth seals prevent the spindle from being damaged by dust and cutting fluid during machining.
Spindle motor and two-speed gearbox, in order to meet high-speed/low-speed cutting capability at the same time.
VNL80H standard with FANUC α motor 18.5/22kW
VNL80S adopt FANUC 0i TF (5) with China-made double speed servo motor 24/30kW
VNL80S option FANUC 0i TF (5) with China-made servo motor 18.5/22kW
- ATC
