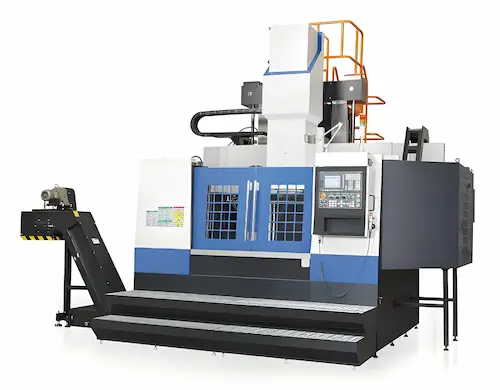

VNL125HK CNC Vertical Lathe Machine specifications
VNL125HK CNC vertical lathe is mainly used for high speed steel and carbide cutting tools. For coarse and fine machining of ferrous metals, non-ferrous metals and some non-metallic parts, internal and external cylindrical surfaces, internal and external conical surfaces, arcs, metric threads, and heavy turning of various complex shapes of turning surfaces.
VNL125HK CNC Vertical Lathe Equipments
VNL125HK CNC Vertical Lathe Optional
VNL125HK CNC Vertical Lathe Construction
Finite element analysis and optimized design of the base rib make the machine tool good rigidity.
Heavy duty spindle bearing load: Max. 5 tons
The table adopts high-precision rolling bearings for guide rail, high-precision double row short cylindrical roller bearings for radial direction, high-precision thrust ball bearings for rolling guide rail in axial direction, and pre-load is added in axial direction, in order to improve the rotation accuracy and bearing capacity of the table.
The high rigidity worktable is matched with the manual strong jaw, the operation is convenient and can provide the strong clamping force.
After ZF reducer and high-precision two-stage gear change, the ultimate realization of 4~500r/min stepless change.
High speed ratio: 7.76; Output torque: 2381Nm
Low speed ratio: 31.03; Output torque: 9526Nm
VNL-H series adopt large cutting capacity servo motor: FANUC α servo motor 30kw (SIEMENS servo motor 30kw as option)
VNL-S series adopt China-made large servo motor 30kw which has similar cutting capacity with FANUC/SIEMENS, and more economical.
The upper end of the column is installed with a beam lifting motor and worm gear lifting box to achieve the lifting of the beam. The guide rail on both sides of the column is also equipped with rack for beam classification positioning, with a distance of 150mm.
Beam can be lift up and move down based on human operation, the position is adjusted by
4 hydraulic cylinders with super clamping force which are clamped automatically to ensure the accuracy of the machine
Beam positioning 5 steps
In the bearing direction is box guideway--good vibration resistance, large bearing capacity.
High-speed silent ball screw with perfect thermal suppression function and high reliability structure.
It is made of high-strength alloy steel forged. The guide surface is processed by proper heat treatment and high-precision guide grinding machine, using large square section, over 30% more rigid than casting ram.
Section 220 * 220mm
Ram min. diameter deep hole processing Φ 310mm.
Ram interference diagram
ATC The standard equipment is 8 station BT50 high reliability tool magazine, can use tool size within 32x32mm. The maximum tool weight is 50kg and the tool magazine maximum load is 360kg.
Customers can match the number of tools according to requirements.
NEWAY provide three sets turning holder and one boring holder for free. Also extra turning or boring holder as option.
| Item | VNL125HK |
| Capacity | |
| Max turning dia. | Φ1250mm |
| Max. swing over dia. | Φ1500mm |
| Max workpiece height | 1000mm |
| Max workpiece weight | 5000kg |
| Max cutting force | 18000N |
| Beam positioning step | 5 steps |
| Beam travel | 500mm |
| X travel | 800mm |
| Z travel | 620mm |
| X axis rapid traverse rate | 12m/min |
| Z axis rapid traverse rate | 10m/min |
| Cutting feed rate | 1~2,000mm/min |
| X/Z positioning accuracy | 0.020/0.020mm (per meter) |
| X/Z repeatability accuracy | 0.015/0.015mm |
| Worktable | |
| Diameter | Φ1000mm |
| Speed | 4~500r/min |
| Speed range with gear box | 2 ranges |
| Max. torque | 9000Nm |
| Motor power | 30kW |
| Fixture | Manual 4-jaw |
| Tool magazine | |
| Tool change type | Auto |
| Tool type | BT50 |
| Tool number | 8 |
| Tool size | 32x32mm |
| Max tool weight | 50kg |
| Max tool magazine load capacity | 360kg |
| Others | |
| Power required | 50kVA |
| Coolant tank volume | 500L |
| Machine gross weight (Not include chip conveyor) | 17000kg |
| Floor space (LxWxH) (Not include chip cart) | 5500x5170x4600mm |
VNL125HK CNC vertical lathe is mainly used for high speed steel and carbide cutting tools. For coarse and fine machining of ferrous metals, non-ferrous metals and some non-metallic parts, internal and external cylindrical surfaces, internal and external conical surfaces, arcs, metric threads, and heavy turning of various complex shapes of turning surfaces.
| Item 01 | Descriptions | |
| 01.01 | FANUC 0i TF(3B) Plus control with 10.4” display | |
| 01.02 | FANUC α servo motor 30kw & ZF gear box | |
| 01.03 | 4~500r/min, 1000mm manual worktable & manual 4-jaw | |
| 01.04 | 8T automatic tool magazine, BT50 | |
| 01.05 | Turning tool holder, 32x32, 3 sets | |
| 01.06 | Boring tool holder, 25x25, 1 set | |
| 01.07 | Auto chip conveyor & Chip cart | |
| 01.08 | Telescopic covers | |
| 01.09 | Air conditioner of electrical cabinet | |
| 01.10 | Oil chiller | |
| 01.11 | Cooling system | |
| 01.12 | Air gun | |
| 01.13 | Hydraulic system | |
| 01.14 | Automatic lubricating system | |
| 01.15 | Work light & Tri-color signal light | |
| 01.16 | Program and data protection key | |
| 01.17 | Lifting eye bolts | |
| 01.18 | Installation parts | |
| 01.19 | Spare parts (fuses & etc.) | |
| 01.20 | Assembly & Operation tools | |
| 01.21 | Instruction manual, parts list, and electrical drawings |
| Item 02 | Descriptions | Note |
| 02.01 | Manual guide 0I | |
| 02.02 | Manual guide I | for FANUC TF1 |
| 02.03 | DATA SERVE 2GB | for FANUC TF1 |
| 02.04 | Memory of FANUC controller 2MB | |
| 02.05 | M30 auto power off | |
| 02.06 | 2 year FANUC warranty | |
| 02.07 | Transformer | |
| 02.08 | Extra OD turning holder | unit price |
| 02.09 | Extra Boring holder | unit price |
| 02.10 | Manual hard jaw | 1 set |
| 02.11 | Manual soft jaw | 1 set |
| 02.12 | Change to 1250mm Manual chuck | speed 400rpm |
| 02.13 | CTS 20 bar | |
| 02.14 | CTS 30 bar | |
| 02.15 | CTS 50 bar | |
| 02.16 | Tool setter RENISHAW | manual plug type |
| 02.17 | Tool setter RENISHAW | auto swing type |
| 02.18 | Workpeice setter RENISHAW | |
| 02.19 | Linear scale X /Z axis | HEIDENHAIN |
| 02.20 | NSK centering bearing for worktable | |
| 02.21 | Buzzer alarm | for tri-color light |
| 02.22 | CNC controller book manuals | |
| 02.23 | Water gun | |
| 02.24 | Electric switch for door | |
| 02.25 | Air conditioner of electrical cabinet | |
| 02.26 | CE standard |
- Base
Finite element analysis and optimized design of the base rib make the machine tool good rigidity.
- Worktable/Chuck
Heavy duty spindle bearing load: Max. 5 tons
The table adopts high-precision rolling bearings for guide rail, high-precision double row short cylindrical roller bearings for radial direction, high-precision thrust ball bearings for rolling guide rail in axial direction, and pre-load is added in axial direction, in order to improve the rotation accuracy and bearing capacity of the table.
The high rigidity worktable is matched with the manual strong jaw, the operation is convenient and can provide the strong clamping force.
- Main transmission
After ZF reducer and high-precision two-stage gear change, the ultimate realization of 4~500r/min stepless change.
High speed ratio: 7.76; Output torque: 2381Nm
Low speed ratio: 31.03; Output torque: 9526Nm
VNL-H series adopt large cutting capacity servo motor: FANUC α servo motor 30kw (SIEMENS servo motor 30kw as option)
VNL-S series adopt China-made large servo motor 30kw which has similar cutting capacity with FANUC/SIEMENS, and more economical.
- Column
The upper end of the column is installed with a beam lifting motor and worm gear lifting box to achieve the lifting of the beam. The guide rail on both sides of the column is also equipped with rack for beam classification positioning, with a distance of 150mm.
Beam can be lift up and move down based on human operation, the position is adjusted by
4 hydraulic cylinders with super clamping force which are clamped automatically to ensure the accuracy of the machine
Beam positioning 5 steps
- Linear box composite guideway
In the bearing direction is box guideway--good vibration resistance, large bearing capacity.
High-speed silent ball screw with perfect thermal suppression function and high reliability structure.
- Ram
It is made of high-strength alloy steel forged. The guide surface is processed by proper heat treatment and high-precision guide grinding machine, using large square section, over 30% more rigid than casting ram.
Section 220 * 220mm
Ram min. diameter deep hole processing Φ 310mm.
Ram interference diagram
ATC The standard equipment is 8 station BT50 high reliability tool magazine, can use tool size within 32x32mm. The maximum tool weight is 50kg and the tool magazine maximum load is 360kg.
Customers can match the number of tools according to requirements.
NEWAY provide three sets turning holder and one boring holder for free. Also extra turning or boring holder as option.
