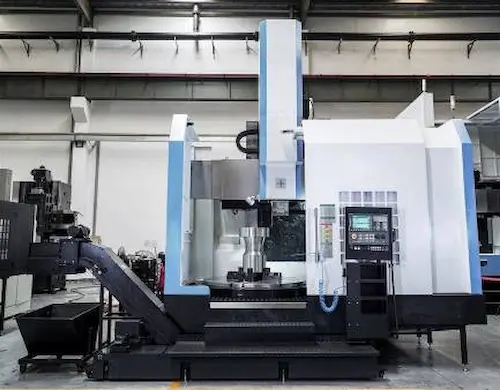

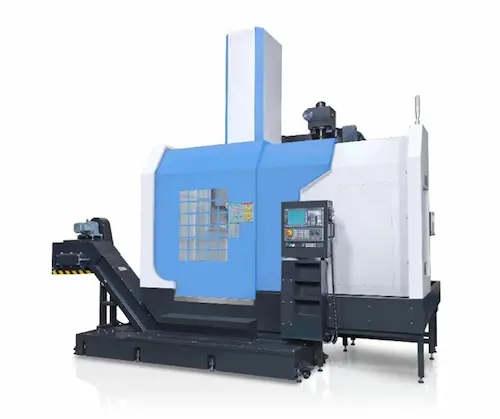

VL1250N CNC Vertical Turning Center specifications
VL1250N CNC Vertical Turning Center equipments
VL1250N CNC Vertical Turning Center Optional
FANUC 0i TF controller specification
SIEMENS controller specification
| Item | VL1250N |
| CNC system | Fanuc 0i-TF Plus |
| Capacity | |
| Max turning dia. | Φ1400mm |
| Max swing over dia. | Φ1600mm |
| Max workpiece height | 1200mm |
| Max workpiece weight | 5000kg |
| Beam positioning step | 5 steps |
| Beam travel | 600mm |
| X travel | -100~875mm |
| Z travel | 620mm |
| X axis rapid traverse rate | 12m/min |
| Z axis rapid traverse rate | 10m/min |
| Cutting feed rate | 1~2000mm/min |
| X/Z positioning accuracy | 0.025/0.025mm (full travel) |
| X/Z repeatability accuracy | 0.010/0.010mm (full travel) |
| Worktable | |
| Diameter | Φ1250mm |
| Speed | 1~350r/min |
| Torque | 9000Nm |
| Motor power | 15 kW x 2 |
| C axis speed | 2r/min |
| Speed range with gear box | 2 ranges |
| Fixture | Manual |
| Milling spindle | |
| Speed | 1~2400r/min |
| Motor power | 7.5kW |
| Milling tool type | BT50 |
| Pull stud type | P50T-I (MAS403) |
| Ram size | 220x220mm |
| Tool magazine | |
| Tool change type | Auto |
| Tool number | 16 |
| Max turning tool size | 32x32mm |
| Max turning tool size | 280W×150T×380L |
| Max tool weight | 50kg |
| Max tool magazine load capacity | 560kg |
| Tool change time (t-t) | 45 seconds |
| Cross rail | |
| Machine gross weight (Not include chip conveyor) | 18500kg |
| Floor space (L x W x H) (Not include chip cart) | 5450x4100x5100mm |
| Power required | 75kVA |
| Coolant tank voltage | 500L |
| Air source/pressure | 500L/min, 6~8bar |
| Item 01 | Descriptions | |
| 01.01 | FANUC 0i TF(1) Plus control with 10.4" display | |
| 01.02 | FANUC servo motor 15kw x 2 & gear box | |
| 01.03 | 1~350r/min, 1250mm manual worktable | |
| 01.04 | C axis indexing 2 r/min | |
| 01.05 | Milling spindle square ram type, BT50, 2400r/min | |
| 01.06 | 16T Auto tool magazine, BT50 | |
| 01.07 | Turning holder, 32x32, 3 sets | |
| 01.08 | Boring holder, 25x25, 1 set | |
| 01.09 | Auto chip conveyor & Chip cart | |
| 01.10 | Heat exchanger of electrical cabinet | |
| 01.11 | Cooling system | |
| 01.12 | Air gun | |
| 01.13 | Chip rushing system | |
| 01.14 | Hydraulic system | |
| 01.15 | Automatic lubricating system | |
| 01.16 | Work light & Tri-color tower signal light | |
| 01.17 | Telescopic covers | |
| 01.18 | Program and data protection key | |
| 01.19 | Lifting eye bolts | |
| 01.20 | Installation parts |
| Item 02 | Descriptions | |
| 02.01 | SIEMENS 828D CNC system | |
| 02.02 | Shop turn | For SIEMENS |
| 02.03 | Manual guide 0I | |
| 02.04 | Manual guide I | for FANUC TF1 |
| 02.05 | DATA SERVE 2GB | for FANUC TF1 |
| 02.06 | M30 auto power off | |
| 02.07 | 2 year FANUC warranty | |
| 02.08 | Transformer | |
| 02.09 | Extra OD turning holder | |
| 02.10 | Extra Boring holder | |
| 02.11 | Hard jaw | |
| 02.12 | Soft jaw | |
| 02.13 | Milling spindle motor add to 15kw | Milling torque add to 95.5Nm |
| 02.14 | CTS 20 bar | |
| 02.15 | CTS 30 bar | |
| 02.16 | CTS 50 bar | |
| 02.17 | Tool setter RENISHAW | manual plug type |
| 02.18 | Tool setter RENISHAW | auto swing type |
| 02.19 | Workpiece setter RENISHAW | |
| 02.20 | Linear scale X /Z axis | HEIDENHAIN |
| 02.21 | NSK centering bearing for worktable | |
| 02.22 | Buzzer alarm | for tri-color light |
| 02.23 | CNC controller book manuals | |
| 02.24 | Water gun | |
| 02.25 | Electric switch for door | |
| 02.26 | Air conditioner of electrical cabinet |
FANUC 0i TF controller specification
| ● Standard ○ Optional X N/A | ||||||
| Specification | 0I-TF Plus | |||||
| Type 1 | Type 5 | |||||
| 1 | Controlled axis | Controlled axes | 4 | 4 | ||
| 2 | Axis control by PMC | ● | ● | |||
| 3 | Torque control | ● | ● | |||
| 4 | Inch/metric conversion | ● | ● | |||
| 5 | Stored limit check before move | ● | ● | |||
| 6 | Unexpected disturbance torque detection function | ● | ● | |||
| 7 | Position switch | ● | ● | |||
| 8 | Operation | DNC operation with memory card | ● | ● | ||
| 9 | Handle interruption | ● | ● | |||
| 10 | Manual handle retrace | ○ | ○ | |||
| 11 | Interpolation functions | Nano interpolation | ● | ● | ||
| 12 | Linear interpolation | ● | ● | |||
| 13 | Circular interpolation | ● | ● | |||
| 14 | Helical interpolation | ○ | X | |||
| 15 | Thread cutting, synchronous cutting | ● | ● | |||
| 16 | Thread cutting retract | ● | ● | |||
| 17 | Continuous threading | ● | ● | |||
| 18 | High-speed skip | Input signal is 8 points. | ● | ● | ||
| 19 | 2nd reference position return | G30 | ● | ● | ||
| 20 | Feed function | AI contour control I | ○ | ○ | ||
| 21 | AI contour control II | ○ | X | |||
| 22 | Rapid traverse block overlap | ● | ● | |||
| 23 | Program input | Optional block skip | 9 pieces | ● | ○ | |
| 24 | Absolute/incremental programming | Combined use in the same block | ● | ● | ||
| 25 | Diameter/Radius programming | ● | ● | |||
| 26 | Automatic coordinate system setting | ● | ● | |||
| 27 | Workpiece coordinate system | G52 - G59 | ● | ● | ||
| 28 | Chamfering/Corner R | ● | ● | |||
| 29 | Custom macro | ● | ● | |||
| 30 | Addition of custom macro common variables | #100 - #199, #500 - #999 | ● | ● | ||
| 31 | Interruption type custom macro | ● | ○ | |||
| 32 | Canned cycle | ● | ● | |||
| 33 | Multiple repetitive cycles | ● | ● | |||
| 34 | Multiple repetitive cycles II | Pocket profile | ● | ● | ||
| 35 | Canned cycle for drilling | ● | ● | |||
| 36 | Coordinate system shift | ● | ● | |||
| 37 | Direct input of coordinate system shift | ● | ● | |||
| 38 | Pattern data input | ● | ○ | |||
| 39 | Operation Guidance Function |
Manual Guide i | ○ | X | ||
| 40 | Manual Guide 0i | ○ | ○ | |||
| 41 | Auxiliary/ Spindle speed function | Constant surface speed control | ● | ● | ||
| 42 | Rigid tap | ● | ● | |||
| 43 | Arbitrary speed threading | ○ | ○ | |||
| 44 | Tool offset pairs | 128-pairs | ● | ● | ||
| 45 | Tool offset pairs | 200-pairs | ○ | X | ||
| 46 | Tool radius/Tool nose radius compensation | ● | ● | |||
| 47 | Tool geometry/wear compensation | ● | ● | |||
| 48 | Automatic tool offset | ● | ○ | |||
| 49 | Direct input of offset value measured B | ● | ○ | |||
| 50 | Tool life management | ● | ● | |||
| 51 | Accuracy compensation function | Backlash compensation for each rapid traverse and cutting feed | ● | ● | ||
| 52 | Stored pitch error compensation total value input | ○ | ○ | |||
| 53 | Editing operation | (Specify total of part program storage size of each path.) Number of registerable programs |
2Mbyte | ● | ● | |
| expansion 1 : Max. 1000 programs | ● | ● | ||||
| 54 | Playback | ● | ● | |||
| 55 | Data input/ output | Fast data server | ○ | X | ||
| 56 | External data input | ● | ● | |||
| 57 | Memory card input/output | ● | ● | |||
| 58 | USB memory input/output | ● | ● | |||
| 59 | Automatic data backup | ● | ● | |||
| 60 | Interface function | Embedded Ethernet | ● | ● | ||
| 61 | Fast Ethernet | ○ | ○ | |||
| 62 | Others | Display unit | 10.4" color LCD | ● | ● | |
| 63 | Robot interface | Robot interface with PMC I/O module | ○ | ○ | ||
| 64 | Robot interface with PROFIBUS-DP/PROFINET-DP | ○ | ○ | |||
| ● Standard ○ Optional X N/A | ||||||
| No. | Item | Spec. | S828D | |||
| SW24x | SW26x | SW28x | ||||
| 1 | Controlled axis | Controlled axes | 2 axes | X,Z | X,Z | X,Z |
| 2 | Additional controlled axes | 5 | 6+2 | 10+2 | ||
| 3 | Least command increment | 0.001mm (0.0001 inch) | ● | ● | ● | |
| 4 | Least input increment | 0.001mm (0.0001 inch) | ● | ● | ● | |
| 5 | Travel to fixed stop with Force Control | ○ | ○ | ○ | ||
| 6 | Interpolation & Feed Function | Reference point return | G75 FP=1 | ● | ● | ● |
| 7 | 2nd reference point return | G75 FP=2 | ● | ● | ● | |
| 8 | Inverse time feedrate | G93 | ● | ● | ● | |
| 9 | Helical interpolation | ● | ● | ● | ||
| 10 | Polynomial interpolation | X | X | X | ||
| 11 | Spline interpolation (A, B and C splines) | ○ | ○ | ○ | ||
| 12 | Separate path feedrate for roundings and chamfers | ● | ● | ● | ||
| 13 | Acceleration with Jerk limitation | ● | ● | ● | ||
| 14 | Compressor for 3-axis machining COMPCAD | X | X | X | ||
| 15 | Temperature compensation | ● | ● | ● | ||
| 16 | Look Ahead, recorded part program blocks: | Turning | 1 | 1 | 1 | |
| 17 | ||||||
| 18 | Look Ahead, IPO blocks, buffered: | Turning | 1 | 1 | 1 | |
| 19 | ||||||
| 20 | Cartesian point-to-point (PTP) travel | ● | ● | ● | ||
| 21 | TRANSMIT/cylinder surface transformation | ○ | ○ | ○ | ||
| 22 | Spindle Function | Tapping with compensating chuck/rigid tapping | ● | ● | ● | |
| 23 | Tool Function | Tool radius compensations in plane | ● | ● | ● | |
| 24 | Number of tools/cutting edges in tool list | 128/256 | 256/512 | 768/1536 | ||
| 25 | Tool length compensation | ● | ● | ● | ||
| 26 | Operation with tool management | ○ | ○ | ○ | ||
| 27 | Tool list | ● | ● | ● | ||
| 28 | Replacement tools for tool management | ○ | ○ | ○ | ||
| 29 | Monitoring of tool life and workpiece count | ● | ● | ● | ||
| 30 | Manual measurement of tool offset | ● | ● | ● | ||
| 31 | Magazine list | ● | ● | ● | ||
| 32 | Programming & Editing Function | Number of levels for skip blocks 2 | ● | ● | ● | |
| 33 | Number of levels for skip blocks 10 | ○ | ○ | ○ | ||
| 34 | Program/workpiece management | On additional plug-in CF card | ● | ● | ● | |
| 35 | On USB storage medium (e.g. disk drive, USB stick) | ● | ● | ● | ||
| 36 | On network drive | ○ | ○ | ○ | ||
| 37 | Program editor | Programming support for cycles program (Program Guide) | ● | ● | ● | |
| 38 | CNC editor with editing functions: select, copy, delete | ● | ● | ● | ||
| 39 | Programming graphics/free contour input (contour calculator) | ● | ● | ● | ||
| 40 | ShopTurn Machining step programming | ○ | ○ | ○ | ||
| 41 | Technology cycles for drilling/milling | ● | ● | ● | ||
| 42 | Pocket milling free contour and islands stock removal cycle | ○ | ● | ● | ||
| 43 | Residual material detection | ○ | ○ | ○ | ||
| 44 | Access protection for cycles | ○ | ○ | ○ | ||
| 45 | Programming support can be extended, e.g. customer cycles | ● | ● | ● | ||
| 46 | 2D simulation | ● | ● | ● | ||
| 47 | 3D simulation, finished part | ○ | ○ | ○ | ||
| 48 | OTHERS FUNCTIONS (Operation, setting & Display, etc) |
Switchover: inch/metric | ● | ● | ● | |
| 49 | Manual measurement of zero/work offset | ● | ● | ● | ||
| 50 | Automatic tool/workpiece measurement | ● | ● | ● | ||
| 51 | Reference point approach, automatic/via CNC program | ● | ● | ● | ||
| 52 | Execution from USB or CF card interface on operator panel front | ● | ● | ● | ||
| 53 | Execution from network drive | ○ | ○ | ○ | ||
| 54 | 10.4" color display | ● | ● | ● | ||
| 55 | 15.0" color display | ○ | ○ | ○ | ||
| 56 | Alarms and messages | ● | ● | ● | ||
| 57 | Automatic measuring cycles | ○ | ○ | ○ | ||
VL1250N CNC Vertical Turning Center specifications
| Item | VL1250N |
| CNC system | Fanuc 0i-TF Plus |
| Capacity | |
| Max turning dia. | Φ1400mm |
| Max swing over dia. | Φ1600mm |
| Max workpiece height | 1200mm |
| Max workpiece weight | 5000kg |
| Beam positioning step | 5 steps |
| Beam travel | 600mm |
| X travel | -100~875mm |
| Z travel | 620mm |
| X axis rapid traverse rate | 12m/min |
| Z axis rapid traverse rate | 10m/min |
| Cutting feed rate | 1~2000mm/min |
| X/Z positioning accuracy | 0.025/0.025mm (full travel) |
| X/Z repeatability accuracy | 0.010/0.010mm (full travel) |
| Worktable | |
| Diameter | Φ1250mm |
| Speed | 1~350r/min |
| Torque | 9000Nm |
| Motor power | 15 kW x 2 |
| C axis speed | 2r/min |
| Speed range with gear box | 2 ranges |
| Fixture | Manual |
| Milling spindle | |
| Speed | 1~2400r/min |
| Motor power | 7.5kW |
| Milling tool type | BT50 |
| Pull stud type | P50T-I (MAS403) |
| Ram size | 220x220mm |
| Tool magazine | |
| Tool change type | Auto |
| Tool number | 16 |
| Max turning tool size | 32x32mm |
| Max turning tool size | 280W×150T×380L |
| Max tool weight | 50kg |
| Max tool magazine load capacity | 560kg |
| Tool change time (t-t) | 45 seconds |
| Cross rail | |
| Machine gross weight (Not include chip conveyor) | 18500kg |
| Floor space (L x W x H) (Not include chip cart) | 5450x4100x5100mm |
| Power required | 75kVA |
| Coolant tank voltage | 500L |
| Air source/pressure | 500L/min, 6~8bar |
VL1250N CNC Vertical Turning Center equipments
| Item 01 | Descriptions | |
| 01.01 | FANUC 0i TF(1) Plus control with 10.4" display | |
| 01.02 | FANUC servo motor 15kw x 2 & gear box | |
| 01.03 | 1~350r/min, 1250mm manual worktable | |
| 01.04 | C axis indexing 2 r/min | |
| 01.05 | Milling spindle square ram type, BT50, 2400r/min | |
| 01.06 | 16T Auto tool magazine, BT50 | |
| 01.07 | Turning holder, 32x32, 3 sets | |
| 01.08 | Boring holder, 25x25, 1 set | |
| 01.09 | Auto chip conveyor & Chip cart | |
| 01.10 | Heat exchanger of electrical cabinet | |
| 01.11 | Cooling system | |
| 01.12 | Air gun | |
| 01.13 | Chip rushing system | |
| 01.14 | Hydraulic system | |
| 01.15 | Automatic lubricating system | |
| 01.16 | Work light & Tri-color tower signal light | |
| 01.17 | Telescopic covers | |
| 01.18 | Program and data protection key | |
| 01.19 | Lifting eye bolts | |
| 01.20 | Installation parts |
VL1250N CNC Vertical Turning Center Optional
| Item 02 | Descriptions | |
| 02.01 | SIEMENS 828D CNC system | |
| 02.02 | Shop turn | For SIEMENS |
| 02.03 | Manual guide 0I | |
| 02.04 | Manual guide I | for FANUC TF1 |
| 02.05 | DATA SERVE 2GB | for FANUC TF1 |
| 02.06 | M30 auto power off | |
| 02.07 | 2 year FANUC warranty | |
| 02.08 | Transformer | |
| 02.09 | Extra OD turning holder | |
| 02.10 | Extra Boring holder | |
| 02.11 | Hard jaw | |
| 02.12 | Soft jaw | |
| 02.13 | Milling spindle motor add to 15kw | Milling torque add to 95.5Nm |
| 02.14 | CTS 20 bar | |
| 02.15 | CTS 30 bar | |
| 02.16 | CTS 50 bar | |
| 02.17 | Tool setter RENISHAW | manual plug type |
| 02.18 | Tool setter RENISHAW | auto swing type |
| 02.19 | Workpiece setter RENISHAW | |
| 02.20 | Linear scale X /Z axis | HEIDENHAIN |
| 02.21 | NSK centering bearing for worktable | |
| 02.22 | Buzzer alarm | for tri-color light |
| 02.23 | CNC controller book manuals | |
| 02.24 | Water gun | |
| 02.25 | Electric switch for door | |
| 02.26 | Air conditioner of electrical cabinet |
Products
Download
FORTUNE PACIFIC LIMITED © All Rights Reserved.
