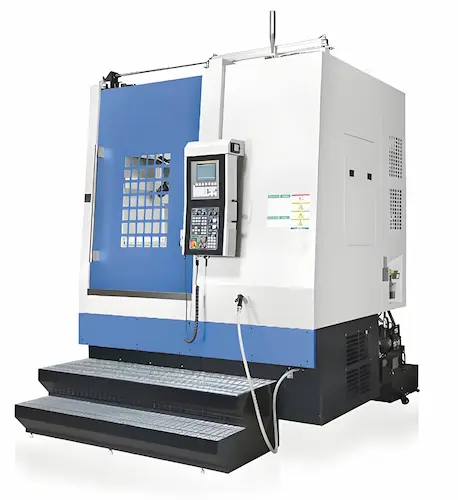

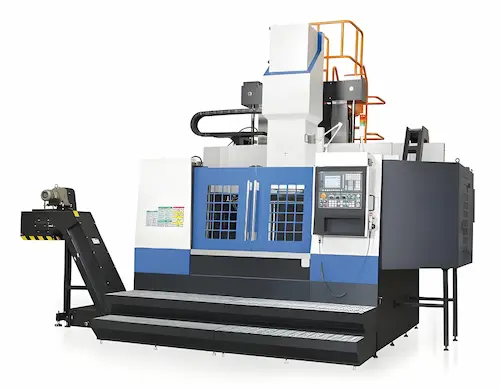

VNL60S CNC Vertical Lathe Machine specifications
VNL60S CNC vertical lathe is mainly used for high speed steel and carbide cutting tools. For coarse and fine machining of ferrous metals, non-ferrous metals and some non-metallic parts, internal and external cylindrical surfaces, internal and external conical surfaces, arcs, metric threads, and High-speed turning of various complex shapes of turning surfaces.
VNL60S CNC Vertical Lathe Equipments
VNL60S CNC Vertical Lathe Optional
Construction
l Machine body structure
Back type chip removal, Column is located on the base, with high rigidity, stable accuracy.
Square size for base and column, integrated part, stable structure.
All structure by the finite element analysis, strive to structure optimization, and guarantee the stability of cutting precision 30% rigidity increased compared with the traditional design.
l X/ Z axis linear way
class high speed mute ball screw, screw drive adopts pretension structure to enhance transmission rigidity. Reduce thermal deformation, improve positioning and repeated positioning accuracy.
Heavy load roller linear guide rail, with large bearing capacity. High precision, eliminate low speed crawling machine, Suitable for heavy cutting and high speed cutting.
Adopt imported C3 high speed silent ball screw.
Prestretched structure, enhanced rigidity, reduce thermal deformation, improve positioning and repeat positioning accuracy
l Spindle unit
Spindle speed reach 1500rpm, with China-made servo motor with 22/30 kW.
The spindle finish machining by Switzerland KELLENBERGER CNC universal grinding machine to ensure the high precision.
NSK P4 special spindle bearing ensures spindle high rigidity and machining accuracy.
| Item | VNL60S |
| Capacity | |
| Max turning dia. (axial/disc parts) | Φ550/780mm |
| Max. swing over dia. | Φ800mm |
| Max workpiece height | 500mm |
| X travel | 420mm |
| Z travel | 620mm |
| X axis servo motor torque | 20Nm |
| Z axis servo motor torque | 20Nm |
| X axis rapid traverse rate | 16m/min |
| Z axis rapid traverse rate | 16m/min |
| Cutting feed rate | 1~2,000mm/min |
| X/Z positioning accuracy | 0.008/0.012mm |
| X/Z repeatability accuracy | 0.004/0.006mm |
| Spindles | |
| Spindle type | A2-11 |
| Spindle bore dia. | Φ75mm |
| Spindle speed | 50~1500r/min |
| Torque | 716Nm |
| Motor power | 22/30kW |
| Chuck | 15” hydraulic chuck (soft 3-jaw) |
| Turret | |
| Drive | servo |
| Tool number | Vertical 6T |
| Tool size | 32x32mm |
| Others | |
| Power required | 35kVA |
| Coolant tank voltage | 240L |
| Machine gross weight | 8000kg |
| Floor space (L*W*H) | 1900x3600x3450mm |
VNL60S CNC vertical lathe is mainly used for high speed steel and carbide cutting tools. For coarse and fine machining of ferrous metals, non-ferrous metals and some non-metallic parts, internal and external cylindrical surfaces, internal and external conical surfaces, arcs, metric threads, and High-speed turning of various complex shapes of turning surfaces.
| Item 01 | Descriptions | |
| 01.01 | FANUC 0i TF(3B) Plus control with 10.4” display | |
| 01.02 | A2-11, 1500rpm belt-drive spindle with China-made servo motor 22/30kW | |
| 01.03 | 15” solid hydraulic chuck | |
| 01.04 | Vertical servo 6T turret | |
| 01.05 | End face turning holder, 32x32, 3 set | |
| 01.06 | Boring holder, Φ50, 3 sets | |
| 01.07 | Auto chip conveyor & Chip cart | |
| 01.08 | Full enclosure splash guard | |
| 01.09 | Heat exchanger of electrical cabinet | |
| 01.10 | Telescopic covers | |
| 01.11 | Cooling system | |
| 01.12 | Hydraulic system | |
| 01.13 | Automatic lubricating system | |
| 01.14 | Chip rushing system | |
| 01.15 | Air gun | |
| 01.16 | Work light & Tri-color signal light | |
| 01.17 | Program and data protection key | |
| 01.18 | Lifting eye bolts | |
| 01.19 | Installation parts | |
| 01.20 | Spare parts (fuses & pull stud, etc.) | |
| 01.21 | Assembly & Operation tools | |
| 01.22 | Instruction manual, parts list, and electrical drawings |
| Item 02 | Descriptions | Note |
| 02.01 | FANUC 0I TF1 Plus with FANUC α servo motor 18.5kw | |
| 02.02 | SIEMENS 828D 240 with SIEMENS servo motor 27kw | |
| 02.03 | SIEMENS 828D 260 with SIEMENS servo motor 27kw | |
| 02.04 | SIEMENS 828D 280 with SIEMENS servo motor 27kw | |
| 02.05 | Shop turn | |
| 02.06 | Manual guide 0I | |
| 02.07 | Manual guide I | for FANUC TF1 |
| 02.08 | DATA SERVE 2GB | for FANUC TF1 |
| 02.09 | Memory of FANUC controller 2MB | |
| 02.10 | M30 auto power off | |
| 02.11 | 2 year FANUC warranty | |
| 02.12 | 2 year SIEMENS warranty | |
| 02.13 | 380V 50HZ/415V 50 HZ /220V 60 HZ | |
| 02.14 | Transformer | |
| 02.15 | 12T SAUTER BMT65 living turret | α3 motor |
| 02.16 | 90 degree living tool holder | |
| 02.17 | 0 degree live tool holder | |
| 02.18 | Live tool sleeve (φ6, φ8, φ10, φ12, φ16, φ20, φ22) | For VDI50,ER40 |
| 02.19 | Live tool sleeve (φ6, φ8, φ10, φ12, φ16, φ20, φ22) | For BMT65,ER32 |
| 02.20 | Boring tool holder | |
| 02.21 | OD turning tool holder | |
| 02.22 | End face turning tool holder + Installation block | |
| 02.23 | Manual hard jaw (21inch hydraulic chuck) | 1 set |
| 02.24 | Manual soft jaw (21inch hydraulic chuck) | 1 set |
| 02.25 | Manual hard jaw (24inch hydraulic chuck) | 1 set |
| 02.26 | Manual soft jaw (24inch hydraulic chuck) | 1 set |
| 02.27 | Change to 500mm manual chuck | Include 4 hard jaw |
| 02.28 | Change to 630mm manual chuck | Include 4 hard jaw |
| 02.29 | Change to 500mm hydraulic chuck + 3 soft jaw | AUTOBLOK |
| 02.30 | Change to 630mm hydraulic chuck + 3 soft jaw | AUTOBLOK |
| 02.31 | Change to 21inch hydraulic chuck + 3 soft jaw | CHANDOX/Auto-Strong |
| 02.32 | Change to 24inch hydraulic chuck + 3 soft jaw | CHANDOX/Auto-Strong |
| 02.33 | Chuck water flash | |
| 02.34 | CTS 20 bar | |
| 02.35 | Coolant tank coolant level sensor | |
| 02.36 | Tool setter RENISHAW | manual plug type |
| 02.37 | Tool setter RENISHAW | auto swing type |
| 02.38 | Workpeice setter RENISHAW | |
| 02.39 | Linear scale X /Z axis | HEIDENHAIN |
| 02.40 | Oil mister collector | |
| 02.41 | Auto-door (pneumatic control) | |
| 02.42 | Grease lubrication instead of oil | |
| 02.43 | Buzzer alarm | for tri-color light |
| 02.44 | CNC controller book manuals | |
| 02.45 | Water gun | |
| 02.46 | Electric switch for door | |
| 02.47 | Air conditioner of electrical cabinet | |
| 02.48 | CE standard |
l Machine body structure
Back type chip removal, Column is located on the base, with high rigidity, stable accuracy.
Square size for base and column, integrated part, stable structure.
All structure by the finite element analysis, strive to structure optimization, and guarantee the stability of cutting precision 30% rigidity increased compared with the traditional design.
l X/ Z axis linear way
class high speed mute ball screw, screw drive adopts pretension structure to enhance transmission rigidity. Reduce thermal deformation, improve positioning and repeated positioning accuracy.
Heavy load roller linear guide rail, with large bearing capacity. High precision, eliminate low speed crawling machine, Suitable for heavy cutting and high speed cutting.
Adopt imported C3 high speed silent ball screw.
Prestretched structure, enhanced rigidity, reduce thermal deformation, improve positioning and repeat positioning accuracy
l Spindle unit
Spindle speed reach 1500rpm, with China-made servo motor with 22/30 kW.
The spindle finish machining by Switzerland KELLENBERGER CNC universal grinding machine to ensure the high precision.
NSK P4 special spindle bearing ensures spindle high rigidity and machining accuracy.
