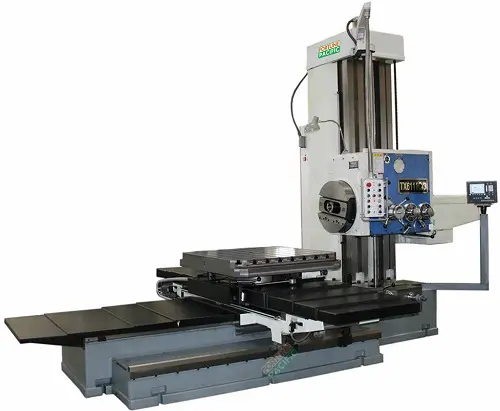

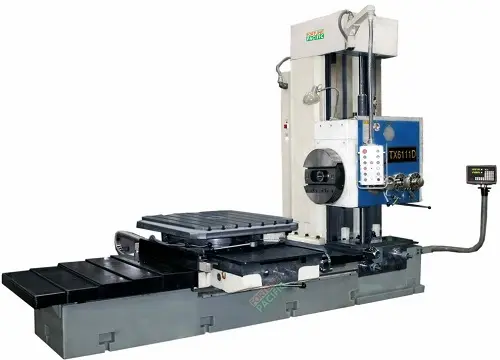

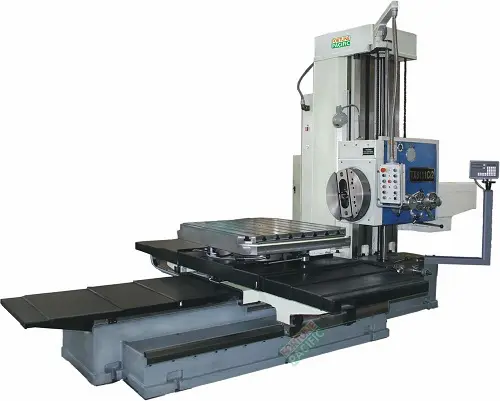

TX6111D TX6111C Horizontal Boring Milling Machine
TX6111 Horizontal Boring Milling Machine can perform boring,drilling and milling,can also use boring spindle or facing plate to enlarge the working range.Adopting grating measurement, adopts PLC control.The read accuracy of DRO unit is 0.005mm.
- TX6111D TX6111C Horizontal Boring and Milling MachineDownload
Usages
This machine can perform boring, drilling and milling.
TX6111 Boring Machine can also use boring spindle or facing plate to enlarge the working range.
Adopting grating measurement, it got reliable positioning accuracy and the whole machine adopts PLC control.
The read accuracy of DRO unit is 0.005mm.
Machine specifications
Equipments
Optionals
Features
Structure
This machine is of table-type layout, with column mounted on the bed and a side spindle head; guideway of the lower saddle is of cross structure.
(X) Table cross travel
(Z) Table longitudinal travel
(Y) Vertical travel of spindle head
(W) Axial travel of boring spindle
(U) Radial travel of facing head slide

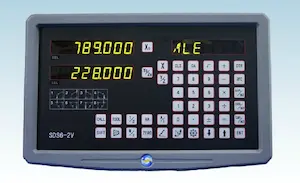

X and Y axes are provided with DRO with reading accuracy of 0.005mm.
Z axis DRO is optional.
Table is provided with a manual optical device for positioning at every 4x90°, which can meet needs of in-line boring of parts with the table being turned for 180°.

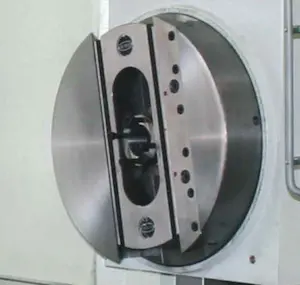

Spindle system consists of three-layer structure, facing head spindle, hollow spindle and boring spindle.
The boring spindle is of high quality nitride steel 38CrMoAIA; the hollow spindle is of high quality alloy steel; the spindle is of high structure rigidity and accuracy.
The spindle with disk spring clamping and hydraulic unclamping makes tool handling easy.
Control system is provided with Mitsubishi PLC.
This machine can perform boring, drilling and milling.
TX6111 Boring Machine can also use boring spindle or facing plate to enlarge the working range.
Adopting grating measurement, it got reliable positioning accuracy and the whole machine adopts PLC control.
The read accuracy of DRO unit is 0.005mm.
Machine specifications
| Model | TX6111D | TX6111C/2 | TX6111C/3 |
| Spindle | |||
| Spindle diameter | Φ110 mm | Φ110 mm | Φ110 mm |
| Max boring diameter of spindle | Φ300 mm | Φ300 mm | Φ300 mm |
| Max drilling diameter of spindle | Φ65 mm | Φ65 mm | Φ65 mm |
| Spindle taper | ISO50 | ISO50 | ISO50 |
| Max. allowable torque on spindle | 1000 Nm | 1000 Nm | 1000 Nm |
| Max. axial resistance of spindle | 15000 N | 15000 N | 15000 N |
| Spindle speed steps | 18 steps | 18 steps | 18 steps |
| Spindle speed range | 9-1000 r/min | 9-1000 r/min | 9-1000 r/min |
| Spindle motor | 7.5 kW | 7.5 kW | 7.5 kW |
| Facing head | |||
| Diameter of facing head | Φ600 mm | Φ600 mm | Φ600 mm |
| Max. travel of facing head | 170 mm | 170 mm | 170 mm |
| Facing head speed steps | 14 steps | 14 steps | 14 steps |
| Facing head speed range | 6-221 r/min | 6-221 r/min | 6-221 r/min |
| Worktable | |||
| Worktable size (L x W) | 1100 x 1000 mm | 1200 x 1100 mm | 1200 x 1100 mm |
| Max. load capacity of worktable | 2500 kg | 4000 kg | 4000 kg |
| Working range | |||
| Transverse travel of table (X) | 1000 mm | 1300 mm | 1600 mm |
| Vertical travel of spindle head (Y) | 900 mm | 1100 mm | 1400 mm |
| Longitudinal travel of table (Z) | 1400 mm; 850mm(with rear column) |
1400 mm; 850mm(with rear column) |
1400 mm; 850mm(with rear column) |
| Spindle travel | 600 mm | 600 mm | 600 mm |
| Table rotating angle | 4x90° | 4x90° | 4x90° |
| Feeding | |||
| Feed of spindle head and table( by spindle/run) (12steps) | 0.04-6mm/ r | 0.04-6mm/ r | 0.04-6mm/ r |
| Feed of spindle head and table(by facing head/run) (12steps) | 0.06-9mm/r | 0.06-9mm/r | 0.06-9mm/r |
| Feed of facing head slide (12steps) | 0.04-6mm/ r | 0.04-6mm/ r | 0.04-6mm/ r |
| Others | |||
| Overall dimension (L x W x H) | 4755x2140x3040mm | 5200x3200x2950mm | 5200x3500x3300mm |
| Machine weight (approximate) | 12000 kg | 16200 kg | 18300 kg |
| Item 01 | Descriptions | |
| 01.01 | Facing head | |
| 01.02 | X/Y-axis DRO | |
| 01.03 | Automatic lubrication system | |
| 01.04 | Work lamp | |
| 01.05 | Reduction sleeve: MT-5 | |
| 01.06 | Pull stud | |
| 01.07 | Tool post for facing head | |
| 01.08 | Handle | |
| 01.09 | Socket wrench | |
| 01.10 | Wedge |
| Item 02 | Descriptions | |
| 02.01 | Tapping bar | |
| 02.02 | Boring bar | |
| 02.03 | Spring collet | |
| 02.04 | Rear column |
Structure
This machine is of table-type layout, with column mounted on the bed and a side spindle head; guideway of the lower saddle is of cross structure.
(X) Table cross travel
(Z) Table longitudinal travel
(Y) Vertical travel of spindle head
(W) Axial travel of boring spindle
(U) Radial travel of facing head slide
X and Y axes are provided with DRO with reading accuracy of 0.005mm.
Z axis DRO is optional.
Table is provided with a manual optical device for positioning at every 4x90°, which can meet needs of in-line boring of parts with the table being turned for 180°.
Spindle system consists of three-layer structure, facing head spindle, hollow spindle and boring spindle.
The boring spindle is of high quality nitride steel 38CrMoAIA; the hollow spindle is of high quality alloy steel; the spindle is of high structure rigidity and accuracy.
The spindle with disk spring clamping and hydraulic unclamping makes tool handling easy.
Control system is provided with Mitsubishi PLC.
This machine can perform boring, drilling and milling.
TX6111 Boring Machine can also use boring spindle or facing plate to enlarge the working range.
Adopting grating measurement, it got reliable positioning accuracy and the whole machine adopts PLC control.
The read accuracy of DRO unit is 0.005mm.
TX6111 Boring Machine can also use boring spindle or facing plate to enlarge the working range.
Adopting grating measurement, it got reliable positioning accuracy and the whole machine adopts PLC control.
The read accuracy of DRO unit is 0.005mm.
Structure
This machine is of table-type layout, with column mounted on the bed and a side spindle head; guideway of the lower saddle is of cross structure.
(X) Table cross travel
(Z) Table longitudinal travel
(Y) Vertical travel of spindle head
(W) Axial travel of boring spindle
(U) Radial travel of facing head slide
X and Y axes are provided with DRO with reading accuracy of 0.005mm.
Z axis DRO is optional.
Table is provided with a manual optical device for positioning at every 4x90°, which can meet needs of in-line boring of parts with the table being turned for 180°.
Spindle system consists of three-layer structure, facing head spindle, hollow spindle and boring spindle.
The boring spindle is of high quality nitride steel 38CrMoAIA; the hollow spindle is of high quality alloy steel; the spindle is of high structure rigidity and accuracy.
The spindle with disk spring clamping and hydraulic unclamping makes tool handling easy.
Control system is provided with Mitsubishi PLC.
This machine is of table-type layout, with column mounted on the bed and a side spindle head; guideway of the lower saddle is of cross structure.
(X) Table cross travel
(Z) Table longitudinal travel
(Y) Vertical travel of spindle head
(W) Axial travel of boring spindle
(U) Radial travel of facing head slide
X and Y axes are provided with DRO with reading accuracy of 0.005mm.
Z axis DRO is optional.
Table is provided with a manual optical device for positioning at every 4x90°, which can meet needs of in-line boring of parts with the table being turned for 180°.
Spindle system consists of three-layer structure, facing head spindle, hollow spindle and boring spindle.
The boring spindle is of high quality nitride steel 38CrMoAIA; the hollow spindle is of high quality alloy steel; the spindle is of high structure rigidity and accuracy.
The spindle with disk spring clamping and hydraulic unclamping makes tool handling easy.
Control system is provided with Mitsubishi PLC.
| Model | TX6111D | TX6111C/2 | TX6111C/3 |
| Spindle | |||
| Spindle diameter | Φ110 mm | Φ110 mm | Φ110 mm |
| Max boring diameter of spindle | Φ300 mm | Φ300 mm | Φ300 mm |
| Max drilling diameter of spindle | Φ65 mm | Φ65 mm | Φ65 mm |
| Spindle taper | ISO50 | ISO50 | ISO50 |
| Max. allowable torque on spindle | 1000 Nm | 1000 Nm | 1000 Nm |
| Max. axial resistance of spindle | 15000 N | 15000 N | 15000 N |
| Spindle speed steps | 18 steps | 18 steps | 18 steps |
| Spindle speed range | 9-1000 r/min | 9-1000 r/min | 9-1000 r/min |
| Spindle motor | 7.5 kW | 7.5 kW | 7.5 kW |
| Facing head | |||
| Diameter of facing head | Φ600 mm | Φ600 mm | Φ600 mm |
| Max. travel of facing head | 170 mm | 170 mm | 170 mm |
| Facing head speed steps | 14 steps | 14 steps | 14 steps |
| Facing head speed range | 6-221 r/min | 6-221 r/min | 6-221 r/min |
| Worktable | |||
| Worktable size (L x W) | 1100 x 1000 mm | 1200 x 1100 mm | 1200 x 1100 mm |
| Max. load capacity of worktable | 2500 kg | 4000 kg | 4000 kg |
| Working range | |||
| Transverse travel of table (X) | 1000 mm | 1300 mm | 1600 mm |
| Vertical travel of spindle head (Y) | 900 mm | 1100 mm | 1400 mm |
| Longitudinal travel of table (Z) | 1400 mm; 850mm(with rear column) |
1400 mm; 850mm(with rear column) |
1400 mm; 850mm(with rear column) |
| Spindle travel | 600 mm | 600 mm | 600 mm |
| Table rotating angle | 4x90° | 4x90° | 4x90° |
| Feeding | |||
| Feed of spindle head and table( by spindle/run) (12steps) | 0.04-6mm/ r | 0.04-6mm/ r | 0.04-6mm/ r |
| Feed of spindle head and table(by facing head/run) (12steps) | 0.06-9mm/r | 0.06-9mm/r | 0.06-9mm/r |
| Feed of facing head slide (12steps) | 0.04-6mm/ r | 0.04-6mm/ r | 0.04-6mm/ r |
| Others | |||
| Overall dimension (L x W x H) | 4755x2140x3040mm | 5200x3200x2950mm | 5200x3500x3300mm |
| Machine weight (approximate) | 12000 kg | 16200 kg | 18300 kg |
