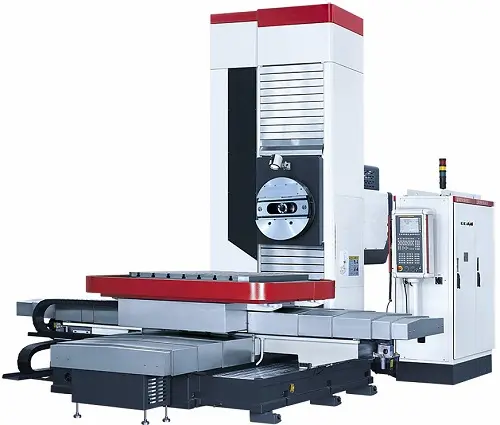

TK110A CNC Horizontal Boring and Milling Machine
TK110A-4P CNC Horizontal Boring Milling Machine Spindle diameter: Φ110mm; Worktable travel (X): 1800mm; Headstock vertical travel (Y): 1600mm; Worktable longitudinal travel (Z): 1400mm; Spindle axial travel (W): 600mm;
- TK110A-4P CNC Horizontal Boring and Milling MachineDownload
Brief Parameters
Spindle diameter: Φ110mm;
Worktable size: 1250X1400mm;
Worktable travel (X): 1800mm;
Headstock vertical travel (Y): 1600mm;
Worktable longitudinal travel (Z): 1400mm;
Spindle axial travel (W): 600mm;
Main specification
Main Features
1. CNC horizontal boring and milling machine TK110A-4P adopts the current advanced optical, mechanical, electrical, pneumatic, hydraulic and other new technologies to design and manufacture. Use FANUC 0i CNC system to realize four-axis simultaneous control, with excellent performance, wide processing range and high production efficiency.
2. TK110A-4P is bed table layout with good overall rigidity. The distance from spindle zero position to the end face of table is 25 mm, workpiece can be processed by spindle minimum overhang. No column movement error and column overturning by adopts fixed column structure which is beneficial to improve the machining precision.
3. Drilling, reaming, boring, groove cutting and plane milling can be completed by one time clamping; bevel, frame plane, large hole end face, two-dimensional, three-dimensional curved surface and internal and external threads can be milled by contour control method. The end of the spindle box is equipped with a fixed flat rotating disk device, which realizes the processing of larger planes, inner holes, outer circles, end faces and grooves.
4. The machine t has the advantages of good rigidity, high precision, convenient operation, safety, reliability and beautiful appearance, is engineering machinery, rolling stock, mining equipment, large motors, water turbines, steam turbines, ships, iron and steel, military, nuclear power, environmental protection and other machinery processing equipment preferred processing areas.
Feedback system
X, Y, Z liner grating scales full loop control;
W, U is motor build-in encoder semi loop control;
Spindle (SP axis) using encoder indirect measurement;
Table is full loop control with circular grating scale.
Spindle diameter: Φ110mm;
Worktable size: 1250X1400mm;
Worktable travel (X): 1800mm;
Headstock vertical travel (Y): 1600mm;
Worktable longitudinal travel (Z): 1400mm;
Spindle axial travel (W): 600mm;
Main specification
| Model | TK110A-4P | Units | |
|---|---|---|---|
| Spindle head | Boring spindle diameter | 110 | mm |
| Spindle taper | 7:24 ISO 50 | - | |
| Tool shak | BT50 | - | |
| Pull stud | P50T-I | - | |
| Spindle speed | 10-1500 | r/min | |
| Main motor power | 15 | kW | |
| Spindle max torque | 1029 | Nm | |
| Min distance from spindle center to table surface | 0 | mm | |
| Spindle max drilling hole diameter | 65 | mm | |
| Spindle max boring hole diameter | 300 | mm | |
| Facing head | Facing head diameter | 670 | mm |
| Facing head rotation speed | 7-165 | r/min | |
| Max boring hole diameter of facing head | 700 | mm | |
| Table | Table dimension | 1250×1400 | mm |
| Max loading capacity | 5000 | kg | |
| Machine travel | Table cross travel X | 1800 | mm |
| Spindle head vertical travel Y | 1600 | mm | |
| Table longitude travel Z | 1400 | mm | |
| Spindle axial travel W | 600 | mm | |
| Facing head slide travel U | 200 | mm | |
| Feed speed range | X/Y/Z | 2.5-5000 | mm/min |
| W | 2.5-3000 | ||
| U | 1-500 | mm/min | |
| B | 0.003-1 | r/min | |
| Rapid | X/Y/Z | 5000 | mm/min |
| W | 3000 | mm/min | |
| U | 1000 | mm/min | |
| B | 2 | r/min | |
| Positioning accuracy | X/Y/Z | 0.018 | mm |
| W/U | 0.025 | mm | |
| B | 8 | ″ | |
| Repeatability | X/Y/Z | 0.012 | mm |
| W/U | 0.020 | mm | |
| B | 6 | ″ | |
| Overall power | -- | 65 | kVA |
| Machine dimension | L×W×H (About) | 6530x4800x4400 | mm |
| Machine weight | Net weight about | 21000 | kg |
Main Features
2. TK110A-4P is bed table layout with good overall rigidity. The distance from spindle zero position to the end face of table is 25 mm, workpiece can be processed by spindle minimum overhang. No column movement error and column overturning by adopts fixed column structure which is beneficial to improve the machining precision.
3. Drilling, reaming, boring, groove cutting and plane milling can be completed by one time clamping; bevel, frame plane, large hole end face, two-dimensional, three-dimensional curved surface and internal and external threads can be milled by contour control method. The end of the spindle box is equipped with a fixed flat rotating disk device, which realizes the processing of larger planes, inner holes, outer circles, end faces and grooves.
4. The machine t has the advantages of good rigidity, high precision, convenient operation, safety, reliability and beautiful appearance, is engineering machinery, rolling stock, mining equipment, large motors, water turbines, steam turbines, ships, iron and steel, military, nuclear power, environmental protection and other machinery processing equipment preferred processing areas.
Feedback system
X, Y, Z liner grating scales full loop control;
W, U is motor build-in encoder semi loop control;
Spindle (SP axis) using encoder indirect measurement;
Table is full loop control with circular grating scale.
Brief Parameters
Spindle diameter: Φ110mm;
Worktable size: 1250X1400mm;
Worktable travel (X): 1800mm;
Headstock vertical travel (Y): 1600mm;
Worktable longitudinal travel (Z): 1400mm;
Spindle axial travel (W): 600mm;
Spindle diameter: Φ110mm;
Worktable size: 1250X1400mm;
Worktable travel (X): 1800mm;
Headstock vertical travel (Y): 1600mm;
Worktable longitudinal travel (Z): 1400mm;
Spindle axial travel (W): 600mm;
Main specification
| Model | TK110A-4P | Units | |
|---|---|---|---|
| Spindle head | Boring spindle diameter | 110 | mm |
| Spindle taper | 7:24 ISO 50 | - | |
| Tool shak | BT50 | - | |
| Pull stud | P50T-I | - | |
| Spindle speed | 10-1500 | r/min | |
| Main motor power | 15 | kW | |
| Spindle max torque | 1029 | Nm | |
| Min distance from spindle center to table surface | 0 | mm | |
| Spindle max drilling hole diameter | 65 | mm | |
| Spindle max boring hole diameter | 300 | mm | |
| Facing head | Facing head diameter | 670 | mm |
| Facing head rotation speed | 7-165 | r/min | |
| Max boring hole diameter of facing head | 700 | mm | |
| Table | Table dimension | 1250×1400 | mm |
| Max loading capacity | 5000 | kg | |
| Machine travel | Table cross travel X | 1800 | mm |
| Spindle head vertical travel Y | 1600 | mm | |
| Table longitude travel Z | 1400 | mm | |
| Spindle axial travel W | 600 | mm | |
| Facing head slide travel U | 200 | mm | |
| Feed speed range | X/Y/Z | 2.5-5000 | mm/min |
| W | 2.5-3000 | ||
| U | 1-500 | mm/min | |
| B | 0.003-1 | r/min | |
| Rapid | X/Y/Z | 5000 | mm/min |
| W | 3000 | mm/min | |
| U | 1000 | mm/min | |
| B | 2 | r/min | |
| Positioning accuracy | X/Y/Z | 0.018 | mm |
| W/U | 0.025 | mm | |
| B | 8 | ″ | |
| Repeatability | X/Y/Z | 0.012 | mm |
| W/U | 0.020 | mm | |
| B | 6 | ″ | |
| Overall power | -- | 65 | kVA |
| Machine dimension | L×W×H (About) | 6530x4800x4400 | mm |
| Machine weight | Net weight about | 21000 | kg |
Machine is whole bed with fixed column, hanging side spindle head and cross sliding table structure. Spindle rotation is main movement.
Movement coordinate as follows
X-- Table cross movement
Y--Vertical travel of spindle head
Z--Table longitude movement
W--Boring spindle axial movement
B--Table rotation
U--Facing head slide travel
Movement coordinate as follows
X-- Table cross movement
Y--Vertical travel of spindle head
Z--Table longitude movement
W--Boring spindle axial movement
B--Table rotation
U--Facing head slide travel
