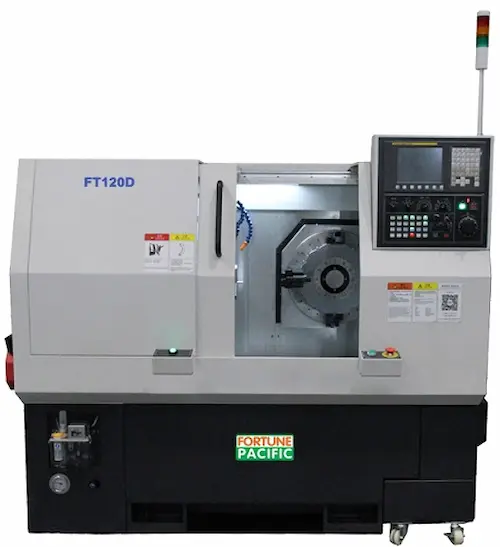

FT120D FT120Y Precision CNC Turret Lathe
FT120Y Precision CNC Turret Lathe is a CNC turret lathe developed on the basis of FT120D in order to meet the more extensive processing needs. it has compact structure, high rigidity and high precision features.
- FT120D FT120Y Precision CNC Turret Lathe.docDownload
Machine specifications
Equipment
Optional
Briefs
Features
l The high rigidity and low center of gravity with cast iron flat body can ensure the stability of long time processing. Oil-water separation structure can avoid the contamination of the coolant by the lubricating oil and prolong the service life of the coolant.
l Z-axis adopts rectangular high-rigidity wide span and hard guide rail structure, X-axis adopts dovetail and high-guidance quality guide hardened structure, the feed is driven by ball screw assembly, which keeps the positioning accuracy and dynamic response speed in high-level.
l 12-station BMT turret servo driver, two ends fluted disc positioning, hydraulic locking, fast tool change, high rigidity, high repeat positioning accuracy, simple structure, easy maintenance.
The turret is perpendicular to spindle, greatly reduces the interference possibility between the tools and the work-pieces, so as to get bigger processing space and easier chip removal.
l Classical spindle structure, high speed, high precision, high rigidity, low noise, maintenance-free.
High-precision spindle shaft adopts the special spindle material after multiple heat treatment and precision machining, the bearings adopt the original high-precision bearings from Japan.
l Effective travel
X-axis travel: 145mm; Z-axis travel: 320mm.
| Items | FT120D | FT120Y |
| Capacity | ||
| Max machining diameter | Ø120 mm | Ø120 mm |
| Max machining length | 120 mm | 120 mm |
| Spindle | ||
| Spindle through hole diameter | Ø42 mm | Ø42 mm |
| Spindle max. speed | 5000 rpm | 5000 rpm |
| Motor power | 7.5/11 kW | 7.5/11 kW |
| Chuck size | 6 inch | 6 inch |
| Travel and rapid traverse | ||
| X axis travel | 145 mm | 125 mm |
| Y axis travel | - | ±40 mm |
| Z axis travel | 320 mm | 250 mm |
| X axis rapid traverse | 15 m/min | 10 m/min |
| Y axis rapid traverse | - | 10 m/min |
| Z axis rapid traverse | 20 m/min | 20 m/min |
| Turret | ||
| Tool number | 12 | 12 |
| Power tools Max speed | 6000 rpm | 6000 rpm |
| Motor power | 1.2/2.2 kW | 1.5/2.2 kW |
| Others | ||
| Center height | 1100 mm | 1100 mm |
| Required electric power | 15 kVA | 15 kVA |
| Overall dimensions (L×W×H) | 2010X1600X1610 mm mm | 2010X1600X1880 mm |
| Net weight | 2400 kg | 2800 kg |
| Item 01 | Descriptions | |
| 01.01 | FANUC Oi TF | |
| 01.02 | 12T power turret ; | |
| 01.03 | Coolant system | |
| 01.04 | Working light | |
| 01.05 | Centralized lubricant device | |
| 01.06 | Power chuck 6 inch and hollow rotary cylinder; | |
| 01.07 | Cs contouring control | |
| 01.08 | Tools and tool box; | |
| 01.09 | Machine door switch | |
| 01.10 | Machine base support |
| Item 02 | Descriptions | |
| 02.01 | Spindle air blowing system | |
| 02.02 | Foot switch | |
| 02.03 | Spindle clamping detection | |
| 02.04 | Electric spindle with oil cooler | |
| 02.05 | Various tool holders | |
| 02.06 | Various collets | |
| 02.07 | Spindle rear side position device | |
| 02.08 | Oil mist collector system | |
| 02.09 | Chips conveyor | |
| 02.10 | Parts receiver and parts transfer unit | |
| 02.11 | Auto bar feeder | |
| 02.12 | Spindle brake device | |
| 02.13 | Automatic tool setting | |
| 02.14 | Robot manipulator | |
| 02.15 | Turret side high pressure coolant | |
| 02.16 | Coolant in cutting tool |
Briefs
FT120D Precision CNC Turret Lathe is a turret type CNC lathe. The overall structure is the spindle perpendicular to the turret, which greatly reduces the interference possibility between the tools and the work-pieces. Cast iron flat body sliding guide rail, 12-station BMT hydraulic locking turret design structure, it has compact structure, high rigidity and high precision features.
FT120Y Precision CNC Turret Lathe is a CNC turret lathe developed on the basis of FT120D in order to meet the more extensive processing needs. The addition of Y-axis greatly reduces the possibility of the accuracy not up to the standard due to multiple clamping. Adopt hard rail guide rail and original imported Y-axis motor and lead screw to ensure the precision control of machining process.
FT120Y Precision CNC Turret Lathe is a CNC turret lathe developed on the basis of FT120D in order to meet the more extensive processing needs. The addition of Y-axis greatly reduces the possibility of the accuracy not up to the standard due to multiple clamping. Adopt hard rail guide rail and original imported Y-axis motor and lead screw to ensure the precision control of machining process.
l The high rigidity and low center of gravity with cast iron flat body can ensure the stability of long time processing. Oil-water separation structure can avoid the contamination of the coolant by the lubricating oil and prolong the service life of the coolant.
l Z-axis adopts rectangular high-rigidity wide span and hard guide rail structure, X-axis adopts dovetail and high-guidance quality guide hardened structure, the feed is driven by ball screw assembly, which keeps the positioning accuracy and dynamic response speed in high-level.
l 12-station BMT turret servo driver, two ends fluted disc positioning, hydraulic locking, fast tool change, high rigidity, high repeat positioning accuracy, simple structure, easy maintenance.
The turret is perpendicular to spindle, greatly reduces the interference possibility between the tools and the work-pieces, so as to get bigger processing space and easier chip removal.
l Classical spindle structure, high speed, high precision, high rigidity, low noise, maintenance-free.
High-precision spindle shaft adopts the special spindle material after multiple heat treatment and precision machining, the bearings adopt the original high-precision bearings from Japan.
l Effective travel
X-axis travel: 145mm; Z-axis travel: 320mm.
Briefs
FT120D Precision CNC Turret Lathe is a turret type CNC lathe. The overall structure is the spindle perpendicular to the turret, which greatly reduces the interference possibility between the tools and the work-pieces. Cast iron flat body sliding guide rail, 12-station BMT hydraulic locking turret design structure, it has compact structure, high rigidity and high precision features.
FT120Y Precision CNC Turret Lathe is a CNC turret lathe developed on the basis of FT120D in order to meet the more extensive processing needs. The addition of Y-axis greatly reduces the possibility of the accuracy not up to the standard due to multiple clamping. Adopt hard rail guide rail and original imported Y-axis motor and lead screw to ensure the precision control of machining process.
FT120Y Precision CNC Turret Lathe is a CNC turret lathe developed on the basis of FT120D in order to meet the more extensive processing needs. The addition of Y-axis greatly reduces the possibility of the accuracy not up to the standard due to multiple clamping. Adopt hard rail guide rail and original imported Y-axis motor and lead screw to ensure the precision control of machining process.
Features
l The high rigidity and low center of gravity with cast iron flat body can ensure the stability of long time processing. Oil-water separation structure can avoid the contamination of the coolant by the lubricating oil and prolong the service life of the coolant.
l Z-axis adopts rectangular high-rigidity wide span and hard guide rail structure, X-axis adopts dovetail and high-guidance quality guide hardened structure, the feed is driven by ball screw assembly, which keeps the positioning accuracy and dynamic response speed in high-level.
l 12-station BMT turret servo driver, two ends fluted disc positioning, hydraulic locking, fast tool change, high rigidity, high repeat positioning accuracy, simple structure, easy maintenance.
The turret is perpendicular to spindle, greatly reduces the interference possibility between the tools and the work-pieces, so as to get bigger processing space and easier chip removal.
l Classical spindle structure, high speed, high precision, high rigidity, low noise, maintenance-free.
High-precision spindle shaft adopts the special spindle material after multiple heat treatment and precision machining, the bearings adopt the original high-precision bearings from Japan.
l Effective travel
X-axis travel: 145mm; Z-axis travel: 320mm.
l The high rigidity and low center of gravity with cast iron flat body can ensure the stability of long time processing. Oil-water separation structure can avoid the contamination of the coolant by the lubricating oil and prolong the service life of the coolant.
l Z-axis adopts rectangular high-rigidity wide span and hard guide rail structure, X-axis adopts dovetail and high-guidance quality guide hardened structure, the feed is driven by ball screw assembly, which keeps the positioning accuracy and dynamic response speed in high-level.
l 12-station BMT turret servo driver, two ends fluted disc positioning, hydraulic locking, fast tool change, high rigidity, high repeat positioning accuracy, simple structure, easy maintenance.
The turret is perpendicular to spindle, greatly reduces the interference possibility between the tools and the work-pieces, so as to get bigger processing space and easier chip removal.
l Classical spindle structure, high speed, high precision, high rigidity, low noise, maintenance-free.
High-precision spindle shaft adopts the special spindle material after multiple heat treatment and precision machining, the bearings adopt the original high-precision bearings from Japan.
l Effective travel
X-axis travel: 145mm; Z-axis travel: 320mm.
Machine specifications
| Items | FT120D | FT120Y |
| Capacity | ||
| Max machining diameter | Ø120 mm | Ø120 mm |
| Max machining length | 120 mm | 120 mm |
| Spindle | ||
| Spindle through hole diameter | Ø42 mm | Ø42 mm |
| Spindle max. speed | 5000 rpm | 5000 rpm |
| Motor power | 7.5/11 kW | 7.5/11 kW |
| Chuck size | 6 inch | 6 inch |
| Travel and rapid traverse | ||
| X axis travel | 145 mm | 125 mm |
| Y axis travel | - | ±40 mm |
| Z axis travel | 320 mm | 250 mm |
| X axis rapid traverse | 15 m/min | 10 m/min |
| Y axis rapid traverse | - | 10 m/min |
| Z axis rapid traverse | 20 m/min | 20 m/min |
| Turret | ||
| Tool number | 12 | 12 |
| Power tools Max speed | 6000 rpm | 6000 rpm |
| Motor power | 1.2/2.2 kW | 1.5/2.2 kW |
| Others | ||
| Center height | 1100 mm | 1100 mm |
| Required electric power | 15 kVA | 15 kVA |
| Overall dimensions (L×W×H) | 2010X1600X1610 mm mm | 2010X1600X1880 mm |
| Net weight | 2400 kg | 2800 kg |
