FS07 Swiss type Precision Automatic lathe
FS07 Swiss type Precision Automatic lathe is a kind of small-size sliding headstock precision lathe of low cost and high performance developed by our company using our exceptional technology of the high-precision and high-speed front-drive main shaft.
- FS07 Swiss type Precision Automatic latheDownload
Swiss type Precision Automatic lathe Machine specifications
Optional
Features FS07-3 /FS07-3D
1. Static guide bush: High rigidity and low cost; keeping accuracy at high speed; easy maintenance;
2. High precision front-drive spindle: low-cost external motor drive;high precision spindle; saving installation space.
3. High torque spindle with high-power motor: big machining capacity;steady and long-time machining;low cost of maintenance.

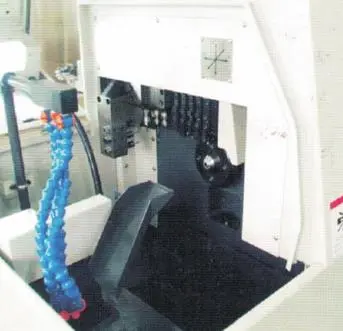

4. Spacious cutting and machining area: easy operation and processing;safe working environment..
Features of FS07-4/FS07-4D
FS07-4/4D is optimized on the basis of SX-03, adding the auxiliary spindle of Swiss-type automatic lathe. Both of the main and auxiliary spindles are internal-mounted motor, which achieves one-time processing for small part. It suitable for high-speed rail connectors, watch parts and small diameter parts of automatic processing.
Stable spindle designing
The high-speed electrical spindle is adopted and the sustained longtime pressing is realized; High-precision and long -life spindle design to realize low-noise operation.
Full stroke synchronous rotary guide bushing unit
To maintain stable and high-precision processing; under high running speed; Easy operation and maintenance;
Most effective cooling system
The mass flow cooling system can provide sufficient coolant to ensure the precision stability of long-time and sustained
processing; Heavy duty machining, high rigidity; High stiffness of cast structure;
Spindle coolant device
Effective prevent the machine from affecting the accuracy due to temperature changes to meet the high-precision machining requirements of parts
Swiss type Precision Automatic lathe is a style of Turning CNC Lathe whereby the holding mechanism or collet is recessed behind the guide bushing. The Swiss lathe use holding mechanism or collet that to holds a bar stock will not be exposed directly to the lathe bed or the toolings.
FS07 Swiss type Precision Automatic lathe is a kind of small-size sliding headstock precision lathe of low cost and high performance developed by our company using our exceptional technology of the high-precision and high-speed front-drive main shaft. With auto-feeder provided, the machines are suitable for the mass production of small slender rotary parts as well as combined machining of small-diameter parts such as spindle sleeve, including cylindrical turning, drilling, boring, thread cutting, grooving, cutting off, tapping, etc. Particularly suitable for mobile phones, computers, cameras, automobiles, motor cycles, small molds and common parts processing.
| Items | FS07-3 | FS07-3D | FS07-4 | FS07-4D | |||
|---|---|---|---|---|---|---|---|
| Main Spindle | |||||||
| Travel of synchronous rotary guide bush | 110 mm (optional) | ||||||
| Travel of static guide bush | 105 mm | ||||||
| Max spindle speed | 10000 rpm | ||||||
| Max machining diameter | Ø7 mm | ||||||
| Min indexing | - | 0.001° | - | 0.001° | |||
| Sub Spindle | |||||||
| Travel | 115 mm | ||||||
| Max spindle speed | 10000 rpm | ||||||
| Max machining diameter | Ø7 mm | ||||||
| Min indexing | - | - | - | 0.001° | |||
| Tools | |||||||
| Number of gang tools | 5 | ||||||
| No. of front/back tools | 5/0 | 3/0 | 5/5 | 3/3 | |||
| No. of radial power tools | - | 3 | - | 3 | |||
| Max drilling diameter | Ø5 mm | ||||||
| Max tapping diameter (front tool) | M5 | ||||||
| Max radial drilling diameter | Ø5 mm | ||||||
| Max radial nicking diameter | Ø30 mm | ||||||
| Motors | |||||||
| Main spindle motor power | 1.0/1.7 kW | ||||||
| Sub spindle motor power | - | 1.0/1.7 kW | |||||
| Power tool motor power | - | 0.4 kW | - | 0.4 kW | |||
| Servo feed motor power | 0.5 kW | ||||||
| Coolant pump motor power | 0.18 kW | ||||||
| Rapid feed speed | 24(X-axis:15) m/min | ||||||
| Others | |||||||
| Center height | 1000 mm | ||||||
| Required electric power | 6 kVA | ||||||
| Coolant tank capacity | 60 L | ||||||
| Lubrication tank capacity | 1.8 L | ||||||
| Overall dimensions (L×W×H) | 1420x1010x1640 mm | ||||||
| Net weight | 1300 kg | ||||||
Equipment
| Item 01 | Descriptions | |
| 01.01 | FANUC Oi TF | |
| 01.02 | Rotary guide bushing unit | |
| 01.03 | Centralized lubricant device | |
| 01.04 | Coolant unit | |
| 01.05 | Coolant flow rate detector | |
| 01.06 | Parts receiver | |
| 01.07 | Tool box | |
| 01.08 | Bar feeder interface | |
| 01.09 | Work light | |
| 01.10 | MPG control | |
| 01.11 | Spindle tapping | |
| 01.12 | Front tools | |
| 01.13 | Front stock ejecting of auxiliary spindle | |
| 01.14 | Power cutting tools | |
| 01.15 | Spindle Cs function( FS07-3D,FS07-4D) |
| Item 02 | Descriptions | |
| 02.01 | Spindle collet chuck | |
| 02.02 | Guide bush | |
| 02.03 | Sub spindle collet chuck | |
| 02.04 | Single headed drill fixture | |
| 02.05 | Drill fixture expanding chuck | |
| 02.06 | Door interlock system | |
| 02.07 | Cutting off detection device | |
| 02.08 | Parts feeder | |
| 02.09 | Stationary guide bushing | |
| 02.10 | Cutting tool destructive detection device | |
| 02.11 | Bar feeder | |
| 02.12 | Power leakage protection device |
1. Static guide bush: High rigidity and low cost; keeping accuracy at high speed; easy maintenance;
2. High precision front-drive spindle: low-cost external motor drive;high precision spindle; saving installation space.
3. High torque spindle with high-power motor: big machining capacity;steady and long-time machining;low cost of maintenance.
4. Spacious cutting and machining area: easy operation and processing;safe working environment..
Features of FS07-4/FS07-4D
FS07-4/4D is optimized on the basis of SX-03, adding the auxiliary spindle of Swiss-type automatic lathe. Both of the main and auxiliary spindles are internal-mounted motor, which achieves one-time processing for small part. It suitable for high-speed rail connectors, watch parts and small diameter parts of automatic processing.
Stable spindle designing
Full stroke synchronous rotary guide bushing unit
Most effective cooling system
processing; Heavy duty machining, high rigidity; High stiffness of cast structure;
Spindle coolant device
Swiss type Precision Automatic lathe is a style of Turning CNC Lathe whereby the holding mechanism or collet is recessed behind the guide bushing. The Swiss lathe use holding mechanism or collet that to holds a bar stock will not be exposed directly to the lathe bed or the toolings.
FS07 Swiss type Precision Automatic lathe is a kind of small-size sliding headstock precision lathe of low cost and high performance developed by our company using our exceptional technology of the high-precision and high-speed front-drive main shaft. With auto-feeder provided, the machines are suitable for the mass production of small slender rotary parts as well as combined machining of small-diameter parts such as spindle sleeve, including cylindrical turning, drilling, boring, thread cutting, grooving, cutting off, tapping, etc. Particularly suitable for mobile phones, computers, cameras, automobiles, motor cycles, small molds and common parts processing.
Features FS07-3 /FS07-3D
1. Static guide bush: High rigidity and low cost; keeping accuracy at high speed; easy maintenance;
2. High precision front-drive spindle: low-cost external motor drive;high precision spindle; saving installation space.
3. High torque spindle with high-power motor: big machining capacity;steady and long-time machining;low cost of maintenance.
4. Spacious cutting and machining area: easy operation and processing;safe working environment..
Features of FS07-4/FS07-4D
FS07-4/4D is optimized on the basis of SX-03, adding the auxiliary spindle of Swiss-type automatic lathe. Both of the main and auxiliary spindles are internal-mounted motor, which achieves one-time processing for small part. It suitable for high-speed rail connectors, watch parts and small diameter parts of automatic processing.
processing; Heavy duty machining, high rigidity; High stiffness of cast structure;
Swiss type Precision Automatic lathe is a style of Turning CNC Lathe whereby the holding mechanism or collet is recessed behind the guide bushing. The Swiss lathe use holding mechanism or collet that to holds a bar stock will not be exposed directly to the lathe bed or the toolings.
FS07 Swiss type Precision Automatic lathe is a kind of small-size sliding headstock precision lathe of low cost and high performance developed by our company using our exceptional technology of the high-precision and high-speed front-drive main shaft. With auto-feeder provided, the machines are suitable for the mass production of small slender rotary parts as well as combined machining of small-diameter parts such as spindle sleeve, including cylindrical turning, drilling, boring, thread cutting, grooving, cutting off, tapping, etc. Particularly suitable for mobile phones, computers, cameras, automobiles, motor cycles, small molds and common parts processing.
1. Static guide bush: High rigidity and low cost; keeping accuracy at high speed; easy maintenance;
2. High precision front-drive spindle: low-cost external motor drive;high precision spindle; saving installation space.
3. High torque spindle with high-power motor: big machining capacity;steady and long-time machining;low cost of maintenance.
4. Spacious cutting and machining area: easy operation and processing;safe working environment..
Features of FS07-4/FS07-4D
FS07-4/4D is optimized on the basis of SX-03, adding the auxiliary spindle of Swiss-type automatic lathe. Both of the main and auxiliary spindles are internal-mounted motor, which achieves one-time processing for small part. It suitable for high-speed rail connectors, watch parts and small diameter parts of automatic processing.
- Stable spindle designing
- Full stroke synchronous rotary guide bushing unit
- Most effective cooling system
processing; Heavy duty machining, high rigidity; High stiffness of cast structure;
- Spindle coolant device
Swiss type Precision Automatic lathe is a style of Turning CNC Lathe whereby the holding mechanism or collet is recessed behind the guide bushing. The Swiss lathe use holding mechanism or collet that to holds a bar stock will not be exposed directly to the lathe bed or the toolings.
FS07 Swiss type Precision Automatic lathe is a kind of small-size sliding headstock precision lathe of low cost and high performance developed by our company using our exceptional technology of the high-precision and high-speed front-drive main shaft. With auto-feeder provided, the machines are suitable for the mass production of small slender rotary parts as well as combined machining of small-diameter parts such as spindle sleeve, including cylindrical turning, drilling, boring, thread cutting, grooving, cutting off, tapping, etc. Particularly suitable for mobile phones, computers, cameras, automobiles, motor cycles, small molds and common parts processing.
Equipment
| Item 01 | Descriptions | |
| 01.01 | FANUC Oi TF | |
| 01.02 | Rotary guide bushing unit | |
| 01.03 | Centralized lubricant device | |
| 01.04 | Coolant unit | |
| 01.05 | Coolant flow rate detector | |
| 01.06 | Parts receiver | |
| 01.07 | Tool box | |
| 01.08 | Bar feeder interface | |
| 01.09 | Work light | |
| 01.10 | MPG control | |
| 01.11 | Spindle tapping | |
| 01.12 | Front tools | |
| 01.13 | Front stock ejecting of auxiliary spindle | |
| 01.14 | Power cutting tools | |
| 01.15 | Spindle Cs function( FS07-3D,FS07-4D) |
Optional
| Item 02 | Descriptions | |
| 02.01 | Spindle collet chuck | |
| 02.02 | Guide bush | |
| 02.03 | Sub spindle collet chuck | |
| 02.04 | Single headed drill fixture | |
| 02.05 | Drill fixture expanding chuck | |
| 02.06 | Door interlock system | |
| 02.07 | Cutting off detection device | |
| 02.08 | Parts feeder | |
| 02.09 | Stationary guide bushing | |
| 02.10 | Cutting tool destructive detection device | |
| 02.11 | Bar feeder | |
| 02.12 | Power leakage protection device |
