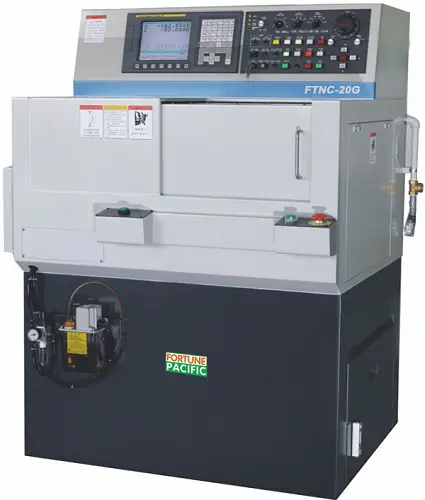

FTNC-20G FTNC-20GT Precision CNC Gang Tool Lathe
The machining precision is within 0.2μm: the spindle adopts super precise radial ball bearing making it possible to achieve high speed and high precision processing within 0.2μm for both roundness and surface precision.
- FTNC-20G FTNC-20GT Small Type Precision CNC Gang Tool LatheDownload
Machine specifications
Equipment
Optional
FTNC-20G FTNC-20GT Small Type Precision CNC Lathe require small installing space and low cost, and are designed to deal with the precision machining of small diameter. With maintenance-free servo motors adopted, FTNC-20G FTNC-20GT is characterized by small size, high feeding accuracy, easy operation and maintenance, smooth escape of chips, etc. CS function can be set to realize precision machining of curved surface.
The machining precision is within 0.2μm: the spindle adopts super precise radial ball bearing making it possible to achieve high speed and high precision processing within 0.2μm for both roundness and surface precision.
Features
In addition, we have adopted a maintenance-free
Digital AC servo motor for each spindle feed.
The pneumatic rotary cylinder and precision pneumatic chuck (optional)Processing precision within 0.2um Through the adoption of super precise angular main bearing for the main shaft bearing it has been possible to achieve high speed high precision processing within 0.2um for both roundness surface precision.
| Items | FTNC-20G | FTNC-20GT |
| Capacity | ||
| Max swing over bed | Ø240 mm | Ø240 mm |
| Max swing over cross slide | Ø120 mm | Ø120 mm |
| Max machining diameter | Ø100 mm | Ø100 mm |
| Max machining length | 100 mm | 150 mm |
| Spindle through hole diameter | Ø20 mm | Ø20 mm |
| Spindle | ||
| Spindle speed (Stepless) | Max 6000 rpm | Max 6000 rpm |
| Spindle motor power | 3.7/5.5 kW | 3.7/5.5 kW |
| Spring collet shank | Ø26 mm | Ø26 mm |
| Travel and rapid traverse | ||
| X axis travel | 200 mm | 200 mm |
| Z axis travel | 180 mm | 180 mm |
| X axis rapid traverse speed | 15 m/min | 15 m/min |
| Z axis rapid traverse speed | 15 m/min | 15 m/min |
| Turret | ||
| Tool type | Gang tool | electrical |
| Number of tool station | - | 6 |
| Tailstock | ||
| Tailstock type | - | pneumatic |
| Others | ||
| Height from floor to spindle center | 900 mm | 900 mm |
| Power source | 6 kVA | 6 kVA |
| Overall dimensions (L×W×H) | 1100x1050x1470 mm | 1500x1050x1470 mm |
| Net weight | 750 kg | 800 kg |
| Item 01 | Descriptions | |
| 01.01 | FANUC Oi TF | |
| 01.02 | Coolant system. | |
| 01.03 | Working light | |
| 01.04 | Centralized lubricant device | |
| 01.05 | The shift fork type clamping device | |
| 01.06 | Spindle spring chuck adapter | |
| 01.07 | Spindle spring chuck | |
| 01.08 | FTNC-20G: equipped with gang tools holder; FTNC-20GT: equipped with 6-position electric tool |
|
| 01.09 | Tools and tool box; | |
| 01.10 | Machine base support |
| Item 02 | Descriptions | |
| 02.01 | Precision pneumatic chuck | |
| 02.02 | Spindle spring collet | |
| 02.03 | Expanding collet unit and expanding collet chucks | |
| 02.04 | Various tools and drilling holders | |
| 02.05 | Air blower device | |
| 02.06 | Cutting oil unit with external chip tank | |
| 02.07 | Spindle fixed position stopping device with locking device | |
| 02.08 | Cs contouring control | |
| 02.09 | Pats conveyor | |
| 02.10 | Automatic chip conveyor | |
| 02.11 | Power chuck | |
| 02.12 | Coolant out rear tool | |
| 02.13 | Auto bar feeder | |
| 02.14 | Oil mist collector |
The machining precision is within 0.2μm: the spindle adopts super precise radial ball bearing making it possible to achieve high speed and high precision processing within 0.2μm for both roundness and surface precision.
Features
Dovetail sliding guide rail:
Guide rail adopts high quality cast iron with quenching, grinding and scraping treatment, which prolongs the precision retaining period of the guide rail surface and keeps stable precision for a long time.
Proper gang tool structure:
This machine is equipped with the proper gang tool structure and sufficient tool installation space. Precise machine tools for drilling, tapping, boring, milling and thread cutting can be installed in the tool post.
Space saving: can be installed in small space of 1100x1050mm.
Powerful AC servo motor:
For the spindle drive, we have provided infinitely variable speed by means of a 3.7kW FANUC AC servo motor.In addition, we have adopted a maintenance-free
Digital AC servo motor for each spindle feed.
High precision feed: each guide surface has been dovetailed with sufficient length and equipped with automatic
lubrication system ensuring high precision feed for long period of time.
Easy maintenance: wide openings have been assured for all doors and easy to use devices, such as control
buttons, to facilitate exchange and maintenance.
Selection of diverse automatic fixture unclamping & clamping device:
The shift fork type clamping mechanism and collet chuck clamping mode(standard)The pneumatic rotary cylinder and precision pneumatic chuck (optional)Processing precision within 0.2um Through the adoption of super precise angular main bearing for the main shaft bearing it has been possible to achieve high speed high precision processing within 0.2um for both roundness surface precision.
FTNC-20G FTNC-20GT Small Type Precision CNC Lathe require small installing space and low cost, and are designed to deal with the precision machining of small diameter. With maintenance-free servo motors adopted, FTNC-20G FTNC-20GT is characterized by small size, high feeding accuracy, easy operation and maintenance, smooth escape of chips, etc. CS function can be set to realize precision machining of curved surface.
The machining precision is within 0.2μm: the spindle adopts super precise radial ball bearing making it possible to achieve high speed and high precision processing within 0.2μm for both roundness and surface precision.
The machining precision is within 0.2μm: the spindle adopts super precise radial ball bearing making it possible to achieve high speed and high precision processing within 0.2μm for both roundness and surface precision.
Equipment
| Item 01 | Descriptions | |
| 01.01 | FANUC Oi TF | |
| 01.02 | Coolant system. | |
| 01.03 | Working light | |
| 01.04 | Centralized lubricant device | |
| 01.05 | The shift fork type clamping device | |
| 01.06 | Spindle spring chuck adapter | |
| 01.07 | Spindle spring chuck | |
| 01.08 | FTNC-20G: equipped with gang tools holder; FTNC-20GT: equipped with 6-position electric tool |
|
| 01.09 | Tools and tool box; | |
| 01.10 | Machine base support |
Optional
| Item 02 | Descriptions | |
| 02.01 | Precision pneumatic chuck | |
| 02.02 | Spindle spring collet | |
| 02.03 | Expanding collet unit and expanding collet chucks | |
| 02.04 | Various tools and drilling holders | |
| 02.05 | Air blower device | |
| 02.06 | Cutting oil unit with external chip tank | |
| 02.07 | Spindle fixed position stopping device with locking device | |
| 02.08 | Cs contouring control | |
| 02.09 | Pats conveyor | |
| 02.10 | Automatic chip conveyor | |
| 02.11 | Power chuck | |
| 02.12 | Coolant out rear tool | |
| 02.13 | Auto bar feeder | |
| 02.14 | Oil mist collector |
