UVM46 Universal Ram Type Milling Machine
FORTUNE PACIFIC UVM46 Universal Ram Type milling machine is a versatile machine tool that can machine planes (horizontal, vertical), grooves (keyways, T-slots, dovetails, etc.), splitting parts (gears, spline shafts, sprockets) on the milling machine.
- UVM46 Universal Ram Type Milling MachineDownload
Machine specifications
Equipments
Optionals
Features
Elevator Ram-Type Swivel cutter head Single-column Universal Vertical Knee type Milling Machine has reasonable construction and superior machining functions such as drilling, boring, milling of plane, inclined plane and slot, and such functions available by use of the corresponding attachments.
Classification & Definition of the Milling Machine tool, what is milling?
Vertical Milling Machine
The milling machine in which the spindle axis is perpendicular to the table is called vertical milling machine.
Knee-Type Milling Machine
The milling machine which has a knee like projection at the middle is called knee-type milling machine. It is characterised by a vertical adjustable work table resting on a saddle supported by a knee.
FORTUNE PACIFIC Elevator milling machine
There are universal, horizontal and vertical, etc., mainly used for processing small and medium-sized parts, the most widely used.
Single-column milling machine and single-arm milling machine
The former horizontal milling head can be moved along the column guide rail, and the table can be fed longitudinally; the latter vertical milling head can be moved horizontally along the cantilever rail, and the cantilever can also be adjusted along the column rail. Both are used to machine large parts.

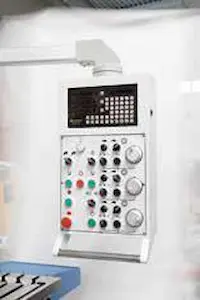

| Items | UVM46 |
| Working area | |
| Table size | 1235x460mm |
| T-slot (width x No. x pitch) | 18mmx5x80mm |
| Max. load of table | 800kg |
| Distance from spindle nose to table surface | 50-500mm |
| Distance from spindle center line to column | 36-686mm |
| Travel | |
| Longitudinal travel of X axis | 900mm |
| Cross travel of Y axis | 650mm |
| Vertical travel of Z axis | 450mm |
| Spindle | |
| Swivel angle of milling head | 360° |
| Spindle taper | ISO40 |
| Vertical spindle speed /step | 30-2050rpm |
| Vertical spindle speed step | 27 steps |
| Main motor power | 5.5kW |
| Feed | |
| Feed speed and step of X/Y axis | 10-1000mm/min |
| Feed speed and step of Z axis | 6-640mm/min |
| Rapid traverse of X/Y axis | 2200mm/min |
| Rapid traverse of Z axis | 1100 mm/min |
| AC servo motor torque and power of X/Y/Z axis | X/Y:18Nm; 3.6kW Z:27Nm;5.5kW |
| Others | |
| Overall dimension | 1835x2360x2090mm |
| Net weight | 3900kg |
| Item 01 | Descriptions | |
| 01.01 | Draw bar | |
| 01.02 | Cutter arbor | |
| 01.03 | Middle sleeve | |
| 01.04 | Working lamp | |
| 01.05 | Coolant system | |
| 01.06 | Central lubrication | |
| 01.07 | Inner hexagon spanner | |
| 01.08 | Operation manual |
| Item 02 | Descriptions | |
| 02.01 | 3-aixs Digital Read Out | |
| 02.02 | Dividing head | |
| 02.03 | Rotary table | |
| 02.04 | Machine vise | |
| 02.05 | Milling chuck | |
| 02.06 | Clamping kits | |
| 02.07 | Automatic lubrication | |
| 02.08 | Work table cover | |
| 02.09 | Aluminum alloy support arm |
- This machine features a user-friendly design, significantly higher precision and increased machining capacity;
- Very high reliability and long service life of all components ensure drastically reduced maintenance and increased availability;
- Rigid, torsion-proof construction with dovetail guide on X axis, and wide square guides on Y and Z axis;
- Large work table and long travels on all axes;
- All guides are hardened, ground, and supplied with oil by a central lubrication unit;
- Universal swivel head swings easily to a horizontal position;
- Table feeding with 3 separate servo motors, variable speeds, not interfere each other, high reliability, easy to operate ;
- Preloaded ball screw for easy and precise Feeds, and zero backlash;

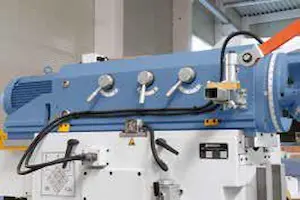

- Robust transmission with hardened and ground gears;
Elevator Ram-Type Swivel cutter head Single-column Universal Vertical Knee type Milling Machine has reasonable construction and superior machining functions such as drilling, boring, milling of plane, inclined plane and slot, and such functions available by use of the corresponding attachments.
Classification & Definition of the Milling Machine tool, what is milling?
Vertical Milling Machine
The milling machine in which the spindle axis is perpendicular to the table is called vertical milling machine.
Knee-Type Milling Machine
The milling machine which has a knee like projection at the middle is called knee-type milling machine. It is characterised by a vertical adjustable work table resting on a saddle supported by a knee.
FORTUNE PACIFIC Elevator milling machine
There are universal, horizontal and vertical, etc., mainly used for processing small and medium-sized parts, the most widely used.
Single-column milling machine and single-arm milling machine
The former horizontal milling head can be moved along the column guide rail, and the table can be fed longitudinally; the latter vertical milling head can be moved horizontally along the cantilever rail, and the cantilever can also be adjusted along the column rail. Both are used to machine large parts.
- This machine features a user-friendly design, significantly higher precision and increased machining capacity;
- Very high reliability and long service life of all components ensure drastically reduced maintenance and increased availability;
- Rigid, torsion-proof construction with dovetail guide on X axis, and wide square guides on Y and Z;
- Large work table and long travels on all axes;
- All guides are hardened, ground, and supplied with oil by a central lubrication unit;
- Universal swivel head swings easily to a horizontal position;
- Table feeding with 3 separate servo motors, variable speeds, not interfere each other, high reliability, easy to operate ;
- Preloaded ball screw for easy and precise Feeds, and zero backlash;
- Robust transmission with hardened and ground gears;
FORTUNE PACIFIC Elevator Ram-Type Swivel cutter head Single-column Universal Vertical Knee type Milling Machine has reasonable construction and superior machining functions such as drilling, boring, milling of plane, inclined plane and slot, and such functions available by use of the corresponding attachments.
With the ability to do either vertical or horizontal milling, this is one of the most versatile milling machines for sell. Even better—the vertical and horizontal spindles each have dedicated motors, so power and ability are not compromised when using either spindle. Convert to the horizontal setup by rotating the headstock 180° on the column and installing either of the two included horizontal arbors. Once in the horizontal configuration, you can do gang milling by installing multiple side and face mills on the arbor at one time, which ultimately can save huge amounts of time. With such a wide range of versatility and features, we think you'll agree that Horizontal & Vertical Knee type Milling machine for sale could be one of the most functional machining centers in any shop!
Products
Download
FORTUNE PACIFIC LIMITED © All Rights Reserved.
Knee Type Milling Machine: Precision Versatility for Industrial Manufacturing
What is a Knee Type Milling Machine?
A knee type milling machine is a fundamental machine tool distinguished by its vertically adjustable worktable mounted on a "knee" casting. This knee moves precisely up and down a fixed column via a screw mechanism, enabling accurate Z-axis positioning crucial for diverse milling operations.
Working Principle
The core principle involves a rotating milling cutter removing material from a workpiece secured to the table. The adjustable knee mechanism allows controlled vertical movement (Z-axis), while the table provides longitudinal (X-axis) and transverse (Y-axis) travel. This 3-axis control facilitates complex machining of flat, angular, and contoured surfaces.
Key Applications
- Tool & Die Making: Precision molds, jigs, fixtures
- Prototyping: Rapid part development
- Maintenance Shops: Equipment repair & part fabrication
- General Machining: Slotting, drilling, facing, keyway cutting
- Aerospace & Automotive: Component manufacturing
Distinctive Features & Advantages
- Vertical Adjustability: Knee movement enables quick workpiece height changes
- Rigid Construction: Robust cast iron frame ensures stability
- Manual & CNC Options: Traditional control or computer numerical precision
- Turret Design (Common): Swiveling milling head for multi-angle machining
- Wide Workpiece Compatibility: Handles various sizes and shapes
Primary Classifications
- Vertical Knee Mill: Spindle axis perpendicular to table (most common)
- Horizontal Knee Mill: Spindle axis parallel to table (for heavy stock removal)
- Universal Knee Mill: Table swivels for complex angular cuts
- Turret Mill: Head rotates on turret for flexible positioning
Main Components
- Base & Column: Primary support structure
- Knee: Vertically moving saddle supporting the table
- Saddle & Table: Hold and position the workpiece (X/Y axes)
- Milling Head: Houses spindle, motor, and quill (Z-axis)
- Arbor/Spindle: Rotating shaft holding cutting tools
- Controls: Manual handwheels or CNC interface
Evolution & Industry Significance
Since their development in the late 19th century, knee-and-column mills revolutionized machining. The iconic Bridgeport design (1938) popularized the turret style. While CNC machining centers dominate high-volume production, knee mills remain indispensable for flexibility, ease of use, and cost-effectiveness in job shops, schools, and repair facilities worldwide.
Fortune Pacific: Your Knee Mill Solution
At Fortune Pacific, we engineer durable, high-precision knee type milling machines for demanding applications. Explore our range of vertical mills, horizontal mills, and CNC-ready models designed to enhance your workshop's capabilities. Discover the ideal machine for your metalworking, prototyping, or toolmaking needs.
