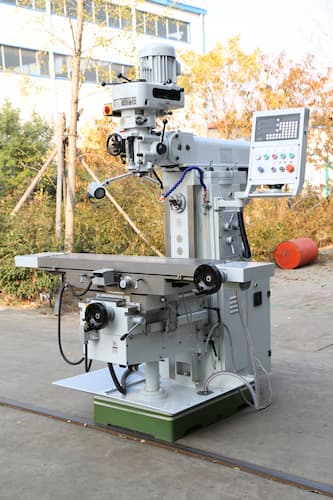

VHM32QA QC Horizontal and Vertical Milling Machine
- VHM32Q VHM32QA VHM32QB VHM32QC Horizontal and Vertical Turret Milling MachineDownload
| Items | VHM32Q | VHM32QA | VHM32QB | VHM32QC |
| Working area | ||||
| Worktable size (L×W) | 1270x320mm | 1370x320mm | 1270x320mm | 1370x320mm |
| T slot (Width x No. x pitch) | 14x3x80mm | |||
| Max. load of table | 260kg | |||
| Table rotation | optional: ±45˚ | |||
| Distance from horizontal spindle axis to table surface | 75-475mm | |||
| Distance between spindle nose and table surface | 260-660mm | |||
| Travels | ||||
| Worktable longitudinal travel (X) | 720mm | 820mm | 900mm | 1000mm |
| Worktable cross travel (Y) | 300mm (If with DRO:280mm) |
380mm (If with DRO:360mm) |
||
| Worktable vertical travel (Z) | 400mm | |||
| Ram travel | 460mm | |||
| Spindle | ||||
| Turret head spindle taper | 7:24, ISO40 | |||
| Turret head spindle speed | 2 steps 45-3750rpm |
|||
| Turret head motor | 5HP | |||
| Horizontal spindle taper | 7:24, ISO40 | |||
| Horizontal spindle speed | 12steps 35-1500rpm |
|||
| Horizontal spindle motor | 3kw | |||
| Feed | ||||
| Rapid feed (X/Y/Z) | 1335/1335/1000mm/min | |||
| Feed range (X/Y) | 30-830mm/min | |||
| Feed range (Z) | 23-625mm/min | |||
| Others | ||||
| Machine size (L×W×H) | 1800x1750x1900mm | 1900x1750x1900mm | 1800x1750x1900mm | 1900x1750x1900mm |
| Net weight | 1700kg | 1750kg | 1750kg | 1800kg |
| Item 01 | Descriptions |
| 01.01 | Milling arbor ISO40-Ф27 |
| 01.02 | Machine vise 5” |
| 01.03 | Draw bar |
| 01.04 | Working lamp |
| 01.05 | Tool & tool box |
| 01.06 | Operator manual |
| Item 02 | Descriptions |
| 02.01 | 3-aixs Digital Read Out |
| 02.02 | Spindle guard |
| 02.03 | CE Schneider Electric |
| 02.04 | Aluminum Hang arm |
| 02.05 | 5HP step speed milling head (square) |
| 02.06 | 5hp Variable speed milling head |
| 02.07 | Milling head forward and backward ±45° |
| 02.08 | Table swivel ±45° |
| 02.09 | 58 clamping tools |
| 02.10 | Pneumatic tool clamping |
Features
1. Rigid frame design with wide guideways and travels;
2. Hardened guideways ensure wear-resistance and long-term accuracy in all machine operations;
3. All gears are hardened and ground for quiet operation and long life;
4. Swivelling vertical cutter head with low-maintenance belt drive, quiet and vibration-free;
5. Automatic quill stroke features 3 steps and micrometer depth stop, plus automatic shut off;
6. Servo-conventional drives on all axes, infinitely variable with fast rapid feeds;
7. Rigid boom and outer arbor support for secure and vibration-free guidance of milling arbors;
8. Pneumatic tool clamping is optional;
1. Rigid frame design with wide guideways and travels;
2. Hardened guideways ensure wear-resistance and long-term accuracy in all machine operations;
3. All gears are hardened and ground for quiet operation and long life;
4. Swivelling vertical cutter head with low-maintenance belt drive, quiet and vibration-free;
5. Automatic quill stroke features 3 steps and micrometer depth stop, plus automatic shut off;
6. Servo-conventional drives on all axes, infinitely variable with fast rapid feeds;
7. Rigid boom and outer arbor support for secure and vibration-free guidance of milling arbors;
8. Pneumatic tool clamping is optional;
| Item 01 | Descriptions |
| 01.01 | Milling arbor ISO40-Ф27 |
| 01.02 | Machine vise 5” |
| 01.03 | Draw bar |
| 01.04 | Working lamp |
| 01.05 | Tool & tool box |
| 01.06 | Operator manual |
| Item 02 | Descriptions |
| 02.01 | 3-aixs Digital Read Out |
| 02.02 | Spindle guard |
| 02.03 | CE Schneider Electric |
| 02.04 | Aluminum Hang arm |
| 02.05 | 5HP step speed milling head (square) |
| 02.06 | 5hp Variable speed milling head |
| 02.07 | Milling head forward and backward ±45° |
| 02.08 | Table swivel ±45° |
| 02.09 | 58 clamping tools |
| 02.10 | Pneumatic tool clamping |
Knee Type Milling Machine: Precision Versatility for Industrial Manufacturing
What is a Knee Type Milling Machine?
A knee type milling machine is a fundamental machine tool distinguished by its vertically adjustable worktable mounted on a "knee" casting. This knee moves precisely up and down a fixed column via a screw mechanism, enabling accurate Z-axis positioning crucial for diverse milling operations.
Working Principle
The core principle involves a rotating milling cutter removing material from a workpiece secured to the table. The adjustable knee mechanism allows controlled vertical movement (Z-axis), while the table provides longitudinal (X-axis) and transverse (Y-axis) travel. This 3-axis control facilitates complex machining of flat, angular, and contoured surfaces.
Key Applications
- Tool & Die Making: Precision molds, jigs, fixtures
- Prototyping: Rapid part development
- Maintenance Shops: Equipment repair & part fabrication
- General Machining: Slotting, drilling, facing, keyway cutting
- Aerospace & Automotive: Component manufacturing
Distinctive Features & Advantages
- Vertical Adjustability: Knee movement enables quick workpiece height changes
- Rigid Construction: Robust cast iron frame ensures stability
- Manual & CNC Options: Traditional control or computer numerical precision
- Turret Design (Common): Swiveling milling head for multi-angle machining
- Wide Workpiece Compatibility: Handles various sizes and shapes
Primary Classifications
- Vertical Knee Mill: Spindle axis perpendicular to table (most common)
- Horizontal Knee Mill: Spindle axis parallel to table (for heavy stock removal)
- Universal Knee Mill: Table swivels for complex angular cuts
- Turret Mill: Head rotates on turret for flexible positioning
Main Components
- Base & Column: Primary support structure
- Knee: Vertically moving saddle supporting the table
- Saddle & Table: Hold and position the workpiece (X/Y axes)
- Milling Head: Houses spindle, motor, and quill (Z-axis)
- Arbor/Spindle: Rotating shaft holding cutting tools
- Controls: Manual handwheels or CNC interface
Evolution & Industry Significance
Since their development in the late 19th century, knee-and-column mills revolutionized machining. The iconic Bridgeport design (1938) popularized the turret style. While CNC machining centers dominate high-volume production, knee mills remain indispensable for flexibility, ease of use, and cost-effectiveness in job shops, schools, and repair facilities worldwide.
Fortune Pacific: Your Knee Mill Solution
At Fortune Pacific, we engineer durable, high-precision knee type milling machines for demanding applications. Explore our range of vertical mills, horizontal mills, and CNC-ready models designed to enhance your workshop's capabilities. Discover the ideal machine for your metalworking, prototyping, or toolmaking needs.
