Machine specifications
| Items | UVHM32QA | UVHM32QC |
| Working area | ||
| Worktable size (L×W) | 1370x320mm(54x12.6”) | 1370x320mm(54x12.6”) |
| T slot (Width x No. x pitch) | 14x3x80mm | 14x3x80mm |
| Max. load of table | 300kg | 300kg |
| Table rotation | optional: ±45° | optional: ±45° |
| Distance from horizontal spindle center to worktable surface | 75-475mm (3-18.7”) | 75-475mm (3-18.7”) |
| Distance from spindle nose to table surface | 260-660mm(10.2-26”) | 260-600mm(10.2-26”) |
| Travels | ||
| Worktable longitudinal travel (X) | 820mm (32.2”) | 1000mm (39.3”) |
| Worktable cross travel (Y) | 300mm (11.8’’) （If with DRO:270mm） |
380mm (15.0’’) （If with DRO:350mm） |
| Worktable vertical travel (Z) | 400mm (15.7”) | 400mm (15.7”) |
| Ram travel | 400mm (15.7”) | 400mm (15.7”) |
| Spindle | ||
| Horizontal spindle speed | 12 steps; 35-1500rpm | 12 steps; 35-1500rpm |
| Spindle taper(Horizontal) | 7:24, ISO40 | 7:24, ISO40 |
| Motor power(Horizontal) | 3kW | 3kW |
| Universal milling head spindle speed | 11 steps; 45—1660rpm | 11 steps; 45—1660rpm |
| Spindle taper(Universal milling head) | 7:24, ISO40 | 7:24, ISO40 |
| Universal milling head swivel angel | ±360° | ±360° |
| Motor power (Universal milling head) | 3kW | 3kW |
| Feed | ||
| Rapid feed (X/Y/Z) | 1335/1335/1000mm/min | 1335/1335/1000mm/min |
| Feed range (X/Y) | 30-830mm/min | 30-830mm/min |
| Feed range (Z) | 23-625mm/min | 23-625mm/min |
| Others | ||
| Machine size (L×W×H) | 1820x1680x1860mm | 1820x1680x1860mm |
| Net weight | 1870kg | 1920kg |
| Item 01 | Descriptions | |
| 01.01 | Draw bar | |
| 01.02 | Lifting crank | |
| 01.03 | Horizontal arbor assembly; | |
| 01.04 | Working lamp | |
| 01.05 | Coolant system | |
| 01.06 | Central lubrication | |
| 01.07 | Double-ended wrench | |
| 01.08 | Inner hexagon spanner | |
| 01.09 | Foundation bolt | |
| 01.10 | Operator manual |
| Item 02 | Descriptions | |
| 02.01 | 3-aixs Digital Read Out | |
| 02.02 | Hang up panel(Aluminum) | |
| 02.03 | Dividing head | |
| 02.04 | Rotary table | |
| 02.05 | Machine vise 160mm | |
| 02.06 | Milling chuck (ISO40) | |
| 02.07 | Clamping kits | |
| 02.08 | Work table rotary±45° | |
| 02.09 | Spindle cover | |
| 02.10 | Worktable cover |
l Heavy machine frame with wide, adjustable dovetail guides in all axes;
l Rigid universal cutter head, can be moved to virtually any spatial angle on two levels;
l Automatic worktable feed on X/ Y/ Z axes by using one servo motor;
l Vertical milling head swivels 360°, can realize horizontal processing;
l Hardened and ground table surface and guideway;
l Worktable rotating ±45°is optional;
Applications

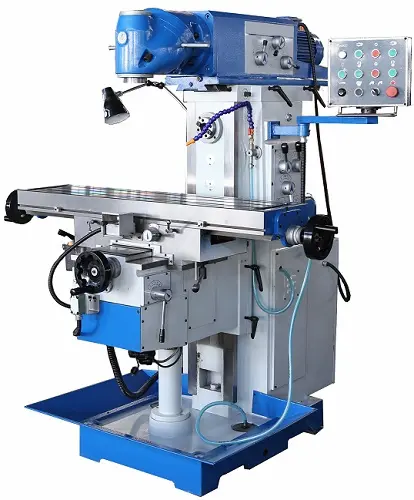

FORTUNE PACIFIC UVHM32QA UVHM32QC Universal Combo Swivel Head Milling Machine has reasonable construction and superior machining functions such as drilling, boring, milling of plane, inclined plane and slot, and such functions available by use of the corresponding attachments.
Performance Characteristics
With the ability to do either vertical or horizontal milling, this is one of the most versatile milling machines for sell. Even better—the vertical and horizontal spindles each have dedicated motors, so power and ability are not compromised when using either spindle. Convert to the horizontal setup by rotating the headstock 180° on the column and installing either of the two included horizontal arbors. Once in the horizontal configuration, you can do gang milling by installing multiple side and face mills on the arbor at one time, which ultimately can save huge amounts of time. With such a wide range of versatility and features, we think you'll agree that Horizontal & Vertical Knee type Milling machine for sale could be one of the most functional machining centers in any shop!
Classification & Definition of the Milling Machine tool, what is milling?
Horizontal Milling Machine
In horizontal milling machine the axis of rotation of the spindle is horizontal to the table. And due the axis of spindle horizontal, it is called as horizontal milling machine.
Vertical Milling Machine
The milling machine in which the spindle axis is perpendicular to the table is called vertical milling machine.
Knee-Type Milling Machine
The milling machine which has a knee like projection at the middle is called knee-type milling machine. It is characterised by a vertical adjustable work table resting on a saddle supported by a knee.
Ram-Type Milling Machine
A milling machine which has a ram on the top of the column is called ram type milling machine. Generally ram is used in vertical milling machine. It can be moved on the column in transverse direction (i.e. in and out when operated from the knee side).
Horizontal and Vertical Mills
Combo Horizontal and Vertical Mills offer both the capabilities of a Vertical Mill and a Horizontal Mill in one design. Changing the setup from one operation to the other is quick and simple. These mills are equipped with hard-chromed dovetail ways or hardened and ground box ways for superior wear resistance and separate motors drive the vertical spindle and horizontal spindle.
Elevator milling machine
There are universal, horizontal and vertical, etc., mainly used for processing small and medium-sized parts, the most widely used.
Single-column milling machine and single-arm milling machine
The former horizontal milling head can be moved along the column guide rail, and the table can be fed longitudinally; the latter vertical milling head can be moved horizontally along the cantilever rail, and the cantilever can also be adjusted along the column rail. Both are used to machine large parts.
Definition of the milling machine tools
Milling machine mainly refers to a machine tool that uses a milling cutter to machine various surfaces of a workpiece. Usually, the milling cutter mainly moves in a rotary motion, and the movement of the workpiece and the milling cutter is a feed motion. It can process planes, grooves, and various surfaces, gears, and so on.
Usage of the milling machine tools
FORTUNE PACIFIC milling machine is a versatile machine tool that can machine planes (horizontal, vertical), grooves (keyways, T-slots, dovetails, etc.), splitting parts (gears, spline shafts, sprockets) on the milling machine. Spiral surfaces (threads, spiral grooves) and various curved surfaces. In addition, the mill can also be used to process and cut the surface of the rotor and the inner hole. When the milling machine is working, the workpiece is mounted on the workbench or the indexing head and other accessories. The milling cutter rotates as the main motion, supplemented by the feed motion of the worktable or the milling head, and the workpiece can obtain the required machining surface. Due to the multi-edge interrupted cutting, the productivity of the milling machine is high. Simply put, milling machines are machines that can mill, drill and boring workpieces.
