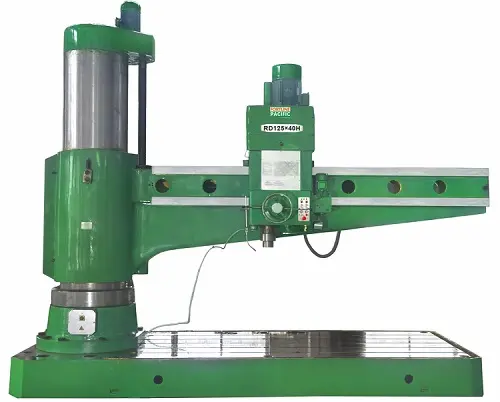

RD125X40H Hydraulic Lock Radial Arm Drilling Machine
Spindle box, rocker arm, inner and outer columns are reliably clamped by hydraulic diamond clamping mechanism. With safe and reliable feed safety machine, all parts easy operation and change.
- RD125X40H Hydraulic Lock Radial Arm Drilling MachineDownload
Technical Specifications of RD125x40H Hydraulic Lock Radial Arm Drilling Machine
Equipments
1. Worktable;
2. Coolant system;
3. Work light;
4. Taper sleeve;
5. T-slot bolt;
6. Drift;
7. Foundation bolt;
8. Oil gun;
9. Operation manual;
Features
l Radial drilling machine is provided with hydraulic presetting speed shift mechanism to save auxiliary time.
l It only needs one handle to operate clockwise rotation, stop (brake), variable speed and neutral gear conveniently.
l Spindle box, rocker arm, inner and outer columns are reliably clamped by hydraulic diamond clamping mechanism.
l Perfect safety protector and outer column protection are available.
l In design and production of structure, it further adopts a series of effective measures to prolong precision durability and lifespan of whole machine.
l Its electrical equipment completely contributes to personal safety, reliability, long service life and convenient maintenance.
l With wide range of speed and feed, with manual, power & fine feeds. The feed of machines are very easily engaged & disengaged at any time.
l With safe and reliable feed safety machine, all parts easy operation and change.
l All controls centralized on the head stock easy operation and change. Clamping for assemblies and speed change of spindle achieved by hydraulic power.
l Integrating technology for casting parts is excellent, adopting casting equipment, ensuring high quality of material for basic parts.
l Spindle parts are made by special high quality steel heat treatment to be made by first class equipment, ensuring high strength and durability.
l Main gears are machined by gear grinding, the machine ensuring high precision and low noise.
| Model | Unit | RD125x40H |
| Clamping type | Hydraulic lock | |
| Max. drilling capacity in steel / in cast iron | mm | Steel：125 Iron cast： 140 |
| Distance spindle axis to column generating line | mm | 600-4000 |
| Horizontal traverse of spindle head on arm | Mm | 3400 |
| Diameter of column | mm | 600 |
| Spindle taper | MT-6 | |
| Spindle travel | mm | 560 |
| Spindle speeds range | r/min | 6.3-800 |
| Spindle speeds series | 22 | |
| Range of spindle feeds | r/min | 0.06-3.2 |
| Spindle feeds | 16 | |
| Max. distance spindle nose to working surface of base | mm | 700-2500 |
| Vertical travel of arm on column | mm | 1800 |
| Dimension of worktable | mm | 1250×800×560 |
| Overall size | mm | 5380×1630×4380 |
| Power of main motor | kW | 18.5 |
| Gross weight | kg | 27000 |
1. Worktable;
2. Coolant system;
3. Work light;
4. Taper sleeve;
5. T-slot bolt;
6. Drift;
7. Foundation bolt;
8. Oil gun;
9. Operation manual;
Features
l Radial drilling machine is provided with hydraulic presetting speed shift mechanism to save auxiliary time.
l It only needs one handle to operate clockwise rotation, stop (brake), variable speed and neutral gear conveniently.
l Spindle box, rocker arm, inner and outer columns are reliably clamped by hydraulic diamond clamping mechanism.
l Perfect safety protector and outer column protection are available.
l In design and production of structure, it further adopts a series of effective measures to prolong precision durability and lifespan of whole machine.
l Its electrical equipment completely contributes to personal safety, reliability, long service life and convenient maintenance.
l With wide range of speed and feed, with manual, power & fine feeds. The feed of machines are very easily engaged & disengaged at any time.
l With safe and reliable feed safety machine, all parts easy operation and change.
l All controls centralized on the head stock easy operation and change. Clamping for assemblies and speed change of spindle achieved by hydraulic power.
l Integrating technology for casting parts is excellent, adopting casting equipment, ensuring high quality of material for basic parts.
l Spindle parts are made by special high quality steel heat treatment to be made by first class equipment, ensuring high strength and durability.
l Main gears are machined by gear grinding, the machine ensuring high precision and low noise.
l Radial drilling machine is provided with hydraulic presetting speed shift mechanism to save auxiliary time.
l It only needs one handle to operate clockwise rotation, stop (brake), variable speed and neutral gear conveniently.
l Spindle box, rocker arm, inner and outer columns are reliably clamped by hydraulic diamond clamping mechanism.
l Perfect safety protector and outer column protection are available.
l In design and production of structure, it further adopts a series of effective measures to prolong precision durability and lifespan of whole machine.
l Its electrical equipment completely contributes to personal safety, reliability, long service life and convenient maintenance.
l With wide range of speed and feed, with manual, power & fine feeds. The feed of machines are very easily engaged & disengaged at any time.
l With safe and reliable feed safety machine, all parts easy operation and change.
l All controls centralized on the head stock easy operation and change. Clamping for assemblies and speed change of spindle achieved by hydraulic power.
l Integrating technology for casting parts is excellent, adopting casting equipment, ensuring high quality of material for basic parts.
l Spindle parts are made by special high quality steel heat treatment to be made by first class equipment, ensuring high strength and durability.
l Main gears are machined by gear grinding, the machine ensuring high precision and low noise.
l It only needs one handle to operate clockwise rotation, stop (brake), variable speed and neutral gear conveniently.
l Spindle box, rocker arm, inner and outer columns are reliably clamped by hydraulic diamond clamping mechanism.
l Perfect safety protector and outer column protection are available.
l In design and production of structure, it further adopts a series of effective measures to prolong precision durability and lifespan of whole machine.
l Its electrical equipment completely contributes to personal safety, reliability, long service life and convenient maintenance.
l With wide range of speed and feed, with manual, power & fine feeds. The feed of machines are very easily engaged & disengaged at any time.
l With safe and reliable feed safety machine, all parts easy operation and change.
l All controls centralized on the head stock easy operation and change. Clamping for assemblies and speed change of spindle achieved by hydraulic power.
l Integrating technology for casting parts is excellent, adopting casting equipment, ensuring high quality of material for basic parts.
l Spindle parts are made by special high quality steel heat treatment to be made by first class equipment, ensuring high strength and durability.
l Main gears are machined by gear grinding, the machine ensuring high precision and low noise.
1. Worktable; 2. Coolant system;
3. Work light; 4. Taper sleeve;
5. T-slot bolt; 6. Drift;
7. Foundation bolt; 8. Oil gun;
9. Operation manual;
3. Work light; 4. Taper sleeve;
5. T-slot bolt; 6. Drift;
7. Foundation bolt; 8. Oil gun;
9. Operation manual;
Technical Specifications of RD125x40H Hydraulic Lock Radial Arm Drilling Machine
| Model | Unit | RD125x40H |
| Clamping type | Hydraulic lock | |
| Max. drilling capacity in steel / in cast iron | mm | Steel：125 Iron cast： 140 |
| Distance spindle axis to column generating line | mm | 600-4000 |
| Horizontal traverse of spindle head on arm | Mm | 3400 |
| Diameter of column | mm | 600 |
| Spindle taper | MT-6 | |
| Spindle travel | mm | 560 |
| Spindle speeds range | r/min | 6.3-800 |
| Spindle speeds series | 22 | |
| Range of spindle feeds | r/min | 0.06-3.2 |
| Spindle feeds | 16 | |
| Max. distance spindle nose to working surface of base | mm | 700-2500 |
| Vertical travel of arm on column | mm | 1800 |
| Dimension of worktable | mm | 1250×800×560 |
| Overall size | mm | 5380×1630×4380 |
| Power of main motor | kW | 18.5 |
| Gross weight | kg | 27000 |
