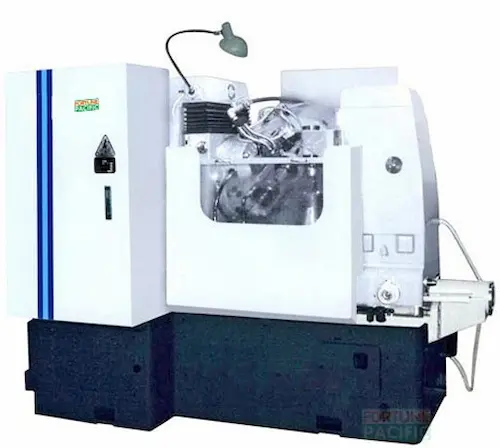

GH200 SA SB Semi-automatic Gear Hobbing Machine

Technical parameters of GH200 SA SB Semi-automatic Gear Hobbing Machine

Model	Unit	GH200
Type		SA	SB
Max workpiece diameter	mm	Φ200 (7.9”)	Φ200 (7.9”)
Max module	mm	4	6
Max worktable speed	r/min	25	32
Spindle speed/step	r/min	70-365/8	77-488/9
Distance between hob axis and worktable surface	mm	125-295 (4.9-12”)	260-430 (10-17”)
Central distance between hob and worktable	mm	20-170 (0.79-6.7”)	30-175 (1.2-6.9”)
Distance between tailstock end face and worktable surface	mm	240-438 (9.5-17”)	310-510 (12-20”)
Hob shifting travel (manual)	mm	50 (2”)	140x140 (5.5x5.5”)
Max hob head swivel angle	degree	±45	95
Max hob diameter and length	mm	Φ110x110 (4.3x4.3”)	Φ45 (1.7”)
Worktable diameter x bore diameter	mm	Φ180x40 (7.1x1.6”)	Φ320x65 (13x2.6”)
Worktable T-slot		3xM12	3x18
Total power / main motor power	kVA/kW	4.3/3	10.99/7.5
Machine dimension (L x W x H)	mm	1740x1150x1570	2250x1590x1720
Net weight / gross weight	kg	2000/2250	3500/4200


Standard accessories
1. Hob arbor assembly: Φ22, 27mm;
2. Change gears;
3. Tools for installation and set up;

Optional accessories
1. Hob arbor assembly: Φ13, 16, 32mm;
2. Chip conveyor;
3. Hydraulic clamping device;
4. Hobbing fixture;

Features
1. With vertical design, worktable can move in radial as radial feed movement.
2. Electrical system with fail-safe control and low failure rate is controlled by PLC.
3. The module valves have high reliability and low failure rate in order to be convenient to diagnose failures and maintain hydraulic system.
4. The worktable is fitted with double-start worm as its index gearing, therefore is suitable for cutting the workpiece with less teeth.
5. The worktable adopts precision double-end worm gear, hob shifting, high rigidity, good heat stability and may adopt conventional or climb method, achieving semi-automatic cycle
6. The hob spindle adopts circulating lubrication to ensure sufficient and reliable lubrication for spindle bearings in order to prolong the service life. Meanwhile circulating oil can quickly remove heat caused by spindle running to ensure high rotary accuracy for the spindle.

Features
1. With vertical design, worktable can move in radial as radial feed movement.
2. Electrical system with fail-safe control and low failure rate is controlled by PLC.
3. The module valves have high reliability and low failure rate in order to be convenient to diagnose failures and maintain hydraulic system.
4. The worktable is fitted with double-start worm as its index gearing, therefore is suitable for cutting the workpiece with less teeth.
5. The worktable adopts precision double-end worm gear, hob shifting, high rigidity, good heat stability and may adopt conventional or climb method, achieving semi-automatic cycle
6. The hob spindle adopts circulating lubrication to ensure sufficient and reliable lubrication for spindle bearings in order to prolong the service life. Meanwhile circulating oil can quickly remove heat caused by spindle running to ensure high rotary accuracy for the spindle.

Standard accessories
1. Hob arbor assembly: Φ22, 27mm;
2. Change gears;
3. Tools for installation and set up;
