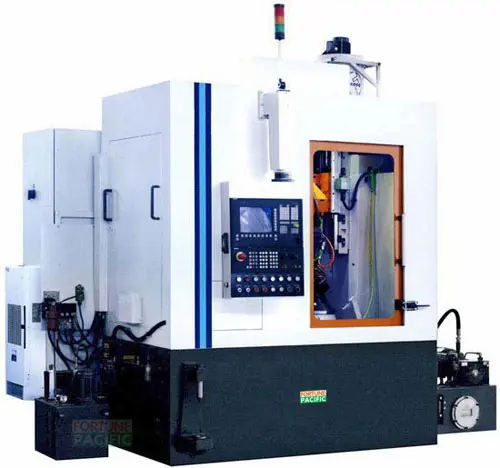

Technical parameters of GH180 CNC5 High Speed CNC Gear Hobbing Machine
Standard accessories
1. Hob arbor assembly: Φ32mm;
2. Hydraulic, lubrication and cooling system;
3. Chip conveyor;
4. Auto hob arbor clamping device;
5. Cylinder for workpiece clamping;
6. Isolating vibration pad;
7. Tools for installation and set up;
Optional accessories
1. FANUC 31i CNC system;
2. Hob arbor assembly: Φ22, 27, 40mm;
3. Hob adjusting device;
4. Workpiece fixture;
5. Deburring device;
6. Auto loading & unloading system;
Features
| Model | Unit | GH180 CNC5 |
|---|---|---|
| CNC system | SIEMENS 840D; 5-axis | |
| Max workpiece diameter | mm | Φ180 (7.1”) |
| Max module | mm | 4 |
| Max axial travel | mm | 285 (11”) |
| Min No. of teeth | 4-1000 | |
| Max hob diameter and length | mm | Φ110x160 (4.3x6.3”) |
| Spindle taper bore | ISO 40 | |
| Worktable diameter | mm | Φ190 (7.5”) |
| Max hob head swivel angle | degree | ±45 |
| Central distance between hob and worktable | mm | 25-195 (0.98-7.7”) |
| Distance between hob axis and worktable surface | mm | 200-485 (7.9-19”) |
| Distance between center end face and worktable surface | mm | 350-740 (14-29”) |
| Max hob tangential travel | mm | 120 (4.7”) |
| Max spindle speed (B-axis) | r/min | 1000 |
| Max worktable speed (C-axis) | r/min | 200 |
| Rapid radial travel (X-axis) | mm/min | 1500 |
| Rapid tangential travel (Y-axis) | mm/min | 300 |
| Rapid axial travel (Z-axis) | mm/min | 1500 |
| Linear coordinate resolution of CNC axes | mm | 0.001 |
| Rotary coordinate resolution of CNC axes | degree | 0.001 |
| Total power / main motor power | kVA/kW | 25/7.5 |
| Packing size (L x W x H) | mm | 3000×2400×3200; 2300×1750×1650 |
| Net weight / gross weight | kg | 8600 / 9000 |
Standard accessories
1. Hob arbor assembly: Φ32mm;
2. Hydraulic, lubrication and cooling system;
3. Chip conveyor;
4. Auto hob arbor clamping device;
5. Cylinder for workpiece clamping;
6. Isolating vibration pad;
7. Tools for installation and set up;
Optional accessories
1. FANUC 31i CNC system;
2. Hob arbor assembly: Φ22, 27, 40mm;
3. Hob adjusting device;
4. Workpiece fixture;
5. Deburring device;
6. Auto loading & unloading system;
Features
1. GH180 CNC5 is of 5-axis with four axes coordinated control. CNC axes: B-axis--hob spindle rotary motion; C-axis--worktable rotary motion; X-axis--radial feed motion; Y-axis--tangential feed motion (or hob shifting motion); Z-axis--axial feed motion.
2. GH180 CNC5 has function of fault diagnosis, monitoring spindle overload and alarm.
3. Quick-retraction protection: in case of power off or failure occurred, synchronously and quickly retract hob.
4. With double-wall, rib-reinforced and symmetric construction design for bed and column, increase rigidity and meet the requirements at high speed and efficient cutting and ensures stable thermal distribution.
5. Adopt large power AC spindle motor, power is transferred to cutter spindle by high precision helical gearing. Adopt a one-tooth difference clearance-eliminating mechanism to improve transmission accuracy and rigidity.
6. Super precision helical gearing for worktable to carry out high speed and spur precision index.
Features
1. GH180 CNC5 is of 5-axis with four axes coordinated control. CNC axes: B-axis--hob spindle rotary motion; C-axis--worktable rotary motion; X-axis--radial feed motion; Y-axis--tangential feed motion (or hob shifting motion); Z-axis--axial feed motion.
2. GH180 CNC5 has function of fault diagnosis, monitoring spindle overload and alarm.
3. Quick-retraction protection: in case of power off or failure occurred, synchronously and quickly retract hob.
4. With double-wall, rib-reinforced and symmetric construction design for bed and column, increase rigidity and meet the requirements at high speed and efficient cutting and ensures stable thermal distribution.
5. Adopt large power AC spindle motor, power is transferred to cutter spindle by high precision helical gearing. Adopt a one-tooth difference clearance-eliminating mechanism to improve transmission accuracy and rigidity.
6. Super precision helical gearing for worktable to carry out high speed and spur precision index.
Standard accessories
1. Hob arbor assembly: Φ32mm;
2. Hydraulic, lubrication and cooling system;
3. Chip conveyor;
4. Auto hob arbor clamping device;
5. Cylinder for workpiece clamping;
6. Isolating vibration pad;
7. Tools for installation and set up;
Optional accessories
1. FANUC 31i CNC system;
2. Hob arbor assembly: Φ22, 27, 40mm;
3. Hob adjusting device;
4. Workpiece fixture;
5. Deburring device;
6. Auto loading & unloading system;
1. Hob arbor assembly: Φ32mm;
2. Hydraulic, lubrication and cooling system;
3. Chip conveyor;
4. Auto hob arbor clamping device;
5. Cylinder for workpiece clamping;
6. Isolating vibration pad;
7. Tools for installation and set up;
Optional accessories
1. FANUC 31i CNC system;
2. Hob arbor assembly: Φ22, 27, 40mm;
3. Hob adjusting device;
4. Workpiece fixture;
5. Deburring device;
6. Auto loading & unloading system;
Technical parameters of GH180 CNC5 High Speed CNC Gear Hobbing Machine
| Model | Unit | GH180 CNC5 |
|---|---|---|
| CNC system | SIEMENS 840D; 5-axis | |
| Max workpiece diameter | mm | Φ180 (7.1”) |
| Max module | mm | 4 |
| Max axial travel | mm | 285 (11”) |
| Min No. of teeth | 4-1000 | |
| Max hob diameter and length | mm | Φ110x160 (4.3x6.3”) |
| Spindle taper bore | ISO 40 | |
| Worktable diameter | mm | Φ190 (7.5”) |
| Max hob head swivel angle | degree | ±45 |
| Central distance between hob and worktable | mm | 25-195 (0.98-7.7”) |
| Distance between hob axis and worktable surface | mm | 200-485 (7.9-19”) |
| Distance between center end face and worktable surface | mm | 350-740 (14-29”) |
| Max hob tangential travel | mm | 120 (4.7”) |
| Max spindle speed (B-axis) | r/min | 1000 |
| Max worktable speed (C-axis) | r/min | 200 |
| Rapid radial travel (X-axis) | mm/min | 1500 |
| Rapid tangential travel (Y-axis) | mm/min | 300 |
| Rapid axial travel (Z-axis) | mm/min | 1500 |
| Linear coordinate resolution of CNC axes | mm | 0.001 |
| Rotary coordinate resolution of CNC axes | degree | 0.001 |
| Total power / main motor power | kVA/kW | 25/7.5 |
| Packing size (L x W x H) | mm | 3000×2400×3200; 2300×1750×1650 |
| Net weight / gross weight | kg | 8600 / 9000 |
Products
Download
FORTUNE PACIFIC LIMITED © All Rights Reserved.
