| Model | Unit | GH1600 CNC2 |
|---|---|---|
| CNC system | SIEMENS 828D; 2-axis | |
| Max workpiece diameter with/without rear column | mm | Φ1600/1000 (63/39”) |
| Max module | mm | 20 |
| Min tooth number | 21 | |
| Max worktable speed | r/min | 4 |
| Worktable diameter x hole diameter | mm | Φ1100x275 (43x11”) |
| Hob speed/step | r/min | 19-176/8 |
| Distance between hob axis and worktable surface | mm | 200-730 (7.9-29”) |
| Central distance between hob axis and worktable | mm | 180-940 (7.1-37”) |
| Distance between tailstock center bore low end face and worktable surface | mm | 580-1000 (23-39”) |
| Max hob diameter and length | mm | Φ260x230 (10x9”) |
| Max hob head swivel angle | degree | ±60 |
| X and Z axis motor | Nm | 27 |
| Total power / main motor power | kVA/kW | 32.75/15 |
| T-slot | 6xM20 | |
| Machine dimension (L x W x H) | mm | 4480x2700x2600 |
| Packing size (L x W x H) | mm | 4750×2400×3050 2000×1630×2560 |
| Net weight / gross weight | kg | 17000/18000 |
Applications

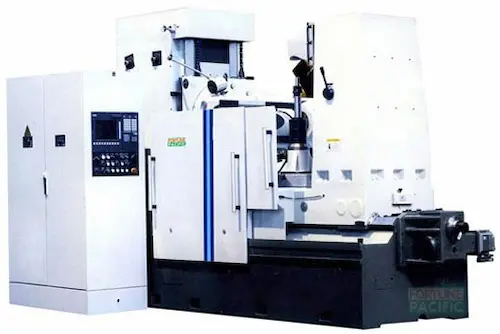

GH1600 CNC2 CNC Gear Hobbing Machine is developed on the basis of GH1600. CNC axes: X-axis (radial feed motion) and Z-axis (axial feed motion), which are all driven by AC servo motors. On the principle of continuous indexing, GH1600 CNC2 CNC Gear Hobbing Machine is capable of cutting cylindrical spur and helical gears, crowning and slightly tapered gears, as well as worm wheels by radial cutting method. Axial and radial feed axes are driven by AC servo motors through preloaded ballscrew. GH1600 CNC2 CNC Gear Hobbing Machine is best suitable for mine, oil, marine, engineering machinery industries for hobbing large gears.
Standard accessories
1. Hob arbor assembly: Φ32, 40, 50mm;
2. Change gears;
3. Tools for installation and adjustment;
Optional accessories
1. Hob arbor assemblies: Φ22, 27, 60mm;
2. Column center;
3. Holt hoop;
4. Tool alignment device;
GH1600 CNC2 CNC Gear Hobbing Machine is developed on the basis of GH1600. CNC axes: X-axis (radial feed motion) and Z-axis (axial feed motion), which are all driven by AC servo motors. On the principle of continuous indexing, GH1600 CNC2 CNC Gear Hobbing Machine is capable of cutting cylindrical spur and helical gears, crowning and slightly tapered gears, as well as worm wheels by radial cutting method. Axial and radial feed axes are driven by AC servo motors through preloaded ballscrew. GH1600 CNC2 CNC Gear Hobbing Machine is best suitable for mine, oil, marine, engineering machinery industries for hobbing large gears.
1. Hob arbor assembly: Φ32, 40, 50mm;
2. Change gears;
3. Tools for installation and adjustment;
| Model | Unit | GH1600 CNC2 |
|---|---|---|
| CNC system | SIEMENS 828D; 2-axis | |
| Max workpiece diameter with/without rear column | mm | Φ1600/1000 (63/39”) |
| Max module | mm | 20 |
| Min tooth number | 21 | |
| Max worktable speed | r/min | 4 |
| Worktable diameter x hole diameter | mm | Φ1100x275 (43x11”) |
| Hob speed/step | r/min | 19-176/8 |
| Distance between hob axis and worktable surface | mm | 200-730 (7.9-29”) |
| Central distance between hob axis and worktable | mm | 180-940 (7.1-37”) |
| Distance between tailstock center bore low end face and worktable surface | mm | 580-1000 (23-39”) |
| Max hob diameter and length | mm | Φ260x230 (10x9”) |
| Max hob head swivel angle | degree | ±60 |
| X and Z axis motor | Nm | 27 |
| Total power / main motor power | kVA/kW | 32.75/15 |
| T-slot | 6xM20 | |
| Machine dimension (L x W x H) | mm | 4480x2700x2600 |
| Packing size (L x W x H) | mm | 4750×2400×3050 2000×1630×2560 |
| Net weight / gross weight | kg | 17000/18000 |
Knee Type Milling Machine: Precision Versatility for Industrial Manufacturing
What is a Knee Type Milling Machine?
A knee type milling machine is a fundamental machine tool distinguished by its vertically adjustable worktable mounted on a "knee" casting. This knee moves precisely up and down a fixed column via a screw mechanism, enabling accurate Z-axis positioning crucial for diverse milling operations.
Working Principle
The core principle involves a rotating milling cutter removing material from a workpiece secured to the table. The adjustable knee mechanism allows controlled vertical movement (Z-axis), while the table provides longitudinal (X-axis) and transverse (Y-axis) travel. This 3-axis control facilitates complex machining of flat, angular, and contoured surfaces.
Key Applications
- Tool & Die Making: Precision molds, jigs, fixtures
- Prototyping: Rapid part development
- Maintenance Shops: Equipment repair & part fabrication
- General Machining: Slotting, drilling, facing, keyway cutting
- Aerospace & Automotive: Component manufacturing
Distinctive Features & Advantages
- Vertical Adjustability: Knee movement enables quick workpiece height changes
- Rigid Construction: Robust cast iron frame ensures stability
- Manual & CNC Options: Traditional control or computer numerical precision
- Turret Design (Common): Swiveling milling head for multi-angle machining
- Wide Workpiece Compatibility: Handles various sizes and shapes
Primary Classifications
- Vertical Knee Mill: Spindle axis perpendicular to table (most common)
- Horizontal Knee Mill: Spindle axis parallel to table (for heavy stock removal)
- Universal Knee Mill: Table swivels for complex angular cuts
- Turret Mill: Head rotates on turret for flexible positioning
Main Components
- Base & Column: Primary support structure
- Knee: Vertically moving saddle supporting the table
- Saddle & Table: Hold and position the workpiece (X/Y axes)
- Milling Head: Houses spindle, motor, and quill (Z-axis)
- Arbor/Spindle: Rotating shaft holding cutting tools
- Controls: Manual handwheels or CNC interface
Evolution & Industry Significance
Since their development in the late 19th century, knee-and-column mills revolutionized machining. The iconic Bridgeport design (1938) popularized the turret style. While CNC machining centers dominate high-volume production, knee mills remain indispensable for flexibility, ease of use, and cost-effectiveness in job shops, schools, and repair facilities worldwide.
Fortune Pacific: Your Knee Mill Solution
At Fortune Pacific, we engineer durable, high-precision knee type milling machines for demanding applications. Explore our range of vertical mills, horizontal mills, and CNC-ready models designed to enhance your workshop's capabilities. Discover the ideal machine for your metalworking, prototyping, or toolmaking needs.
Keywords: Knee Type Milling Machine, Vertical Milling Machine, Horizontal Mill, Turret Mill, Knee-and-Column Mill, Milling Machine for Sale, Industrial Milling, Metalworking Equipment, Workshop Machinery, CNC Mill, Toolroom Mill, Precision Machining, Fortune Pacific, Machine Tool Manufacturer.
