BR7530 Inclined Slant Bed CNC Lathe
- BR7530 Inclined Slant Bed CNC LatheDownload
| Items | BR7530 |
| Machining capacity | |
| Max. swing over bed | Φ670 mm |
| Max. swing over slide | Φ470 mm |
| Max. turning length | 800 /1500/2000mm |
| Max. turning diameter | Φ550 mm |
| Max. bar diameter | Φ90 mm |
| Spindle | |
| Spindle nose | A2-8 |
| Spindle through-hole diameter | Φ105mm |
| Spindle speed | 25-2500 r/min |
| Main motor power | 22/30 kW |
| Hydraulic chuck diameter | 12 inch |
| Travel and rapid traverse | |
| Travel of X axis | 305mm |
| Travel of Z axis | 880/1550/2050mm |
| Rapid traverse of X/Z axis | 12 / 16 m/min |
| Tailstock | |
| Diameter of tailstock quill | Φ110 mm |
| Travel of tailstock quill | 150 mm |
| Taper of tailstock center | MT-6 |
| Turret | |
| No. of turret station | 12(optional:8) |
| Turning tool size | 32x32 mm |
| Boring tool size | Φ50 mm |
| Other | |
| Slant angle | 60° |
| Guide way type | rectangular hardened way |
| Overall dimension | 800mm: 3820x1990x2040 mm 1500mm:4820x2130x2180 mm 2000mm: 5400x2130x2180 mm |
| Net weight | 8330 /9730/11900 kg |
| Item 01 | Descriptions | |
| 01.01 | FANUC Oi TF | |
| 01.02 | FANUC X/Z axis servo motor | |
| 01.03 | FANUC AC servo spindle motor | |

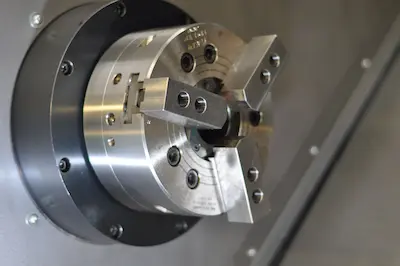

| 01.04 | 12’’ 3 jaw hollow hydraulic chuck | |
| 01.05 | Hydraulic tailstock | |
| 01.06 | Italian DM 12-station tool post | |
| 01.07 | Coolant system. | |
| 01.08 | Working light | |
| 01.09 | Automatic lubrication system | |
| 01.10 | Heat exchange for electric cabinet | |
| 01.11 | Full enclosed splash guard | |
| 01.12 | Installation damping pads |
| Item 02 | Descriptions | |
| 02.01 | SIEMENS828D CNC system | |
| 02.02 | Chip conveyor | |
| 02.03 | 8-station electric tool post/8-stationhydraulc tool post |
Features
This series CNC lathes,its strength, dynamic and static rigidity, mechanics of main parts, guard and coolant system are all advanced in design.
This series lathe, designed with high vibration strength, adopts high grade cast iron, one piece of bed base, slant guideways, a high precision through-hole spindle driven by large-field AC main motor.
Key parts like bearings of main spindle and of feeding screw are all famous foreign products.
The multi-station turret indexes fast and continuously with a high repeatability and changes tool proximately.
The lathe can be equipped with FANUC 0i-TF, Siemens 828D, and etc on request. or other top brand control systems from both China and foreign countries (hydraulic parts, lubrication units and chucks that are good-quality from both domestic and foreign markets).
The lathe is designed with unique appearance, easy-operated panel, full-enclosed guard, which can prevent the leakage of water, power and oil effectively. It is the most powerful product in its class due to the large power, excellent accuracy and high performance.
This series CNC lathes,its strength, dynamic and static rigidity, mechanics of main parts, guard and coolant system are all advanced in design.
This series lathe, designed with high vibration strength, adopts high grade cast iron, one piece of bed base, slant guideways, a high precision through-hole spindle driven by large-field AC main motor.
Key parts like bearings of main spindle and of feeding screw are all famous foreign products.
The multi-station turret indexes fast and continuously with a high repeatability and changes tool proximately.
The lathe can be equipped with FANUC 0i-TF, Siemens 828D, and etc on request. or other top brand control systems from both China and foreign countries (hydraulic parts, lubrication units and chucks that are good-quality from both domestic and foreign markets).
The lathe is designed with unique appearance, easy-operated panel, full-enclosed guard, which can prevent the leakage of water, power and oil effectively. It is the most powerful product in its class due to the large power, excellent accuracy and high performance.
