| Configuration | C500K | |
| Machining Capacity | Maximum Swing Over Bed ø/mm | 500 |
| Maximum Swing Over Slide ø/mm | 300 | |
| Maximum Machining Length mm | 650 | |
| Maximum Machining Diameter ø/mm | 430 | |
| Maximum Diameter of Bar ø /mm | 74 | |
| Spindle | Spindle Head Type GB59001 | A2-8 |
| Spindle Taper Hole ø /mm | 86 | |
| Spindle Speed Range r/min | 60-2500 | |
| Spindle Shift Mode | Servo | |
| Spindle Output Torque N·m | 220 | |
| Main Motor Power kW | 15 | |
| Chuck Type | Hydraulic Through Chuck | |
| Chuck Size inch | 10” | |
| Feed Rate | Rapid Traverse Speed On X-axis m/min | 25 |
| Rapid Traverse Speed On Z-axis m/min | 25 | |
| Servo Motor Torque On X-axis N·m | 18 | |
| Servo Motor Torque On Z-axis N·m | 18 | |
| X-axis Travel mm | 240 | |
| Z-axis Travel mm | 680 | |
| Guideway Type | Roller Linear Guideway | |
| Turret | Turret Type | Hydraulic Servo 12 Tool Post Turret |
| Tool Size mm | 25*25/ø40 | |
| Tailstock | Tailstock Type | Hydraulic |
| Tailstock Sleeve Diameter ø /mm | 100 | |
| Tailstock Sleeve Travel mm | 80 | |
| Internal Taper of Tailstock Sleeve | MT5 | |
| Power Source | Total Rated Power KVA | 26 |
| Total Rated Current A | 50 | |
| Specification | Machine Bed Slant angle | 35° |
| Machine Weight KGS | 5255 | |
| MachineDimension L*W*H(mm) | 3320*2000*2020 | |
| Chip Conveyor | Hinge-Belt | |
1-Tool Box,Work Lamp,Color Light,Auto Lubrication System,Full metal sheet cover;
2-Heat exchanger for control cabinet，Coolant Pump;
3-12 Tool Post Hydraulic Servo Turret,Hydraulic Through Chuck 10inch,Hydraulic Tailstock;
4-Chip conveyor.

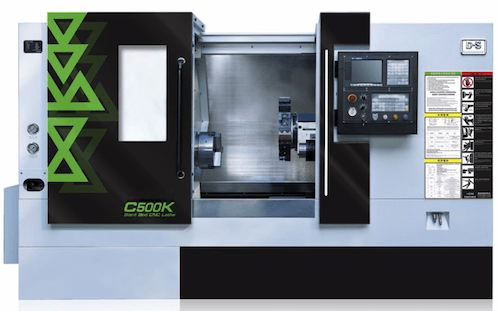

| C500K Slant Bed Lathe with Hydraulic Turret COMPONENT LIST | |||
| No. | Parts Name | Model | Supplier |
| 1 | Control System | SIEMENS 808D Advanced | SIEMENS |
| 2 | Servo Motor | X: 22Nm | SIEMENS |
| Z: 22Nm | SIEMENS | ||
| 3 | Spindle Motor Power | 15kW | SIEMENS |
| 4 | Spindle Bearing | NN3024K P4 | SKF |
| 5 | Spindle Bearing | YSBT 130A/DB P4 | SKF |
| 6 | Spindle Bearing | NN3022K P4 | SKF |
| 7 | Ball Screw | X: 4012 | THK |
| Z: 4012 | THK | ||
| 8 | Ball Screw Bearing | X: 30TAC62 TBT P4 | SKF |
| Z: 30TAC62 DF P4 | SKF | ||
| 9 | Turret | 12 Tool Post Hydraulic Servo Turret | TAIWAN SWIFT |
| 10 | Chuck | Hydraulic Through Chuck 10inch | TAIWAN CHANDOX |
| 11 | Auto Lubrication Unit | XCIP-CCDXD-G | CNP |
| 12 | Coolant Pump | LIC4-30/3P | LEO |
| 13 | Working Light | 470L | AOTENG |
| 14 | Foot Pedal | N/A | TAIZHOU EASTERN |
| 15 | Safety Relay 1pc | N/A | OMRON |
