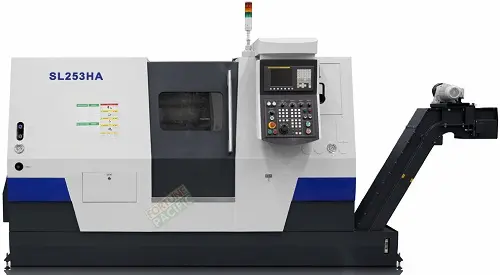

| Item | SL253HA |
| Capability | |
| Max. swing over bed | Φ550mm(21.6’’) |
| Max. swing over saddle | Φ370mm(14.5’’) |
| Max. turning diameter | Φ360mm(14.2’’) |
| Max. machining length | 810mm(16.1’’) |
| Bar capacity | Φ44mm(1.7’’） |
| Spindle | |
| Spindle motor output power | 7.5/11kW |
| Spindle nose | A2-6 |
| Max. spindle speed | 5000rpm |
| Spindle bore diameter | Φ56mm(2.2’’) |
| Chuck size | 8” inch (Hydraulic hollow) |
| X/Z axis travel | |
| X-axis travel | 240mm(9.5’’) |
| Z-axis travel | 830mm(16.9’’) |
| Rapid traverse of X-axis | 24m/min(945 IPM) |
| Rapid traverse of Z-axis | 30m/min(1181 IPM) |
| Turret | |
| Number of tool | 8 |
| Turing tool size | 25x25mm |
| Max. boring tool diameter | Φ40mm |
| Tailstock | |
| Hydraulic tailstock center | MT5(live center) |
| Quill diameter | 100mm |
| Quill travel | 100mm |
| Accuracy | |
| Positioning accuracy (X/Z-axis) | 0.006/0.006mm |
| Repeatability (X/Z-axis) | 0.004/0.004mm |
| Others | |
| Power capacity | 25 kVA |
| Machine dimension (L x W x H) | 4160x1825x1820mm |
| Net weight | 4200kg |
| Item 01 | Descriptions | |
| 01.01 | FANUC Oi TF | |
| 01.02 | 5000rpm belt drive spindle (FANUC servo motor) | |
| 01.03 | 8 position hydraulic turret (refer to follow turret information) | |
| 01.04 | 8’’ hollow hydraulic chuck with 1 set soft jaw | |
| 01.05 | Solid hydraulic cylinder | |
| 01.06 | Hydraulic tailstock | |
| 01.07 | Hydraulic system | |
| 01.08 | Air conditioner of electrical cabinet | |
| 01.09 | Auto chip conveyer & chip chart | |
| 01.10 | Auto oil lubrication system | |
| 01.11 | Tri-color light | |
| 01.12 | Air gun | |
| 01.13 | Door lock switch | |
| 01.14 | Lighting lamp | |
| 01.15 | Full enclosure splash guard | |
| 01.16 | Telescopic covers |
| Item 02 | Descriptions | Note |
| 02.01 | SIEMENS 828D 240 | |
| 02.02 | Shop turn | |
| 02.03 | FANUC 0I TF 1 with β MOTOR | |
| 02.04 | FANUC 0I TF 1 with α MOTOR | |
| 02.05 | Manual guide 0I | |
| 02.06 | Manual guide I | for FANUC TF1 |
| 02.07 | DATA SERVE 2GB | for FANUC TF1 |
| 02.08 | 10.4” touch screen of FANUC controller | |
| 02.09 | 15” screen of FANUC controller | Only for FANUC 1 controller |
| 02.10 | 15” touch screen of FANUC controller | Only for FANUC 1 controller |
| 02.11 | 15” touch screen of SIEMENS controller | |
| 02.12 | Tool setter RENISHAW | Manual plug type |
| 02.13 | Tool setter RENISHAW | Auto swing type |
| 02.14 | Auto parts catcher | Swing type |
| 02.15 | M30 auto power off | |
| 02.16 | Scraping chip conveyor for aluminums cutting | |
| 02.17 | Magnetic chip conveyor | |
| 02.18 | THK linear way and ball screw | |
| 02.19 | Oil mister collector | |
| 02.20 | Auto-door (pneumatic control) | |
| 02.21 | 2 year FANUC warranty | |
| 02.22 | 2 year Siemens warranty | |
| 02.23 | CE standard | |
| 02.24 | 380V 50HZ/415V 50 HZ /220V 60 HZ | |
| 02.25 | Transformer | |
| 02.26 | Voltage stabilizer | |
| 02.27 | Grease lubrication instead of oil | |
| 02.28 | Bar feeder interface | |
| 02.29 | Auto bar feeder 26mm diameter, 3000mm length | |
| 02.30 | Auto bar feeder 65mm diameter, 1500mm length, DH65L | |
| 02.31 | Auto bar feeder 65mm diameter, 1250mm length, DH65 | |
| 02.33 | Hydraulic spring clamping tail stock (added on the hydraulic tail stock) | Tail stock body clamp by hydraulic spring |
| 02.34 | Servo tail stock (turning length 415mm) | Programmable, ball screw and linear way |
| 02.35 | Live center M#5 | |
| 02.36 | Fixed center M#4 | Optional |
| 02.37 | 8 position servo turret, 25X25, 80mm center height | LioShing, |
| 02.38 | 12 position servo turret, 25X25, 100mm center height | LioShing, |
| 02.39 | 12 position servo turret, 20X20, 80mm center height | LioShing, |
| 02.40 | 10 position hydraulic turret, 20X20, 80mm center height | LioShing, Long delivery time, working range change |
| 02.41 | 12 position hydraulic turret, 20X20, 80mm center height | LioShing, working range change |
| 02.42 | 12 position hydraulic turret, 25X25, 100mm center height | LioShing, working range change |
| 02.43 | U drilling tool holder with coolant through 1.5bar/10 bar | |
| 02.44 | Boring tool holder | |
| 02.45 | Boring tool holder sleeve (16, 20, 25) | |
| 02.46 | End face turning tool holder | |
| 02.47 | End face turning tool holder installation block | |
| 02.48 | Spindle bearing FAG instead of NSK | |
| 02.49 | Hydraulic steady rest (20—120mm) | Not equipped with the servo tail stock |
| 02.50 | 8” hollow cylinder, 5000rpm | |
| 02.51 | 10” solid chuck, 4000rpm | |
| 02.52 | 10” solid cylinder, 4000rpm | |
| 02.53 | 10” hollow chuck, 4200rpm | |
| 02.54 | 10” hollow cylinder, 4200rpm | |
| 02.55 | Hydraulic collet chuck | |
| 02.56 | Collet | |
| 02.57 | Soft jaw of 8” chuck | |
| 02.58 | Hard jaw of 8” chuck | |
| 02.59 | Soft jaw of 10” chuck | |
| 02.60 | Hard jaw of 10” chuck | |
| 02.61 | Manual 8” chuck | Change hydraulic chuck to manual chuck |
| 02.62 | Manual 10” chuck | Change hydraulic chuck to manual chuck |
| 02.63 | A2-6 spindle bore 65mm, bar capacity 51mm, 4000rpm | Include hollow 8” chuck and cylinder |
| 02.64 | A2-6 spindle bore 76mm, bar capacity 65mm, 4000rpm | Include hollow 10” chuck and cylinder |
| 02.65 | Spindle bearing FAG instead of NSK, 5000rpm (when bigger spindle bore 65mm, bar capacity 51mm) | Include hollow 8” chuck and cylinder |
| 02.66 | 11/15KW spindle motor β | |
| 02.67 | 15/18.5KW spindle motor β | |
| 02.68 | Change to inverter spindle motor, 4000rpm | |
| 02.69 | Air conditioner of electrical cabinet | |
| 02.70 | High pressure coolant 1MPa | |
| 02.71 | High pressure coolant 2MPa | |
| 02.72 | Proximity switch | |
| 02.73 | Electric switch for door | |
| 02.74 | Coolant tank coolant level sensor | |
| 02.75 | Remove chip conveyer | |
| 02.76 | CNC controller book manuals | |
| 02.77 | Left side chip conveyer | Change backside to right side |
| 02.78 | Water gun | |
| 02.79 | MPG | |
| 02.80 | High pressure coolant 5MPa through turret (8 position) | |
| 02.81 | Two stage hydraulic pressure valve |
FANUC 0i TF controller specification
| ● Standard○ Optional X N/A | ||||||
| Specification | 0I-TF Plus | |||||
| Type 1 | Type 5 | |||||
| 1 | Controlled axis | Controlled axes | 4 | 4 | ||
| 2 | Axis control by PMC | ● | ● | |||
| 3 | Torque control | ● | ● | |||
| 4 | Inch/metric conversion | ● | ● | |||
| 5 | Stored limit check before move | ● | ● | |||
| 6 | Unexpected disturbance torque detection function | ● | ● | |||
| 7 | Position switch | ● | ● | |||
| 8 | Operation | DNC operation with memory card | ● | ● | ||
| 9 | Handle interruption | ● | ● | |||
| 10 | Manual handle retrace | ○ | ○ | |||
| 11 | Interpolation functions | Nano interpolation | ● | ● | ||
| 12 | Linear interpolation | ● | ● | |||
| 13 | Circular interpolation | ● | ● | |||
| 14 | Helical interpolation | ○ | X | |||
| 15 | Thread cutting, synchronous cutting | ● | ● | |||
| 16 | Thread cutting retract | ● | ● | |||
| 17 | Continuous threading | ● | ● | |||
| 18 | High-speed skip | Input signal is 8 points. | ● | ● | ||
| 19 | 2nd reference position return | G30 | ● | ● | ||
| 20 | Feed function | AI contour control I | ○ | ○ | ||
| 21 | AI contour control II | ○ | X | |||
| 22 | Rapid traverse block overlap | ● | ● | |||
| 23 | Program input | Optional block skip | 9 pieces | ● | ○ | |
| 24 | Absolute/incremental programming | Combined use in the same block | ● | ● | ||
| 25 | Diameter/Radius programming | ● | ● | |||
| 26 | Automatic coordinate system setting | ● | ● | |||
| 27 | Workpiece coordinate system | G52 - G59 | ● | ● | ||
| 28 | Chamfering/Corner R | ● | ● | |||
| 29 | Custom macro | ● | ● | |||
| 30 | Addition of custom macro common variables | #100 - #199, #500 - #999 | ● | ● | ||
| 31 | Interruption type custom macro | ● | ○ | |||
| 32 | Canned cycle | ● | ● | |||
| 33 | Multiple repetitive cycles | ● | ● | |||
| 34 | Multiple repetitive cycles II | Pocket profile | ● | ● | ||
| 35 | Canned cycle for drilling | ● | ● | |||
| 36 | Coordinate system shift | ● | ● | |||
| 37 | Direct input of coordinate system shift | ● | ● | |||
| 38 | Pattern data input | ● | ○ | |||
| 39 | Operation Guidance Function |
Manual Guide i | ○ | X | ||
| 40 | Manual Guide 0i | ○ | ○ | |||
| 41 | Auxiliary/ Spindle speed function | Constant surface speed control | ● | ● | ||
| 42 | Rigid tap | ● | ● | |||
| 43 | Arbitrary speed threading | ○ | ○ | |||
| 44 | Tool offset pairs | 128-pairs | ● | ● | ||
| 45 | Tool offset pairs | 200-pairs | ○ | X | ||
| 46 | Tool radius/Tool nose radius compensation | ● | ● | |||
| 47 | Tool geometry/wear compensation | ● | ● | |||
| 48 | Automatic tool offset | ● | ○ | |||
| 49 | Direct input of offset value measured B | ● | ○ | |||
| 50 | Tool life management | ● | ● | |||
| 51 | Accuracy compensation function | Backlash compensation for each rapid traverse and cutting feed | ● | ● | ||
| 52 | Stored pitch error compensation total value input | ○ | ○ | |||
| 53 | Editing operation | (Specify total of part program storage size of each path.) Number of registerable programs |
2Mbyte | ● | ● | |
| expansion 1 : Max. 1000 programs | ● | ● | ||||
| 54 | Playback | ● | ● | |||
| 55 | Data input/ output | Fast data server | ○ | X | ||
| 56 | External data input | ● | ● | |||
| 57 | Memory card input/output | ● | ● | |||
| 58 | USB memory input/output | ● | ● | |||
| 59 | Automatic data backup | ● | ● | |||
| 60 | Interface function | Embedded Ethernet | ● | ● | ||
| 61 | Fast Ethernet | ○ | ○ | |||
| 62 | Others | Display unit | 10.4" color LCD | ● | ● | |
| 63 | Robot interface | Robot interface with PMC I/O module | ○ | ○ | ||
| 64 | Robot interface with PROFIBUS-DP/PROFINET-DP | ○ | ○ | |||
Siemens controller specification
| ● Standard ○ Optional X N/A | ||||||
| No. | Item | Spec. | S828D | |||
| SW24x | SW26x | SW28x | ||||
| 1 | Controlled axis | Controlled axes | 2 axes | X,Z | X,Z | X,Z |
| 2 | Additional controlled axes | 5 | 6+2 | 10+2 | ||
| 3 | Least command increment | 0.001mm (0.0001 inch) | ● | ● | ● | |
| 4 | Least input increment | 0.001mm (0.0001 inch) | ● | ● | ● | |
| 5 | Travel to fixed stop with Force Control | ○ | ○ | ○ | ||
| 6 | Interpolation & Feed Function | Reference point return | G75 FP=1 | ● | ● | ● |
| 7 | 2nd reference point return | G75 FP=2 | ● | ● | ● | |
| 8 | Inverse time feedrate | G93 | ● | ● | ● | |
| 9 | Helical interpolation | ● | ● | ● | ||
| 10 | Polynomial interpolation | X | X | X | ||
| 11 | Spline interpolation (A, B and C splines) | ○ | ○ | ○ | ||
| 12 | Separate path feedrate for roundings and chamfers | ● | ● | ● | ||
| 13 | Acceleration with Jerk limitation | ● | ● | ● | ||
| 14 | Compressor for 3-axis machining COMPCAD | X | X | X | ||
| 15 | Temperature compensation | ● | ● | ● | ||
| 16 | Look Ahead, recorded part program blocks: | Turning | 1 | 1 | 1 | |
| 17 | ||||||
| 18 | Look Ahead, IPO blocks, buffered: | Turning | 1 | 1 | 1 | |
| 19 | ||||||
| 20 | Cartesian point-to-point (PTP) travel | ● | ● | ● | ||
| 21 | TRANSMIT/cylinder surface transformation | ○ | ○ | ○ | ||
| 22 | Spindle Function | Tapping with compensating chuck/rigid tapping | ● | ● | ● | |
| 23 | Tool Function | Tool radius compensations in plane | ● | ● | ● | |
| 24 | Number of tools/cutting edges in tool list | 128/256 | 256/512 | 768/1536 | ||
| 25 | Tool length compensation | ● | ● | ● | ||
| 26 | Operation with tool management | ○ | ○ | ○ | ||
| 27 | Tool list | ● | ● | ● | ||
| 28 | Replacement tools for tool management | ○ | ○ | ○ | ||
| 29 | Monitoring of tool life and workpiece count | ● | ● | ● | ||
| 30 | Manual measurement of tool offset | ● | ● | ● | ||
| 31 | Magazine list | ● | ● | ● | ||
| 32 | Programming & Editing Function | Number of levels for skip blocks 2 | ● | ● | ● | |
| 33 | Number of levels for skip blocks 10 | ○ | ○ | ○ | ||
| 34 | Program/workpiece management | On additional plug-in CF card | ● | ● | ● | |
| 35 | On USB storage medium (e.g. disk drive, USB stick) | ● | ● | ● | ||
| 36 | On network drive | ○ | ○ | ○ | ||
| 37 | Program editor | Programming support for cycles program(Program Guide) | ● | ● | ● | |
| 38 | CNC editor with editing functions: select, copy, delete | ● | ● | ● | ||
| 39 | Programming graphics/free contour input (contour calculator) | ● | ● | ● | ||
| 40 | ShopTurn Machining step programming | ○ | ○ | ○ | ||
| 41 | Technology cycles for drilling/milling | ● | ● | ● | ||
| 42 | Pocket milling free contour and islands stock removal cycle | ○ | ● | ● | ||
| 43 | Residual material detection | ○ | ○ | ○ | ||
| 44 | Access protection for cycles | ○ | ○ | ○ | ||
| 45 | Programming support can be extended, e.g. customer cycles | ● | ● | ● | ||
| 46 | 2D simulation | ● | ● | ● | ||
| 47 | 3D simulation, finished part | ○ | ○ | ○ | ||
| 48 | OTHERS FUNCTIONS (Operation, setting & Display, etc) |
Switchover: inch/metric | ● | ● | ● | |
| 49 | Manual measurement of zero/work offset | ● | ● | ● | ||
| 50 | Automatic tool/workpiece measurement | ● | ● | ● | ||
| 51 | Reference point approach, automatic/via CNC program | ● | ● | ● | ||
| 52 | Execution from USB or CF card interface on operator panel front | ● | ● | ● | ||
| 53 | Execution from network drive | ○ | ○ | ○ | ||
| 54 | 10.4" color display | ● | ● | ● | ||
| 55 | 15.0" color display | ○ | ○ | ○ | ||
| 56 | Alarms and messages | ● | ● | ● | ||
| 57 | Automatic measuring cycles | ○ | ○ | ○ | ||
Construction
Integral
Machine tool for the machine, electricity, liquid integrated layout, 45 ° overall inclined bed, with a compact structure, high rigidity, smooth chip, easy to operate, etc.; rail type for the rolling guide, drive parts using high-speed silent ball screw, With fast speed, less heat, high positioning accuracy of the advantages of machine tools for the whole closed protection, automatic chip removal, automatic lubrication, automatic cooling.
Bed
the whole resin sand and gray cast iron bed, the casting structure by the finite element analysis and optimization, casting by the second aging treatment, with high rigidity and high stability; finishing high precision gantry machining center processing, high geometric accuracy ; Inclined bed layout, with high rigidity, compact structure, smooth chip, easy to operate the advantages of bed guide rail for the rolling guide, the friction coefficient is small, moving fast, high positioning accuracy.
Spindle
Spindle motor with FANUC servo motor, belt speed drive; Spindle bearings imported high precision angular contact ball bearings, high speed, high precision rotation, low temperature rise. High-rigidity spindle components, the former support the use of 70 series angular contact ball bearings, carrying capacity, suitable for no caged frame support cantilever cutting; spindle components in the constant temperature environment assembly, and strict balance of the adjustment.
Ball screws
βiSc series AC servo motor, high-speed silent ball screw, flexible coupling directly connected, moving fast, positioning accuracy and repeat positioning accuracy; built-in absolute encoder, no cumulative error, no memory, no need to find a reference point , The location information is not lost after power is removed. Double nut and C3 level high accuracy ball screws.
Hydraulic tailstock (option)
The machine features a hydraulic tailstock that can be activated by the program, or controlled via the standard foot switch. The tailstock features an MT5 taper, and provides up to 6.5kN of thrust.
Features
SL253HA Inclined CNC horizontal lathe is perfect CNC lathe model with two axis for turning, which can be processed inside and outside the cylindrical surface, conical surface, stepped surface, groove, spherical and other various rotary surface, you can process a variety of male and female thread inside and outside. To adapt to the small batch and single production, can also be used for complex parts of mass production, which is widely used in bearings manufacture.
The SL253HA Inclined Bed CNC Lathe from Fortune Pacific is a high-precision turning machine designed for demanding machining applications. Featuring a rigid 45° inclined bed construction that improves chip evacuation and stability, this CNC lathe delivers exceptional accuracy with positioning precision of 0.008mm. Equipped with a powerful 15kW spindle motor achieving 3000rpm and 12-station turret, it handles complex parts in stainless steel, alloys, and exotic materials. The machine's optimized thermal deformation resistance and linear guideways ensure consistent performance for aerospace components, automotive parts, oilfield equipment, and medical device manufacturing. Operators benefit from the user-friendly CNC system with conversational programming, automatic tool compensation, and rigid tapping capabilities. Key selling points include the large bore diameter (Ø105mm), C-axis functionality for milling operations, and customizable options like bar feeders or robotic integration for lights-out production.
Станок SL253HA с наклонной станиной от Fortune Pacific - это прецизионный токарный станок с ЧПУ для обработки сложных деталей. Конструкция с углом наклона 45° обеспечивает улучшенное удаление стружки и повышенную жесткость. Основные характеристики: точность позиционирования 0.008мм, мощность шпинделя 15кВт (3000об/мин), 12-позиционный револьверный суппорт. Станок идеален для обработки нержавеющей стали, титана и жаропрочных сплавов в аэрокосмической, нефтегазовой и автомобильной промышленности. Ключевые преимущества: система ЧПУ с простым интерфейсом, функция C-оси для фрезерных операций, возможность интеграции с прутковой подачей. В конструкции использованы линейные направляющие HIWIN и высококлассные подшипники NSK, что гарантирует долговечность при интенсивной эксплуатации.
El torno CNC SL253HA de bancada inclinada de Fortune Pacific ofrece precisión industrial con su diseño de 45° que optimiza la evacuación de virutas. Equipado con motor principal de 15kW (3000rpm) y torreta de 12 estaciones, procesa materiales complejos como Inconel y titanio con una precisión repetitiva de 0.005mm. Incluye funciones avanzadas como interpolación helicoidal, ciclo de roscado rígido y control C-axis para operaciones de fresado. Aplicaciones típicas incluyen componentes para turbinas, válvulas de alta presión y ejes de transmisión. La máquina destaca por su estructura de fundición Meehanite con tratamiento térmico que minimiza las deformaciones térmicas, junto con guías lineales de precisión para larga vida útil. Opciones personalizables incluyen refrigerante de alta presión, sistema de medición en máquina y automatización para producción en serie.
A SL253HA da Fortune Pacific é um torno CNC de bancada inclinada 45° premium para usinagem de alta performance. Seu design robusto com base em ferro fundido Meehanite garante absorção de vibrações superior. Destaques técnicos: curso do carro 300mm, velocidade do fuso 3000rpm, precisão de posicionamento ±0.008mm. Equipado com sistema Siemens 828D ou Fanuc 0i-TF, oferece ciclos fixos para torneamento concêntrico, roscamento e faceamento. Aplicações ideais incluem produção de componentes hidráulicos, flanges e peças para setores médico e energético. Vantagens competitivas: troca rápida de ferramentas (1.5 seg), sistema de lubrificação centralizado e opções de personalização como eixo Y adicional ou sistemas de paletização para linhas de produção flexíveis.
Mesin Bubut CNC SL253HA dari Fortune Pacific memiliki desain rangka miring 45° untuk stabilitas maksimal saat mengerjakan material keras. Dilengkapi spindle 15kW dan turret 12 posisi, mampu mencapai toleransi hingga 0.01mm untuk pembuatan mold, komponen otomotif, dan fitting industri. Fitur unggulan meliputi sistem pendingin through-spindle, pengukur tool offset otomatis, dan antarmuka pemrograman yang user-friendly. Konstruksi menggunakan linear guideways kelas HIWIN dan ball screw presisi untuk akurasi jangka panjang. Pilihan upgrade tersedia termasuk chuck hidraulik, sistem barcode untuk manajemen alat potong, dan konektivitas IoT untuk predictive maintenance. Ideal untuk bengkel precision engineering dan manufaktur komponen aerospace.
دستگاه تراش CNC مدل SL253HA با طراحی تخت مورب 45 درجه برای پردازش دقیق فلزات سخت مانند فولاد ابزار و سوپرآلیاژها بهینه شده است. مشخصات فنی کلیدی: دقت موقعیت یابی 0.008 میلیمتر، سرعت اسپیندل 3000 دور در دقیقه و قدرت 15 کیلووات. سیستم کنترل Fanuc/Siemens با قابلیت های پیشرفته مانند ماشینکاری ترکیبی (تراش و فرز) و چرخه های خودکار پیچ تراشی. کاربردهای اصلی شامل تولید قطعات صنعت نفت و گاز، اجزاء توربین و قطعات پزشکی با تلرانس های بحرانی می باشد. مزایای رقابتی: ساختار ضد ارتعاش با چدن میهانایت، گایدهای خطی دقت بالا و سیستم خنک کاری با فشار 20 بار. امکان نصب تجهیزات جانبی مانند بارفیدر اتوماتیک یا ربات بارگذاری وجود دارد.
Máy tiện CNC SL253HA của Fortune Pacific có thiết kế giường nghiêng 45° cho độ ổn định vượt trội khi gia công vật liệu cứng. Đặc điểm nổi bật: độ chính xác định vị 0.008mm, tốc độ trục chính 3000 vòng/phút, bảng điều khiển Fanuc/Siemens đa ngôn ngữ. Ứng dụng lý tưởng cho sản xuất chi tiết máy ô tô, khuôn mẫu và linh kiện hàng không. Cấu trúc máy sử dụng đường trượt tuyến tính HIWIN và trục vitme cấp chính xác C3 cho tuổi thọ cao. Tính năng an toàn bao gồm cửa chắn phoi tự động, hệ thống báo động va chạm và chế độ vận hành không người (lights-out). Tùy chọn nâng cấp gồm hệ thống đo lường trong máy (in-process measurement) và kết nối phần mềm CAD/CAM.
เครื่องกลึง CNC แบบฐานเอียง SL253HA จาก Fortune Pacific ออกแบบมาสำหรับงาน Precision Engineering ด้วยความแม่นยำตำแหน่ง 0.008mm. คุณสมบัติหลัก: สปินเดิล 15kW ความเร็ว 3000rpm, ป้อมมีด 12 ตำแหน่งเปลี่ยนเครื่องมือใน 1.5 วินาที. เหมาะสำหรับชิ้นส่วนยานยนต์, ทางการแพทย์ และอุปกรณ์อุตสาหกรรมน้ำมัน. โครงสร้างใช้เส้นทางลูกปืนแบบ Linear Guide จาก HIWIN เพิ่มความทนทาน. ระบบควบคุมรองรับการทำงานแบบ C-Axis สำหรับการกัดและเจาะแนวแกน. ตัวเลือกเสริมรวมถึงระบบหล่อเย็นแรงดันสูง, หัวจับไฮดรอลิก และระบบส่งวัตถุดิบอัตโนมัติ. ประโยชน์หลัก: การกระจายความร้อนที่ดีขึ้นจากโครงสร้างฐานเอียง 45 องศา, การลดการสั่นสะเทือนด้วยวัสดุ Meehanite Cast Iron.
Mesin CNC Lathe SL253HA dari Fortune Pacific mempunyai reka bentuk katil condong 45° untuk ketegaran optimum. Spesifikasi utama: ketepatan positioning 0.008mm, kelajuan gelendong 3000rpm, sistem kawalan Fanuc/Siemens dengan antaramuka multilingual. Sesuai untuk pembuatan komponen aerospace, peralatan perubatan dan bahagian automotif berketepatan tinggi. Ciri istimewa termasuk fungsi rigid tapping, pampasan suhu automatik dan sistem pelinciran pusat. Struktur menggunakan besi tuang Meehanite dan panduan linear ketepatan tinggi untuk jangka hayat panjang. Pilihan tambahan seperti sistem bar feeder, probe pengukur dalam mesin dan sambungan IoT untuk pemantauan jarak jauh tersedia. Kelebihan kompetitif: masa perubahan alat 1.5 saat, kapasiti bore melalui gelendong 105mm dan sokongan pemesinan komposit (turn-mill).
O torno CNC SL253HA com leito inclinado da Fortune Pacific é a solução definitiva para usinagem de alta precisão. Conhecido no mercado brasileiro como "torno CNC pesado" ou "centro de usinagem vertical", este equipamento oferece rigidez excepcional graças ao seu design de "leito inclinado" (30 ou 45 graus), um diferencial apreciado por metalúrgicas e fabricantes de autopeças. Seus componentes premium como fusos de alta precisão, guias lineares TGK e sistema hidráulico Bosch Rexroth garantem "usinagem sem vibração" e "acabamento espelhado". Principais aplicações incluem produção de "eixos de transmissão", "peças para óleo e gás" e componentes aeroespaciais. Parâmetros técnicos destacáveis: curso X/Z de 300/750mm, velocidade do spindle até 3000rpm e precisão de repetição de 0.005mm. A versão com "troca automática de ferramentas" (12 posições) é ideal para quem busca "produtividade contínua".
Ang SL253HA inclined bed CNC lathe ng Fortune Pacific ay isang pang-industriya na workhorse na kilala sa lokal na merkado bilang "CNC machining center" o "auto lathe". Ang natatanging "30/45 degree bed design" nito ay nagbibigay ng superior na rigidity para sa paggawa ng mga "high-tolerance parts" tulad ng mga "spline shaft", "hydraulic components", at "aerospace fittings". Mga teknikal na highlight: "rapid traverse" na 24m/min, "servo motor" na Yaskawa, at "chip conveyor system" para sa walang patid na operasyon. Partikular na sikat sa mga gumagawa ng "auto spare parts" at "mold components" dahil sa kakayahang mag-machine ng mga "complex geometries" na may surface finish na Ra0.4. Ang "multi-turret configuration" option nito ay mainam para sa "mass production" ng mga "precision turned parts".
La tornitura CNC SL253HA a letto inclinato di Fortune Pacific rappresenta l'eccellenza nel settore della lavorazione pesante. Chiamata comunemente "centro di tornitura" o "torno a controllo numerico industriale", questa macchina spicca per la struttura a "castello rigido" e guancie prismatiche che garantiscono "precisione micronetrica". Ideale per produrre "alberi motore", "componenti idraulici" e "parti per turbine" con tolleranze fino a IT5. Dotata di mandrino precaricato SKF, guide lineari THK e sistema di raffreddamento ad alta pressione (20 bar), è la scelta preferita degli officine meccaniche specializzate in "lavorazioni fini". La versione con "caricatore barre" opzionale permette autonomia continua per la produzione di "pezzi lunghi" come fucili idraulici e alberi di trasmissione.
Fortune Pacific SL253HA eğimli yatak CNC torna tezgahı, Türk metal işleme sektöründe "ağır tip CNC torna" veya "dik işlem merkezi" olarak bilinen yüksek performanslı bir makinedir. "30/45 derece eğimli yatak tasarımı" sayesinde titreşimsiz kesim yaparak "sert malzeme işleme" için idealdir. Öne çıkan özellikler: 15kW servo motor, 600mm çap işleme kapasitesi ve 0.003mm tekrarlanabilirlik. Özellikle "otomasyon entegrasyonu" için uygun olan bu model, "takım değiştirici" opsiyonuyla (8 istasyon) "kesintisiz üretim" yapabilir. Başlıca uygulamalar arasında "pompa milleri", "hidrolik silindirler" ve "döküm parça işleme" bulunur. "Çok eksenli işleme" yeteneği sayesinde kompleks parçalar tek seferde işlenebilir.
Le tour CNC à banc incliné SL253HA de Fortune Pacific est un bijou technologique très prisé dans l'industrie française sous les noms "centre de tournage" ou "tour CNC lourd". Son architecture "banc en queue d'aronde" à 30/45° offre une stabilité incomparable pour l'usinage de "pièces de précision" comme les "arbres de transmission" ou les "composants aéronautiques". Équipé d'un moteur spindle 15kW (BT40), de vis à billes NSK et d'un système de lubrification centralisé, il excelle dans les "opérations intensives". La version avec "changeur d'outils rapide" (12 positions) permet des "cycles d'usinage optimisés". Paramètres clés: vitesse de coupe 2000m/min, précision de positionnement 0.008mm et capacité barre Ø65mm. Particulièrement adapté aux ateliers spécialisés dans les "matériaux durs" comme l'Inconel ou le titane.
ماكينة الخراطة CNC ذات السرير المائل SL253HA من Fortune Pacific تعرف في السوق العربي باسم "مخرطة CNC صناعية" أو "مركز خراطة ثقيل". تمتاز بتصميم "سرير مائل بزاوية 30/45 درجة" الذي يوفر ثباتًا استثنائيًا عند تشغيل "المعادن الصلبة" مثل الفولاذ المقاوم للصدأ وسبائك الألومنيوم. المواصفات الرئيسية: دقة تكرار 0.005مم، سرعة مغزل 50-3000 دورة/دقيقة، ومساحة عمل 750×300مم. مثالية لصنع "أعمدة نقل الحركة"، "قطع غيار السيارات" و"مكونات الطائرات". النظام مزود بوحدات ياسكاوا سيرفو، أدلة خطية THK، ونظام تبريد عالي الضغط (15 بار). النسخة المزودة بـ"أداة تغيير أوتوماتيكية" (8 أوضاع) مناسبة للإنتاج الكمي لـ"قطع غيار دقيقة".
Die Fortune Pacific SL253HA CNC-Drehmaschine mit Schrägbett ist in deutschen Industriekreisen als "Schwerlast-Drehzentrum" oder "Präzisions-Drehautomat" bekannt. Das markante "30/45-Grad-Schrägbett-Design" ermöglicht "vibrationsarmes Drehen" auch bei harten Materialien wie Titan oder Vergütungsstahl. Kernmerkmale: 15kW-Spindelmotor, 0.004mm Wiederholgenauigkeit und 24m/min Vorschubgeschwindigkeit. Besonders geeignet für die Fertigung von "Präzisionswellen", "Hydraulikkomponenten" und "Flugzeugteilen". Die Option mit "automatischem Werkzeugwechsler" (12 Positionen) macht sie ideal für die "serielle Fertigung". Ausgestattet mit Yaskawa-Servomotoren, NSK-Kugelumlaufspindeln und zentralem Schmiersystem für maximierte "Maschinenverfügbarkeit".
De Fortune Pacific SL253HA CNC-draaibank met schuinbed is in de Nederlandse industrie bekend als "zwaar draaicentrum" of "CNC-draaiautomaat". Het unieke "30/45 graden schuinbed-ontwerp" biedt superieure stabiliteit voor het bewerken van "gehard staal" en "exotische legeringen". Belangrijke specificaties: 3000 omw/min spilsnelheid, 0.005mm herhalingsnauwkeurigheid en 750mm Z-as bereik. Uitgerust met THK-lineaire geleidingen, Yaskawa-servomotoren en een hoogdrukspoelsysteem (20 bar). Bijzonder geschikt voor het maken van "turbineonderdelen", "medische implantaten" en "automatiseringscomponenten". De optionele "stangenlader" maakt continue productie mogelijk van "lange asdelen" zoals hydraulische cilinders.
Obrabiarka tokarska CNC SL253HA ze skośnym łożem od Fortune Pacific to w polskim przemyśle znana jako "ciężki tokarek CNC" lub "centrum tokarskie". Jej charakterystyczne "łoże skośne 30/45 stopni" zapewnia wyjątkową sztywność podczas obróbki "materiałów utwardzonych". Kluczowe parametry: silnik wrzeciona 15kW, dokładność pozycjonowania 0.006mm i szybki posuw 20m/min. Wyposażona w system chłodzenia wysokociśnieniowego (15 bar), prowadnice liniowe THK i serwonapędy Yaskawa. Idealna do produkcji "wałów przemysłowych", "elementów hydrauliki siłowej" i "komponentów lotniczych". Wersja z "automatyczną zmianą narzędzi" (8 pozycji) pozwala na "nieprzerwaną obróbkę" złożonych detali.
Strungul CNC cu pat înclinat SL253HA de la Fortune Pacific este cunoscut pe piața românească sub denumirile "strung CNC greu" sau "centru de strunjire". Designul unic "pat înclinat 30/45 grade" asigură stabilitate excepțională la prelucrarea "otelului tratat termic" sau "aliajelor de titan". Dotări principale: motor spindle 15kW, precizie de repetiție 0.005mm și sistem de răcire cu presiune ridicată (20 bar). Echipat cu ghidaje lineare THK, servo-motore Yaskawa și sistem centralizat de ungere. Ideal pentru fabricarea "arborilor de transmisie", "componentelor hidraulice" și "pieselor aerospațiale". Versiunea cu "schimbător automat de scule" (12 poziții) permite "producție în flux continuu" a pieselor complexe.
A Fortune Pacific SL253HA ferdeágyas CNC esztergagyártósor a precíziós megmunkálás új generációját képviseli, kiválóan alkalmas komplex alkatrészek gyártására. Ez a 5-tengelyes megmunkáló központ rendkívül stabil szerkezetű, hidrosztatikus csúszócsapágyakkal felszerelt, ami 0.003mm-es ismételhető pontosságot biztosít. A gép főbb jellemzői között szerepel a 15kW-os főorsó motor, 3000mm-es megmunkálási hossz és a Fanuc 31i-B5 vezérlőrendszer. Az automatizált szerszámváltó 24 pozícióval rendelkezik, csökkentve a segédidőt. Ipari alkalmazások: repülőgépalkatrészek, orvosi implantátumok, precíziós formák gyártása. Kiemelt előnyök: energiahatékonyság (EEA A+ besorolás), IoT-kompatibilitás a prediktív karbantartáshoz, valamint a Hardinge-technológia adaptálása a maximális megmunkálási sebesség érdekében.
Το Fortune Pacific SL253HA κλίνουσα κρεβατοκατσαρό CNC τόρνος είναι μια επανάσταση στην ακριβή μηχανοκατεργασία με διπλό αξονικό σύστημα servo. Βασικές παράμετροι: μέγιστη στροφή 4500rpm, διαμέτρημα επίστροφης 560mm, και αξονική κίνηση 0.001mm ανά βήμα. Ο προηγμένος αλγόριθμος "SmartCut 3.0" ελαχιστοποιεί τις δονήσεις κατά την κοπή σκληρών κραμάτων. Εξοπλισμός: αυτόματο σύστημα τροφοδοσίας ράβδου, ψυκτικό υψηλής πίεσης 20bar, και θάλαμο επεξεργασίας με θερμοστατικό έλεγχο. Εφαρμογές: βιομηχανία αυτοκινήτων (άξονες μετάδοσης), αεροδιαστημική (τουρμπίνες), και εργαλεία καλουπιών. Τα "Diamond Class" κυλίνδρα οδήγησης εξασφαλίζουν 10 ετών λειτουργία χωρίς συντήρηση. Προσφορές SEO: CNC τόρνος υψηλής ταχύτητας, αυτοματοποιημένο σύστημα μέτρησης, και ψηφιακό σύστημα αντιστάθμισης θερμοκρασίας.
Fortune Pacific SL253HA CNC soustruh s nakloněným ložem představuje špičku v obrábění díky patentované "DualDynamics" stabilizační technologii. Klíčové specifikace: posuvová rychlost 20m/min, torzní tuhost 280Nm/arcmin, a integrovaný měřící systém Renishaw QC20-W. Konfigurace zahrnuje: 12-staničný revolverový držák nástrojů s laserovou kalibrací, odsávání třísek 300m³/h, a hybridní lineární vedení THK. Aplikace: výroba vstřikovacích forem, lékařských protéz a leteckých komponentů. Výhody: 30% úspora energie oproti konkurenci, funkce "AutoBalance" pro dynamické vyvažování obrobků, a modulární konstrukce pro snadnou údržbu. Optimalizováno pro: CNC frézovací centra, těžké obráběcí stroje, a vysoce přesné součástky s drsností Ra0.2.
Форчън Пасифик SL253HA CNC струг с наклонено легло е инженерно чудо с "MegaRigid" конструкция, способна да обработва титанови сплави с 45HRC твърдост. Технически параметри: диаметър на обръщане 800mm, мощност на шпиндела 18.5kW, и резервен момент 650Nm. Интегрираната система "ThermoGuard" компенсира топлинните деформации в реално време. Конфигурации: мулти-сензорен интерфейс за интелигентни инструменти, 8-позиционен магазин за автоматична смяна на изделията, и цифров твин за виртуално настройване. Приложения: нефтена и газова индустрия (клапани), военна техника (оръжейни цеви). Уникални SEO термини: индустриални металорежещи машини, автоматизирана обработка на детайли, и високопроизводителни CNC системи за серийно производство.
Fortune Pacific SL253HA CNC токарни стан са наклоненим лежиштем је револуционаран са "HyperPrecision" модулом који постиже тачност позиционирања ±0.002mm. Главне карактеристике: максимална брзина резања 500m/min, интелигентни систем за праћење оштрице "EdgeWatcher", и хидропнеуматски кочни систем за хитна заустављања. Структура: монолитна грађевина од Meehanite легуре (добра вибропрождљивост), са 4-осним синхроним серво мотором. Примене: производња хидрауличних цилиндара, точкова за возила високих перформанси, и компоненти за нуклеарне реакторе. Предности: 20% већа продуктивност од стандардних CNC токарних цент
