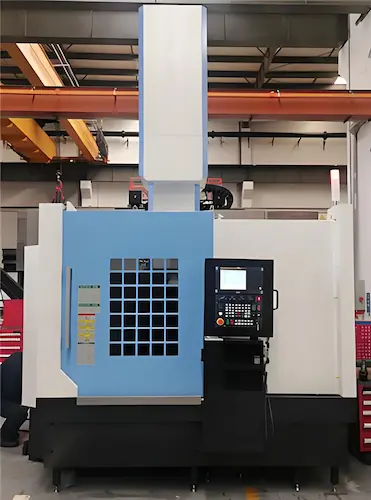

VNL80M vertical turning center is three-axis simultaneous and semi-closed loop control. The machine with c-axis indexing function and equipped with tools magazine living tools, in addition to the function of CNC lathe, it also has milling function.
This machine tool can process complex geometry, various sizes, high precision rotary parts, internal and external cylindrical surface, conical surface, stepped surface, spherical surface and other kinds of rotary surface, internal and external grooves, various metric system, British system internal and external threads. Living tools for milling axial and radial straight and spiral grooves, milling planes, drilling, reaming, tapping, etc. Suitable for medium and small batch and single piece production, also can be used for mass production of complex parts.
VNL80M CNC Vertical Turning Center specifications
VNL80M CNC Vertical Turning Center Equipments
VNL80M CNC Vertical Turning Center Optional
VNL80M CNC Vertical Turning Center Construction
Square size for base and column, integrated part, stable structure.
All structure by the finite element analysis, strive to structure optimization, and guarantee the stability of cutting precision 30% rigidity increased compared with the traditional design.
Finite element analysis and optimized design of the base rib make the machine tool good rigidity.
This machine adopts high power spindle motor combined with ZF gearbox to realize the ability of torque heavy cutting.
After ZF reducer and high-precision two-stage gear change, the ultimate realization of 20~600r/min stepless change.
With the help of HEIDENHAIN circular angle scale and high precision gear chain drive, C-axis positioning accuracy can reach within 6 s, and can continuously process polygon and cam shapes.
In the bearing direction is box guideway--good vibration resistance, large bearing capacity.
High-speed silent ball screw with perfect thermal suppression function and high reliability structure.
VNL80M CNC Vertical Turning Center Typical options
Capto Tool Changer
(C6 quick change tool holder)
CTS
Inspection of workpiece
Linear scale
Oil-water separation
Water gun
This machine tool can process complex geometry, various sizes, high precision rotary parts, internal and external cylindrical surface, conical surface, stepped surface, spherical surface and other kinds of rotary surface, internal and external grooves, various metric system, British system internal and external threads. Living tools for milling axial and radial straight and spiral grooves, milling planes, drilling, reaming, tapping, etc. Suitable for medium and small batch and single piece production, also can be used for mass production of complex parts.
VNL80M CNC Vertical Turning Center specifications
| Item | VNL80M |
| Capacity | |
| Max turning dia. (axial/disc parts) | Φ650/850mm |
| Max. swing over dia. | Φ900mm |
| Max workpiece height | 700mm |
| X travel | 480mm |
| Z travel | 750mm |
| X axis rapid traverse rate | 16m/min |
| Z axis rapid traverse rate | 16m/min |
| Cutting feed rate | 1~2,000mm/min |
| X/Z positioning accuracy | 0.008/0.012mm (per meter) |
| X/Z repeatability accuracy | 0.006/0.008mm |
| Spindles | |
| Spindle type | A2-11 |
| Spindle bore dia. | Φ75mm |
| Spindle speed | 50~2000r/min |
| Torque | 1345Nm |
| Motor power | 22/30kW |
| Fixture | 1 set of soft 3-jaw |
| Live turret | |
| Drive | Servo |
| Tool type | BMT75 |
| Tool number | Horizontal 12 position |
| Tool size | 32x32mm |
| Boring tool shank max dia. | φ50mm |
| Living tool max speed | 4,000r/min |
| Others | |
| Power required | 40kVA |
| Coolant tank voltage | 340L |
| Machine gross weight | 9500kg |
| Floor space (L*W*H) | 2050x3840x3600mm |
| Item 01 | Descriptions | |
| 01.01 | FANUC 0i TF(3B) Plus control with 10.4” display | |
| 01.02 | A2-11, 22/30kW spindle motors | |
| 01.03 | 18” solid hydraulic chuck & 1 set of soft 3-jaw | |
| 01.04 | 12T live turret | |
| 01.05 | Air conditioner of electrical cabinet | |
| 01.06 | Auto chip conveyor & Chip cart | |
| 01.07 | Full enclosure splash guard | |
| 01.08 | Telescopic covers | |
| 01.09 | Cooling system | |
| 01.10 | Hydraulic system | |
| 01.11 | Automatic lubricating system | |
| 01.12 | Chip rushing system | |
| 01.13 | Air gun | |
| 01.14 | Work light & Tri-color signal light | |
| 01.15 | Program and data protection key | |
| 01.16 | Lifting eye bolts | |
| 01.17 | Installation parts | |
| 01.18 | Spare parts (fuses & pull stud, etc.) | |
| 01.19 | Assembly & Operation tools | |
| 01.20 | Instruction manual, parts list, and electrical drawings |
| Item 02 | Descriptions | Note |
| 02.01 | SIEMENS 828D 240 with SIEMENS servo motor 27kw | |
| 02.02 | SIEMENS 828D 260 with SIEMENS servo motor 27kw | |
| 02.03 | SIEMENS 828D 280 with SIEMENS servo motor 27kw | |
| 02.04 | Shop turn | |
| 02.05 | Manual guide 0I | |
| 02.06 | Manual guide I | for FANUC TF1 |
| 02.07 | DATA SERVE 2GB | for FANUC TF1 |
| 02.08 | Memory of FANUC controller 2MB | |
| 02.09 | M30 auto power off | |
| 02.10 | 2 year FANUC warranty | |
| 02.11 | 2 year SIEMENS warranty | |
| 02.12 | 380V 50HZ/415V 50 HZ /220V 60 HZ | |
| 02.13 | Transformer | |
| 02.14 | Extra OD turning holder | unit price |
| 02.15 | Extra Boring holder | unit price |
| 02.16 | Manual hard jaw | 1 set |
| 02.17 | Soft jaw | 1 set |
| 02.18 | CTS 20 bar | |
| 02.19 | CTS 30 bar | |
| 02.20 | CTS 50 bar | |
| 02.21 | Coolant tank coolant level sensor | |
| 02.22 | Tool setter RENISHAW | manual plug type |
| 02.23 | Tool setter RENISHAW | auto swing type |
| 02.24 | Workpiece setter RENISHAW | |
| 02.25 | Linear scale X /Z axis | HEIDENHAIN |
| 02.26 | Oil mister collector | |
| 02.27 | Auto-door (pneumatic control) | |
| 02.28 | Grease lubrication instead of oil | |
| 02.29 | Buzzer alarm | for tri-color light |
| 02.30 | CNC controller book manuals | |
| 02.31 | Water gun | |
| 02.32 | Electric switch for door | |
| 02.33 | Air conditioner of electrical cabinet | |
| 02.34 | CE standard |
- Machine body structure
Square size for base and column, integrated part, stable structure.
All structure by the finite element analysis, strive to structure optimization, and guarantee the stability of cutting precision 30% rigidity increased compared with the traditional design.
- Base
Finite element analysis and optimized design of the base rib make the machine tool good rigidity.
- Worktable/Chuck bearing
- Main transmission
This machine adopts high power spindle motor combined with ZF gearbox to realize the ability of torque heavy cutting.
After ZF reducer and high-precision two-stage gear change, the ultimate realization of 20~600r/min stepless change.
- C axis high precision indexing
With the help of HEIDENHAIN circular angle scale and high precision gear chain drive, C-axis positioning accuracy can reach within 6 s, and can continuously process polygon and cam shapes.
- Linear box composite guideway
In the bearing direction is box guideway--good vibration resistance, large bearing capacity.
High-speed silent ball screw with perfect thermal suppression function and high reliability structure.
- Living turret
| Item | Unit | Item | Unit | ||
| Live tool holder | 90 degree live tool holder | 1 pcs | Boring tool sleeve | Æ40 sleeve | 1 pcs |
| 0 degree live tool holder | 1 pcs | Æ32 sleeve | 1 pcs | ||
| Fixed tool holder | End face tool holder | 1 pcs | Æ25 sleeve | 1 pcs | |
| Æ50 boring tool holder | 3 pcs | ||||
| OD tool holder | 4 pcs | ||||
| End face turning tool holder | 1 pcs | ||||
Capto Tool Changer
(C6 quick change tool holder)
CTS
Inspection of workpiece
Linear scale
Oil-water separation
Water gun
