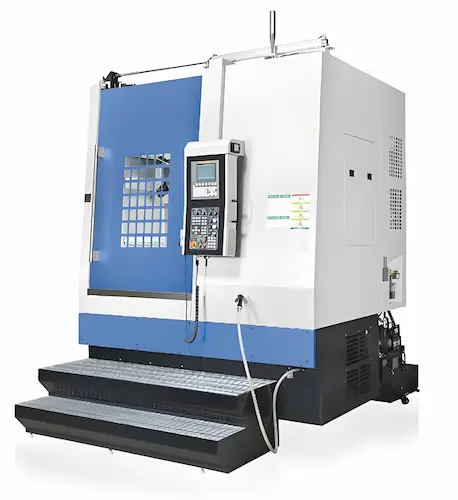

VNL60M vertical turning center is three-axis simultaneous and semi-closed loop control. The machine with c-axis indexing function and equipped with living rest, in addition to the function of CNC lathe, it also has milling function. This machine tool can process complex geometry, various sizes, high precision rotary parts, internal and external cylindrical surface, conical surface, stepped surface, spherical surface and other kinds of rotary surface, internal and external grooves, various metric system, British system internal and external threads. Living tools for milling axial and radial straight and spiral grooves, milling planes, drilling, reaming, tapping, etc. Suitable for medium and small batch and single piece production, also can be used for mass production of complex parts.
VNL60M CNC Vertical Turning Center specifications
VNL60M CNC Vertical Turning Center Equipments
VNL60M CNC Vertical Turning Center tool holder
VNL60M CNC Vertical Turning Center Optional
VNL60M CNC Vertical Turning CenterConstruction
Square size for base and column, integrated part, stable structure.
All structure by the finite element analysis, strive to structure optimization, and guarantee the stability of cutting precision 30% rigidity increased compared with the traditional design.
Heavy load roller linear guide rail, with large bearing capacity. High precision, eliminate low speed crawling machine, Suitable for heavy cutting and high speed cutting.
Guide way model: RGH45/RGH55
Slide’s quantity: 2/2
The spindle adopt NSK screw special bearing.
Double roller cylindrical bearings,
Angular contact ball bearing combination.
Spindle Torque Diagram
VNL60M CNC Vertical Turning Center specifications
| Item | VNL60M |
| Capacity | |
| Max turning dia. (axial/disc parts) | Φ550/780mm |
| Max. swing over dia. | Φ800mm |
| Max workpiece height | 550mm |
| X travel | 420mm |
| Z travel | 620mm |
| X axis servo motor torque | 12Nm |
| Z axis servo motor torque | 22Nm |
| X axis rapid traverse rate | 20m/min |
| Z axis rapid traverse rate | 20m/min |
| Cutting feed rate | 1~2,000mm/min |
| X/Z positioning accuracy | 0.008/0.008mm |
| X/Z repeatability accuracy | 0.004/0.006mm |
| Drilling capacity | Φ16x0.2 |
| Tapping capacity | M14x2/M20x1.5 |
| Turning capacity | Φ20*12*40 |
| Spindles | |
| Spindle type | A2-11 |
| Spindle bore dia. | Φ75mm |
| Spindle speed | 50~2000r/min |
| Torque | 913Nm |
| Motor power | 18.5/22kW |
| Chuck | 15” solid hydraulic chuck (soft 3-jaw) |
| Live turret | |
| Drive | Servo |
| Type | BMT65 |
| Tool number | Horizontal 12T |
| Tool size | 25x25mm |
| Max dia. of boring tool holder | Φ40mm |
| Max speed of living tool | 4000r/min |
| Others | |
| Power required | 40kVA |
| Coolant tank voltage | 240L |
| Machine gross weight | 8000kg |
| Floor space (L*W*H) | 1900x3600x3400mm |
| Item 01 | Descriptions | |
| 01.01 | FANUC 0i TF(3B) Plus control with 10.4” display | |
| 01.02 | A2-11, 2000rpm belt-drive spindle with 18.5/22kW FANUC α servo motor | |
| 01.03 | 15” solid hydraulic chuck & 1 set of soft 3-jaw, with C axis indexing | |
| 01.04 | 12T live turret | |
| 01.05 | Auto chip conveyor & Chip cart | |
| 01.06 | Full enclosure splash guard | |
| 01.07 | Telescopic covers | |
| 01.08 | Air conditioner of electrical cabinet | |
| 01.09 | Cooling system | |
| 01.10 | Hydraulic system | |
| 01.11 | Automatic lubricating system | |
| 01.12 | Chip rushing system | |
| 01.13 | Air gun | |
| 01.14 | Work light & Tri-color signal light | |
| 01.15 | Program and data protection key | |
| 01.16 | Lifting eye bolts | |
| 01.17 | Installation parts | |
| 01.18 | Spare parts (fuses & pull stud, etc.) | |
| 01.19 | Assembly & Operation tools | |
| 01.20 | Instruction manual, parts list, and electrical drawings |
| Item | Unit | Item | Unit | |||
| Live tool holder | 90 degree live tool holder | 1 pcs | Boring tool sleeve | Æ32 sleeve | 1 pcs | |
| 0 degree live tool holder | 1 pcs | Æ25 sleeve | 1 pcs | |||
| Fixed tool holder | End face tool holder | 1 pcs | Æ20 sleeve | 1 pcs | ||
| Æ40 boring tool holder | 3 pcs | |||||
| Outer circular turning tool holder | 4 pcs | |||||
| Item 02 | Descriptions | Note |
| 02.01 | FANUC 0I TF1 Plus with FANUC α servo motor 18.5kw | |
| 02.02 | SIEMENS 828D 240 with SIEMENS servo motor 27kw | |
| 02.03 | SIEMENS 828D 260 with SIEMENS servo motor 27kw | |
| 02.04 | SIEMENS 828D 280 with SIEMENS servo motor 27kw | |
| 02.05 | Shop turn | |
| 02.06 | Manual guide 0I | |
| 02.07 | Manual guide I | for FANUC TF1 |
| 02.08 | DATA SERVE 2GB | for FANUC TF1 |
| 02.09 | Memory of FANUC controller 2MB | |
| 02.10 | M30 auto power off | |
| 02.11 | 2 year FANUC warranty | |
| 02.12 | 2 year SIEMENS warranty | |
| 02.13 | 380V 50HZ/415V 50 HZ /220V 60 HZ | |
| 02.14 | Transformer | |
| 02.15 | 12T SAUTER BMT65 living turret | α3 motor |
| 02.16 | 90 degree living tool holder | |
| 02.17 | 0 degree live tool holder | |
| 02.18 | Live tool sleeve (φ6, φ8, φ10, φ12, φ16, φ20, φ22) | For VDI50,ER40 |
| 02.19 | Live tool sleeve (φ6, φ8, φ10, φ12, φ16, φ20, φ22) | For BMT65,ER32 |
| 02.20 | Boring tool holder | |
| 02.21 | OD turning tool holder | |
| 02.22 | End face turning tool holder + Installation block | |
| 02.23 | Manual hard jaw (21inch hydraulic chuck) | 1 set |
| 02.24 | Manual soft jaw (21inch hydraulic chuck) | 1 set |
| 02.25 | Manual hard jaw (24inch hydraulic chuck) | 1 set |
| 02.26 | Manual soft jaw (24inch hydraulic chuck) | 1 set |
| 02.27 | Change to 500mm manual chuck | Include 4 hard jaw |
| 02.28 | Change to 630mm manual chuck | Include 4 hard jaw |
| 02.29 | Change to 500mm hydraulic chuck + 3 soft jaw | AUTOBLOK |
| 02.30 | Change to 630mm hydraulic chuck + 3 soft jaw | AUTOBLOK |
| 02.31 | Change to 21inch hydraulic chuck + 3 soft jaw | CHANDOX/Auto-Strong |
| 02.32 | Change to 24inch hydraulic chuck + 3 soft jaw | CHANDOX/Auto-Strong |
| 02.33 | Chuck water flash | |
| 02.34 | CTS 20 bar | |
| 02.35 | Coolant tank coolant level sensor | |
| 02.36 | Tool setter RENISHAW | manual plug type |
| 02.37 | Tool setter RENISHAW | auto swing type |
| 02.38 | Workpeice setter RENISHAW | |
| 02.39 | Linear scale X /Z axis | HEIDENHAIN |
| 02.40 | Oil mister collector | |
| 02.41 | Auto-door (pneumatic control) | |
| 02.42 | Grease lubrication instead of oil | |
| 02.43 | Buzzer alarm | for tri-color light |
| 02.44 | CNC controller book manuals | |
| 02.45 | Water gun | |
| 02.46 | Electric switch for door | |
| 02.47 | Air conditioner of electrical cabinet | |
| 02.48 | CE standard |
- Machine body structure
Square size for base and column, integrated part, stable structure.
All structure by the finite element analysis, strive to structure optimization, and guarantee the stability of cutting precision 30% rigidity increased compared with the traditional design.
- X/ Z axis linear way
Heavy load roller linear guide rail, with large bearing capacity. High precision, eliminate low speed crawling machine, Suitable for heavy cutting and high speed cutting.
- Spindle unit
Guide way model: RGH45/RGH55
Slide’s quantity: 2/2
The spindle adopt NSK screw special bearing.
Double roller cylindrical bearings,
Angular contact ball bearing combination.
Spindle Torque Diagram
- Chuck:
- Turret:
- Automatic chip conveyor
- Neat line layout
- Lubrication, hydraulic and oil cooling system
