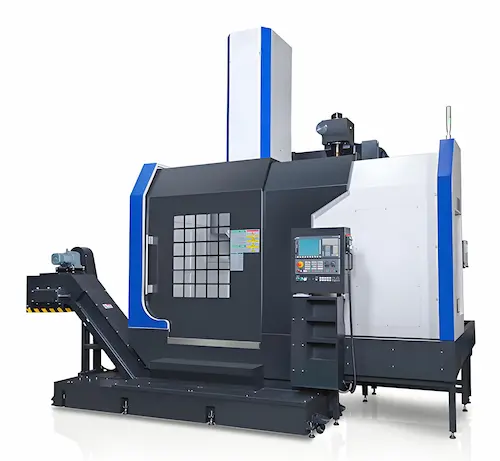

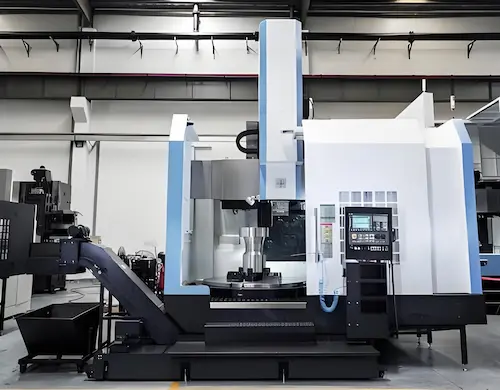

CNC Vertical Turning Center VNL100M is three-axis simultaneous and semi-closed loop control. The machine with C-axis indexing function and equipped with tools magazine living tools, in addition to the function of CNC lathe, but also has a certain milling function.
It can process complex geometry, various sizes, high precision rotary parts, internal and external cylindrical surface, conical surface, stepped surface, ball surface and kinds of rotary surface, internal and external grooves. The living spindle can mill axial straight groove and spiral groove, milling plane, drilling, reaming, tapping, etc
VNL100M CNC Vertical Turning Center specifications
VNL100M CNC Vertical Turning Center Equipments
VNL100M CNC Vertical Turning Center Optional
VNL100M CNC Vertical Turning Center Construction
The main drive uses a gear box with high torque.
Column adopts sand-sealing structure, good vibration absorption.
Beam movement adopts hierarchical positioning, large processing range, good accuracy retention.
Base
Base is made of high-quality cast iron HT300, secondary thermal aging ensures stable accuracy.
Finite element analysis and optimized design of the base rib make the machine tool good rigidity.
Worktable/Chuck bearing
Use fixed short spindle with high centering accuracy and rotation accuracy. Improved machine bearing capacity and precision, achieving heavy torque cutting capabilities.
Heavy duty spindle bearing load: Max. 4 tons
The table adopts high-precision rolling bearings for guide rail, high-precision double row short cylindrical roller bearings for radial direction, high-precision thrust ball bearings for rolling guide rail in axial direction, and pre-load is added in axial direction, in order to improve the rotation accuracy and bearing capacity of the table.
The high rigidity worktable is matched with the manual strong jaw, the operation is convenient and can provide the strong clamping force.
Main transmission
This machine adopts FANUC high power spindle motor combined with ZF gearbox to realize the ability of torque heavy cutting.
C axis high precision indexing
High-precision servo motor, combined with precision variable lead worm gear and worm pair, provides accurate indexing.
C-axis positioning accuracy can reach 10 s, and can continuously process polygon and cam shapes.
Column
Columns are specially designed with thermal symmetric integrated structure to improve anti vibration, graded positioning of beam located on the both sides of column to realize high rigidity when beam is moving.
The upper end of the column is installed with a beam lifting motor and worm gear lifting box to achieve the lifting of the beam. The guide rail on both sides of the column is also equipped with rack for beam classification positioning, with a distance of 150mm.
Beam
Beam can be lift up and move down based on human operation, the position is adjusted by
4 hydraulic cylinders with super clamping force which are clamped automatically to ensure the accuracy of the machine
Beam positioning 6 steps
Linear box composite guideway
Guideway surface is linear guideway--small friction, high rapid speed, reduce specific pressure;
In the bearing direction is box guideway--good vibration resistance, large bearing capacity.
High-speed silent ball screw with perfect thermal suppression function and high reliability structure.
Ram
The square ram adopt totally enclosed type structure which has high rigidity and suitable for deep hole machining.
It is made of high-strength alloy steel forged. The guide surface is processed by proper heat treatment and high-precision guide grinding machine, using large square section, over 30% more rigid than casting ram.
Section 200 * 200mm
Composite processing function
ATC
The standard equipment is 12 station BT50 high reliability tool magazine, can use tool size within 32x32mm. The maximum tool weight is 50kg and the tool magazine maximum load is 560kg.
Customers can match the number of tools according to requirements.
We provide three sets turning holder and one boring holder for free. Also extra turning or boring holder as option.
VNL100M CNC Vertical Turning Center Typical options
Capto Tool Changer
(C6 quick change tool holder)
CTS
Inspection of workpiece
Linear scale
Oil-water separation
Water gun
It can process complex geometry, various sizes, high precision rotary parts, internal and external cylindrical surface, conical surface, stepped surface, ball surface and kinds of rotary surface, internal and external grooves. The living spindle can mill axial straight groove and spiral groove, milling plane, drilling, reaming, tapping, etc
VNL100M CNC Vertical Turning Center specifications
| Item | VNL100M |
| Capacity | |
| Max cutting dia. | Φ1000mm |
| Max. swing over bed dia. | Φ1000mm |
| Max workpiece height | 600mm |
| Max workpiece weight | 4000kg |
| Beam positioning step | 3 steps |
| Beam travel | 400mm |
| X travel | -50~650mm |
| Z travel | 600mm |
| X axis rapid traverse rate | 10m/min |
| Z axis rapid traverse rate | 10m/min |
| Cutting feed rate | 1~2,000mm/min |
| X/Z positioning accuracy | 0.023/0.023mm (per meter) |
| C positioning accuracy | 10” |
| X/Z repeatability accuracy | 0.013/0.013mm |
| C repeatability accuracy | 8” |
| Worktable/chuck | |
| Diameter | Φ800mm |
| Speed | 20~500r/min |
| Torque | 6400Nm |
| Motor power | 11+11kw |
| C axis speed | 5r/min |
| Speed range with gear box | 2 ranges |
| Fixture | 4 manual hard jaw |
| Milling spindles | |
| Speed | 1~2400r/min |
| Motor power | 7.5kW |
| Torque | 47.7Nm |
| Milling tool type | BT50 |
| Pull stud type | P50T-I (MAS403) |
| Ram size | 200x200mm |
| Tool magazine | |
| Tool change type | Auto |
| Tool number | 12 |
| Max tool size | 32x32 |
| Max tool weight | 35kg |
| Max tool magazine load capacity | 360kg |
| Tool change time (t-t) | 45 seconds |
| Others | |
| Air source/pressure | 500 L/min, 6~8bar |
| Power required | 65kVA |
| Coolant tank voltage | 500L |
| Machine gross weight | 12000kg |
| Floor space (LxWxH) | 3350x4000x4500mm |
| Item 01 | Descriptions | |
| 01.01 | FANUC 0I TF 3 Plus control with 10.4" display | |
| 01.02 | FANUC servo motor 11+11kw & ZF gear box | |
| 01.03 | 20~500r/min, 1000mm manual worktable & 4 manual hard jaw | |
| 01.04 | C axis indexing 5 r/min | |
| 01.05 | Air conditioning electrical cabinet | |
| 01.06 | Air gun + water gun | |
| 01.07 | Milling spindle square ram type, BT50, 2400r/min | |
| 01.08 | 12T Auto tool magazine, BT50 | |
| 01.09 | Turning holder, 32x32, 3 sets | |
| 01.10 | Boring holder, 25x25, 1 set | |
| 01.11 | Auto chip conveyor & Chip cart | |
| 01.12 | Coolant tank level sensor | |
| 01.13 | Cooling system | |
| 01.14 | Chip rushing system | |
| 01.15 | Hydraulic system | |
| 01.16 | Automatic lubricating system | |
| 01.17 | Work light & Tri-color tower signal light | |
| 01.18 | Telescopic covers | |
| 01.19 | Program and data protection key | |
| 01.20 | Lifting eye bolts | |
| 01.21 | Installation parts | |
| 01.22 | Spare parts (fuses & etc.) | |
| 01.23 | Assembly & Operation tools | |
| 01.24 | Instruction manual, parts list, and electrical drawings |
| Item 02 | Descriptions | Note |
| 02.01 | Shop turn | |
| 02.02 | Manual guide 0I | |
| 02.03 | Manual guide I | for FANUC TF1 |
| 02.04 | DATA SERVE 2GB | for FANUC TF1 |
| 02.05 | Memory of FANUC controller 2MB | |
| 02.06 | M30 auto power off | |
| 02.07 | 2 year FANUC warranty | |
| 02.08 | 2 year SIEMENS warranty | |
| 02.09 | 380V 50HZ/415V 50 HZ /220V 60 HZ | |
| 02.10 | Transformer | |
| 02.11 | Extra OD turning holder | unit price |
| 02.12 | Extra Boring holder | unit price |
| 02.13 | Hard jaw | 1 set |
| 02.14 | Soft jaw | 1 set |
| 02.15 | Milling spindle motor add to 15kw | Milling torque add to 95.5Nm |
| 02.16 | CTS 20 bar | |
| 02.17 | CTS 30 bar | |
| 02.18 | CTS 50 bar | |
| 02.19 | Tool setter RENISHAW | manual plug type |
| 02.20 | Tool setter RENISHAW | auto swing type |
| 02.21 | Workpiece setter RENISHAW | |
| 02.22 | Linear scale X /Z axis | HEIDENHAIN |
| 02.23 | NSK centering bearing for worktable | |
| 02.24 | Buzzer alarm | for tri-color light |
| 02.25 | CNC controller book manuals | |
| 02.26 | Water gun | |
| 02.27 | Electric switch for door | |
| 02.28 | Air conditioner of electrical cabinet | |
| 02.29 | CE standard |
- Machine body structure
The main drive uses a gear box with high torque.
Column adopts sand-sealing structure, good vibration absorption.
Beam movement adopts hierarchical positioning, large processing range, good accuracy retention.
Base
Base is made of high-quality cast iron HT300, secondary thermal aging ensures stable accuracy.
Finite element analysis and optimized design of the base rib make the machine tool good rigidity.
Worktable/Chuck bearing
Use fixed short spindle with high centering accuracy and rotation accuracy. Improved machine bearing capacity and precision, achieving heavy torque cutting capabilities.
Heavy duty spindle bearing load: Max. 4 tons
The table adopts high-precision rolling bearings for guide rail, high-precision double row short cylindrical roller bearings for radial direction, high-precision thrust ball bearings for rolling guide rail in axial direction, and pre-load is added in axial direction, in order to improve the rotation accuracy and bearing capacity of the table.
The high rigidity worktable is matched with the manual strong jaw, the operation is convenient and can provide the strong clamping force.
Main transmission
This machine adopts FANUC high power spindle motor combined with ZF gearbox to realize the ability of torque heavy cutting.
C axis high precision indexing
High-precision servo motor, combined with precision variable lead worm gear and worm pair, provides accurate indexing.
C-axis positioning accuracy can reach 10 s, and can continuously process polygon and cam shapes.
Column
Columns are specially designed with thermal symmetric integrated structure to improve anti vibration, graded positioning of beam located on the both sides of column to realize high rigidity when beam is moving.
The upper end of the column is installed with a beam lifting motor and worm gear lifting box to achieve the lifting of the beam. The guide rail on both sides of the column is also equipped with rack for beam classification positioning, with a distance of 150mm.
Beam
Beam can be lift up and move down based on human operation, the position is adjusted by
4 hydraulic cylinders with super clamping force which are clamped automatically to ensure the accuracy of the machine
Beam positioning 6 steps
Linear box composite guideway
Guideway surface is linear guideway--small friction, high rapid speed, reduce specific pressure;
In the bearing direction is box guideway--good vibration resistance, large bearing capacity.
High-speed silent ball screw with perfect thermal suppression function and high reliability structure.
Ram
The square ram adopt totally enclosed type structure which has high rigidity and suitable for deep hole machining.
It is made of high-strength alloy steel forged. The guide surface is processed by proper heat treatment and high-precision guide grinding machine, using large square section, over 30% more rigid than casting ram.
Section 200 * 200mm
Milling spindle
Equipped with spindle motor and ZF gear box (1:1 and 1:4) to drive milling spindle rotation through inlet coupling.Composite processing function
ATC
The standard equipment is 12 station BT50 high reliability tool magazine, can use tool size within 32x32mm. The maximum tool weight is 50kg and the tool magazine maximum load is 560kg.
Customers can match the number of tools according to requirements.
We provide three sets turning holder and one boring holder for free. Also extra turning or boring holder as option.
VNL100M CNC Vertical Turning Center Typical options
Capto Tool Changer
(C6 quick change tool holder)
CTS
Inspection of workpiece
Linear scale
Oil-water separation
Water gun
