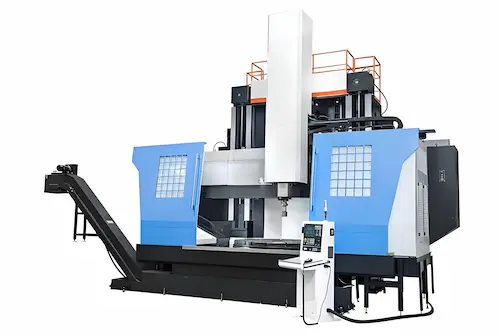

CNC Vertical Turning Center VNL250M is three-axis simultaneous and semi-closed loop control. The machine with C-axis indexing function and equipped with tools magazine living tools, in addition to the function of CNC lathe, but also has a certain milling function. It can process complex geometry, various sizes, high precision rotary parts, internal and external cylindrical surface, conical surface, stepped surface, ball surface and kinds of rotary surface, internal and external grooves. The living spindle can mill axial straight groove and spiral groove, milling plane, drilling, reaming, tapping, etc.
VNL250M CNC Vertical Turning Center specifications
VNL250M CNC Vertical Turning Center Equipments
VNL250M CNC Vertical Turning Center Optional
VNL250M CNC Vertical Turning Center specifications
| Item | VNL160M |
| Capacity | |
| Max turning dia. | Φ2500mm |
| Max. swing over dia. | Φ2750mm |
| Max workpiece height | 2000mm |
| Max workpiece weight | 20000kg |
| Beam positioning step | 5 steps |
| Beam lifting speed | 250mm/min |
| Beam travel | 1250mm |
| X travel | -20~1400mm |
| Z travel | 1400mm |
| X axis rapid traverse rate | 9m/min |
| Z axis rapid traverse rate | 9m/min |
| Cutting feed rate | 1~2,000mm/min |
| X/Z positioning accuracy | 0.032/0.032mm (full travel) |
| X/Z repeatability accuracy | 0.013/0.013mm (full travel) |
| Worktable/chuck | |
| Diameter | Φ2250mm |
| Speed | 1.25~120r/min |
| Torque | 40000Nm |
| Motor power | 30kW x 2 |
| Speed range with gear box | 2 ranges |
| Fixture | Manual 4-jaw |
| Milling spindles | |
| Ram type | Square |
| Speed | 1~2400r/min |
| Motor power | 11/13.2kW |
| Milling tool type | BT50 |
| Ram size | 250x250mm |
| Tool magazine | |
| Tool change type | Auto |
| Tool number | 16 |
| Max tool weight | 50kg |
| Others | |
| Power required | 120kVA |
| Machine gross weight | 47000kg |
| Floor space (LxWxH) | 9720x6600x6850mm |
| Item 01 | Descriptions | |
| 01.01 | FANUC 0I TF 3 Plus control with 10.4" display | |
| 01.02 | 2400r/min, square ram type milling spindle, BT50 | |
| 01.03 | 1.25~120r/min, 2250mm manual worktable & manual 4-jaw | |
| 01.04 | 16T Auto tool magazine, BT50 | |
| 01.05 | Turning holder, 32x32, 3 sets | |
| 01.06 | Boring holder, 25x25, 1 set | |
| 01.07 | Auto chip conveyor & Chip cart | |
| 01.08 | Air conditioner of electrical cabinet | |
| 01.09 | Cooling system | |
| 01.10 | Air gun | |
| 01.11 | Hydraulic system | |
| 01.12 | Automatic lubricating system | |
| 01.13 | Work light & Tri-color tower signal light | |
| 01.14 | Telescopic covers | |
| 01.15 | Program and data protection key | |
| 01.16 | Lifting eye bolts | |
| 01.17 | Installation parts | |
| 01.18 | Spare parts (fuses & etc.) | |
| 01.19 | Assembly & Operation tools | |
| 01.20 | Instruction manual, parts list, and electrical drawings |
| Item 02 | Descriptions | Note |
| 02.01 | FANUC 0i-TF1 Plus control | |
| 02.02 | Z axis travel 1600mm | |
| 02.03 | Maximum cutting force 30KN | |
| 02.04 | Coolant through spindle | |
| 02.05 | External cooling of milling head | |
| 02.06 | Angel Milling Head | |
| 02.07 | Column heightened (Maximum height of workpiece 2500mm) (The tool can be machined on the 2500mm height face) |
|
| 02.08 | Shop turn | |
| 02.09 | Manual guide 0I | |
| 02.10 | Manual guide I | for FANUC TF1 |
| 02.11 | DATA SERVE 2GB | for FANUC TF1 |
| 02.12 | Memory of FANUC controller 2MB | |
| 02.13 | M30 auto power off | |
| 02.14 | 2 year FANUC warranty | |
| 02.15 | 2 year SIEMENS warranty | |
| 02.16 | 380V 50HZ/415V 50 HZ /220V 60 HZ | |
| 02.17 | Transformer | |
| 02.18 | Extra OD turning holder | unit price |
| 02.19 | Extra Boring holder | unit price |
| 02.20 | Manual hard jaw | 1 set |
| 02.21 | Manual soft jaw | 1 set |
| 02.22 | CTS 20 bar | |
| 02.23 | CTS 30 bar | |
| 02.24 | CTS 50 bar | |
| 02.25 | Tool setter RENISHAW | manual plug type |
| 02.26 | Tool setter RENISHAW | auto swing type |
| 02.27 | Workpeice setter RENISHAW | |
| 02.28 | Linear scale X /Z axis | HEIDENHAIN |
| 02.29 | NSK centering bearing for worktable | |
| 02.30 | Buzzer alarm | for tri-color light |
| 02.31 | CNC controller book manuals | |
| 02.32 | Water gun | |
| 02.33 | Electric switch for door | |
| 02.34 | Air conditioner of electrical cabinet | |
| 02.35 | CE standard | |
| 02.36 | Coolant tank level sensor | |
| 02.37 | Chip rushing system |
