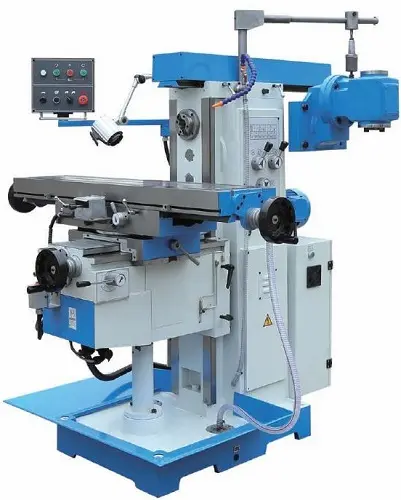

UHM32 Horizontal Overhanging Arm Milling Machine
The overarm is used to fastened arbor support. Over Arm / Overhanging Arm of UHM32 Horizontal Overhanging Arm Milling Machine may consist of one or two cylindrical bars which slide through the holes in the column.
- UHM32 UHM32C UHM32CL Horizontal Overhanging Arm Milling MachineDownload
Machine specifications
Equipments
Optionals
Over Arm / Overhanging Arm of Heavy-duty Horizontal Milling Machine
Over Arm / Overhanging Arm of Heavy-duty Horizontal Milling Machine is a horizontal beam present at the top face of the column. Over Arm / Overhanging Arm of Heavy-duty Horizontal Milling Machine may be a single casting which slides on the dovetail ways present on the top face of the column.
The overarm is used to fastened arbor support. Over Arm / Overhanging Arm of Heavy-duty Horizontal Milling Machine may consist of one or two cylindrical bars which slide through the holes in the column.
Horizontal Milling Machine Construction
The main part of Horizontal Milling Machine is base, Column, Knee, Saddle, Table, Overarm, Arbor Support and Elevating Screw.
1. Horizontal Milling Machine Base: It gives support and rigidity to the machine and also acts as a reservoir for the cutting fluids.
2. The Mill Column: The column of Horizontal Knee type Milling Machine is the main supporting frame mounted vertically on the base. The column is box shaped, heavily ribbed inside and houses all the driving mechanisms for the spindle and table feed.
3. The Mill Machine Knee: The knee is a rigid casting mounted on the front face of the column. The knee moves vertically along the guide ways and this movement enables to adjust the distance between the cutter and the job mounted on the table. The adjustment is obtained manually or automatically by operating the elevating screw provided below the knee.
4. The Mill Machine Saddle: The saddle rests on the knee and constitutes the intermediate part between the knee and the table. The saddle moves transversely, i.e., crosswise (in or out) on guide ways provided on the knee.
5. The Mill Machine Table: The table rests on guide ways in the saddle and provides support to the work. The table is made of cast iron, its top surface is accurately machined and carriers T-slots which accommodate the clamping bolt for fixing the work. The worktable and hence the job fitted on it is given motions in three directions:
. Vertical (up and down) movement provided by raising or lowering the knee.
. Cross (in or out) or transverse motion provided by moving the saddle in relation to knee.
. Longitudinal (back and forth) motion provided by hand wheel fitted on the side of feed screw.
In addition to the above motions, the table of a universal milling machine can be swiveled 45° to either side of the centre line and thus fed at an angle to the spindle.
6. The Milli Arbor support: The arbor support is fitted to the Overarm and can be clamped at any location on the Overarm. Its function is to align and support various arbors. The arbor is a machined shaft that holds and drives the cutters.
8. The Milli Elevating screw: The upward and downward movement to the knee and the table is given by the elevating screw that is operated by hand or an automatic feed.
| Items | UHM32 | UHM32C | UHM32CL |
| Working area | |||
| Worktable size (L×W) | 1325x320mm | 1325x320mm | 1600x320mm |
| T slot (Width x No. x pitch) | 18x3x70mm | 18x3x70mm | 18x3x70mm |
| Max. load of table | 500kg | 500kg | 500kg |
| Table rotation | optional: ±45° | optional: ±45° | no |
| Distance from horizontal spindle center to worktable surface | 20-470mm | 20-470mm | 20-470mm |
| Travels | |||
| Worktable travel (X) | 750mm | 1100mm | 1300mm |
| Worktable travel (Y) | 320mm | 320mm | 320mm |
| Worktable travel (Z) | 450mm | 450mm | 450mm |
| Spindle | |||
| Horizontal spindle speed | 12 steps; 60-1800rpm |
12 steps; 60-1800rpm |
12 steps; 60-1800rpm |
| Spindle taper | 7:24, ISO50 | 7:24, ISO50 | 7:24, ISO50 |
| Motor power | 5.5kW | 5.5kW | 5.5kW |
| Feed | |||
| Rapid feed (X/Y/Z) | 1200/800/600mm/min | 1200/800/600mm/min | 1200/800/600mm/min |
| Feed range (X) | 30-750mm/min | 30-830mm/min | 30-830mm/min |
| Feed range (Y) | 20-500mm/min | 20-500mm/min | 20-500mm/min |
| Feed range (Z) | 15-375mm/min | 15-375mm/min | 15-375mm/min |
| Others | |||
| Machine size (L×W×H) | 1800x2100x1870mm | 2245x2100x1870mm | 2520x2100x1870mm |
| Net weight | 2400kg | 2465kg | 2510kg |
Equipments
| Item 01 | Descriptions | |
| 01.01 | Draw bar | |
| 01.02 | Lifting crank | |
| 01.03 | Horizontal arbor assembly; | |
| 01.04 | Working lamp | |
| 01.05 | Coolant system | |
| 01.06 | Central lubrication | |
| 01.07 | Double-ended wrench | |
| 01.08 | Inner hexagon spanner | |
| 01.09 | Vertical milling head(ISO40) | |
| 01.10 | Operator manual |
| Item 02 | Descriptions | |
| 02.01 | 3-aixs Digital Read Out | |
| 02.02 | Work table rotary±45°(not equipped on UHM32CL) | |
| 02.03 | Hang up panel(Aluminum) | |
| 02.04 | Dividing head | |
| 02.05 | Rotary table | |
| 02.06 | Machine vise | |
| 02.07 | Milling chuck (ISO40) | |
| 02.08 | Clamping kits |
Over Arm / Overhanging Arm of Heavy-duty Horizontal Milling Machine is a horizontal beam present at the top face of the column. Over Arm / Overhanging Arm of Heavy-duty Horizontal Milling Machine may be a single casting which slides on the dovetail ways present on the top face of the column.
The overarm is used to fastened arbor support. Over Arm / Overhanging Arm of Heavy-duty Horizontal Milling Machine may consist of one or two cylindrical bars which slide through the holes in the column.
Horizontal Milling Machine Construction
The main part of Horizontal Milling Machine is base, Column, Knee, Saddle, Table, Overarm, Arbor Support and Elevating Screw.
1. Horizontal Milling Machine Base: It gives support and rigidity to the machine and also acts as a reservoir for the cutting fluids.
2. The Mill Column: The column of Horizontal Knee type Milling Machine is the main supporting frame mounted vertically on the base. The column is box shaped, heavily ribbed inside and houses all the driving mechanisms for the spindle and table feed.
3. The Mill Machine Knee: The knee is a rigid casting mounted on the front face of the column. The knee moves vertically along the guide ways and this movement enables to adjust the distance between the cutter and the job mounted on the table. The adjustment is obtained manually or automatically by operating the elevating screw provided below the knee.
4. The Mill Machine Saddle: The saddle rests on the knee and constitutes the intermediate part between the knee and the table. The saddle moves transversely, i.e., crosswise (in or out) on guide ways provided on the knee.
5. The Mill Machine Table: The table rests on guide ways in the saddle and provides support to the work. The table is made of cast iron, its top surface is accurately machined and carriers T-slots which accommodate the clamping bolt for fixing the work. The worktable and hence the job fitted on it is given motions in three directions:
. Vertical (up and down) movement provided by raising or lowering the knee.
. Cross (in or out) or transverse motion provided by moving the saddle in relation to knee.
. Longitudinal (back and forth) motion provided by hand wheel fitted on the side of feed screw.
In addition to the above motions, the table of a universal milling machine can be swiveled 45° to either side of the centre line and thus fed at an angle to the spindle.
6. The Milli Arbor support: The arbor support is fitted to the Overarm and can be clamped at any location on the Overarm. Its function is to align and support various arbors. The arbor is a machined shaft that holds and drives the cutters.
8. The Milli Elevating screw: The upward and downward movement to the knee and the table is given by the elevating screw that is operated by hand or an automatic feed.
| Item 01 | Descriptions | |
| 01.01 | Draw bar | |
| 01.02 | Lifting crank | |
| 01.03 | Horizontal arbor assembly; | |
| 01.04 | Working lamp | |
| 01.05 | Coolant system | |
| 01.06 | Central lubrication | |
| 01.07 | Double-ended wrench | |
| 01.08 | Inner hexagon spanner | |
| 01.09 | Vertical milling head(ISO40) | |
| 01.10 | Operator manual |
| Item 02 | Descriptions | |
| 02.01 | 3-aixs Digital Read Out | |
| 02.02 | Work table rotary±45°(not equipped on UHM32CL) | |
| 02.03 | Hang up panel(Aluminum) | |
| 02.04 | Dividing head | |
| 02.05 | Rotary table | |
| 02.06 | Machine vise | |
| 02.07 | Milling chuck (ISO40) | |
| 02.08 | Clamping kits |
- Massive machine frame with very rigid knee slide;
- Powerful gear-driven head for heavy cutting;
- Driven by AC servo motor to achieve automatic table feed and rapid feed on X, Y and Z axes;
- Hardened and ground table for precision clamping and heavy load;
- Worktable swivels ±45° on the horizontal plane is optional;
