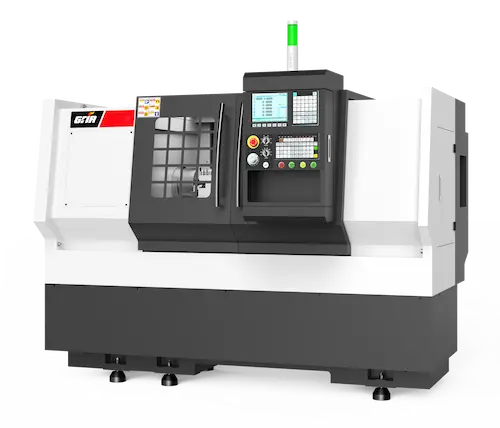

TF10 Flat Bed CNC Lathe Machine specifications
TF10 Flat Bed CNC Lathe Equipment
| Items | TF10 |
| Capacity | |
| Max swing over bed | Ø560mm |
| Max swing over cross slide | Ø300mm |
| Max turning DIA. (for plate) | 550mm |
| Max turning DIA. (for shaft kind) | 300mm |
| Bar capacity through spindle hole | Ø51mm |
| Spindle | |
| Spindle nose | A2-8 |
| Spindle bore | Φ75mm |
| Max. spindle speed | 3000r/min |
| Spindle motor power | 7.5kW |
| Chuck size | 8” inch (Hydraulic hollow) |
| Travel and rapid traverse | |
| X axis travel | 300mm |
| Z axis travel / max turning length | 750mm |
| X axis rapid traverse speed | 10m/min |
| Z axis rapid traverse speed | 10m/min |
| Turret (pragati 63-8T) | |
| Number of tool station | 8-position |
| Tool cross section | 25x25mm |
| Boring tool size | Φ32mm |
| Tailstock | |
| Tailstock sleeve diameter | Φ75mm |
| Tailstock sleeve travel | 190mm |
| Tailstock sleeve taper (manual) | MT5 |
| Accuracy | |
| Positioning accuracy | X axis:0.012mm, Z axis:0.016mm |
| Repeatability accuracy | X axis:0.006mm, Z axis:0.006mm |
| Others | |
| Overall dimensions (L×W×H) | 2410X1570X1710mm |
| Net weight | 2600kg |
| No. | Item | Model | Note |
| 1 | Controller system | SIEMENS 808DA | SIEMENS |
| 2 | AC servo motor | X: 8Nm | SIEMENS |
| Z:11Nm | SIEMENS | ||
| 3 | Spindle servo motor | 7.5kW | SIEMENS |
| 4 | Spindle bearings | NN3022P4+BTM110P4 NN3020P5 | China |
| 5 | Ball screw | X: Φ25×6-P3 | China |
| Z: Φ40×8-P3 | |||
| 6 | Ball screw bearings | X：DH7204B Z：DH7206B |
China |
| 7 | Electric turret 8T | BTP63 | India. Pragati |
| 8 | Hydraulic hollow chuck | 8 inch | China |
| 9 | Auto lubrication system | RD21/220-1.5 | China |
| 10 | Cooling pump | LDPB2-15-TP | China |
| 11 | LED light | CLL40S12DBS6HN-2835 | China |
| 12 | Foot pedal | China |
TF10 Flat Bed CNC Lathe Machine specifications
| Items | TF10 |
| Capacity | |
| Max swing over bed | Ø560mm |
| Max swing over cross slide | Ø300mm |
| Max turning DIA. (for plate) | 550mm |
| Max turning DIA. (for shaft kind) | 300mm |
| Bar capacity through spindle hole | Ø51mm |
| Spindle | |
| Spindle nose | A2-8 |
| Spindle bore | Φ75mm |
| Max. spindle speed | 3000r/min |
| Spindle motor power | 7.5kW |
| Chuck size | 8” inch (Hydraulic hollow) |
| Travel and rapid traverse | |
| X axis travel | 300mm |
| Z axis travel / max turning length | 750mm |
| X axis rapid traverse speed | 10m/min |
| Z axis rapid traverse speed | 10m/min |
| Turret (pragati 63-8T) | |
| Number of tool station | 8-position |
| Tool cross section | 25x25mm |
| Boring tool size | Φ32mm |
| Tailstock | |
| Tailstock sleeve diameter | Φ75mm |
| Tailstock sleeve travel | 190mm |
| Tailstock sleeve taper (manual) | MT5 |
| Accuracy | |
| Positioning accuracy | X axis:0.012mm, Z axis:0.016mm |
| Repeatability accuracy | X axis:0.006mm, Z axis:0.006mm |
| Others | |
| Overall dimensions (L×W×H) | 2410X1570X1710mm |
| Net weight | 2600kg |
TF10 Flat Bed CNC Lathe Equipment
| No. | Item | Model | Note |
| 1 | Controller system | SIEMENS 808DA | SIEMENS |
| 2 | AC servo motor | X: 8Nm | SIEMENS |
| Z:11Nm | SIEMENS | ||
| 3 | Spindle servo motor | 7.5kW | SIEMENS |
| 4 | Spindle bearings | NN3022P4+BTM110P4 NN3020P5 | China |
| 5 | Ball screw | X: Φ25×6-P3 | China |
| Z: Φ40×8-P3 | |||
| 6 | Ball screw bearings | X：DH7204B Z：DH7206B |
China |
| 7 | Electric turret 8T | BTP63 | India. Pragati |
| 8 | Hydraulic hollow chuck | 8 inch | China |
| 9 | Auto lubrication system | RD21/220-1.5 | China |
| 10 | Cooling pump | LDPB2-15-TP | China |
| 11 | LED light | CLL40S12DBS6HN-2835 | China |
| 12 | Foot pedal | China |
