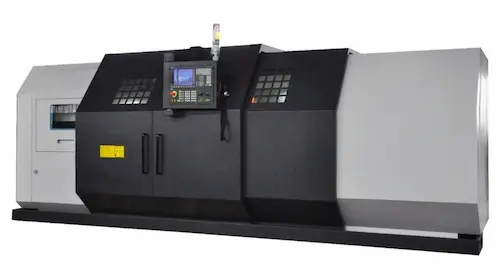

Machine specifications
Equipment
Optional
| Item | NC1000K | NC1100K |
| Capacity | ||
| Max. swing over bed | Ф1000mm | Ф1100mm |
| Max. swing over carriage | Ф600mm | Ф720mm |
| Width of bed | 600mm | |
| Max. length of workpiece | 1500mm | |
| Max. turning length | 1350mm | |
| Max. weight between centers | 2000kg | |
| Max. swing over gap | Ф1200mm | Ф1300mm |
| Spindle | ||
| Spindle nose | D11 | |
| Spindle bore | Ф104mm | |
| Spindle tapper | Ф120 1:20 | |
| Steps of spindle speed (manual) | 4 steps (variable within each step) | |
| Range of spindle speed | 10~90, 20~180, 40~320, 80~630rpm | |
| Feed | ||
| Rapid feed for axis Z | 10m/min | |
| Rapid feed for axis X | 8m/min | |
| Travel | ||
| Max.travel of X axis | 520mm | |
| Max travel of Z axis | 1500mm | |
| Turret | ||
| Turret stations | 4 | |
| Tool cross section | 40x40mm | |
| Tailstock | ||
| Tailstock sleeve outer dia. | Ф100mm | |
| Tailstock sleeve taper bore | M.T.NO.5 | |
| Tailstock sleeve travel | 250mm | |
| Others | ||
| Min. input | 0.001mm | |
| Main motor power | 15kW | |
| Coolant pump power | 370W | |
| Overall dimensions machine (L×W×H) | 4200x2000x1930mm | |
| Net weight | 6770kg | 6940kg |
| Item 01 | Descriptions | |
| 01.01 | FANUC Oi TF (5) CNC system | |
| 01.02 | FANUC servo motor for X and Z axis | |
| 01.03 | 15kW main motor (made in China) | |
| 01.04 | 4-way electrical turret | |
| 01.05 | 325mm 3-jaw manual chuck | |
| 01.06 | Manual tailstock | |
| 01.07 | Lubrication and coolant system | |
| 01.08 | Heat exchanger for electrical cabinet | |
| 01.09 | Full sheet covers | |
| 01.10 | LED working lamp | |
| 01.11 | Tricolor alarm light | |
| 01.12 | Door lock switch | |
| 01.13 | Siemens or Schneider main electrical components | |
| 01.14 | Tool box |
| Item 02 | Descriptions | |
| 02.01 | 18kW main servo motor (made in China) | |
| 02.02 | Taiwan 12” closed hydraulic chuck | |
| 02.03 | Taiwan 12” hollow hydraulic chuck | |
| 02.04 | Soft jaws for 12” 3-jaw hydraulic chuck | |
| 02.05 | Hard jaws for 12” 3-jaw hydraulic chuck | |
| 02.06 | 500mm 3-jaw manual chuck | |
| 02.07 | 380mm 3-jaw manual chuck | |
| 02.08 | 6-station electrical turret (boring tool seat x 2 pcs; square tool seat x 1 pcs) | |
| 02.09 | 8-station electrical turret (boring tool seat x 3 pcs; square tool seat x 1 pcs) | |
| 02.10 | Hydraulic tailstock (base on hydraulic chuck) | |
| 02.11 | 100-300mm steady rest | |
| 02.12 | 70-450mm steady rest | |
| 02.13 | Chip conveyor | |
| 02.14 | 630mm 4-jaws manual chuck |
Machine specifications
| Item | NC1000K | NC1100K |
| Capacity | ||
| Max. swing over bed | Ф1000mm | Ф1100mm |
| Max. swing over carriage | Ф600mm | Ф720mm |
| Width of bed | 600mm | |
| Max. length of workpiece | 1500mm | |
| Max. turning length | 1350mm | |
| Max. weight between centers | 2000kg | |
| Max. swing over gap | Ф1200mm | Ф1300mm |
| Spindle | ||
| Spindle nose | D11 | |
| Spindle bore | Ф104mm | |
| Spindle tapper | Ф120 1:20 | |
| Steps of spindle speed (manual) | 4 steps (variable within each step) | |
| Range of spindle speed | 10~90, 20~180, 40~320, 80~630rpm | |
| Feed | ||
| Rapid feed for axis Z | 10m/min | |
| Rapid feed for axis X | 8m/min | |
| Travel | ||
| Max.travel of X axis | 520mm | |
| Max travel of Z axis | 1500mm | |
| Turret | ||
| Turret stations | 4 | |
| Tool cross section | 40x40mm | |
| Tailstock | ||
| Tailstock sleeve outer dia. | Ф100mm | |
| Tailstock sleeve taper bore | M.T.NO.5 | |
| Tailstock sleeve travel | 250mm | |
| Others | ||
| Min. input | 0.001mm | |
| Main motor power | 15kW | |
| Coolant pump power | 370W | |
| Overall dimensions machine (L×W×H) | 4200x2000x1930mm | |
| Net weight | 6770kg | 6940kg |
Equipment
| Item 01 | Descriptions | |
| 01.01 | FANUC Oi TF (5) CNC system | |
| 01.02 | FANUC servo motor for X and Z axis | |
| 01.03 | 15kW main motor (made in China) | |
| 01.04 | 4-way electrical turret | |
| 01.05 | 325mm 3-jaw manual chuck | |
| 01.06 | Manual tailstock | |
| 01.07 | Lubrication and coolant system | |
| 01.08 | Heat exchanger for electrical cabinet | |
| 01.09 | Full sheet covers | |
| 01.10 | LED working lamp | |
| 01.11 | Tricolor alarm light | |
| 01.12 | Door lock switch | |
| 01.13 | Siemens or Schneider main electrical components | |
| 01.14 | Tool box |
Optional
| Item 02 | Descriptions | |
| 02.01 | 18kW main servo motor (made in China) | |
| 02.02 | Taiwan 12” closed hydraulic chuck | |
| 02.03 | Taiwan 12” hollow hydraulic chuck | |
| 02.04 | Soft jaws for 12” 3-jaw hydraulic chuck | |
| 02.05 | Hard jaws for 12” 3-jaw hydraulic chuck | |
| 02.06 | 500mm 3-jaw manual chuck | |
| 02.07 | 380mm 3-jaw manual chuck | |
| 02.08 | 6-station electrical turret (boring tool seat x 2 pcs; square tool seat x 1 pcs) | |
| 02.09 | 8-station electrical turret (boring tool seat x 3 pcs; square tool seat x 1 pcs) | |
| 02.10 | Hydraulic tailstock (base on hydraulic chuck) | |
| 02.11 | 100-300mm steady rest | |
| 02.12 | 70-450mm steady rest | |
| 02.13 | Chip conveyor | |
| 02.14 | 630mm 4-jaws manual chuck |
