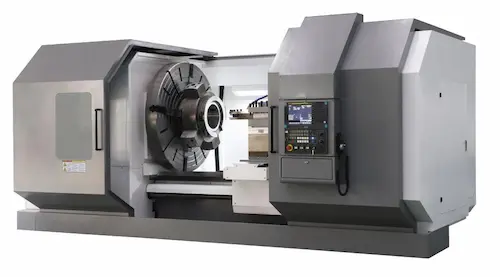

NC1250K flat bed heavy duty CNC Lathe
NC1250K flat bed heavy duty CNC Lathe Max. swing over bed is Φ1250mm; Max. swing over carriage is Φ815mm; Width of bed 755mm; Max. length of workpiece is 1500mm; Max. turning length 1300mm; Max. weight between centers 5000kg
- NC1250K flat bed heavy duty CNC LatheDownload
Machine specifications
Equipment
Optionals
| Item | NC1250K |
| Capacity | |
| Max. swing over bed | Φ1250mm |
| Max. swing over carriage | Φ815mm |
| Width of bed | 755mm |
| Max. length of workpiece | 1500mm |
| Max. turning length | 1300mm |
| Max. weight between centers | 5000kg |
| Spindle | |
| Spindle nose | A2-15 |
| Spindle bore | Ф130mm |
| Spindle tapper | MetricФ140 1:20 |
| Steps of spindle speed(manual) | 2 steps (stepless in each step) |
| Range of spindle speed | 2.5~34, 20~270rpm |
| Feed | |
| Rapid feed for axis Z | 8m/min |
| Rapid feed for axis X | 5m/min |
| Travel | |
| Max.travel of X axis | 685mm |
| Max travel of Z axis | 1300mm |
| Manual tailstock | |
| Tailstock sleeve outer dia. | Ф160mm |
| Tailstock sleeve taper bore | MetricФ80 |
| Tailstock sleeve travel | 300mm |
| Others | |
| Min. input | 0.001mm |
| Main motor power | 26kW |
| Coolant pump power | 370W |
| Overall dimensions 3 meters machine (L×W×H) | About 4800x2800x2600mm |
| Item 01 | Descriptions | |
| 01.01 | FANUC Oi TF (5) CNC system | |
| 01.02 | FANUC servo motor for X and Z axis | |
| 01.03 | 26kW main motor (made in China) | |
| 01.04 | 4-way electrical turret | |
| 01.05 | 1000mm 4-jaw manual chuck | |
| 01.06 | Manual tailstock | |
| 01.07 | Lubrication and coolant system | |
| 01.08 | Heat exchanger for electrical cabinet | |
| 01.09 | Half sheet covers | |
| 01.10 | LED working lamp | |
| 01.11 | Tricolor alarm light | |
| 01.12 | Air gun | |
| 01.13 | Door lock switch | |
| 01.14 | Siemens or Schneider main electrical components | |
| 01.15 | Tool box |
| Item 02 | Descriptions | |
| 02.01 | 37kW main servo motor | |
| 02.02 | Full cover | |
| 02.03 | 100-300mm steady rest | |
| 02.04 | 300-520mm steady rest | |
| 02.05 | Chip conveyor |
Machine specifications
| Item | NC1250K |
| Capacity | |
| Max. swing over bed | Φ1250mm |
| Max. swing over carriage | Φ815mm |
| Width of bed | 755mm |
| Max. length of workpiece | 1500mm |
| Max. turning length | 1300mm |
| Max. weight between centers | 5000kg |
| Spindle | |
| Spindle nose | A2-15 |
| Spindle bore | Ф130mm |
| Spindle tapper | MetricФ140 1:20 |
| Steps of spindle speed(manual) | 2 steps (stepless in each step) |
| Range of spindle speed | 2.5~34, 20~270rpm |
| Feed | |
| Rapid feed for axis Z | 8m/min |
| Rapid feed for axis X | 5m/min |
| Travel | |
| Max.travel of X axis | 685mm |
| Max travel of Z axis | 1300mm |
| Manual tailstock | |
| Tailstock sleeve outer dia. | Ф160mm |
| Tailstock sleeve taper bore | MetricФ80 |
| Tailstock sleeve travel | 300mm |
| Others | |
| Min. input | 0.001mm |
| Main motor power | 26kW |
| Coolant pump power | 370W |
| Overall dimensions 3 meters machine (L×W×H) | About 4800x2800x2600mm |
Equipment
| Item 01 | Descriptions | |
| 01.01 | FANUC Oi TF (5) CNC system | |
| 01.02 | FANUC servo motor for X and Z axis | |
| 01.03 | 26kW main motor (made in China) | |
| 01.04 | 4-way electrical turret | |
| 01.05 | 1000mm 4-jaw manual chuck | |
| 01.06 | Manual tailstock | |
| 01.07 | Lubrication and coolant system | |
| 01.08 | Heat exchanger for electrical cabinet | |
| 01.09 | Half sheet covers | |
| 01.10 | LED working lamp | |
| 01.11 | Tricolor alarm light | |
| 01.12 | Air gun | |
| 01.13 | Door lock switch | |
| 01.14 | Siemens or Schneider main electrical components | |
| 01.15 | Tool box |
Optionals
| Item 02 | Descriptions | |
| 02.01 | 37kW main servo motor | |
| 02.02 | Full cover | |
| 02.03 | 100-300mm steady rest | |
| 02.04 | 300-520mm steady rest | |
| 02.05 | Chip conveyor |
