SL-6F 6 inch chuck Slant Bed Turning CNC Lathe
- SL-6F Slant Bed Turning CNC Lathe MachineDownload
- SL-6F Torno de torneado CNC de bancada inclinadaDownload
- SL-6F Slant bed CNC Turing LatheDownload

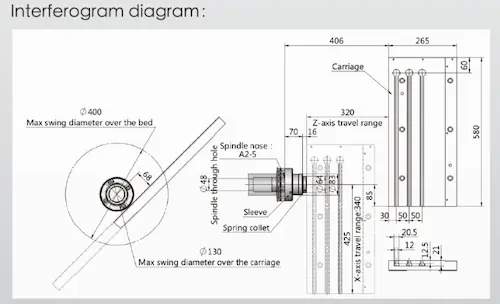

| Model | SL-6F | |
| Capacity | Chuck size | Collet (optional: 6inch chuck) |
| Swing diameter over bed | Ø400 mm | |
| Swing diameter over slide | Ø130 mm | |
| Spindle through hole | Ø35 mm | |
| Working piece length(Max) | / | |
| Spindle | Spindle hole | Ø44 mm |
| Speed range | 60~5000rpm | |
| Spindle nose | A2-5 | |
| Main motor power | 5.5KW | |
| Clamping | Hydraulic | |
| Carriage | X/Z axis rapid travel speed | 24/24m/min |
| X/Z servo motor torque | 7.5/7.5 N.m | |
| X/Z axis travel | 340/320mm | |
| Guidway | Linear | |
| Tools | Tools | Gang type tool post |
| Tool shank dimensions | 20*20mm | |
| Boring tool size | Ø20mm | |
| Accuracy | Positioning accuracy X/Z axis | 0.012/0.016mm |
| Repeatability accuracy X/Z axis | 0.004/0.006mm | |
| Others | Coolant pump power | 180W |
| Hydraulic station tank | 25L | |
| Total power consumption | 12KVA | |
| Overall dimensions(L*W*H) | 2020*1585*1935mm | |
| Weight | 1985KG | |
Slant bed CNC lathe features and applications
Slant bed CNC lathes, or called Inclined bed CNC lathe, are more advanced Computer numerical controlled lathes with Slant bed, rapidly replacing the Flat bed CNC lathes due to their high precision than Flat bed CNC lathes and Manual lathe. They are designed to use modern carbide cutting tools and use fast processes. The part can be designed and the cutting tool paths programmed by the CAD/CAM process or manually by the programmer, and the resulting file can be transfer to slant bed CNC Lathe machines, and once setting and trialled the machine will continue to machining out the parts Automatic.
The Inclined bed CNC lathes is controlled electronically via a computer menu style interface, the program may be modified and displayed at the machine screen, right now Inclined bed CNC lathes use much modern latest version CNC system like FANUC CNC, FAGOR CNC, MITSUBISHI CNC, IndraMotion MTX CNC, SIEMENS CNC, HEIDENHAIN CNC, NUM CNC, MAZAK CNC.
Features of SL-6F Slant bed CNC Turing Lathe
1,Mono-block design,45° bed structure;
2,Mechatronics,large travel range, small in size, follow separable water tank & chips box;
3,Build-in motor spindle(synchronous motor)
Equipments
1. GSK 980TDHi CNC;
2. Gang type tool post;
3. Build-in motor spindle;
4. Coolant system;
5. Lubrication system;
6. Hydraulic collet , 1pc;
7.3-color warning light;
Optionals
1. Siemens 808DA or Fanuc 0i TF;
2. Collet;
3. Hydraulic chuck 6’’.
1. GSK 980TDHi CNC;
2. Gang type tool post;
3. Build-in motor spindle;
4. Coolant system;
5. Lubrication system;
6. Hydraulic collet , 1pc;
7.3-color warning light;
2,Mechatronics,large travel range, small in size, follow separable water tank & chips box;
3,Build-in motor spindle(synchronous motor);
| Model | SL-6F | |
| Capacity | Chuck size | Collet (optional: 6inch chuck) |
| Swing diameter over bed | Ø400 mm | |
| Swing diameter over slide | Ø130 mm | |
| Spindle through hole | Ø35 mm | |
| Working piece length(Max) | / | |
| Spindle | Spindle hole | Ø44 mm |
| Speed range | 60~5000rpm | |
| Spindle nose | A2-5 | |
| Main motor power | 5.5KW | |
| Clamping | Hydraulic | |
| Carriage | X/Z axis rapid travel speed | 24/24m/min |
| X/Z servo motor torque | 7.5/7.5 N.m | |
| X/Z axis travel | 340/320mm | |
| Guidway | Linear | |
| Tools | Tools | Gang type tool post |
| Tool shank dimensions | 20*20mm | |
| Boring tool size | Ø20mm | |
| Accuracy | Positioning accuracy X/Z axis | 0.012/0.016mm |
| Repeatability accuracy X/Z axis | 0.004/0.006mm | |
| Others | Coolant pump power | 180W |
| Hydraulic station tank | 25L | |
| Total power consumption | 12KVA | |
| Overall dimensions(L*W*H) | 2020*1585*1935mm | |
| Weight | 1985KG | |
