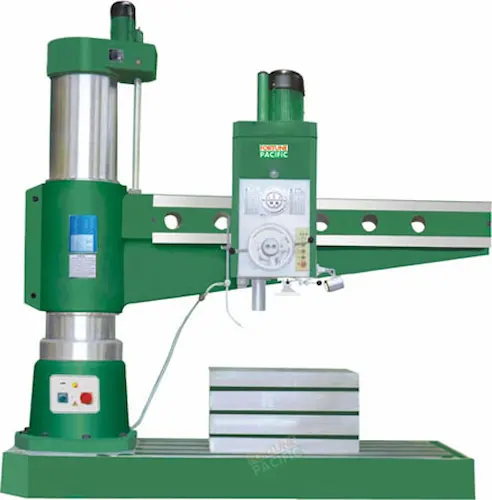

RD63x20H Hydraulic Lock Radial Drilling Machine
- RD63x20H Hydraulic Lock Radial Arm Drilling MachineDownload
| Model | Unit | RD63x20H |
| Clamping type | Hydraulic lock | |
| Max. drilling capacity in steel / in cast iron | mm | 63 / 80 (2.5” / 3.1”) |
| Distance spindle axis to column generating line | mm | 450-2050 (17.7” – 80.7”) |
| Diameter of column | mm | 450 (17.7”) |
| Spindle taper | MT-5 | |
| Spindle travel | mm | 400 (15.7”) |
| Spindle speeds range | r/min | 20-1600 |
| Spindle speeds series | 16 | |
| Range of spindle feeds | r/min | 0.04-3.2 |
| Spindle feeds | 16 | |
| Max. distance spindle nose to working surface of base | mm | 400-1600 (15.7” – 63”) |
| Dimension of worktable | mm | 950×630×500 (37x25x20”) |
| Dimension of base | mm | 2900×1250×250 (114x49x9.8”) |
| Machine overall Size | mm | 3110×1250×3150 |
| Power of main motor | kW | 5.5 |
| Gross weight / net weight | kg | 7145/6795 |
| Packing dimension | mm | 3480×1470×2350 |
1. Box shape worktable;
2. Taper sleeve;
3. Tool releasing Wrench;
4. Drift;
5. Eyelet bolts;
Optionals
1. Quick instead Chuck;
2. Tapping chuck;
Applications
1. It is used to create a round hole;
2. It is accomplished by a rotating tool that typically has two or four cutting edges;
3. The tool is fed in a direction parallel to its axis of rotation into the work part to form the round hole;
Features
1. Key components are made of high-strength cast iron or special steel;
2. Advanced heat treatment results in durable parts and components;
3. High precision components are available due to specialized processing;
4. Hydraulic power can realize spindle variable speed flexibly on the safe side;
5. 16-steps Radial Arm Drills spindle rotation speed and feed is available in heavy cutting;
6. Quick, safe clamping and unclamping operations are achievable;
7. The mechanical, electrical and hydraulic control over the headstock makes operation easier and quicker;
8. Adopts hydraulic lock;
1. Key components are made of high-strength cast iron or special steel;
2. Advanced heat treatment results in durable parts and components;
3. High precision components are available due to specialized processing;
4. Hydraulic power can realize spindle variable speed flexibly on the safe side;
5. 16-steps Radial Arm Drills spindle rotation speed and feed is available in heavy cutting;
6. Quick, safe clamping and unclamping operations are achievable;
7. The mechanical, electrical and hydraulic control over the headstock makes operation easier and quicker;
8. Adopts hydraulic lock;
| Model | Unit | RD63x20H |
| Clamping type | Hydraulic lock | |
| Max. drilling capacity in steel / in cast iron | mm | 63 / 80 (2.5” / 3.1”) |
| Distance spindle axis to column generating line | mm | 450-2050 (17.7” – 80.7”) |
| Diameter of column | mm | 450 (17.7”) |
| Spindle taper | MT-5 | |
| Spindle travel | mm | 400 (15.7”) |
| Spindle speeds range | r/min | 20-1600 |
| Spindle speeds series | 16 | |
| Range of spindle feeds | r/min | 0.04-3.2 |
| Spindle feeds | 16 | |
| Max. distance spindle nose to working surface of base | mm | 400-1600 (15.7” – 63”) |
| Dimension of worktable | mm | 950×630×500 (37x25x20”) |
| Dimension of base | mm | 2900×1250×250 (114x49x9.8”) |
| Machine overall Size | mm | 3110×1250×3150 |
| Power of main motor | kW | 5.5 |
| Gross weight / net weight | kg | 7145/6795 |
| Packing dimension | mm | 3480×1470×2350 |
1. It is used to create a round hole;
2. It is accomplished by a rotating tool that typically has two or four cutting edges;
3. The tool is fed in a direction parallel to its axis of rotation into the work part to form the round hole;
