| Model | Unit | MVS200 |
|---|---|---|
| Type | E | |
| Max. slotting length | mm | 200 (7.9”) |
| Number of round trips of RAM in one minute | times/min | 32; 50; 80; 125 |
| Inclination of RAM | (°) | 0~8 |
| Diameter of worktable | mm | Ø460 (18”) |
| Distance of vertical adjust of ram | mm | 215 (8.5”) |
| Distance from tool holding surface to column front | mm | 480 (19”) |
| Distance from worktable surface to underside of slide rack | mm | 320 (13”) |
| Max. longitudinal travel of worktable | mm | 440 (17.3”) |
| Max. transverse travel of worktable | mm | 420 (16.5”) |
| Max. swivel angle of worktable | (°) | 360 |
| Range of vertical & horizontal feed of worktable | mm | 0.054-1.24 |
| Range of rotary feed of worktable | (°) | 0.035-0.805 |
| Max size of slotting tool (Length × Height) | mm | 25×40 (0.98x1.6”) |
| Max. cutting force | kN | 5 |
| Max. loading weight on worktable | kg | 400 |
| T-slot width in the center of worktable | mm | 18H8 |
| Power of main motor | kW | 3 |
| Rotating speed of main motor | r/min | 1420 |
| Power of motor for rapid move of table | kW | 0.75 |
| Rotating speed of motor for rapid move of table | r/min | 1390 |
| Net weight (approx.) | kg | 2200 |
| Gross weight | kg | 2600 |
| Dimension of machine tool (L×W×H) | mm | 1717×1221×1885 |
| Packing size | mm | 2060x1400x2250 |
| Flatness of machined surface on tested workpiece | mm | 0.015 |
|---|---|---|
| Verticality of machined surface on tested workpiece | mm | 0.025 |
| Surface roughness on tested workpiece | 6.3 | |
| Verticality of machined side tested workpiece against base | mm | 0.02 |
Applications

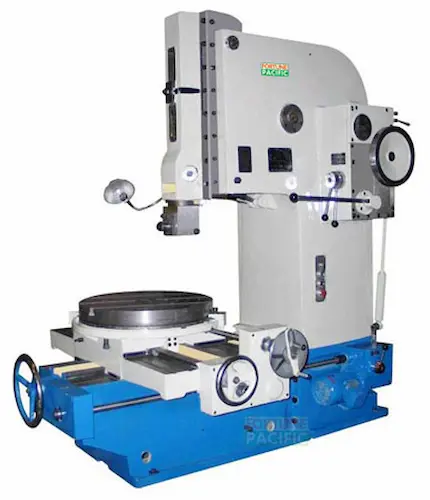

MVS200E Mechanical Slotting Machine is designed for cutting various plane, formed surface and keyway of workpiece, and it is suitable for single piece or small batch production.
Features
The start and stop of MVS200E Mechanical Slotting Machine is carried out by a multiple-disk clutch and the reciprocation of the ram is achieved by a crank connecting link. An automatic mechanism for vertical, horizontal and rotary feeding together with its safety device is provided on the table. There is also a rapid motion device for vertical, horizontal and rotary motion of the table which is equipped with an indexing gear for rotary motion.
Standard accessories
1. Cutter arbor;
2. Leveling bolts;
3. Foundation bolt;
4. Tool box;
5. Manual book;
Optional accessories
1. Ø250mm 3-Jaw Chuck;
2. Chuck spanner;
3. Level iron;
4. Holding-down plate;
5. Holding-down bolt;
| Flatness of machined surface on tested workpiece | mm | 0.015 |
|---|---|---|
| Verticality of machined surface on tested workpiece | mm | 0.025 |
| Surface roughness on tested workpiece | 6.3 | |
| Verticality of machined side tested workpiece against base | mm | 0.02 |
| Model | Unit | MVS200 |
|---|---|---|
| Type | E | |
| Max. slotting length | mm | 200 (7.9”) |
| Number of round trips of RAM in one minute | times/min | 32; 50; 80; 125 |
| Inclination of RAM | (°) | 0~8 |
| Diameter of worktable | mm | Ø460 (18”) |
| Distance of vertical adjust of ram | mm | 215 (8.5”) |
| Distance from tool holding surface to column front | mm | 480 (19”) |
| Distance from worktable surface to underside of slide rack | mm | 320 (13”) |
| Max. longitudinal travel of worktable | mm | 440 (17.3”) |
| Max. transverse travel of worktable | mm | 420 (16.5”) |
| Max. swivel angle of worktable | (°) | 360 |
| Range of vertical & horizontal feed of worktable | mm | 0.054-1.24 |
| Range of rotary feed of worktable | (°) | 0.035-0.805 |
| Max size of slotting tool (Length × Height) | mm | 25×40 (0.98x1.6”) |
| Max. cutting force | kN | 5 |
| Max. loading weight on worktable | kg | 400 |
| T-slot width in the center of worktable | mm | 18H8 |
| Power of main motor | kW | 3 |
| Rotating speed of main motor | r/min | 1420 |
| Power of motor for rapid move of table | kW | 0.75 |
| Rotating speed of motor for rapid move of table | r/min | 1390 |
| Net weight (approx.) | kg | 2200 |
| Gross weight | kg | 2600 |
| Dimension of machine tool (L×W×H) | mm | 1717×1221×1885 |
| Packing size | mm | 2060x1400x2250 |
1. Cutter arbor;
2. Leveling bolts;
3. Foundation bolt;
4. Tool box;
5. Manual book;
Optional accessories
1. Ø250mm 3-Jaw Chuck;
2. Chuck spanner;
3. Level iron;
4. Holding-down plate;
5. Holding-down bolt;
