| Model | Unit | MVS320 |
|---|---|---|
| Type | A | |
| Max. slotting length | mm | 320 (13”) |
| Max dimension of workpiece | mm | 600x320 (24x13”) |
| Max weight of workpiece | kg | 500 |
| Max cutting force | N | 7500 |
| No. of stroke per minute | 20, 32, 50, 80 | |
| Vertical adjustment of ram | mm | 315 (12”) |
| Inclination of ram | ° | 0-8 |
| Distance between tool bearing surface and column front | mm | 600 (24”) |
| Max tool shank size | mm | 25x40 (0.98x1.6”) |
| Worktable diameter | mm | 630 (25”) |
| Distance between worktable surface and low end of ram | mm | 490 (19”) |
| Max longitudinal travel of worktable | mm | 620 (24”) |
| Max cross travel of worktable | mm | 560 (22”) |
| Range of worktable longitudinal and cross power feed | mm | 0.08-1.21 |
| Range of worktable rotary power feed | ° | 0.052-0.783 |
| Main motor power | kW | 4 |
| Rotating speed of main motor | rpm | 960 |
| Net weight (approx.) | kg | 3500 |
| Gross weight | kg | 3800 |
| Dimension of machine tool (L×W×H) | mm | 2290x1525x2285 |
| Packing size | mm | 2530x1800x2520 |
1. Flat washer;
2. Internal hex wrench;
3. Foundation bolt;
4. Tool box;
Applications

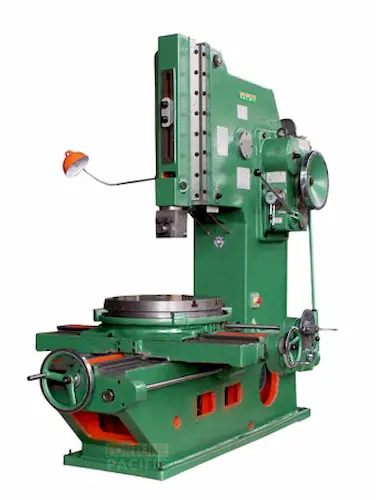

MVS320A Mechanical Slotting Machine is used for slotting flat and formed surfaces, key groove, etc. and is suitable for either single-piece or small-batch production.
Features
1. The main transmission mechanism is used for converting rotating motion of the crank gear into reciprocating motion of ram.
2. The worktable is designed for longitudinal, cross and rotary feeding both automatically and manually.
3. The feed is stopped automatically when the worktable is in case of trouble.
4. MVS320A Mechanical Slotting Machine is designed elaborately with high standardization and has reasonable arrangement with compact and harmonica construction, pleasing appearance, convenient maintenance.
1. The main transmission mechanism is used for converting rotating motion of the crank gear into reciprocating motion of ram.
2. The worktable is designed for longitudinal, cross and rotary feeding both automatically and manually.
3. The feed is stopped automatically when the worktable is in case of trouble.
4. MVS320A Mechanical Slotting Machine is designed elaborately with high standardization and has reasonable arrangement with compact and harmonica construction, pleasing appearance, convenient maintenance.
| Model | Unit | MVS320 |
|---|---|---|
| Type | A | |
| Max. slotting length | mm | 320 (13”) |
| Max dimension of workpiece | mm | 600x320 (24x13”) |
| Max weight of workpiece | kg | 500 |
| Max cutting force | N | 7500 |
| No. of stroke per minute | 20, 32, 50, 80 | |
| Vertical adjustment of ram | mm | 315 (12”) |
| Inclination of ram | ° | 0-8 |
| Distance between tool bearing surface and column front | mm | 600 (24”) |
| Max tool shank size | mm | 25x40 (0.98x1.6”) |
| Worktable diameter | mm | 630 (25”) |
| Distance between worktable surface and low end of ram | mm | 490 (19”) |
| Max longitudinal travel of worktable | mm | 620 (24”) |
| Max cross travel of worktable | mm | 560 (22”) |
| Range of worktable longitudinal and cross power feed | mm | 0.08-1.21 |
| Range of worktable rotary power feed | ° | 0.052-0.783 |
| Main motor power | kW | 4 |
| Rotating speed of main motor | rpm | 960 |
| Net weight (approx.) | kg | 3500 |
| Gross weight | kg | 3800 |
| Dimension of machine tool (L×W×H) | mm | 2290x1525x2285 |
| Packing size | mm | 2530x1800x2520 |
MVS320A Mechanical Slotting Machine is used for slotting flat and formed surfaces, key groove, etc. and is suitable for either single-piece or small-batch production.
