Twin Pallet Horizontal Machining Center
Home
> CNC Machining Center > Twin Pallet Horizontal Machining Center

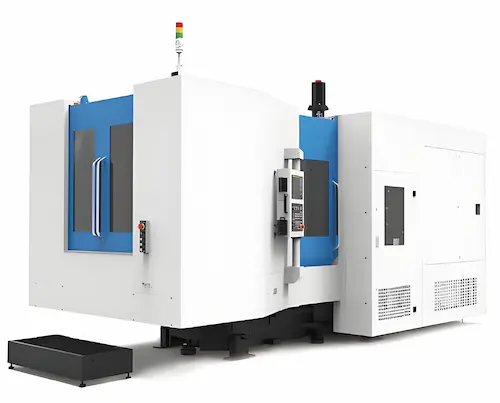

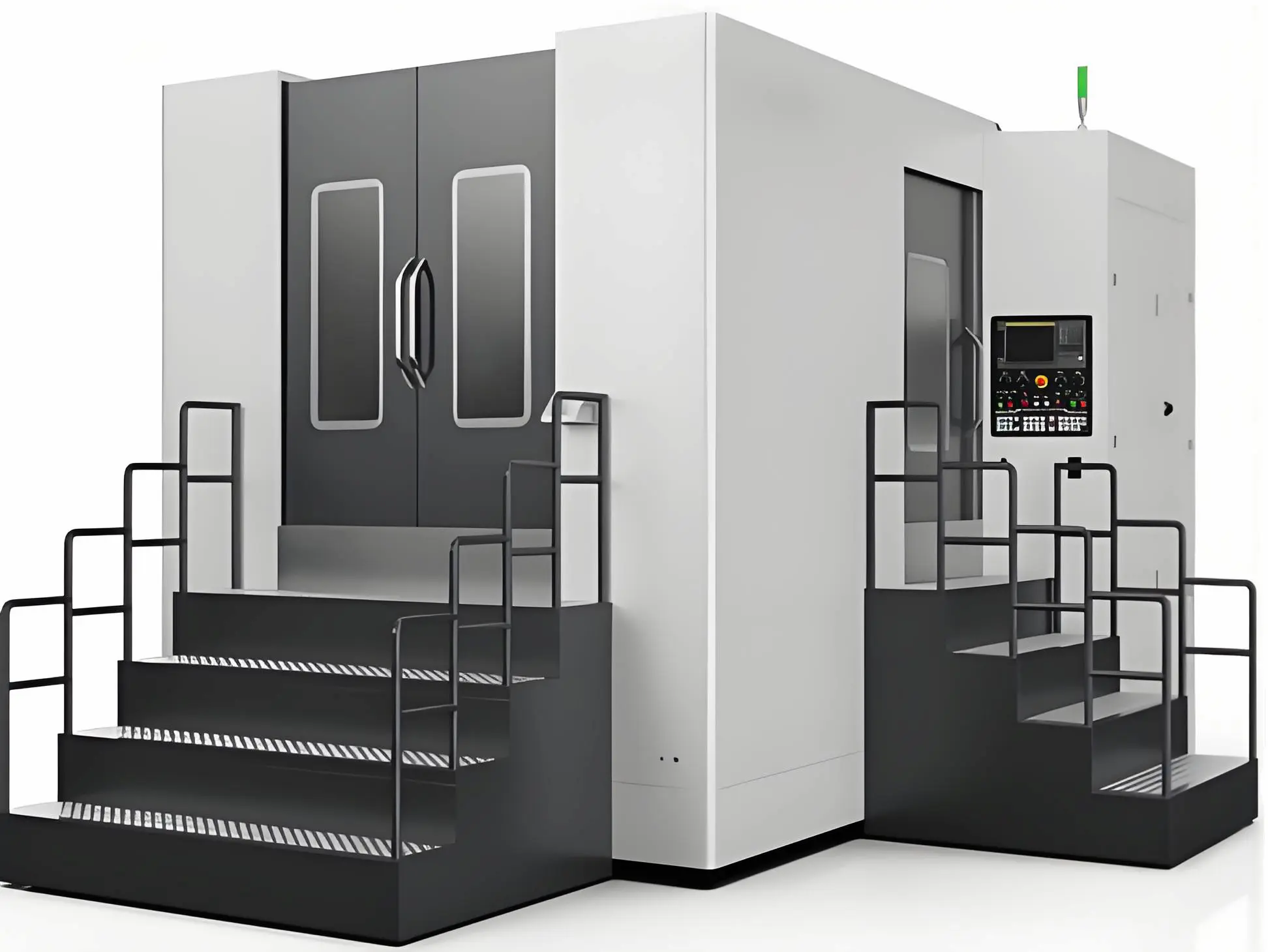

HE50DA Horizontal Machining Center is suitable for box parts machining, suitable for milling, drilling, boring, hinging, tapping, two-dimensional, three-dimensional surfaces and other multi-processing of multiple working surfaces of the parts, with a clamping to complete the box in a four-face holes and plane machining of the good performance, a substantial reduction in the production of the manufacturing time to improve the machining efficiency and accuracy.
This machine is suitable for the processing of medium and small batch, multi-species box parts. The machine tool is suitable for general machinery, automobile, textile, mold, aerospace, instrumentation, motor, valve and other industries.
HE50DA Twin Pallet Horizontal Machining Center specifications
HE50DA Twin Pallet Horizontal Machining Center Equipments
HE50DA Twin Pallet Horizontal Machining Center Optional
HE50DA Twin Pallet Horizontal Machining Center Construction
Machine base adopt M and W shaped ribs in order to withstand deformation under heavy cutting loads. The saddle is fully supported for the full length of travel with no overhang, which ensures maximum rigidity and precision. Dual wall construction around the guide-ways prevents coolant leakage, helping to insure easy maintenance and safety.
Automatic constant temperature oil coolant system reduce spindle heat temperature distortion. Good rigidity, high turning precision.
Our ATC has a 48 hours non-stop trouble free test to guarantee error rate below 0.5%.
One panel recover function for easy trouble shooting of ATC jam problem.
Tool holder type BT40/CAT40 / HSK63
The chip conveyor can be inserted directly from the rear of the machine, which greatly shortens the secondary installation time.
The double screw rows are arranged at an angle and converge into the wide chain rows, which saves the floor space of the water tank.
All cables and hoses run inside conduit
The slant way covers discharge chips efficiently.
Oil skimmer prevents decomposition of coolant
Well organized pneumatic system and lubrication system for easy repairing and maintenance.
Automatic oil pump provides lubrication to the guide ways and ball screws which precisely controls the volume of oil to these critical components. A low level alarm reminds operator before machine stop.
Reasonable cable arrangement in cabinet, air conditioner is standard for cabinet cooling.
HE50DA Twin Pallet Horizontal Machining Center Typical options
Big plus spindle system (optional)
The Big Plus spindle system and tooling surpasses all other spindle concepts due to simultaneous taper and flange contact between the machine spindle and tool holder as well as complete interchangeability with existing machines and tools. Upon mounting the tool holder into the machine spindle, contact occurs prior to clamping. Due to the retention force, the taper of the tool holder expands the machine spindle in its elastic range. The tool is pulled further in until the tool flange touches the spindle face for maximum rigidity.
Facing head
Renishaw work piece measure devices
Renishaw Tool Presetter
Linear scales
40/ 60 /90 tool Magazine
High pressure coolant through spindle (CTS)
Standard Tapped Pallet table
Optional T-Slotted Pallet Table
Spray coolant system
This machine is suitable for the processing of medium and small batch, multi-species box parts. The machine tool is suitable for general machinery, automobile, textile, mold, aerospace, instrumentation, motor, valve and other industries.
HE50DA Twin Pallet Horizontal Machining Center specifications
| Item | HE50DA |
| Processing range | |
| X axis travel | 750mm |
| Y axis travel | 750mm |
| Z axis travel | 800mm |
| Distance from spindle centerline to table | 50-800mm |
| Distance from spindle endface to table centerline | 25-825mm |
| Worktable | |
| Table size | 2pcs-500x500mm |
| Maximum load | 500kg |
| Maximum workpiece size | 800x1000mm |
| Minimum indexing angle | 1°x360mm |
| Double table exchange time | 12s |
| Spindle | |
| Spindle speed | 20~6000rpm |
| Spindle taper hole | 7:24 Taper NO.50 |
| Spindle motor | 15/18.5kW |
| Spindle torque | 143/236Nm |
| Speed | |
| Rapid traverse speed (X/Y/Z) | 40/40/40m/min |
| Cutting feed speed (X/Y/Z) | 1~40000mm/min |
| Minimum machine setting unit | 0.001mm/min |
| Tool magazine | |
| Number of tools | 24PC |
| Tool shank type | BT50 |
| Maximum tool diameter/length/weight | 125mm/500mm/8kg |
| Maximum tool diameter (neighbor empty) | 250mm |
| Tool change time (T-T) | 3s |
| Machine accuracy | |
| Positioning accuracy (X/Y/Z) | 0.010mm |
| Repeat positioning accuracy (X/Y/Z) | 0.006mm |
| Rotary table indexing accuracy (1° division) | 6″ |
| Repeat indexing accuracy of rotary table (1° division) | 2″ |
| Rotary table indexing accuracy (0.001° division) | 10″ |
| Repeat indexing accuracy of rotary table (0.001° division) | 5″ |
| Others | |
| Total capacity of machine power supply | 40kVA |
| Cooling box volume | 600L |
| Machine size (L×W×H) | 6650x3110x3190mm |
| Machine weight | 12000kg |
| Item 01 | Descriptions | |
| 01.01 | FANUC 0i-MF Plus (3B) CNC System | |
| 01.02 | Fully enclosed guards | |
| 01.03 | Hand-held operating unit | |
| 01.04 | Mechanical spindle | |
| 01.05 | ZF gear box | |
| 01.06 | Disk tool magazine for 24 tools | |
| 01.07 | Air conditioning electrical cabinet | |
| 01.08 | Automatic chip conveyor | |
| 01.09 | Automatic grease lubrication system | |
| 01.10 | Spindle cooling system | |
| 01.11 | Three-axis wire rod circulating cooling device | |
| 01.12 | Water cooler | |
| 01.13 | Three-color light | |
| 01.14 | Hydraulic system | |
| 01.15 | Spindle blowing device | |
| 01.16 | Air curtain protection | |
| 01.17 | Spindle center outlet | |
| 01.18 | Ring spray cooling system | |
| 01.19 | Air guns | |
| 01.20 | Lighting devices | |
| 01.21 | Standardized technical documentation for the machine set |
| Item 02 | Descriptions | Note |
| 02.01 | FANUC 10 inch touch screen | |
| 02.02 | FANUC 15 inch Non-touch screen | |
| 02.03 | FANUC 15 inch touch screen | |
| 02.04 | FANUC 31i | |
| 02.05 | SIEMENS 828D 260 CONTROLLER | |
| 02.06 | SIEMENS 828D 280 CONTROLLER | |
| 02.07 | SIEMENS 840D | |
| 02.08 | SIEMENS WITH 15INCH TOUCH CREEEN | |
| 02.09 | SHOP MILL | |
| 02.10 | AICC2 + NANO SMOOTHING | |
| 02.11 | AICC2 400 BLOCK | |
| 02.12 | PART PROGRAM STORAGE 2MB | |
| 02.13 | G68.2 | |
| 02.14 | MANUAL GUIDE I | |
| 02.15 | 3-dimensional coordinate conversion | |
| 02.16 | DATA SERVE 2GB | |
| 02.17 | HEIDENHAIN TNC620 (19inch touch screen) | |
| 02.18 | HEIDENHAIN TNC640 (19inch touch screen) | |
| 02.19 | AUTO WORKPIECE MEASUREMENT, OMP60 | |
| 02.20 | AUTO TOOL MEASUREMENT RENISHAW, TS27R | |
| 02.21 | CTS PREARE | |
| 02.22 | CTS 30 bar | |
| 02.23 | CTS 50 bar | |
| 02.24 | CTS 70 bar | |
| 02.25 | Stepless control of cooling pressure | |
| 02.26 | M30 AUTO POWER OFF | |
| 02.27 | BBT40 | |
| 02.28 | SK 40 (LONG DELIVERY TIME) | |
| 02.29 | CAT40 (LONG DELIVERY TIME) | |
| 02.30 | 3 AXIS LINEAR SCALE | |
| 02.31 | 4TH AXIS INTERFACE | Included |
| 02.32 | Rotate view window | |
| 02.33 | magnetic chip conveyor | |
| 02.34 | Scraping chip conveyor for aluminums cutting | |
| 02.35 | Oil mister | |
| 02.36 | 60 tools magazine, chain type (BT40) | |
| 02.37 | 80 tools magazine, chain type (BT40) | |
| 02.38 | 90 tools magazine, chain type (BT40) | |
| 02.39 | 120 tools magazine, chain type (BT40) | |
| 02.40 | Servo ATC 1.5S tool to tool time | |
| 02.41 | Automatic tool break inspection | (must work with Renshaw tools measure) |
| 02.42 | Control system for tool breakage and object monitoring with Profibus and usb interface （German made BK9) | |
| 02.43 | Auto-door (pneumatic control) | |
| 02.44 | 2 year FANUC warranty | |
| 02.45 | 2 year Siemens warranty | |
| 02.46 | CE standard | |
| 02.47 | Transformer | |
| 02.48 | Voltage stabilizer | |
| 02.49 | BBT40 15000RPM spindle | |
| 02.50 | BBT40 18000RPM spindle | |
| 02.51 | BBT40 24000RPM spindle | |
| 02.52 | HSKA63 12000RPM spindle | |
| 02.53 | HSKA63 15000RPM spindle | |
| 02.54 | HSKA63 18000RPM spindle | |
| 02.55 | HSKA63 24000RPM spindle | |
| 02.56 | Extra worktable | |
| 02.57 | CNC FACE PLATE | |
| 02.58 | Oil water seperater |
- Bed, column and saddle
Machine base adopt M and W shaped ribs in order to withstand deformation under heavy cutting loads. The saddle is fully supported for the full length of travel with no overhang, which ensures maximum rigidity and precision. Dual wall construction around the guide-ways prevents coolant leakage, helping to insure easy maintenance and safety.
- Automatic pallet changer and indexing table
- Indexing rotary table with tapped hole in the table (one degree at a time)
- Sub-station with 4 x 90° indexing for simultaneous loading and unloading during machining time
- Forward and reverse rotation of the table by means of hydraulic drives
- The pallet is equipped with an APC palletizing arm, which makes the palletizing process fast, smooth and reliable.
- Positioning device using taper sleeve positioning, locking table
- Exchange time: 12s
- Optional 0.001°x360 table for high precision machining.
- Optional center oiling table for use with hydraulic fixtures.
- Guideways
- Ball screws and axis drives:
- Spindle & headstock
Automatic constant temperature oil coolant system reduce spindle heat temperature distortion. Good rigidity, high turning precision.
- Through spindle air (TSA)
- Spindle chiller
- Automatic tool changer
Our ATC has a 48 hours non-stop trouble free test to guarantee error rate below 0.5%.
One panel recover function for easy trouble shooting of ATC jam problem.
Tool holder type BT40/CAT40 / HSK63
- AUTOMATIC CHIP CONVEYORS
The chip conveyor can be inserted directly from the rear of the machine, which greatly shortens the secondary installation time.
The double screw rows are arranged at an angle and converge into the wide chain rows, which saves the floor space of the water tank.
- Standard accessories
All cables and hoses run inside conduit
The slant way covers discharge chips efficiently.
Oil skimmer prevents decomposition of coolant
Well organized pneumatic system and lubrication system for easy repairing and maintenance.
Automatic oil pump provides lubrication to the guide ways and ball screws which precisely controls the volume of oil to these critical components. A low level alarm reminds operator before machine stop.
Reasonable cable arrangement in cabinet, air conditioner is standard for cabinet cooling.
- Portable manual pulse generator
- Program and data protection key switch
- CF/USB card slot
- Lubrication
HE50DA Twin Pallet Horizontal Machining Center Typical options
Big plus spindle system (optional)
The Big Plus spindle system and tooling surpasses all other spindle concepts due to simultaneous taper and flange contact between the machine spindle and tool holder as well as complete interchangeability with existing machines and tools. Upon mounting the tool holder into the machine spindle, contact occurs prior to clamping. Due to the retention force, the taper of the tool holder expands the machine spindle in its elastic range. The tool is pulled further in until the tool flange touches the spindle face for maximum rigidity.
Facing head
Renishaw work piece measure devices
Renishaw Tool Presetter
Linear scales
40/ 60 /90 tool Magazine
High pressure coolant through spindle (CTS)
Standard Tapped Pallet table
Optional T-Slotted Pallet Table
Spray coolant system
