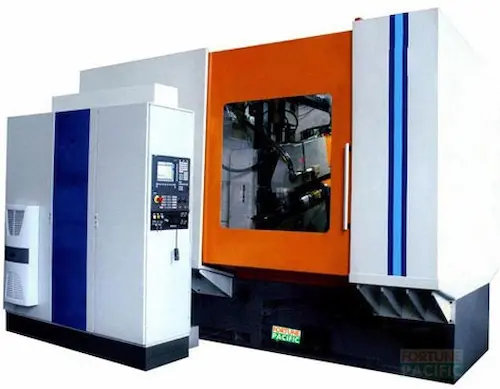

Technical parameters of GH800 CNC6 Large-scale CNC Gear Hobber
Standard accessories
1. Hob arbor assembly: Φ40mm;
2. Hydraulic, lubrication and cooling system;
3. Chip conveyor;
4. Auto hob arbor clamping device;
5. Oil mist collector;
6. Vibration isolating pad;
7. Tools for installation and adjustment;
Optional accessories
1. FANUC 31i CNC system;
2. Hob arbor assembly: Φ32, 50, 60mm;
3. Deburring cutter;
4. Auto loading & unloading system;
5. Hob adjusting device;
6. Workpiece fixture;
Applications
Based on the generating process, with carrying out index and differential compensation motions by electronic gearbox, GH800 CNC6 Large-scale CNC Gear Hobbing Machine is designed to cut cylindrical spur and helical gears, crowning or slightly tapered gears, worm wheels and spline etc. GH800 CNC6 odvalovacie are used in the industries, such as mine machinery, marine, crane, metallurgy, lift, petroleum machinery, electricity generation equipment, engineering machinery etc.
Features
| Model | Unit | GH800 CNC6 |
|---|---|---|
| CNC system | SIEMENS 840D; 6-axis | |
| Max workpiece diameter | mm | Φ800 (32”) |
| Max module | mm | 16 |
| Max axial travel | mm | 600 (24”) |
| No. of teeth | 6-600 | |
| Max hob diameter and length | mm | Φ220x260 (8.7x10”) |
| Spindle taper bore | ISO 50 | |
| Worktable surface diameter | mm | Φ750 (30”) |
| Max hob head swivel angle | degree | ±45 |
| Central distance between hob and worktable | mm | 75-560 (3-22”) |
| Distance between hob axis and worktable surface | mm | 200-800 (7.9-32”) |
| Distance between center end face and worktable surface | mm | 500-1100 (20-43”) |
| Hob tangential travel | mm | 220 (8.7”) |
| Max spindle speed | r/min | 275 |
| Max worktable speed | r/min | 24 |
| Radial / tangential / axial rapid travel | mm/min | 1500 |
| Total power / main motor power | kVA/kW | 67/30 |
| Net weight | kg | 27000 |
Standard accessories
1. Hob arbor assembly: Φ40mm;
2. Hydraulic, lubrication and cooling system;
3. Chip conveyor;
4. Auto hob arbor clamping device;
5. Oil mist collector;
6. Vibration isolating pad;
7. Tools for installation and adjustment;
Optional accessories
1. FANUC 31i CNC system;
2. Hob arbor assembly: Φ32, 50, 60mm;
3. Deburring cutter;
4. Auto loading & unloading system;
5. Hob adjusting device;
6. Workpiece fixture;
Applications
Based on the generating process, with carrying out index and differential compensation motions by electronic gearbox, GH800 CNC6 Large-scale CNC Gear Hobbing Machine is designed to cut cylindrical spur and helical gears, crowning or slightly tapered gears, worm wheels and spline etc. GH800 CNC6 odvalovacie are used in the industries, such as mine machinery, marine, crane, metallurgy, lift, petroleum machinery, electricity generation equipment, engineering machinery etc.
Features
GH800 CNC6 odvalovacie is of 6 CNC axes: A--hob head swivel; B--spindle rotation; C--worktable rotation; X--radial feed motion; Y--tangential feed motion (hob shifting); Z--axial feed motion. Four coordinated control axes: B, C, X and Z (or B, C, Y and Z).
Auto overload monitoring and alarm devices for spindle.
Quick retraction protection: in case of power off or failure occurred, synchronously and quickly retract hob.
Symmetric construction of the machine bed ensures stable thermal balance.
Adopt large power AC spindle motor, power is transferred to cutter spindle by high precision helical gearing. Adopt a one-tooth difference clearance-eliminating mechanism to improve transmission accuracy and rigidity.
Large hydrostatic bearings and super precision double worm gearings system are used for worktable.
Bulky parts are of high rigidity, column is of double-wall, rib-reinforced and symmetric construction,
Guideways for axes X, Y and Z are of ample hardened steel guideway, linear recirculating roller guidance systems are preloaded, ensure the guideways have high rigidity and accuracy.
Applications
Based on the generating process, with carrying out index and differential compensation motions by electronic gearbox, GH800 CNC6 Large-scale CNC Gear Hobbing Machine is designed to cut cylindrical spur and helical gears, crowning or slightly tapered gears, worm wheels and spline etc. GH800 CNC6 odvalovacie are used in the industries, such as mine machinery, marine, crane, metallurgy, lift, petroleum machinery, electricity generation equipment, engineering machinery etc.
Based on the generating process, with carrying out index and differential compensation motions by electronic gearbox, GH800 CNC6 Large-scale CNC Gear Hobbing Machine is designed to cut cylindrical spur and helical gears, crowning or slightly tapered gears, worm wheels and spline etc. GH800 CNC6 odvalovacie are used in the industries, such as mine machinery, marine, crane, metallurgy, lift, petroleum machinery, electricity generation equipment, engineering machinery etc.
Features
GH800 CNC6 odvalovacie is of 6 CNC axes: A--hob head swivel; B--spindle rotation; C--worktable rotation; X--radial feed motion; Y--tangential feed motion (hob shifting); Z--axial feed motion. Four coordinated control axes: B, C, X and Z (or B, C, Y and Z).
Auto overload monitoring and alarm devices for spindle.
Quick retraction protection: in case of power off or failure occurred, synchronously and quickly retract hob.
Symmetric construction of the machine bed ensures stable thermal balance.
Adopt large power AC spindle motor, power is transferred to cutter spindle by high precision helical gearing. Adopt a one-tooth difference clearance-eliminating mechanism to improve transmission accuracy and rigidity.
Large hydrostatic bearings and super precision double worm gearings system are used for worktable.
Bulky parts are of high rigidity, column is of double-wall, rib-reinforced and symmetric construction,
Guideways for axes X, Y and Z are of ample hardened steel guideway, linear recirculating roller guidance systems are preloaded, ensure the guideways have high rigidity and accuracy.
Technical parameters of GH800 CNC6 Large-scale CNC Gear Hobber
| Model | Unit | GH800 CNC6 |
|---|---|---|
| CNC system | SIEMENS 840D; 6-axis | |
| Max workpiece diameter | mm | Φ800 (32”) |
| Max module | mm | 16 |
| Max axial travel | mm | 600 (24”) |
| No. of teeth | 6-600 | |
| Max hob diameter and length | mm | Φ220x260 (8.7x10”) |
| Spindle taper bore | ISO 50 | |
| Worktable surface diameter | mm | Φ750 (30”) |
| Max hob head swivel angle | degree | ±45 |
| Central distance between hob and worktable | mm | 75-560 (3-22”) |
| Distance between hob axis and worktable surface | mm | 200-800 (7.9-32”) |
| Distance between center end face and worktable surface | mm | 500-1100 (20-43”) |
| Hob tangential travel | mm | 220 (8.7”) |
| Max spindle speed | r/min | 275 |
| Max worktable speed | r/min | 24 |
| Radial / tangential / axial rapid travel | mm/min | 1500 |
| Total power / main motor power | kVA/kW | 67/30 |
| Net weight | kg | 27000 |
