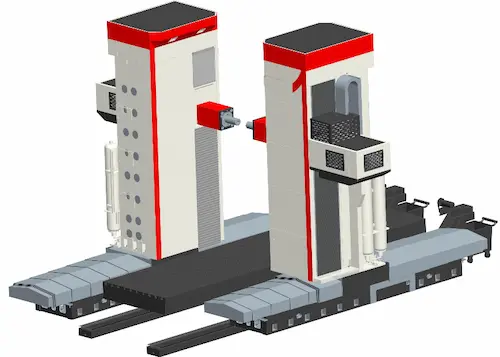

FB160X2 Oppposed CNC Floor-type Boring Machine
X1,X2,Y1,Y2,Z1 and Z2 axes use heavy loading roller type linear guideway（X1X2:3/ Y1Y2:3/ Z1Z2:4）, and FAGOR increment type linear grating scales on closed-loop feedback. W1 and W2 axes use ball type linear guideway, and servo motor inner encoder.
- FB160X2 Oppposed CNC Floor-type Boring and Milling MachineDownload
FB160X2 Oppposed CNC Floor-type Boring and Milling Machine Machine Specifications
Equipments of FB160X2 Oppposed CNC Floor-type Boring and Milling Machine
Optionals of FB160X2 Oppposed CNC Floor-type Boring and Milling Machine

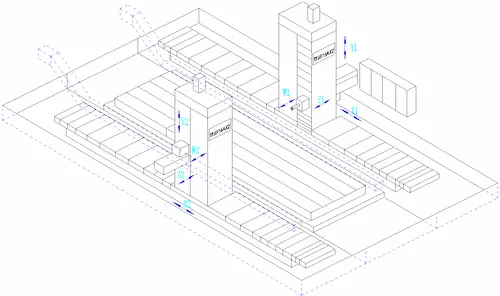

FB160X2 Oppposed CNC Floor-type Boring and Milling Machine Machine Layout
The machine headstock is located on the side of column, main movement are milling spindle carrying the boring spindle rotation.
Each axis movement:
X1 X2 axis—Column cross movement
Y1 Y2 axis——Headstock vertical movement
Z1 Z2 axis——Ram foreword and back movement
W1 W2 axis——Boring spindle movement
The machine main character of FB160X2 Oppposed CNC Floor-type Boring and Milling Machine
1, X1,X2,Y1,Y2,Z1 and Z2 axes use heavy loading roller type linear guideway（X1X2:3/ Y1Y2:3/ Z1Z2:4）, and FAGOR increment type linear grating scales on closed-loop feedback. W1 and W2 axes use ball type linear guideway, and servo motor inner encoder semi closed loop feedback. Spindle use encoder indirect feedback.
2, Tool clamp and release use imported bevel spring clamping and hydraulic releasing.
3, Main speed changing box use high, middle and low 3 shifts speed changing mechanism.
4, Headstock weight balancing system use guiding mechanism hydraulic cylinder plus travelling slide wheels mechanism.
5, Headstock gravity center moving compensation use servo motor, gearbox, ballscrew and steel rope mechanism on front and back pulling for following compensation mechanism.
6, Ram drop compensation use two hydraulic draw bar which is located inside top of ram.
7, X1, X2, Y1, Y2, Z1 and Z2 axes adopt servo motor + high torque low backlash planetary reducer + drive high rigidity double nuts pre-load ball screw auxiliary to realize the machine tool feed movement.
8, W1 and W2 axes are drove by servo motor, synchronous cog belt, high rigidity double nuts pre-load ball screw.
9, Main speed changing box gears, bearings and spindle back bearing is lubricated by circling oil, with large power oil chiller. Spindle front bearing is lubricated by oil air mist. Ball screw support bearings and others use grease.
| Item | FB160x2 | Unit | |||
| Max. Distance between 2 machines spindle end surface | 4600 | mm | |||
| Headstock | Boring Spindle Dia. | 160 | mm | ||
| Milling spindle Dia. | 260 | mm | |||
| Boring Spindle Taper | ISO 50 | -- | |||
| Tool Shank | BT50 | -- | |||
| Pullstud | P50T-Ⅰ | -- | |||
| Spindle speed | 10~2000 | r/min | |||
| Spindle motor | 44 | kW | |||
| Max. spindle torque | 3600 | Nm | |||
| Max. spindle axial resistance | 25000 | N | |||
| Ram size | 460×520 | mm | |||
| Coordinate Travel | Column cross travel (X1 X2) | 6000 | mm | ||
| Headstock vertical travel (Y1 Y2) | 3000 | mm | |||
| Ram travel (Z1 Z2) | 1200 | mm | |||
| Boring spindle travel (W1 W2) | 1000 | mm | |||
| Feedrate | Cutting feedrate | X1 X2 | 1~8000 | mm/min | |
| Y1 Y2 | 1~8000 | mm/min | |||
| Z1 Z2 | 1~8000 | mm/min | |||
| W1 W2 | 1~8000 | mm/min | |||
| Rapid | X1 X2 | 10000 | mm/min | ||
| Y1 Y2 | 10000 | mm/min | |||
| Z1 Z2 | 10000 | mm/min | |||
| W1 W2 | 10000 | mm/min | |||
| Positioning accuracy | X1 X2 Y1 Y2 | 0.012/1000 (Full travel 0.03) | mm | ||
| Z1 Z2 | 0.015 | mm | |||
| W1 W2 | 0.015 | mm | |||
| Repeatability | X1 X2 Y1 Y2 Z1 Z2 | 0.012 | mm | ||
| W1 W2 | 0.012 | mm | |||
| Total power | -- | Approx.250 | kVA | ||
| Dimension | L x W x H | Approx. 12500x16500x7500 | mm | ||
| Weight | -- | 190000 | kg | ||
| Item 01 | Descriptions | |
| 01.01 | Main machinex2 | |
| 01.02 | X1 X2, Y1 Y2, Z1 Z2 axes roller type linear guideway | |
| 01.03 | W1 W2 axes ball type linear guideway | |
| 01.04 | Siemens 840Dsl CNC Controller (12.1″ TFT LCD) Double Channel | |
| 01.05 | Electric Handwheel | |
| 01.06 | X, Y, Z axes FAGOR increment linear grating scale feedback; W axis encoder feedback | |
| 01.07 | Guideway telescopic cover | |
| 01.08 | Spindle system constant temperature oil cooling system | |
| 01.09 | Tool bevel spring clamp and hydraulic release | |
| 01.10 | Outer coolant and Chip Conveyor | |
| 01.11 | Auto-Lubrication System | |
| 01.12 | Hydraulic System | |
| 01.13 | AC and Dust Protection for Electric Cabinet | |
| 01.14 | Tool change switch | |
| 01.15 | Overloading protection | |
| 01.16 | Closed operation cabin moving together with headstock | |
| 01.17 | Working Lamp |
| Item 02 | Descriptions | |
| 02.01 | Floor fixed table: Size: 2000x3500x350mm | |
| 02.02 | Automatic Indexing Universal Milling Headx2 (Taiwan brand) | |
| 02.03 | Automatic Indexing 90°Vertical Milling Headx2 (Taiwan brand) | |
| 02.04 | Facing Head UT-630 x2 | |
| 02.05 | ATC-40 (OKADA) x2 | |
| 02.06 | 3PH Stabilizer |
The machine headstock is located on the side of column, main movement are milling spindle carrying the boring spindle rotation.
Each axis movement:
X1 X2 axis—Column cross movement
Y1 Y2 axis——Headstock vertical movement
Z1 Z2 axis——Ram foreword and back movement
W1 W2 axis——Boring spindle movement
The machine main character of FB160X2 Oppposed CNC Floor-type Boring and Milling Machine
1, X1,X2,Y1,Y2,Z1 and Z2 axes use heavy loading roller type linear guideway（X1X2:3/ Y1Y2:3/ Z1Z2:4）, and FAGOR increment type linear grating scales on closed-loop feedback. W1 and W2 axes use ball type linear guideway, and servo motor inner encoder semi closed loop feedback. Spindle use encoder indirect feedback.
2, Tool clamp and release use imported bevel spring clamping and hydraulic releasing.
3, Main speed changing box use high, middle and low 3 shifts speed changing mechanism.
4, Headstock weight balancing system use guiding mechanism hydraulic cylinder plus travelling slide wheels mechanism.
5, Headstock gravity center moving compensation use servo motor, gearbox, ballscrew and steel rope mechanism on front and back pulling for following compensation mechanism.
6, Ram drop compensation use two hydraulic draw bar which is located inside top of ram.
7, X1, X2, Y1, Y2, Z1 and Z2 axes adopt servo motor + high torque low backlash planetary reducer + drive high rigidity double nuts pre-load ball screw auxiliary to realize the machine tool feed movement.
8, W1 and W2 axes are drove by servo motor, synchronous cog belt, high rigidity double nuts pre-load ball screw.
9, Main speed changing box gears, bearings and spindle back bearing is lubricated by circling oil, with large power oil chiller. Spindle front bearing is lubricated by oil air mist. Ball screw support bearings and others use grease.
FB160X2 Oppposed CNC Floor-type Boring and Milling Machine Machine Specifications
| Item | FB160x2 | Unit | |||
| Max. Distance between 2 machines spindle end surface | 4600 | mm | |||
| Headstock | Boring Spindle Dia. | 160 | mm | ||
| Milling spindle Dia. | 260 | mm | |||
| Boring Spindle Taper | ISO 50 | -- | |||
| Tool Shank | BT50 | -- | |||
| Pullstud | P50T-Ⅰ | -- | |||
| Spindle speed | 10~2000 | r/min | |||
| Spindle motor | 44 | kW | |||
| Max. spindle torque | 3600 | Nm | |||
| Max. spindle axial resistance | 25000 | N | |||
| Ram size | 460×520 | mm | |||
| Coordinate Travel | Column cross travel (X1 X2) | 6000 | mm | ||
| Headstock vertical travel (Y1 Y2) | 3000 | mm | |||
| Ram travel (Z1 Z2) | 1200 | mm | |||
| Boring spindle travel (W1 W2) | 1000 | mm | |||
| Feedrate | Cutting feedrate | X1 X2 | 1~8000 | mm/min | |
| Y1 Y2 | 1~8000 | mm/min | |||
| Z1 Z2 | 1~8000 | mm/min | |||
| W1 W2 | 1~8000 | mm/min | |||
| Rapid | X1 X2 | 10000 | mm/min | ||
| Y1 Y2 | 10000 | mm/min | |||
| Z1 Z2 | 10000 | mm/min | |||
| W1 W2 | 10000 | mm/min | |||
| Positioning accuracy | X1 X2 Y1 Y2 | 0.012/1000 (Full travel 0.03) | mm | ||
| Z1 Z2 | 0.015 | mm | |||
| W1 W2 | 0.015 | mm | |||
| Repeatability | X1 X2 Y1 Y2 Z1 Z2 | 0.012 | mm | ||
| W1 W2 | 0.012 | mm | |||
| Total power | -- | Approx.250 | kVA | ||
| Dimension | L x W x H | Approx. 12500x16500x7500 | mm | ||
| Weight | -- | 190000 | kg | ||
Equipments of FB160X2 Oppposed CNC Floor-type Boring and Milling Machine
| Item 01 | Descriptions | |
| 01.01 | Main machinex2 | |
| 01.02 | X1 X2, Y1 Y2, Z1 Z2 axes roller type linear guideway | |
| 01.03 | W1 W2 axes ball type linear guideway | |
| 01.04 | Siemens 840Dsl CNC Controller (12.1″ TFT LCD) Double Channel | |
| 01.05 | Electric Handwheel | |
| 01.06 | X, Y, Z axes FAGOR increment linear grating scale feedback; W axis encoder feedback | |
| 01.07 | Guideway telescopic cover | |
| 01.08 | Spindle system constant temperature oil cooling system | |
| 01.09 | Tool bevel spring clamp and hydraulic release | |
| 01.10 | Outer coolant and Chip Conveyor | |
| 01.11 | Auto-Lubrication System | |
| 01.12 | Hydraulic System | |
| 01.13 | AC and Dust Protection for Electric Cabinet | |
| 01.14 | Tool change switch | |
| 01.15 | Overloading protection | |
| 01.16 | Closed operation cabin moving together with headstock | |
| 01.17 | Working Lamp |
Optionals of FB160X2 Oppposed CNC Floor-type Boring and Milling Machine
| Item 02 | Descriptions | |
| 02.01 | Floor fixed table: Size: 2000x3500x350mm | |
| 02.02 | Automatic Indexing Universal Milling Headx2 (Taiwan brand) | |
| 02.03 | Automatic Indexing 90°Vertical Milling Headx2 (Taiwan brand) | |
| 02.04 | Facing Head UT-630 x2 | |
| 02.05 | ATC-40 (OKADA) x2 | |
| 02.06 | 3PH Stabilizer |
