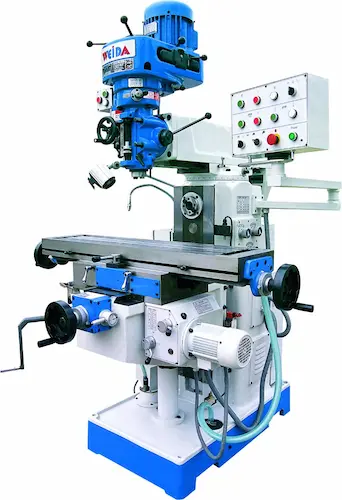

X6328B Universal Radial Milling Machine
- X6328B Universal Radial Milling MachineDownload
| unit | X6328B | |
| TABLE : | ||
| Table size | mm | 1120x260 |
| T slot | no | 3 |
| Size ( Width ) | mm | 14 |
| Centre distance | mm | 63 |
| Max. load of Table | kg | 250 |
| machining range : | ||
| table Longitudinal travel(manual/auto) | mm | 600 |
| table Cross travel (manual/auto) | mm | 260 |
| table Vertical travel(manual/auto) | mm | 300 |
| MAIN SPINDLE : | ||
| Spindle taper | ISO40 | |
| spindle speed /step -- Vertical | rpm | 65-4500 |
| --Horizontal | rpm | 40-1300/12steps |
| Max.drilling dia. | mm | 30 |
| Max.end milling width | mm | 100 |
| Max. vertical milling Dia. | mm | 25 |
| Max.tapping dia. | mm | M16 |
| quill travel | mm | 127 |
| swivel angle of headstock | degree | ±45º |
| vertical spindle axis to column surface | mm | 50-550 |
| vertical spindle nose to table surface | mm | 100-400 |
| horizontal spindle axis to table surface | mm | 0-330 |
| horizontal spindle axis to arm bottom | mm | 175 |
| ram travel | mm | 500 |
| FEEDS : | ||
| Longitudinal/cross feed | mm / min | 24-402/9steps |
| Vertical/step | mm/min | 422/1step |
| Longitudinal/cross rapid speed | mm / min | 402 |
| Rapid Traverse vertical | mm/min | 422 |
| automatic spindle feed | 0.45/0.86/1.25 | |
| POWER : | ||
| main motor | kw | 2.2(V/H) |
| feed motor | kw | 0.37(X/Y),0.75(Z) |
| coolant motor | kw | 0.04 |
| others | ||
| overall dimension | cm | 171X148X210 |
| N/W,G/W | kg | 1350/1500 |
Packing list
| No. | Name | Model | Qty |
| 1 | Machine | 1 | |
| 2 | Drilling chuck | φ16 | 1 |
| 3 | Spindle arbor | ISO40-B18 | 1 |
| 4 | Wedge shifter | 1 | |
| 5 | Reducing sleeve | 1 | |
| 6 | Wrench | S21~24 S16~18 S8~10 |
1 |
| 7 | Inner hexagon spanner | 5, 6 ,8 , 10 | 1 |
| 9 | Milling chuck | ISO40 | 1 set |
| 10 | Milling arbor | 22MM 27MM |
2 sets |
| 11 | Crank handle | 1 | |
| 12 | Drawbar | ISO40-M16 | 1 |
| 13 | Operation manual | 1 | |
| 14 | Accuracy test list | 1 | |
| 15 | Packing list | 1 |
Knee Type Milling Machine: Precision Versatility for Industrial Manufacturing
What is a Knee Type Milling Machine?
A knee type milling machine is a fundamental machine tool distinguished by its vertically adjustable worktable mounted on a "knee" casting. This knee moves precisely up and down a fixed column via a screw mechanism, enabling accurate Z-axis positioning crucial for diverse milling operations.
Working Principle
The core principle involves a rotating milling cutter removing material from a workpiece secured to the table. The adjustable knee mechanism allows controlled vertical movement (Z-axis), while the table provides longitudinal (X-axis) and transverse (Y-axis) travel. This 3-axis control facilitates complex machining of flat, angular, and contoured surfaces.
Key Applications
- Tool & Die Making: Precision molds, jigs, fixtures
- Prototyping: Rapid part development
- Maintenance Shops: Equipment repair & part fabrication
- General Machining: Slotting, drilling, facing, keyway cutting
- Aerospace & Automotive: Component manufacturing
Distinctive Features & Advantages
- Vertical Adjustability: Knee movement enables quick workpiece height changes
- Rigid Construction: Robust cast iron frame ensures stability
- Manual & CNC Options: Traditional control or computer numerical precision
- Turret Design (Common): Swiveling milling head for multi-angle machining
- Wide Workpiece Compatibility: Handles various sizes and shapes
Primary Classifications
- Vertical Knee Mill: Spindle axis perpendicular to table (most common)
- Horizontal Knee Mill: Spindle axis parallel to table (for heavy stock removal)
- Universal Knee Mill: Table swivels for complex angular cuts
- Turret Mill: Head rotates on turret for flexible positioning
Main Components
- Base & Column: Primary support structure
- Knee: Vertically moving saddle supporting the table
- Saddle & Table: Hold and position the workpiece (X/Y axes)
- Milling Head: Houses spindle, motor, and quill (Z-axis)
- Arbor/Spindle: Rotating shaft holding cutting tools
- Controls: Manual handwheels or CNC interface
Evolution & Industry Significance
Since their development in the late 19th century, knee-and-column mills revolutionized machining. The iconic Bridgeport design (1938) popularized the turret style. While CNC machining centers dominate high-volume production, knee mills remain indispensable for flexibility, ease of use, and cost-effectiveness in job shops, schools, and repair facilities worldwide.
Fortune Pacific: Your Knee Mill Solution
At Fortune Pacific, we engineer durable, high-precision knee type milling machines for demanding applications. Explore our range of vertical mills, horizontal mills, and CNC-ready models designed to enhance your workshop's capabilities. Discover the ideal machine for your metalworking, prototyping, or toolmaking needs.
