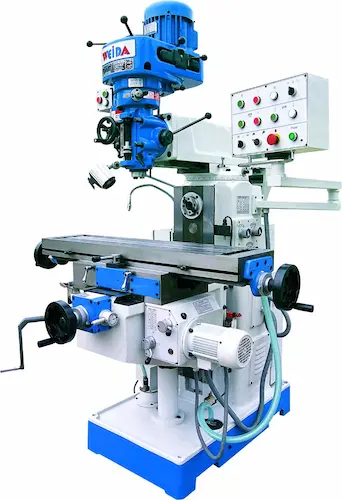

UHM40G Overhanging Arm Horizontal Milling Machine
- UHM40G Universal Overhanging Arm Horizontal Milling MachineDownload
| Items |
UHM40G |
| Working area | |
| Table size | 1700x400mm |
| T-slot (width x No. x pitch) | 18mmx3x90mm |
| Max. load of table | 800kg |
| Max. swivel of table | ±45º |
| Distance from horizontal spindle axis to table surface | 30-410mm |
| Distance from horizontal spindle axis to arm bottom | 190mm |
| Travel | |
| Longitudinal travel of X axis (manual / auto) | 900 / 880mm |
| Cross travel of Y axis (manual / auto) | 315 / 300mm |
| Vertical travel of Z axis (manual / auto) | 380 / 360mm |
| Ram travel | 700mm |
| Spindle | |
| Spindle taper | ISO 50 7:24 |
| Spindle speed | 30-1500rpm |
| Spindle speed step | 18 |
| Main motor power | 11kW |
| Feed | |
| Feed speed range and step of X/Y axis | 23.5-1180mm/min, 18steps |
| Feed speed range and step of Z axis | 8-394mm/min, 18steps |
| Rapid Traverse of X/Y axis | 2300 / 2300mm/min |
| Rapid Traverse of Z axis | 770mm/min |
| Feed motor power | 3kW |
| Others | |
| Coolant motor power | 125W |
| Package dimension | 2400x2200x2250mm |
| Overall dimension | 2556x2159x1800mm |
| Net weight | 3850kg |
| Item 01 | Descriptions | |
| 01.01 | Draw bar | |
| 01.02 | Lifting crank | |
| 01.03 | Horizontal arbor assemblyΦ22,Φ27,Φ32mm; | |
| 01.04 | Working lamp | |
| 01.05 | Coolant system | |
| 01.06 | Milling sleeve | |
| 01.07 | Double-ended wrench | |
| 01.08 | Inner hexagon spanner | |
| 01.09 | Vertical milling head |
Optionals
| Item 02 | Descriptions | |
| 02.01 | 3-aixs Digital Read Out | |
| 02.02 | Vertical milling head | |
| 02.03 | Dividing head | |
| 02.04 | Rotary table | |
| 02.05 | Machine vise | |
| 02.06 | Milling chuck | |
| 02.07 | Clamping kits |
Features
1. UHM40G Heavy-duty Knee-type Milling Machine is high in rigidity and accuracy for heavy and high-speed cutting;
2. UHM40G Vertical knee-type milling machine is manufactured from high quality cast iron;
3. Worktable can swivel ±45° on the horizontal plane;
4. Main transmission and worktable feed adopt gear change mechanism with wide speed range;
5. UHM40G Milling machine adopts integrated automatic lubricating system;
6. Digital readout (DRO) can be offered according to customers’ requirement;
Over Arm / Overhanging Arm of Heavy-duty Horizontal Milling Machine
Over Arm / Overhanging Arm of Heavy-duty Horizontal Milling Machine is a horizontal beam present at the top face of the column. Over Arm / Overhanging Arm of Heavy-duty Horizontal Milling Machine may be a single casting which slides on the dovetail ways present on the top face of the column.
The overarm is used to fastened arbor support. Over Arm / Overhanging Arm of Heavy-duty Horizontal Milling Machine may consist of one or two cylindrical bars which slide through the holes in the column.
1. UHM40G Heavy-duty Knee-type Milling Machine is high in rigidity and accuracy for heavy and high-speed cutting;
2. UHM40G Vertical knee-type milling machine is manufactured from high quality cast iron;
3. Worktable can swivel ±45° on the horizontal plane;
4. Main transmission and worktable feed adopt gear change mechanism with wide speed range;
5. UHM40G Milling machine adopts integrated automatic lubricating system;
6. Digital readout (DRO) can be offered according to customers’ requirement;
Over Arm / Overhanging Arm of Heavy-duty Horizontal Milling Machine
Over Arm / Overhanging Arm of Heavy-duty Horizontal Milling Machine is a horizontal beam present at the top face of the column. Over Arm / Overhanging Arm of Heavy-duty Horizontal Milling Machine may be a single casting which slides on the dovetail ways present on the top face of the column.
The overarm is used to fastened arbor support. Over Arm / Overhanging Arm of Heavy-duty Horizontal Milling Machine may consist of one or two cylindrical bars which slide through the holes in the column.
| Item 01 | Descriptions | |
| 01.01 | Draw bar | |
| 01.02 | Lifting crank | |
| 01.03 | Horizontal arbor assemblyΦ22,Φ27,Φ32mm; | |
| 01.04 | Working lamp | |
| 01.05 | Coolant system | |
| 01.06 | Milling sleeve | |
| 01.07 | Double-ended wrench | |
| 01.08 | Inner hexagon spanner | |
| 01.09 | Vertical milling head |
| Item 02 | Descriptions | |
| 02.01 | 3-aixs Digital Read Out | |
| 02.02 | Vertical milling head | |
| 02.03 | Dividing head | |
| 02.04 | Rotary table | |
| 02.05 | Machine vise | |
| 02.06 | Milling chuck | |
| 02.07 | Clamping kits |
Knee Type Milling Machine: Precision Versatility for Industrial Manufacturing
What is a Knee Type Milling Machine?
A knee type milling machine is a fundamental machine tool distinguished by its vertically adjustable worktable mounted on a "knee" casting. This knee moves precisely up and down a fixed column via a screw mechanism, enabling accurate Z-axis positioning crucial for diverse milling operations.
Working Principle
The core principle involves a rotating milling cutter removing material from a workpiece secured to the table. The adjustable knee mechanism allows controlled vertical movement (Z-axis), while the table provides longitudinal (X-axis) and transverse (Y-axis) travel. This 3-axis control facilitates complex machining of flat, angular, and contoured surfaces.
Key Applications
- Tool & Die Making: Precision molds, jigs, fixtures
- Prototyping: Rapid part development
- Maintenance Shops: Equipment repair & part fabrication
- General Machining: Slotting, drilling, facing, keyway cutting
- Aerospace & Automotive: Component manufacturing
Distinctive Features & Advantages
- Vertical Adjustability: Knee movement enables quick workpiece height changes
- Rigid Construction: Robust cast iron frame ensures stability
- Manual & CNC Options: Traditional control or computer numerical precision
- Turret Design (Common): Swiveling milling head for multi-angle machining
- Wide Workpiece Compatibility: Handles various sizes and shapes
Primary Classifications
- Vertical Knee Mill: Spindle axis perpendicular to table (most common)
- Horizontal Knee Mill: Spindle axis parallel to table (for heavy stock removal)
- Universal Knee Mill: Table swivels for complex angular cuts
- Turret Mill: Head rotates on turret for flexible positioning
Main Components
- Base & Column: Primary support structure
- Knee: Vertically moving saddle supporting the table
- Saddle & Table: Hold and position the workpiece (X/Y axes)
- Milling Head: Houses spindle, motor, and quill (Z-axis)
- Arbor/Spindle: Rotating shaft holding cutting tools
- Controls: Manual handwheels or CNC interface
Evolution & Industry Significance
Since their development in the late 19th century, knee-and-column mills revolutionized machining. The iconic Bridgeport design (1938) popularized the turret style. While CNC machining centers dominate high-volume production, knee mills remain indispensable for flexibility, ease of use, and cost-effectiveness in job shops, schools, and repair facilities worldwide.
Fortune Pacific: Your Knee Mill Solution
At Fortune Pacific, we engineer durable, high-precision knee type milling machines for demanding applications. Explore our range of vertical mills, horizontal mills, and CNC-ready models designed to enhance your workshop's capabilities. Discover the ideal machine for your metalworking, prototyping, or toolmaking needs.
