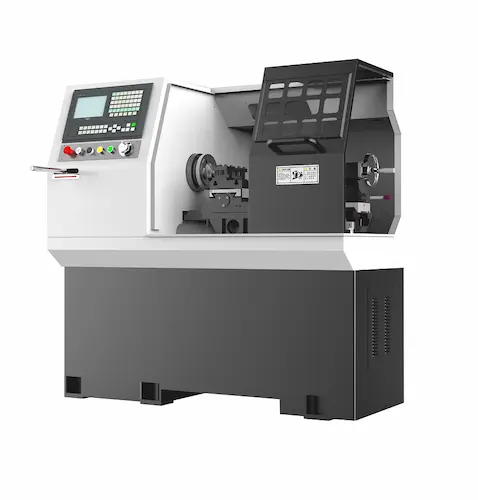

| Items | NCH340F |
| Capacity | |
| Max swing over bed | Ø340mm |
| Max swing over cross slide | Ø140mm |
| Max turning DIA. (for plate) | 165mm |
| Bar capacity through spindle hole | 35mm |
| Spindle | |
| Spindle nose | A2-5 |
| Spindle bore | Φ43mm |
| Max. spindle speed | 3500r/min |
| Spindle motor power | 3kW |
| Chuck size | 5 inch hydraulic hollow chuck |
| Travel and rapid traverse | |
| X axis travel | 200mm |
| Z axis travel | 300mm |
| X axis rapid traverse speed | 8m/min |
| Z axis rapid traverse speed | 10m/min |
| Tool post | |
| Number of tool post | 4 station electrical tool post |
| Tool cross section | 20x20mm |
| Boring tool size | Φ20mm |
| Hydraulic Tailstock | |
| Tailstock sleeve diameter | 90 |
| Tailstock sleeve travel | Φ43 |
| Tailstock sleeve taper (manual) | MT3 |
| Accuracy | |
| Repeatability accuracy | X axis:0.005mm, Z axis:0.006mm |
| Others | |
| Overall dimensions (L×W×H) | 1465X1150X1370mm |
| Net weight | 850kg |
| No. | Item | Model | Note |
| 1 | Controller system | GSK988TA | GSK |
| 2 | AC servo motor | X:4Nm | GSK |
| Z:4Nm | GSK | ||
| 3 | Spindle inverter motor | 3kW | China |
| 4 | Spindle bearings | 7015ACTN1/P5 7013ACTN1/P5 | China |
| 5 | Ball screw | X:Φ2004 | China |
| Z:Φ3206 | |||
| 6 | Ball screw bearings | X: 760204TN1/P5 Z :760204TN1/P5 |
China |
| 7 | Electrical tool post | LDB4-51B | China |
| 8 | Hydraulic hollow chuck | X3-05 | China |
| 9 | Hydraulic hollow cylinder | XH-536 | China |
| 10 | Hydraulic station | 30L | China |
| 11 | Auto lubrication system | RD21/220-1.5 | China |
| 12 | Cooling pump | DB-25A | China |
| 13 | LED light | CLL40S12DBS6HN-2835 | China |
| 14 | Foot pedal | China |
| Items | NCH340F |
| Capacity | |
| Max swing over bed | Ø340mm |
| Max swing over cross slide | Ø140mm |
| Max turning DIA. (for plate) | 165mm |
| Bar capacity through spindle hole | 35mm |
| Spindle | |
| Spindle nose | A2-5 |
| Spindle bore | Φ43mm |
| Max. spindle speed | 3500r/min |
| Spindle motor power | 3kW |
| Chuck size | 5 inch hydraulic hollow chuck |
| Travel and rapid traverse | |
| X axis travel | 200mm |
| Z axis travel | 300mm |
| X axis rapid traverse speed | 8m/min |
| Z axis rapid traverse speed | 10m/min |
| Tool post | |
| Number of tool post | 4 station electrical tool post |
| Tool cross section | 20x20mm |
| Boring tool size | Φ20mm |
| Hydraulic Tailstock | |
| Tailstock sleeve diameter | 90 |
| Tailstock sleeve travel | Φ43 |
| Tailstock sleeve taper (manual) | MT3 |
| Accuracy | |
| Repeatability accuracy | X axis:0.005mm, Z axis:0.006mm |
| Others | |
| Overall dimensions (L×W×H) | 1465X1150X1370mm |
| Net weight | 850kg |
| No. | Item | Model | Note |
| 1 | Controller system | GSK988TA | GSK |
| 2 | AC servo motor | X:4Nm | GSK |
| Z:4Nm | GSK | ||
| 3 | Spindle inverter motor | 3kW | China |
| 4 | Spindle bearings | 7015ACTN1/P5 7013ACTN1/P5 | China |
| 5 | Ball screw | X:Φ2004 | China |
| Z:Φ3206 | |||
| 6 | Ball screw bearings | X: 760204TN1/P5 Z :760204TN1/P5 |
China |
| 7 | Electrical tool post | LDB4-51B | China |
| 8 | Hydraulic hollow chuck | X3-05 | China |
| 9 | Hydraulic hollow cylinder | XH-536 | China |
| 10 | Hydraulic station | 30L | China |
| 11 | Auto lubrication system | RD21/220-1.5 | China |
| 12 | Cooling pump | DB-25A | China |
| 13 | LED light | CLL40S12DBS6HN-2835 | China |
| 14 | Foot pedal | China |
Knee Type Milling Machine: Precision Versatility for Industrial Manufacturing
What is a Knee Type Milling Machine?
A knee type milling machine is a fundamental machine tool distinguished by its vertically adjustable worktable mounted on a "knee" casting. This knee moves precisely up and down a fixed column via a screw mechanism, enabling accurate Z-axis positioning crucial for diverse milling operations.
Working Principle
The core principle involves a rotating milling cutter removing material from a workpiece secured to the table. The adjustable knee mechanism allows controlled vertical movement (Z-axis), while the table provides longitudinal (X-axis) and transverse (Y-axis) travel. This 3-axis control facilitates complex machining of flat, angular, and contoured surfaces.
Key Applications
- Tool & Die Making: Precision molds, jigs, fixtures
- Prototyping: Rapid part development
- Maintenance Shops: Equipment repair & part fabrication
- General Machining: Slotting, drilling, facing, keyway cutting
- Aerospace & Automotive: Component manufacturing
Distinctive Features & Advantages
- Vertical Adjustability: Knee movement enables quick workpiece height changes
- Rigid Construction: Robust cast iron frame ensures stability
- Manual & CNC Options: Traditional control or computer numerical precision
- Turret Design (Common): Swiveling milling head for multi-angle machining
- Wide Workpiece Compatibility: Handles various sizes and shapes
Primary Classifications
- Vertical Knee Mill: Spindle axis perpendicular to table (most common)
- Horizontal Knee Mill: Spindle axis parallel to table (for heavy stock removal)
- Universal Knee Mill: Table swivels for complex angular cuts
- Turret Mill: Head rotates on turret for flexible positioning
Main Components
- Base & Column: Primary support structure
- Knee: Vertically moving saddle supporting the table
- Saddle & Table: Hold and position the workpiece (X/Y axes)
- Milling Head: Houses spindle, motor, and quill (Z-axis)
- Arbor/Spindle: Rotating shaft holding cutting tools
- Controls: Manual handwheels or CNC interface
Evolution & Industry Significance
Since their development in the late 19th century, knee-and-column mills revolutionized machining. The iconic Bridgeport design (1938) popularized the turret style. While CNC machining centers dominate high-volume production, knee mills remain indispensable for flexibility, ease of use, and cost-effectiveness in job shops, schools, and repair facilities worldwide.
Fortune Pacific: Your Knee Mill Solution
At Fortune Pacific, we engineer durable, high-precision knee type milling machines for demanding applications. Explore our range of vertical mills, horizontal mills, and CNC-ready models designed to enhance your workshop's capabilities. Discover the ideal machine for your metalworking, prototyping, or toolmaking needs.
