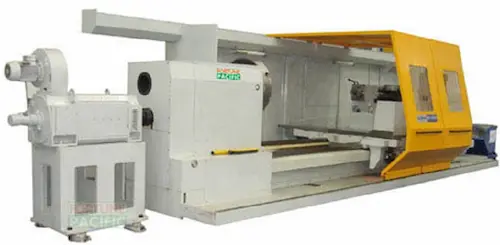

NC1400 B970 6tons 8tons 10tons 18tons CNC Lathe
One-piece Metal Turning Tokarka CNC Lathe bed is designed for high stiffness. NC1400 B970 Tokarka CNC Lathe guideways are induction heat treated and precisely ground for wear-resistance;
- NC1400 B970 6tons 8tons 10tons 18tons Turning CNC LatheDownload
Technical parameters of NC1400 B970 6tons 8tons 10tons 18tons Turning CNC Lathe Machine
Features
1. One-piece Metal Turning Tokarka CNC Lathe bed is designed for high stiffness. NC1400 B970 Tokarka CNC Lathe guideways are induction heat treated and precisely ground for wear-resistance;
2. Main spindle is supported by three points with imported high precision bearings to get high accuracy and high stiffness. NC1400 B970 Tokarka CNC Metal Turning Lathe is easy to operate and reliable;
3. Imported high precision ball screws of Tokarka CNC are adopted to guarantee the high positioning accuracy of each axis;
4. Reliable CNC system and imported German or Italian tool post is installed to avoid unnecessary trouble;
5. Operation panel equips hand wheel (MPG, manual pulse generator) for easy operation;
6. Forced lubrication system is equipped for NC1400 B970 Metal Turning Tokarka CNC Lathe guideway.
Standard accessories
1. 4-jaw chuck;
2. Dead center;
3. 4 Stations tool post;
4. Work light;
5. Coolant system;
6. Foundation blocks and anchor bolts;
Optional accessories
1. SIEMENS; GSK 980TD; FAGOR;
2. 8 or 12 Stations electric tool post;
3. Steady rest;
4. Follow rest;
5. Carrier Roller;
6. Motorized tailstock;
Use
NC1400 B970 6tons 8tons 10tons 18tons CNC Metal Lathe is suitable to process all kinds of small and
middle-sized shaft and plate work piece, and could also turn various threads, circle arc, circular cone,
inside and outside surface of revolved body. NC1400 B970 6tons 8tons 10tons 18tons CNC Metal
Lathe is widely used in sanitary, valve, electrical appliance, instrument, automobile, motorcycle,
bearings and so on.
| Model | Unit | NC1400 | |
|---|---|---|---|
| Type | B970 | ||
| CNC system | FANUC 0i TF | ||
| Max. swing over bed | mm (in) | Φ1400 (56’’) | |
| Max. swing over carriage | mm (in) | 1050 (42’’) | |
| Max. turning length | mm (in) | 1500~12000 (60’’~472’’) | 5000~12000 (197’’~472’’) |
| Max. weight between centers | kg | 6000; 8000; 10000 | 18000 |
| Width of bed | mm (in) | 970 (39’’) | 970 (39’’) |
| Spindle nose | ISO | A2-15 | A2-15 |
| Diameter of spindle in front bearing | mm (in) | 200(8’’); 220(8.8’’) | 240(9.6’’); 280(11.2’’) |
| Spindle bore diameter | mm (in) | Φ130 (5.2’’); Φ100 (4’’) | Φ100 (4’’) |
| Taper of spindle bore | Metric 140 | Metric 140 | |
| Spindle speed range | r/min | 4 steps; 4~630 | 4 steps; 2~200 |
| Longitudinal servo motor torque | Nm | 38/41 | |
| Cross servo motor torque | Nm | 38/41 | |
| Section dimension of tool shank | mm (in) | 45x45 (1.8’’x1.8’’); 32x32 (1.3’’x1.3’’) | |
| No of tool post | Vertical: 4; Horizontal: 8/12 | ||
| Travel of cross slide | mm | 740; 850; 950 | |
| Longitudinal feed speed | mm/min | 1~2000 | |
| Cross feed speed | mm/min | 1~2000 | |
| Longitudinal rapid travel speed | mm/min | 6000 | |
| Cross rapid travel speed | mm/min | 4000 | |
| Diameter of tailstock sleeve | mm (in) | 200 (8’’) | 240(9.6’’); 280(11’’) |
| Travel of tailstock sleeve | mm (in) | 300 (12’’) | 300 (12’’) |
| Taper of tailstock sleeve | MT-6 | Metric 80 | |
| Main motor power | kW | AC22/30~40 (servo) | AC49/55 |
| Weight of the lathe with 3m | kg | 15400 | 23200 |
| Additional weight per 1m | kg | 1200 | 1300 |
| Overall dimension (L x W x H) (3m) | mm | 6360x1960x2400 | 7040x2000x2130 |
Features
1. One-piece Metal Turning Tokarka CNC Lathe bed is designed for high stiffness. NC1400 B970 Tokarka CNC Lathe guideways are induction heat treated and precisely ground for wear-resistance;
2. Main spindle is supported by three points with imported high precision bearings to get high accuracy and high stiffness. NC1400 B970 Tokarka CNC Metal Turning Lathe is easy to operate and reliable;
3. Imported high precision ball screws of Tokarka CNC are adopted to guarantee the high positioning accuracy of each axis;
4. Reliable CNC system and imported German or Italian tool post is installed to avoid unnecessary trouble;
5. Operation panel equips hand wheel (MPG, manual pulse generator) for easy operation;
6. Forced lubrication system is equipped for NC1400 B970 Metal Turning Tokarka CNC Lathe guideway.
Standard accessories
1. 4-jaw chuck;
2. Dead center;
3. 4 Stations tool post;
4. Work light;
5. Coolant system;
6. Foundation blocks and anchor bolts;
Optional accessories
1. SIEMENS; GSK 980TD; FAGOR;
2. 8 or 12 Stations electric tool post;
3. Steady rest;
4. Follow rest;
5. Carrier Roller;
6. Motorized tailstock;
Use
NC1400 B970 6tons 8tons 10tons 18tons CNC Metal Lathe is suitable to process all kinds of small and
middle-sized shaft and plate work piece, and could also turn various threads, circle arc, circular cone,
inside and outside surface of revolved body. NC1400 B970 6tons 8tons 10tons 18tons CNC Metal
Lathe is widely used in sanitary, valve, electrical appliance, instrument, automobile, motorcycle,
bearings and so on.
Features
1. One-piece Metal Turning Tokarka CNC Lathe bed is designed for high stiffness. NC1400 B970 Tokarka CNC Lathe guideways are induction heat treated and precisely ground for wear-resistance;
2. Main spindle is supported by three points with imported high precision bearings to get high accuracy and high stiffness. NC1400 B970 Tokarka CNC Metal Turning Lathe is easy to operate and reliable;
3. Imported high precision ball screws of Tokarka CNC are adopted to guarantee the high positioning accuracy of each axis;
4. Reliable CNC system and imported German or Italian tool post is installed to avoid unnecessary trouble;
5. Operation panel equips hand wheel (MPG, manual pulse generator) for easy operation;
6. Forced lubrication system is equipped for NC1400 B970 Metal Turning Tokarka CNC Lathe guideway.
1. One-piece Metal Turning Tokarka CNC Lathe bed is designed for high stiffness. NC1400 B970 Tokarka CNC Lathe guideways are induction heat treated and precisely ground for wear-resistance;
2. Main spindle is supported by three points with imported high precision bearings to get high accuracy and high stiffness. NC1400 B970 Tokarka CNC Metal Turning Lathe is easy to operate and reliable;
3. Imported high precision ball screws of Tokarka CNC are adopted to guarantee the high positioning accuracy of each axis;
4. Reliable CNC system and imported German or Italian tool post is installed to avoid unnecessary trouble;
5. Operation panel equips hand wheel (MPG, manual pulse generator) for easy operation;
6. Forced lubrication system is equipped for NC1400 B970 Metal Turning Tokarka CNC Lathe guideway.
Technical parameters of NC1400 B970 6tons 8tons 10tons 18tons Turning CNC Lathe Machine
| Model | Unit | NC1400 | |
|---|---|---|---|
| Type | B970 | ||
| CNC system | FANUC 0i TF | ||
| Max. swing over bed | mm (in) | Φ1400 (56’’) | |
| Max. swing over carriage | mm (in) | 1050 (42’’) | |
| Max. turning length | mm (in) | 1500~12000 (60’’~472’’) | 5000~12000 (197’’~472’’) |
| Max. weight between centers | kg | 6000; 8000; 10000 | 18000 |
| Width of bed | mm (in) | 970 (39’’) | 970 (39’’) |
| Spindle nose | ISO | A2-15 | A2-15 |
| Diameter of spindle in front bearing | mm (in) | 200(8’’); 220(8.8’’) | 240(9.6’’); 280(11.2’’) |
| Spindle bore diameter | mm (in) | Φ130 (5.2’’); Φ100 (4’’) | Φ100 (4’’) |
| Taper of spindle bore | Metric 140 | Metric 140 | |
| Spindle speed range | r/min | 4 steps; 4~630 | 4 steps; 2~200 |
| Longitudinal servo motor torque | Nm | 38/41 | |
| Cross servo motor torque | Nm | 38/41 | |
| Section dimension of tool shank | mm (in) | 45x45 (1.8’’x1.8’’); 32x32 (1.3’’x1.3’’) | |
| No of tool post | Vertical: 4; Horizontal: 8/12 | ||
| Travel of cross slide | mm | 740; 850; 950 | |
| Longitudinal feed speed | mm/min | 1~2000 | |
| Cross feed speed | mm/min | 1~2000 | |
| Longitudinal rapid travel speed | mm/min | 6000 | |
| Cross rapid travel speed | mm/min | 4000 | |
| Diameter of tailstock sleeve | mm (in) | 200 (8’’) | 240(9.6’’); 280(11’’) |
| Travel of tailstock sleeve | mm (in) | 300 (12’’) | 300 (12’’) |
| Taper of tailstock sleeve | MT-6 | Metric 80 | |
| Main motor power | kW | AC22/30~40 (servo) | AC49/55 |
| Weight of the lathe with 3m | kg | 15400 | 23200 |
| Additional weight per 1m | kg | 1200 | 1300 |
| Overall dimension (L x W x H) (3m) | mm | 6360x1960x2400 | 7040x2000x2130 |
Standard accessories
1. 4-jaw chuck;
2. Dead center;
3. 4 Stations tool post;
4. Work light;
5. Coolant system;
6. Foundation blocks and anchor bolts;
1. 4-jaw chuck;
2. Dead center;
3. 4 Stations tool post;
4. Work light;
5. Coolant system;
6. Foundation blocks and anchor bolts;
