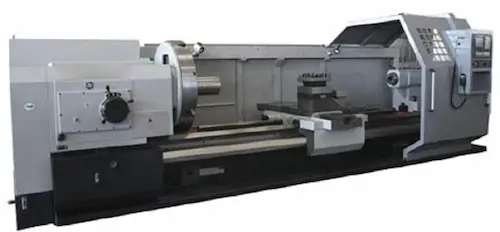

NC1250J B755 CNC Horizontal Turning Lathe
- NC1250J B755 CNC Horizontal Turning LatheDownload
| Model | NC1250J B755 |
| CNC system | Fanuc 0i TF |
| Capacity | |
| Max. swing over bed | Φ1250mm |
| Max. swing over cross slide | Φ880mm |
| Max. machining length | 1300/2800mm |
| Distance between centers | 1500/3000mm |
| Guideway width | 755mm |
| Max. load capacity | 6000kg |
| Spindle | |
| Spindle bore | Φ130mm |
| Spindle nose | A2-15 |
| Spindle taper hole | 1:120 |
| Spindle speed | 3.15-315r/min |
| Carriage and drive | |
| Torque of motor X axis | 20Nm |
| Rapid traverse X axis | 3m/min |
| Dia. & pitch of screw X axis | Φ40X6mm |
| Torque of motor Z axis | 27kW |
| Rapid traverse Z axis | 6m/min |
| Dia. & pitch of screw Z axis | Φ63X10mm |
| Turret | |
| Turret type | 4 position |
| Tool shank size | 40x40mm |
| Crosswise travel of turret | 630mm |
| Tailstock | |
| Tailstock quill diameter | Φ160mm |
| Tailstock quill taper | MT6 |
| Tailstock quill travel | 300mm |
| Others | |
| Power source | 35kVA |
| Coolant pump | AYB-25 (120W) |
| Dimension | 4650/6150x2330x2160 |
1. Fanuc 0i TF;
2. 4-station electric tool post;
3. Φ1000mm Manual 4-jaw chuck;
4. Lubrication system;
5. Coolant system,
6. Manual steady rest: 135-470mm;
Use of NC1250J B755 CNC Horizontal Turning Lathe
NC1250J B755 CNC Horizontal Turning Lathe is suitable to process all kinds of small and middle-sized shaft and plate work piece, and could also turn various threads, circle arc, circular cone, inside and outside surface of revolved body. NC1250J B755 CNC Horizontal Turning Lathe is widely used in sanitary, valve, electrical appliance, instrument, automobile, motorcycle, bearings and so on.
Introduction of NC1250J B755 CNC Horizontal Turning Lathe
This lathe is a kind of easy-operated CNC lathes designed and manufactured for cutting disk type, ring type and shaft type work pieces and other precision complex shapes. It is capable of ID/OD turning, shoulder face turning, taper turning, spherical surface turning and threading. NC1250J B755 CNC Horizontal Turning Lathe is suitable for turning, boring, drilling and tapping non-ferrous metals, stainless steels, alloy steels and ferrous metals. It is a high efficiency and accuracy facility for producing multi-work and multi-specifications.
This lathe is a kind of easy-operated CNC lathes designed and manufactured for cutting disk type, ring type and shaft type work pieces and other precision complex shapes. It is capable of ID/OD turning, shoulder face turning, taper turning, spherical surface turning and threading. NC1250J B755 CNC Horizontal Turning Lathe is suitable for turning, boring, drilling and tapping non-ferrous metals, stainless steels, alloy steels and ferrous metals. It is a high efficiency and accuracy facility for producing multi-work and multi-specifications.
| Model | NC1250J B755 |
| CNC system | Fanuc 0i TF |
| Capacity | |
| Max. swing over bed | Φ1250mm |
| Max. swing over cross slide | Φ880mm |
| Max. machining length | 1300/2800mm |
| Distance between centers | 1500/3000mm |
| Guideway width | 755mm |
| Max. load capacity | 6000kg |
| Spindle | |
| Spindle bore | Φ130mm |
| Spindle nose | A2-15 |
| Spindle taper hole | 1:120 |
| Spindle speed | 3.15-315r/min |
| Carriage and drive | |
| Torque of motor X axis | 20Nm |
| Rapid traverse X axis | 3m/min |
| Dia. & pitch of screw X axis | Φ40X6mm |
| Torque of motor Z axis | 27kW |
| Rapid traverse Z axis | 6m/min |
| Dia. & pitch of screw Z axis | Φ63X10mm |
| Turret | |
| Turret type | 4 position |
| Tool shank size | 40x40mm |
| Crosswise travel of turret | 630mm |
| Tailstock | |
| Tailstock quill diameter | Φ160mm |
| Tailstock quill taper | MT6 |
| Tailstock quill travel | 300mm |
| Others | |
| Power source | 35kVA |
| Coolant pump | AYB-25 (120W) |
| Dimension | 4650/6150x2330x2160 |
1. Fanuc 0i TF;
2. 4-station electric tool post;
3. Φ1000mm Manual 4-jaw chuck;
4. Lubrication system;
5. Coolant system,
6. Manual steady rest: 135-470mm;
