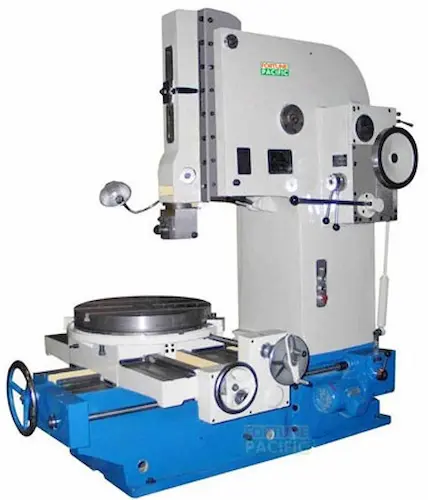

Technical Specifications of MVS320E Mechanical Slotting Machine
Working Accuracy of MVS320 E Mechanical Slotting Machine
Features
The start and stop of MVS320 E Mechanical Slotting Machine is carried out by a multiple-disk clutch and the reciprocation of the ram is achieved by a crank connecting link. An automatic mechanism for vertical, horizontal and rotary feeding together with its safety device is provided on the table. There is also a rapid motion device for vertical, horizontal and rotary motion of the table which is equipped with an indexing gear for rotary motion.
Standard accessories
1. Cutter arbor;
2. Leveling bolts;
3. Foundation bolt;
4. Tool box;
5. Manual book;
Optional accessories
1. Ø250mm 3-Jaw Chuck;
2. Chuck spanner;
3. Level iron;
4. Holding-down plate;
5. Holding-down bolt;
| Model | Unit | MVS320 |
|---|---|---|
| Type | E | |
| Max. slotting length | mm | 320 (13”) |
| Number of round trips of RAM in one minute | times/min | 20; 32; 50; 80 |
| Inclination of RAM | (°) | 0-8 |
| Diameter of worktable | mm | Ø630 (25”) |
| Distance of vertical adjust of ram | mm | 370 (15”) |
| Distance from tool holding surface to column front | mm | 600 (24”) |
| Distance from worktable surface to underside of slide rack | mm | 470 (19”) |
| Max. longitudinal travel of worktable | mm | 560 (22”) |
| Max. transverse travel of worktable | mm | 540 (21”) |
| Max. swivel angle of worktable | (°) | 360 |
| Range of vertical & horizontal feed of worktable | mm | 0.054-1.24 |
| Range of rotary feed of worktable | (°) | 0.035-0.805 |
| Max size of slotting tool (Length × Height) | mm | 25×40 (0.98x1.6”) |
| Max. cutting force | kN | 8 |
| Max. loading weight on worktable | kg | 500 |
| T-slot width in the center of worktable | mm | 18 H8 |
| Power of main motor | kW | 3 |
| Rotating speed of main motor | r/min | 960 |
| Power of motor for rapid move of table | kW | 0.75 |
| Rotating speed of motor for rapid move of table | r/min | 1390 |
| Net weight (approx.) | kg | 2500 |
| Gross weight | kg | 2700 |
| Dimension of machine tool (L×W×H) | mm | 1930×1365×2270 |
| Packing size | mm | 2080x1400x2080 |
| Flatness of machined surface on tested workpiece | mm | 0.015 |
|---|---|---|
| Verticality of machined surface on tested workpiece | mm | 0.025 |
| Surface roughness on tested workpiece | 6.3 | |
| Verticality of machined side tested workpiece against base | mm | 0.02 |
Features
The start and stop of MVS320 E Mechanical Slotting Machine is carried out by a multiple-disk clutch and the reciprocation of the ram is achieved by a crank connecting link. An automatic mechanism for vertical, horizontal and rotary feeding together with its safety device is provided on the table. There is also a rapid motion device for vertical, horizontal and rotary motion of the table which is equipped with an indexing gear for rotary motion.
Standard accessories
1. Cutter arbor;
2. Leveling bolts;
3. Foundation bolt;
4. Tool box;
5. Manual book;
Optional accessories
1. Ø250mm 3-Jaw Chuck;
2. Chuck spanner;
3. Level iron;
4. Holding-down plate;
5. Holding-down bolt;
Standard accessories
1. Cutter arbor;
2. Leveling bolts;
3. Foundation bolt;
4. Tool box;
5. Manual book;
1. Cutter arbor;
2. Leveling bolts;
3. Foundation bolt;
4. Tool box;
5. Manual book;
Technical Specifications of MVS320E Mechanical Slotting Machine
| Model | Unit | MVS320 |
|---|---|---|
| Type | E | |
| Max. slotting length | mm | 320 (13”) |
| Number of round trips of RAM in one minute | times/min | 20; 32; 50; 80 |
| Inclination of RAM | (°) | 0-8 |
| Diameter of worktable | mm | Ø630 (25”) |
| Distance of vertical adjust of ram | mm | 370 (15”) |
| Distance from tool holding surface to column front | mm | 600 (24”) |
| Distance from worktable surface to underside of slide rack | mm | 470 (19”) |
| Max. longitudinal travel of worktable | mm | 560 (22”) |
| Max. transverse travel of worktable | mm | 540 (21”) |
| Max. swivel angle of worktable | (°) | 360 |
| Range of vertical & horizontal feed of worktable | mm | 0.054-1.24 |
| Range of rotary feed of worktable | (°) | 0.035-0.805 |
| Max size of slotting tool (Length × Height) | mm | 25×40 (0.98x1.6”) |
| Max. cutting force | kN | 8 |
| Max. loading weight on worktable | kg | 500 |
| T-slot width in the center of worktable | mm | 18 H8 |
| Power of main motor | kW | 3 |
| Rotating speed of main motor | r/min | 960 |
| Power of motor for rapid move of table | kW | 0.75 |
| Rotating speed of motor for rapid move of table | r/min | 1390 |
| Net weight (approx.) | kg | 2500 |
| Gross weight | kg | 2700 |
| Dimension of machine tool (L×W×H) | mm | 1930×1365×2270 |
| Packing size | mm | 2080x1400x2080 |
Optional accessories
1. Ø250mm 3-Jaw Chuck;
2. Chuck spanner;
3. Level iron;
4. Holding-down plate;
5. Holding-down bolt;
1. Ø250mm 3-Jaw Chuck;
2. Chuck spanner;
3. Level iron;
4. Holding-down plate;
5. Holding-down bolt;
