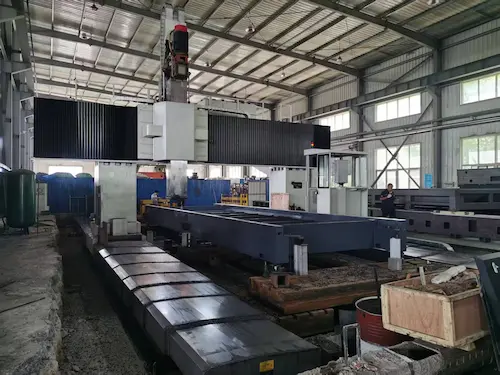

GBM30160 Gantry-Type Boring & Milling Machine specifications
GBM30160 Gantry-Type Boring & Milling Machine Equipments
GBM30160 Gantry-Type Boring & Milling Machine Optional
| Item | GBM30160 |
| Table parameter | |
| Table size (WxL) | 3000x16000mm |
| Table loading | 20000kg |
| Column span（Max. width of workpiece） | 4200mm |
| Spindle nose to table surface（Min.－Max.） | 900-2400mm |
| T-slot | 28mm |
| Spindle | |
| Spindle rpm | 20-3000r/min |
| Main motor | 31kW |
| Max. torque | 1920Nm |
| Spindle axial resistance | 10000N |
| Spindle taper | ISO 50 |
| Shank | BT50 |
| Pull stud | P50T-I |
| RAM section size | 450x450mm |
| Travels | |
| Table Max. travel (X) | 16500mm+(head change travel 500mm) |
| RAM carriage travel (Y) | 4500mm |
| RAM travel (Z) | 1500mm |
| Feed rate range | |
| Cutting feed speed X, Y, Z | 1-5000mm/min |
| Rapid X, Y | 10000mm/min |
| Rapid Z | 8000mm/min |
| Accuracy | |
| Positioning accuracy X, Y, Z | 0.020mm/1000 |
| Repeatability accuracy X, Y, Z | 0.015mm |
| Others | |
| Machine total power | Approx. 140kVA |
| Machine gross weight | Approx. 112000kg |
| Machine size (LxWxH) | Approx.23000x9350x8100mm |
GBM30160 Gantry-Type Boring & Milling Machine Equipments
| Item 01 | Descriptions | |
| 01.01 | Siemens one | |
| 01.02 | Spindle bearing NSK | |
| 01.03 | X racks from TAIWAN | |
| 01.04 | Y/Z ball screw from THK | |
| 01.05 | Oil cooler | |
| 01.06 | Chip conveyor and coolant tank | |
| 01.07 | External coolant | |
| 01.08 | Auto head clamp | |
| 01.09 | Heidenhain grating scales | |
| 01.10 | Reducer from TAIWAN | |
| 01.11 | X cover-steel | |
| 01.12 | Y cover-accordion style | |
| 01.13 | Pneumatic system SMC | |
| 01.14 | Centralized lubrication station |
GBM30160 Gantry-Type Boring & Milling Machine Optional
| Item 02 | Descriptions | Note |
| 02.01 | 40 tools ATC | |
| 02.02 | Coolant through spindle | 20bar |
| 02.03 | Auto universal milling head | CX50C-1 |
| 02.04 | Renishaw RMP 60 | |
| 02.05 | Renishaw NC4S |
