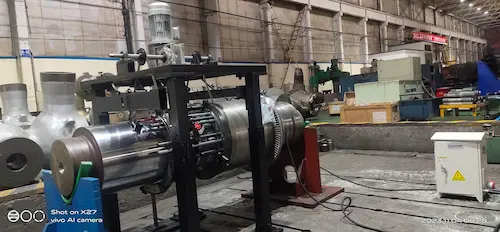

The FJL500 Journal Lathe is mainly used for machining non-detachable or restricted shaft diameters. This instruction is applicable to FJL type journal lathes.
The equipment adopts the support friction method for concentric installation. It is suitable for machining various large crankshafts, intermediate restricted shaft diameters, bearing shafts, etc. During operation, it can perform continuous cutting and polishing, with high production efficiency and high machining accuracy. The machine body is made of high-quality chrome steel, which has the advantages of high strength, strong stability, convenient disassembly and transportation, etc. Its machining accuracy is generally IT 8 ~ IT 9, the machining surface roughness is Ra=12.5 ~ 1.6μm, and the polishing surface roughness is Ra=1.6 ~ 0.4μm (Ra0.8-0.4 surface roughness requires polishing with abrasive paste).
FJL500 Journal Lathe Machine specifications
| Item | FJL500 |
| Driving mode | Electric |
| Processing diameter | Ø370~Ø520mm |
| Axial stroke | Max 550mm |
| Tool post stroke | Max 40mm |
| Polishing stroke | Max 70mm |
| Sprocket motor power | 380V~3000W |
| Polishing motor power | 48V~250W |
| Turning axial feeding speed | Stepless 0~0.25mm / lever type 0.125mm, 0.25mm |
| Polishing axial feeding speed | Stepless 0~4mm / lever type 2mm, 4mm |
| Sprocket rotation speed | 1st gear 2~18rpm, 2nd gear 5~35rpm |
| Polishing rotation speed | No-load Max 7000rpm, rated Max 4600rpm |
| Turning radial depth of cut | 0-0.3mm |
| Turning radial feeding screw | 0.15mm/grid |
| Polishing radial feeding screw | 0.01mm/grid |
| Equipment weight | 160kg |
| 1 | Shaft to be processed | 9 | 48V lithium battery assembly |
| 2 | Right half sprocket assembly | 10 | Auxiliary support frame |
| 3 | Left half sprocket assembly | 11 | Sprocket stabilizing assembly |
| 4 | Turning tool post assembly | 12 | Feeding lever, rail expansion plate |
| 5 | Turning stepless feeding transmission assembly | 13 | Transmission chain tensioning assembly |
| 6 | Polishing assembly | 14 | Reducer |
| 7 | Polishing control panel | 15 | Three-phase asynchronous motor |
| 8 | Polishing feeding transmission assembly | 16 | Transmission chain |
FJL500 Journal Lathe Equipment Component Function Introduction
1. Left and Right Sprocket Assemblies
The FJL journal lathe is of two-half type, and is installed (or disassembled) with left and right half sprocket assemblies. Note that lifting rings should be installed during installation or disassembly; the axial width of the journal lathe assembly can be adjusted according to the required reference circle. For the processing adjustment range dimensions, please refer to "Equipment Overall Dimensions" at the end.
| No. | Description |
| 1 | Lifting ring (lifting rings need to be installed during installation or disassembly, and removed before processing after the equipment is installed) |
| 2 | Right half sprocket assembly (the guide column ⑩ of the tool post has been adjusted and tested before leaving the factory; it is forbidden to disassemble the guide column when adjusting the axial width) |
| 3 | Left half sprocket assembly (the polishing guide column ⑩ has been adjusted and tested before leaving the factory; it is forbidden to disassemble the guide column when adjusting the axial width) |
| 4 | Connecting block (connecting plates are used for positioning and locking when the left and right half assemblies are joined) |
| 5 | Positioning pin screws (the left and right assemblies are positioned and locked with connecting blocks and positioning pin screws) |
| 6 | Hexagon socket screws (after the left and right assemblies are positioned and joined, use hexagon socket screws to tighten and reinforce) |
| 7 | Hexagon socket screws (need to be tightened or loosened when adjusting the support during installation or disassembly) |
| 8 | Support screw (use a 9mm open-end wrench to turn the screw to move it inward or outward when adjusting the support leg) |
| 9 | Support leg (when adjusting and calibrating the equipment, adjust the support screw so that the support leg contacts and supports the reference outer circle of the shaft to be processed) |
| 10 | Precision feeding guide column (guides the tool post and polishing feeding; it is forbidden to disassemble during normal use) |
| 11 | Support column (adjust the support column according to the reference to obtain the support reference size range; the guide column can be moved by loosening the tail screw) |
2. Support Column Adjustment Range
The adjustable support column is mainly used to adjust according to the reference outer circle so that the support leg contacts and supports the reference outer circle, and select the replacement of the support rod according to the required axial reference range.
Adjustment range: 300~375mm; Adjustment range: 375~450mm; Adjustment range: 450~600mm
3. Tool Post Automatic Feeding
The tool post automatic feeding can choose two modes: stepless feeding and quantitative feeding. The stepless feeding assembly needs to install a spring, and the steps are two more than the quantitative feeding gear. It can be selected according to needs.
Stepless feeding assembly: The tool post can set the feeding amount steplessly, and when the gear rotates forward, the tool post can perform axial left and right feeding processing;
Quantitative feeding gear: When the gear rotates forward, the axial feeding processing is reverse cutting processing, and when the gear rotates backward, it is forward feeding
| No. | FJL500 Journal Lathe Description | No. | Description |
| 1 | Tool post precision guide column (feeding guide) | 9 | Oil nozzle (need to add lubricating oil before feeding processing) |
| 2 | Turning feeding screw (quickly move to disengage the "split nut") | 10 | Copper screw (need to be slightly tightened if there is vibration during turning) |
| 3 | Tool post base | 11 | Stepless feeding assembly, feeding 0-0.25mm |
| 4 | Turning feeding nut split gear assembly | 12 | Feeding gear, feeding 0.125mm and 0.25mm |
| 5 | Tool holder fixing screws (replaced for left and right turning) | 13 | Locking screws and gaskets |
| 6 | 12X12 indexable tool slot (locked by left and right screws) | 14 | Split nut positioning point |
| 7 | Vertical cutting feeding (0.15mm/grid) | 15 | Split nut positioning screw |
| 8 | Tool holder locking screw (need to be locked after adjusting the feeding turning) | 16 | Spring slot of stepless feeding assembly |
4. Polishing Assembly
The polishing assembly of the FJL500 journal lathe is similar to the turning tool post and is integrated with the equipment to ensure more accurate polishing coaxiality. When using axial long-distance polishing, it is necessary to install Baihao polishing wheels on the left and right for left and right polishing. The assembly for replacing and installing the Baihao wheel is (⑧⑨⑩⑪⑬); note that the protective cover (⑫⑰) needs to be installed during use. The left protective cover (⑫) does not need to be installed when the polishing diameter is in the range of Ø 490-Ø 520mm.
| No. | Description | No. | Description |
| 1 | Polishing support | 11 | Baihao polishing wheel (Ø 6 handle), diameter 50 or 60 specifications |
| 2 | Polishing vertical feeding screw (0.01mm/grid) | 12 | Left protective cover (not installed when the polishing diameter is 490-520mm) |
| 3 | DC-48V DC motor | 13 | Polishing shaft wrench position 17mm |
| 4 | DC motor UVW three-phase quick socket | 14 | Polishing drive - start button |
| 5 | DC motor (5 wires) signal line quick socket | 15 | Polishing wheel forward and reverse rotation knob |
| 6 | Power quick socket (connected from lithium battery) | 16 | Speed control knob (multi-turn speed control, 1 turn for external use) |
| 7 | Polishing drive power switch (the red light of the switch is on when powered on) | 17 | Right protective cover (must be installed for protection at any time) |
| 8 | Polishing wheel rotating shaft (the shaft wrench position is on the other side) | 18 | Tensioning transmission belt assembly |
| 9 | Chuck nozzle (clamps the Baihao polishing wheel) | 19 | Polishing wheel locking screws (need to lock 4 columns during use) |
| 10 | Nut (after installing 11, tighten with a 17mm open-end wrench) | 20 | Quick-moving hexagon head (use a quick wrench to move back) |
| #1 | Same as 11, 12, 13 in Table of 3. Tool Post Automatic Feeding | #2 | Feeding screw, no gear disengagement, need to manually move back quickly |
| #3 | Same as 9, 10 in Table of 3. Tool Post Automatic Feeding | #4 | Same as 1 in Table of 3. Tool Post Automatic Feeding |
5. Lithium Battery Assembly
The lithium battery assembly can be disassembled and placed when not in use. The 48V lithium battery (4) can be taken off separately for charging and placement when not in use or when charging is needed;
| No. | Description | No. | Description |
| #1 | Precision guide column (it is forbidden to disassemble the tool post guide column) | 6 | Gland locking screw |
| 1 | Fixing seat fixing column (detachable) | 7 | Discharge socket (connected to 4.4 Table 5 ⑥ of the polishing assembly) |
| 2 | Battery pack fixing seat | 8 | Charging socket |
| 3 | Locking screw (tighten after installing the fixing seat) | 9 | Lithium battery main power switch |
| 4 | 48V lithium battery (can be disassembled and placed separately) | 10 | Charging display panel |
| 5 | Lithium battery installation and fixing gland | 11 | Discharge display panel |
6. Auxiliary Support Frame Lifting
For detailed installation of the bracket, please refer to Chapter 5 of this instruction. Each component of the auxiliary support frame can be separated individually to disperse its weight for easy disassembly, transportation, installation and movement; adjust the height of the support frame by using the screw lifting assembly (3) according to the required height. After determining the installation and fixing of the support leg clamp (7), the screw lifting assembly can be removed to facilitate the operation of the equipment during processing.
| No. | Description | No. | Description |
| 1 | Connecting foot plate (fixing slot connected to the ground) | 5 | Manual lifting screw hexagon head (14mm hexagon head) |
| 2 | Fixed support leg | 6 | Moving support rod limit screw |
| 3 | Screw lifting assembly (auxiliary manual lifting) | 7 | Fixed support leg and moving support rod clamping screw |
| 4 | Moving support rod | 8 | Surface frame |
7. Axial Limit Assembly
The axial limit assembly is mainly used to prevent the equipment from moving out of the reference circle due to axial moving force during the rotation and processing of the gear ring, which may cause serious damage to the equipment and the processed shaft. Due to the slight radial deformation and expansion of the gear ring, a 0.5-1mm gap must be reserved between the limit wheel and the gear ring to eliminate the vibration force.
| No. | Description | No. | Description |
| #1 | Radial gap: a 0.5-1mm gap must be reserved between the gear ring ① and the limit wheel ⑧ due to slight deformation of the gear ring | ||
| #2 | Axial gap (self-contained gap, no need to reserve), but it should be noted that there will be 1 axial tool jump when the gear ring rotates and feeds forward and backward | ||
| 1 | Outer tooth part of the gear ring | 7 | Optical axis (telescopes in distance) |
| 2 | Adjusting plate | 8 | Limit wheel (limits the axial movement of the equipment) |
| 3 | Support frame moving support rod screw hole towards the radial inner side | 9 | Limit wheel locking screw |
| 4 | Adjusting seat locking screw | 10 | Axial limit crossbar locking screw |
| 5 | Axial limit crossbar | 11 | Optical axis locking screw |
| 6 | Limit wheel seat locking screw | 12 | The thin part of the limit wheel, which reserves a gap with the gear support plate |
8. Quantitative Feeding & Stepless Feeding Assemblies
8.1: The quantitative feeding method is applied to the feeding mode due to its characteristics of simple operation, quick installation and flexibility. There are several points to note during use: 1. The quantitative feeding needs to replace the feeding gear; 2. The center of the pull rod screw must be offset by about 5mm from the radial vertical center line of the shaft to be processed; 3. If the pull pin is not installed properly during forward and reverse rotation, it will fail to feed, be damaged or cause a collision; 4. The machining surface roughness (because the fixed axial feeding amount cannot be as precise as the small feeding amount of the stepless feeding mode).
| No. | Description | No. | Description |
| 1 | Same as 2, 3, 4, 10 in Table 4 of 7. Axial Limit Assembly | 9 | Long pull pin screw |
| 2 | Feeding adjustment crossbar | 10 | Lock nut |
| 3 | Guide shaft (telescopes in distance) | 11 | Guide shaft locking bolt |
| 4 | Pull rod rail | 12 | Pull rod seat adjusting plate |
| 5 | Pull rod seat | 13 | Short pull pin screw |
| 6 | Locking screw | 14 | The parallel line drawn from the three teeth of the pull pin head and the feeding gear is slightly 0.5mm higher |
| 7 | Tool post or grinding feeding screw | 15 | The center line of the pull pin is offset by 5mm from the center of the feeding gear |
| 8 | Feeding gear, feeding 0.125mm and 0.25mm |
8.2 The stepless feeding assembly is somewhat the same as the quantitative feeding assembly in installation and use. The advantages of the stepless feeding assembly are: 1. The turning can adjust the feeding amount of 0-0.25mm for rough and finish machining, and the polishing can adjust 0-4mm (it is not recommended to use stepless for polishing); 2. The turning feeding time is longer than that of the quantitative type; 3. When the gear ring rotates forward (i.e., direction #2 in Figure 13), the turning tool post can perform axial forward and reverse turning (i.e., left and right turning during forward rotation), which cannot be achieved by quantitative feeding; 4. The feeding amount can be adjusted below 0.125. Disadvantages: It is more complicated in installation and use, and the spring needs to be installed carefully.
| No. | Description | No. | Description |
| #1 | Same as 1 in Table 9 of 48~8.1 Quantitative Feeding Assembly | 6 | Feeding track path |
| #2 | Gear ring rotation direction (e.g., forward rotation) | 7 | Rail expansion plate entry direction (i.e., the direction in which the bearing enters during forward rotation) |
| #3 | Entry direction of the rail expansion plate of the stepless feeding assembly (7) | 8 | Rail expansion plate return direction (i.e., the return direction of the stepless assembly during forward rotation) |
| #4 | Feeding direction of the stepless assembly (forward rotation) | 9 | Stepless assembly guide bearing |
| #5 | Return direction (#6) of the stepless feeding assembly after feeding. | 10 | Entry gap (need to pay attention to reserving a margin of 1-2mm when adjusting the feeding amount) |
| #6 | Return track after feeding of the stepless feeding (8) | 11 | Reserve a margin of 1-2mm when the stepless assembly returns after full feeding |
| 1 | Tool post feeding screw | 12, 13 | Spring screw hole, spring (the spring is on the inner side, can be installed on both sides) |
| 2 | Stepless feeding assembly | 14 | Return state |
| 3 | Rail expansion plate | 15 | Full load feeding state of turning feeding amount (i.e., 0.25mm) |
| 4 | Rail expansion plate locking screw and gasket | 16 | Full load feeding end (reserve a gap when fully loaded, no need to reserve when not full) |
| 5 | Turning adjustment slot (adjust the stepless feeding amount of 0-0.25mm) | 17 | Reverse the feeding direction of the tool by reversing the #2 side of the feeding screw |

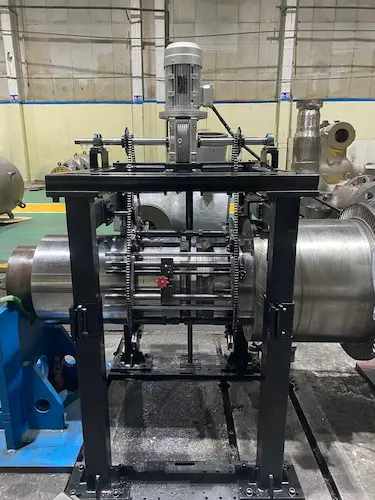

9.1 This FJL500 journal lathe uses a support frame to fix the transmission structure, and considering that there are many auxiliary problems in the steps of installation, debugging and calibration before using the equipment for processing, it is recommended to manually rotate the transmission main shaft during dial calibration to prevent the equipment from being damaged due to excessively high rotation speed of the large gear ring of the equipment and hurting operators and onlookers due to misoperation during dial calibration.
| No. | Description | No. | Description |
| 1 | Surface frame | 6 | Main shaft clamp (for limiting to prevent axial movement) |
| 2 | Reducer, motor | 7 | Clamp locking screw |
| 3 | Transmission main shaft (including key strips) | 8 | Key strip |
| 4 | 2nd stage sprocket | 9 | Key strip screw |
| 5 | Bearing seat | #1 | Automatic transmission state with key strips installed |
| #2 | Manual transmission: need to loosen the clamp locking screw and move it outward to facilitate removing the key strips and key strip fixing screws (9) | ||
| #3 | Manual transmission: after removing the key strip screws, slide the key strips outward (with a gap of 0.05-0.1mm, which can be pulled out with a hexagon socket wrench) | ||
| #4 | Manual transmission: use a quick ratchet wrench, crank, and large handwheel to realize manual transmission of the equipment, with speed ratios (large: 5.21, small: 10.12) | ||
9.2 After familiarizing with Section 9.1, combine the chain tensioning assembly;
In equipment installation, the position of the transmission sprocket can be adjusted arbitrarily according to the required axial size; when installing the chain, it should be noted that the side of the 2nd stage sprocket with the speed ratio teeth should be aligned with the side of the equipment gear ring, otherwise axial force will be generated during transmission, affecting machining accuracy and surface roughness; when tensioning the chain, the two chains should be evenly stressed, otherwise abnormal noise and center offset will occur.
| No. | Description | No. | Description |
| 1 | Equipment gear ring | 8 | Tensioning sprocket locking screw |
| 2 | 2nd stage sprocket speed ratio (large: 5.21, small: 10.12) | 9 | Same as described in Table 11 of 4.9.1 |
| 3 | Transmission chain | 10 | 2nd stage sprocket locking screw |
| 4 | Tensioning seat | 11 | Tensioning seat locking screw |
| 5 | Optical axis | 12 | Surface frame |
| 6 | Tensioning sprocket | 13 | Tensioning seat adjustment fixing plate |
| 7 | Optical axis locking screw | 14 | Manual transmission, same as described in #2 #3 #4 of Table 4.9.1 |
| #1 | After connection, observe whether the two sides of the equipment gear ring and the 2nd stage sprocket (with speed ratio stage) are on the same plane | ||
10. Equipment Electric Box
The journal lathe is driven by a vector drive mode, which has the advantage of stability in high and low speed conversion, and also has large torque output at ultra-low speeds to drive and start at low speeds;
| NO. | Description |
| #1 | Equipment electric box (need to turn off the main power switch Figure 16① first when finishing use or connecting electricity; pull down to turn off) |
| #2 | Handheld control box |
| 1 | Power leakage protection main switch (up is on, down is off) |
| 2 | Emergency stop button (rotate to release the emergency stop before emergency stop and start) |
| 3 | Start button |
| 4 | Forward and reverse rotation knob (switch between forward and reverse rotation, middle is empty) |
| 5 | Speed control knob (rotate the potentiometer counterclockwise to the minimum before starting, and start slowly during use) |
