ED1180 EDM Wire Cut Machine

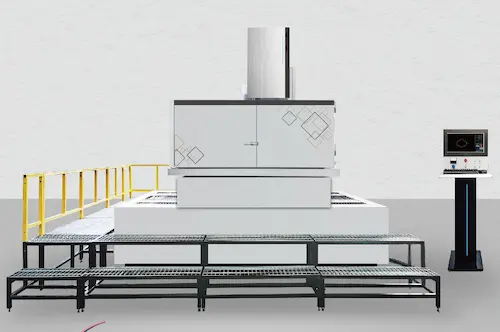

Fortune Pacific ED1180 Electrical Discharge Machining Wire Cut Machine is Five-axis numerical control; Four-axis pitch compensation; New control system; 4 Axis AC servo motor; Z axis DC servo motor with Z axis memory function;
- ED1180 Electrical Discharge Machining Wire Cut MachineDownload
Electrical Discharge Machining Wire Cut Machine specifications
Electrical Discharge Machining Wire Cut Machine equipments
1. Five axis digital control, four axis linkage; The X/Y/U/V axes are driven by AC servo motors and are calibrated and compensated by laser interferometers to improve operational accuracy and displacement speed.
2. Efficient and low loss green power control design significantly improves cutting efficiency and reduces electrode wire loss.
3. The X/Y-axis drag plate adopts a three-layer operating structure design, combined with imported precision linear guides and ball screws, to ensure that it always moves within the table during operation, ensuring cutting accuracy and service life.
4. The handheld unit controls the five axis motor drive, which is powerful and convenient for rapid displacement and mold calibration.
5. Adopting an upper and lower double tightening mechanism ensures that the tension of the electrode wire remains consistent throughout the cutting process, significantly reducing wire breakage.
6. Multi functional workpiece fixture, realizing multi-directional mold clamping.
7. Adopting an automatic oil injection device, key parts are lubricated at designated times and points to extend the service life of the components.
8. Dual water pumps combined with filter element high-pressure circulation filtration system extend the service life of cutting fluid.
9. Intelligent process database, no need to manually adjust high-frequency parameters for each cutting of workpieces. The control interface has advanced human-machine dialogue function, with a Chinese menu display. Simply enter the workpiece height, electrode wire diameter, and cutting times, and the system will automatically generate cutting parameters; Solved the issue of differences in workpiece cutting caused by varying operator experience.
10. The machine tool castings are cast using resin sand technology and HT300 grade gray cast iron. After secondary tempering treatment, the overall deformation is effectively controlled to ensure precision control during the effective service life of the machine tool.
11. Equipped with auxiliary threading function to reduce work intensity.
1.New generation control system, friendly interface, complete functions, convenient operation;
● Infinite coordinate system;
● Automatic high speed blank cutting;
● Molybdenum wire in-place detection;
● Intelligent process database;
● Multi-functional edge finding;
● Automatic correction of AR tilt;
● Taper one key back to the vertical point;
● Power off displacement automatic return;
● Work-piece over-range prediction function;
● Automatic vertical correction of electrode wire;
● Automatic calculation of taper cutting height changes;
● Real-time correction compensation value, pause point, skip line;
● System remote control, maintenance, software online upgrade;
● Equipment failure real-time monitoring real-time recording of the processing process;
2. Multifunctional screen display hand pulse or electronic wheel;
3. New intelligent control circuit;
4. Double pump pressure single filter circulation system;
5. CNC Z axis, large stroke UV axis;
6. Built-in X/Y axis hand wheel;
| Items | ED1180 |
| Worktable size (L x W) | 1500x1100mm |
| Table travel (X x Y) | 1100x800mm |
| Max. work piece thickness | 500mm |
| Motor type (X, Y, Z, U, V) | Servo motor |
| U.V axis | 80x80mm |
| Max. taper angle/plate thickness | ±15°/80mm |
| Wire diameter | Ф0.16-Ф0.20mm |
| Precision (3time cutting, Gr12, S=40) | ±0.005mm |
| Roughness, thrice cutting | ≤0.8um |
| Max. machining speed | 300mm²/min |
| Machine dimensions (W x L x H) | 3980x3650x2782mm |
| Water tank size (W x L x H) | 680x1115xx760mm |
| Machine weight | 8500kg |
| Wire traveling speed | 2-11m/min |
| Load of table | 3000kg |
| Working reservoir capacity | 180L |
| Language | English/Chinese |
| Drawing format | G CODE, DXF, DWG, DAT |
| Connect type | USB/ LAN cable |
| Storage of computer | 64G (120G) |
| NC Linkage axis | 4 axis (X Y U V) |
| Max feed speed | 1000mm/min |
| Input power | 415V 50-60Hz |
| Rated Power | 3kVA |
| Item 01 | Descriptions | |
| 01.01 | X/Y/U/V axis: four-axis AC servo motor drive CNC | |
| 01.02 | Z-axis: hybrid motor drive | |
| 01.03 | X/Y axis: Japanese "THK" linear guide | |
| 01.04 | X/Y axis: Taiwan "PMI" ball screw | |
| 01.05 | Rolling parts: Japan "NSK" bearing | |
| 01.06 | Control system: Industrial control computer |
- Five-axis numerical control;
- Four-axis pitch compensation;
- New control system;
- 4 Axis AC servo motor;
- Z axis DC servo motor with Z axis memory function;
- Max±15°/80mm;
- Machine Accuracy: ±0.005mm (12mmx12mmx30mm hexagon)
- Steady cutting Machining Speed: 150-180mm²/min;
- Max Machining Speed: 300mm²/min;
- Roughness: Ra ≤0.8um;
- Thickness for 3 Times Cutting: ≥200mm;
- Taper cutting also have precision and can repeat cutting;
1. Five axis digital control, four axis linkage; The X/Y/U/V axes are driven by AC servo motors and are calibrated and compensated by laser interferometers to improve operational accuracy and displacement speed.
2. Efficient and low loss green power control design significantly improves cutting efficiency and reduces electrode wire loss.
3. The X/Y-axis drag plate adopts a three-layer operating structure design, combined with imported precision linear guides and ball screws, to ensure that it always moves within the table during operation, ensuring cutting accuracy and service life.
4. The handheld unit controls the five axis motor drive, which is powerful and convenient for rapid displacement and mold calibration.
5. Adopting an upper and lower double tightening mechanism ensures that the tension of the electrode wire remains consistent throughout the cutting process, significantly reducing wire breakage.
6. Multi functional workpiece fixture, realizing multi-directional mold clamping.
7. Adopting an automatic oil injection device, key parts are lubricated at designated times and points to extend the service life of the components.
8. Dual water pumps combined with filter element high-pressure circulation filtration system extend the service life of cutting fluid.
9. Intelligent process database, no need to manually adjust high-frequency parameters for each cutting of workpieces. The control interface has advanced human-machine dialogue function, with a Chinese menu display. Simply enter the workpiece height, electrode wire diameter, and cutting times, and the system will automatically generate cutting parameters; Solved the issue of differences in workpiece cutting caused by varying operator experience.
10. The machine tool castings are cast using resin sand technology and HT300 grade gray cast iron. After secondary tempering treatment, the overall deformation is effectively controlled to ensure precision control during the effective service life of the machine tool.
11. Equipped with auxiliary threading function to reduce work intensity.
1.New generation control system, friendly interface, complete functions, convenient operation;
● Infinite coordinate system;
● Automatic high speed blank cutting;
● Molybdenum wire in-place detection;
● Intelligent process database;
● Multi-functional edge finding;
● Automatic correction of AR tilt;
● Taper one key back to the vertical point;
● Power off displacement automatic return;
● Work-piece over-range prediction function;
● Automatic vertical correction of electrode wire;
● Automatic calculation of taper cutting height changes;
● Real-time correction compensation value, pause point, skip line;
● System remote control, maintenance, software online upgrade;
● Equipment failure real-time monitoring real-time recording of the processing process;
2. Multifunctional screen display hand pulse or electronic wheel;
3. New intelligent control circuit;
4. Double pump pressure single filter circulation system;
5. CNC Z axis, large stroke UV axis;
6. Built-in X/Y axis hand wheel;
Electrical Discharge Machining Wire Cut Machine specifications
| Items | ED1180 |
| Worktable size (L x W) | 1500x1100mm |
| Table travel (X x Y) | 1100x800mm |
| Max. work piece thickness | 500mm |
| Motor type (X, Y, Z, U, V) | Servo motor |
| U.V axis | 80x80mm |
| Max. taper angle/plate thickness | ±15°/80mm |
| Wire diameter | Ф0.16-Ф0.20mm |
| Precision (3time cutting, Gr12, S=40) | ±0.005mm |
| Roughness, thrice cutting | ≤0.8um |
| Max. machining speed | 300mm²/min |
| Machine dimensions (W x L x H) | 3980x3650x2782mm |
| Water tank size (W x L x H) | 680x1115xx760mm |
| Machine weight | 8500kg |
| Wire traveling speed | 2-11m/min |
| Load of table | 3000kg |
| Working reservoir capacity | 180L |
| Language | English/Chinese |
| Drawing format | G CODE, DXF, DWG, DAT |
| Connect type | USB/ LAN cable |
| Storage of computer | 64G (120G) |
| NC Linkage axis | 4 axis (X Y U V) |
| Max feed speed | 1000mm/min |
| Input power | 415V 50-60Hz |
| Rated Power | 3kVA |
Main features of Electrical Discharge Machining Wire Cut Machine
1. Five axis digital control, four axis linkage; The X/Y/U/V axes are driven by AC servo motors and are calibrated and compensated by laser interferometers to improve operational accuracy and displacement speed.
2. Efficient and low loss green power control design significantly improves cutting efficiency and reduces electrode wire loss.
3. The X/Y-axis drag plate adopts a three-layer operating structure design, combined with imported precision linear guides and ball screws, to ensure that it always moves within the table during operation, ensuring cutting accuracy and service life.
4. The handheld unit controls the five axis motor drive, which is powerful and convenient for rapid displacement and mold calibration.
5. Adopting an upper and lower double tightening mechanism ensures that the tension of the electrode wire remains consistent throughout the cutting process, significantly reducing wire breakage.
6. Multi functional workpiece fixture, realizing multi-directional mold clamping.
7. Adopting an automatic oil injection device, key parts are lubricated at designated times and points to extend the service life of the components.
8. Dual water pumps combined with filter element high-pressure circulation filtration system extend the service life of cutting fluid.
9. Intelligent process database, no need to manually adjust high-frequency parameters for each cutting of workpieces. The control interface has advanced human-machine dialogue function, with a Chinese menu display. Simply enter the workpiece height, electrode wire diameter, and cutting times, and the system will automatically generate cutting parameters; Solved the issue of differences in workpiece cutting caused by varying operator experience.
10. The machine tool castings are cast using resin sand technology and HT300 grade gray cast iron. After secondary tempering treatment, the overall deformation is effectively controlled to ensure precision control during the effective service life of the machine tool.
11. Equipped with auxiliary threading function to reduce work intensity.
1.New generation control system, friendly interface, complete functions, convenient operation;
● Infinite coordinate system;
● Automatic high speed blank cutting;
● Molybdenum wire in-place detection;
● Intelligent process database;
● Multi-functional edge finding;
● Automatic correction of AR tilt;
● Taper one key back to the vertical point;
● Power off displacement automatic return;
● Work-piece over-range prediction function;
● Automatic vertical correction of electrode wire;
● Automatic calculation of taper cutting height changes;
● Real-time correction compensation value, pause point, skip line;
● System remote control, maintenance, software online upgrade;
● Equipment failure real-time monitoring real-time recording of the processing process;
2. Multifunctional screen display hand pulse or electronic wheel;
3. New intelligent control circuit;
4. Double pump pressure single filter circulation system;
5. CNC Z axis, large stroke UV axis;
6. Built-in X/Y axis hand wheel;
1. Five axis digital control, four axis linkage; The X/Y/U/V axes are driven by AC servo motors and are calibrated and compensated by laser interferometers to improve operational accuracy and displacement speed.
2. Efficient and low loss green power control design significantly improves cutting efficiency and reduces electrode wire loss.
3. The X/Y-axis drag plate adopts a three-layer operating structure design, combined with imported precision linear guides and ball screws, to ensure that it always moves within the table during operation, ensuring cutting accuracy and service life.
4. The handheld unit controls the five axis motor drive, which is powerful and convenient for rapid displacement and mold calibration.
5. Adopting an upper and lower double tightening mechanism ensures that the tension of the electrode wire remains consistent throughout the cutting process, significantly reducing wire breakage.
6. Multi functional workpiece fixture, realizing multi-directional mold clamping.
7. Adopting an automatic oil injection device, key parts are lubricated at designated times and points to extend the service life of the components.
8. Dual water pumps combined with filter element high-pressure circulation filtration system extend the service life of cutting fluid.
9. Intelligent process database, no need to manually adjust high-frequency parameters for each cutting of workpieces. The control interface has advanced human-machine dialogue function, with a Chinese menu display. Simply enter the workpiece height, electrode wire diameter, and cutting times, and the system will automatically generate cutting parameters; Solved the issue of differences in workpiece cutting caused by varying operator experience.
10. The machine tool castings are cast using resin sand technology and HT300 grade gray cast iron. After secondary tempering treatment, the overall deformation is effectively controlled to ensure precision control during the effective service life of the machine tool.
11. Equipped with auxiliary threading function to reduce work intensity.
1.New generation control system, friendly interface, complete functions, convenient operation;
● Infinite coordinate system;
● Automatic high speed blank cutting;
● Molybdenum wire in-place detection;
● Intelligent process database;
● Multi-functional edge finding;
● Automatic correction of AR tilt;
● Taper one key back to the vertical point;
● Power off displacement automatic return;
● Work-piece over-range prediction function;
● Automatic vertical correction of electrode wire;
● Automatic calculation of taper cutting height changes;
● Real-time correction compensation value, pause point, skip line;
● System remote control, maintenance, software online upgrade;
● Equipment failure real-time monitoring real-time recording of the processing process;
2. Multifunctional screen display hand pulse or electronic wheel;
3. New intelligent control circuit;
4. Double pump pressure single filter circulation system;
5. CNC Z axis, large stroke UV axis;
6. Built-in X/Y axis hand wheel;
Electrical Discharge Machining Wire Cut Machine equipments
| Item 01 | Descriptions | |
| 01.01 | X/Y/U/V axis: four-axis AC servo motor drive CNC | |
| 01.02 | Z-axis: hybrid motor drive | |
| 01.03 | X/Y axis: Japanese "THK" linear guide | |
| 01.04 | X/Y axis: Taiwan "PMI" ball screw | |
| 01.05 | Rolling parts: Japan "NSK" bearing | |
| 01.06 | Control system: Industrial control computer |
