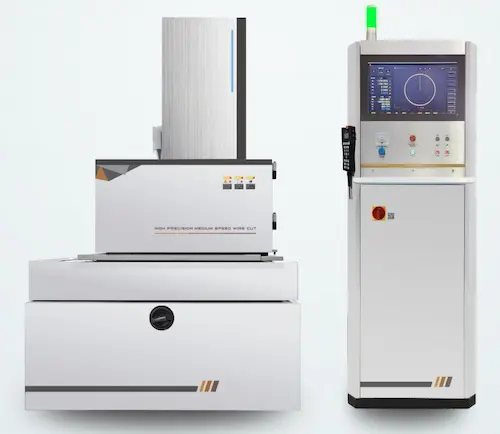

Electrical Discharge Machining Wire Cut Machine specifications
Electrical Discharge Machining Wire Cut Machine equipments
Main features of Electrical Discharge Machining Wire Cut Machine
1.New generation control system, friendly interface, complete functions, convenient operation;
● Infinite coordinate system;
● Automatic high speed blank cutting;
● Molybdenum wire in-place detection;
● Intelligent process database;
● Multi-functional edge finding;
● Automatic correction of AR tilt;
● Taper one key back to the vertical point;
● Power off displacement automatic return;
● Work-piece over-range prediction function;
● Automatic vertical correction of electrode wire;
● Automatic calculation of taper cutting height changes;
● Real-time correction compensation value, pause point, skip line;
● System remote control, maintenance, software online upgrade;
● Equipment failure real-time monitoring real-time recording of the processing process;
2. Multifunctional screen display hand pulse or electronic wheel;
3. New intelligent control circuit;
4. Double pump pressure single filter circulation system;
5. CNC Z axis, large stroke UV axis;
6. Built-in X/Y axis hand wheel;
| Items | ES500 |
| Table size | 570x770mm |
| Table travel (X x Y) | 500x350mm |
| Max. work piece thickness | 300mm |
| Motor type (X, Y, Z, U, V) | AC Servo motor |
| U.V axis | 80x80mm |
| Max. taper angle/plate thickness | ±15°/80mm |
| Wire diameter | Ф0.16-Ф0.20mm |
| Precision (3time cutting, Gr12, S=40) | ±0.005mm |
| Roughness, thrice cutting | ≤0.8um |
| Max. machining speed | 300mm²/min |
| Machine weight | 2200kg |
| Wire traveling speed | 2-11m/min |
| Load of table | 500kg |
| Working reservoir capacity | 180L |
| Language | English/Chinese |
| Drawing format | G CODE, DXF, DWG, DAT |
| Connect type | USB/ LAN cable |
| Storage of computer | 64G (120G) |
| NC Linkage axis | 4 axis (X Y U V) |
| Max feed speed | 1000mm/min |
| Input power | 380V 50-60Hz |
| Rated Power | 3kVA |
| Item 01 | Descriptions | |
| 01.01 | X/Y/U/V axis: four-axis AC servo motor drive CNC | |
| 01.02 | Z-axis: hybrid motor drive | |
| 01.03 | X/Y axis: Japanese "THK" linear guide | |
| 01.04 | X/Y axis: Taiwan "PMI" ball screw | |
| 01.05 | Rolling parts: Japan "NSK" bearing | |
| 01.06 | Control system: Industrial control computer |
1.New generation control system, friendly interface, complete functions, convenient operation;
● Infinite coordinate system;
● Automatic high speed blank cutting;
● Molybdenum wire in-place detection;
● Intelligent process database;
● Multi-functional edge finding;
● Automatic correction of AR tilt;
● Taper one key back to the vertical point;
● Power off displacement automatic return;
● Work-piece over-range prediction function;
● Automatic vertical correction of electrode wire;
● Automatic calculation of taper cutting height changes;
● Real-time correction compensation value, pause point, skip line;
● System remote control, maintenance, software online upgrade;
● Equipment failure real-time monitoring real-time recording of the processing process;
2. Multifunctional screen display hand pulse or electronic wheel;
3. New intelligent control circuit;
4. Double pump pressure single filter circulation system;
5. CNC Z axis, large stroke UV axis;
6. Built-in X/Y axis hand wheel;
- Five-axis numerical control;
- Manual and automatic dual use;
- Four-axis pitch compensation;
- New control system;
- 4 Axis AC servo motor;
- Z axis DC servo motor with Z axis memory function;
- Max±15°/80mm;
- Machine Accuracy: ±0.005mm (12mmx12mmx30mm hexagon)
- Steady cutting Machining Speed: 150-180mm²/min;
- Max Machining Speed: 300mm²/min;
- Roughness: Ra ≤0.8um;
- Thickness for 3 Times Cutting: ≥200mm;
- Taper cutting also have precision and can repeat cutting;
Electrical Discharge Machining Wire Cut Machine specifications
| Items | ES500 |
| Table size | 570x770mm |
| Table travel (X x Y) | 500x350mm |
| Max. work piece thickness | 300mm |
| Motor type (X, Y, Z, U, V) | AC Servo motor |
| U.V axis | 80x80mm |
| Max. taper angle/plate thickness | ±15°/80mm |
| Wire diameter | Ф0.16-Ф0.20mm |
| Precision (3time cutting, Gr12, S=40) | ±0.005mm |
| Roughness, thrice cutting | ≤0.8um |
| Max. machining speed | 300mm²/min |
| Machine weight | 2200kg |
| Wire traveling speed | 2-11m/min |
| Load of table | 500kg |
| Working reservoir capacity | 180L |
| Language | English/Chinese |
| Drawing format | G CODE, DXF, DWG, DAT |
| Connect type | USB/ LAN cable |
| Storage of computer | 64G (120G) |
| NC Linkage axis | 4 axis (X Y U V) |
| Max feed speed | 1000mm/min |
| Input power | 380V 50-60Hz |
| Rated Power | 3kVA |
Electrical Discharge Machining Wire Cut Machine equipments
| Item 01 | Descriptions | |
| 01.01 | X/Y/U/V axis: four-axis AC servo motor drive CNC | |
| 01.02 | Z-axis: hybrid motor drive | |
| 01.03 | X/Y axis: Japanese "THK" linear guide | |
| 01.04 | X/Y axis: Taiwan "PMI" ball screw | |
| 01.05 | Rolling parts: Japan "NSK" bearing | |
| 01.06 | Control system: Industrial control computer |
Main features of Electrical Discharge Machining Wire Cut Machine
1.New generation control system, friendly interface, complete functions, convenient operation;
● Infinite coordinate system;
● Automatic high speed blank cutting;
● Molybdenum wire in-place detection;
● Intelligent process database;
● Multi-functional edge finding;
● Automatic correction of AR tilt;
● Taper one key back to the vertical point;
● Power off displacement automatic return;
● Work-piece over-range prediction function;
● Automatic vertical correction of electrode wire;
● Automatic calculation of taper cutting height changes;
● Real-time correction compensation value, pause point, skip line;
● System remote control, maintenance, software online upgrade;
● Equipment failure real-time monitoring real-time recording of the processing process;
2. Multifunctional screen display hand pulse or electronic wheel;
3. New intelligent control circuit;
4. Double pump pressure single filter circulation system;
5. CNC Z axis, large stroke UV axis;
6. Built-in X/Y axis hand wheel;
1.New generation control system, friendly interface, complete functions, convenient operation;
● Infinite coordinate system;
● Automatic high speed blank cutting;
● Molybdenum wire in-place detection;
● Intelligent process database;
● Multi-functional edge finding;
● Automatic correction of AR tilt;
● Taper one key back to the vertical point;
● Power off displacement automatic return;
● Work-piece over-range prediction function;
● Automatic vertical correction of electrode wire;
● Automatic calculation of taper cutting height changes;
● Real-time correction compensation value, pause point, skip line;
● System remote control, maintenance, software online upgrade;
● Equipment failure real-time monitoring real-time recording of the processing process;
2. Multifunctional screen display hand pulse or electronic wheel;
3. New intelligent control circuit;
4. Double pump pressure single filter circulation system;
5. CNC Z axis, large stroke UV axis;
6. Built-in X/Y axis hand wheel;
- Five-axis numerical control;
- Manual and automatic dual use;
- Four-axis pitch compensation;
- New control system;
- 4 Axis AC servo motor;
- Z axis DC servo motor with Z axis memory function;
- Max±15°/80mm;
- Machine Accuracy: ±0.005mm (12mmx12mmx30mm hexagon)
- Steady cutting Machining Speed: 150-180mm²/min;
- Max Machining Speed: 300mm²/min;
- Roughness: Ra ≤0.8um;
- Thickness for 3 Times Cutting: ≥200mm;
- Taper cutting also have precision and can repeat cutting;
