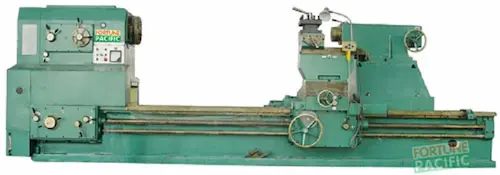

D2200B1100 10tons 18tons Conventional Metal Lathe
Sústruh D2200 B1100 10tons 18tons Conventional Metalworking Speed Turning Lathe Machine is equipped with an oil pump, forced lubrication as well as rapid traverse, terminal end insurance.
- D2200 B1100 10tons 18tons Conventional Metalworking Speed Turning Lathe MachineDownload
Technical parameters of D2200 Conventional Metalworking Speed Turning Lathe Machine
Applications
Sústruh D2200 B1100 10tons 18tons Conventional Metalworking Speed Turning Lathe Machine is chiefly suitable for various cutting jobs, such as internal and external cylindrical surfaces turning, facing and various kinds of threads cutting. The compound rest slide can be used individually by power for cutting a 300mm taper surface, or used with aid of longitudinal feed motion of the Sústruh carriage by power for cutting long taper surface. Sústruh D2200 B1100 10tons 18tons Conventional Metalworking Speed Turning Lathe Machine Tool can also be used for drilling, boring, trepanning etc.
Features
1. Sústruh D2200 B1100 10tons 18tons Conventional Metalworking Speed Turning Lathe Machine is equipped with an oil pump, forced lubrication as well as rapid traverse, terminal end insurance.
2. Cutting of size control by travel stop power, latch hook of tailstock and safeguard against excess load etc.
3. Power, speed and rigidity of Conventional Metalworking Speed Turning Lathe Machine can fairly meet the needs of both heavy and finish machining.
4. D2200 B1100 10tons 18tons Conventional Metalworking Speed Turning Lathe Machine Machine has features of fine appearance, concentrated control arrangement for easy operating and convenient maintenance.
Standard accessories
1. 4-jaw chuck & flange;
2. Dead Centers;
3. Coolant system;
4. Work light;
5. Foundation Bolts & Lever Pad;
6. Tool box;
Optional accessories
1. Steady Rest;
2. Follow Rest;
3. Carrier Roller;
4. 2-Axis or 3-Axis DRO;
| Model | Unit | D2200 | |
|---|---|---|---|
| Type | B1100 | ||
| Max swing over bed | mm(in) | 2200(88’’) | |
| Max swing over carriage | mm(in) | 1800(72’’) | |
| Distance between centers | mm(in) | 3000~14000(118’’~551’’) | 3000~12000(118’’~472’’) |
| Max weight of workpiece between centers | kg | 18000 | 10000 |
| Width of the bed | mm(in) | 1100(44’’) | |
| Spindle noses No. | ISO | A2-20 | A2-15 |
| Diameter of spindle in front bearing | mm(in) | 240(9.6’’); 280(11.2’’) | 200(8’’); 220(8.8’’) |
| Spindle bore | mm(in) | 100(4’’) | 130(5.2’’); 100(4’’) |
| Taper bore in spindle | Metric 140 | ||
| Number of spindle speed | 3 steps | 21 steps | |
| Range of spindle speed | r/min | 1~125 | 2.5~250(2~200) |
| Main motor power | kW | DC49 | AC30 |
| Rapid travelling speed of motor power | kW | 1.5 | |
| Coolant pump motor power | kW | 0.15 | |
| Section dimension of tool shank | mm(in) | 45x45(1.8’’x1.8’’) | |
| Swivel angle of tool post | ±90° | ||
| Travel of transverse tool post | mm(in) | 200(8’’) | |
| Travel of longitudinal tool post | mm(in) | 400(16’’) | |
| Travel of cross slide | mm(in) | 820(33’’); 920(36’’) | 820(33’’); 920(36’’); 1020(41’’) |
| Rapid travelling speed of compound tool post | mm/min | 935 | |
| Rapid travelling speed of transverse | mm/min | 1870 | |
| Rapid travelling speed of longitudinal | mm/min | 3740 | |
| Metric threads number and range | mm | 45 kinds, 1~120 | |
| Whitworth number and range | TPI | 42 kinds, 30~1/4 | |
| Module threads number and range | mm | 46 kinds, 0.5~60 | |
| Diametric threads number and range | DP | 48 kinds, 60~0.5 | |
| No and range of longitudinal feed | mm/rev | 97 kinds, 0.064~12 | |
| No and range of cross slide feed | mm/rev | 97 kinds, 0.032~6 | |
| Feed No and range of compound slide | mm/rev | 97 kinds, 0.016~3 | |
| Diameter of tailstock sleeve | mm(in) | 240(9.6’’);280(11’’) | 200(8’’) |
| Taper bore of tailstock sleeve | Metric 80 | Metric 80, MT-6 | |
| Travel of tailstock sleeve | mm(in) | 300(12’’) | |
| Weight of the lathe with 3m | kg | 32000 | 24000 |
| Additional weight per 1m | kg | 2200 | |
| Overall dimension (L x W x H) (3m) | mm | 7920x2480x2610 | |
Applications
Sústruh D2200 B1100 10tons 18tons Conventional Metalworking Speed Turning Lathe Machine is chiefly suitable for various cutting jobs, such as internal and external cylindrical surfaces turning, facing and various kinds of threads cutting. The compound rest slide can be used individually by power for cutting a 300mm taper surface, or used with aid of longitudinal feed motion of the Sústruh carriage by power for cutting long taper surface. Sústruh D2200 B1100 10tons 18tons Conventional Metalworking Speed Turning Lathe Machine Tool can also be used for drilling, boring, trepanning etc.
Features
1. Sústruh D2200 B1100 10tons 18tons Conventional Metalworking Speed Turning Lathe Machine is equipped with an oil pump, forced lubrication as well as rapid traverse, terminal end insurance.
2. Cutting of size control by travel stop power, latch hook of tailstock and safeguard against excess load etc.
3. Power, speed and rigidity of Conventional Metalworking Speed Turning Lathe Machine can fairly meet the needs of both heavy and finish machining.
4. D2200 B1100 10tons 18tons Conventional Metalworking Speed Turning Lathe Machine Machine has features of fine appearance, concentrated control arrangement for easy operating and convenient maintenance.
Standard accessories
1. 4-jaw chuck & flange;
2. Dead Centers;
3. Coolant system;
4. Work light;
5. Foundation Bolts & Lever Pad;
6. Tool box;
Optional accessories
1. Steady Rest;
2. Follow Rest;
3. Carrier Roller;
4. 2-Axis or 3-Axis DRO;
Applications
Sústruh D2200 B1100 10tons 18tons Conventional Metalworking Speed Turning Lathe Machine is chiefly suitable for various cutting jobs, such as internal and external cylindrical surfaces turning, facing and various kinds of threads cutting. The compound rest slide can be used individually by power for cutting a 300mm taper surface, or used with aid of longitudinal feed motion of the Sústruh carriage by power for cutting long taper surface. Sústruh D2200 B1100 10tons 18tons Conventional Metalworking Speed Turning Lathe Machine Tool can also be used for drilling, boring, trepanning etc.
Sústruh D2200 B1100 10tons 18tons Conventional Metalworking Speed Turning Lathe Machine is chiefly suitable for various cutting jobs, such as internal and external cylindrical surfaces turning, facing and various kinds of threads cutting. The compound rest slide can be used individually by power for cutting a 300mm taper surface, or used with aid of longitudinal feed motion of the Sústruh carriage by power for cutting long taper surface. Sústruh D2200 B1100 10tons 18tons Conventional Metalworking Speed Turning Lathe Machine Tool can also be used for drilling, boring, trepanning etc.
Technical parameters of D2200 Conventional Metalworking Speed Turning Lathe Machine
| Model | Unit | D2200 | |
|---|---|---|---|
| Type | B1100 | ||
| Max swing over bed | mm(in) | 2200(88’’) | |
| Max swing over carriage | mm(in) | 1800(72’’) | |
| Distance between centers | mm(in) | 3000~14000(118’’~551’’) | 3000~12000(118’’~472’’) |
| Max weight of workpiece between centers | kg | 18000 | 10000 |
| Width of the bed | mm(in) | 1100(44’’) | |
| Spindle noses No. | ISO | A2-20 | A2-15 |
| Diameter of spindle in front bearing | mm(in) | 240(9.6’’); 280(11.2’’) | 200(8’’); 220(8.8’’) |
| Spindle bore | mm(in) | 100(4’’) | 130(5.2’’); 100(4’’) |
| Taper bore in spindle | Metric 140 | ||
| Number of spindle speed | 3 steps | 21 steps | |
| Range of spindle speed | r/min | 1~125 | 2.5~250(2~200) |
| Main motor power | kW | DC49 | AC30 |
| Rapid travelling speed of motor power | kW | 1.5 | |
| Coolant pump motor power | kW | 0.15 | |
| Section dimension of tool shank | mm(in) | 45x45(1.8’’x1.8’’) | |
| Swivel angle of tool post | ±90° | ||
| Travel of transverse tool post | mm(in) | 200(8’’) | |
| Travel of longitudinal tool post | mm(in) | 400(16’’) | |
| Travel of cross slide | mm(in) | 820(33’’); 920(36’’) | 820(33’’); 920(36’’); 1020(41’’) |
| Rapid travelling speed of compound tool post | mm/min | 935 | |
| Rapid travelling speed of transverse | mm/min | 1870 | |
| Rapid travelling speed of longitudinal | mm/min | 3740 | |
| Metric threads number and range | mm | 45 kinds, 1~120 | |
| Whitworth number and range | TPI | 42 kinds, 30~1/4 | |
| Module threads number and range | mm | 46 kinds, 0.5~60 | |
| Diametric threads number and range | DP | 48 kinds, 60~0.5 | |
| No and range of longitudinal feed | mm/rev | 97 kinds, 0.064~12 | |
| No and range of cross slide feed | mm/rev | 97 kinds, 0.032~6 | |
| Feed No and range of compound slide | mm/rev | 97 kinds, 0.016~3 | |
| Diameter of tailstock sleeve | mm(in) | 240(9.6’’);280(11’’) | 200(8’’) |
| Taper bore of tailstock sleeve | Metric 80 | Metric 80, MT-6 | |
| Travel of tailstock sleeve | mm(in) | 300(12’’) | |
| Weight of the lathe with 3m | kg | 32000 | 24000 |
| Additional weight per 1m | kg | 2200 | |
| Overall dimension (L x W x H) (3m) | mm | 7920x2480x2610 | |
Standard accessories
1. 4-jaw chuck & flange;
2. Dead Centers;
3. Coolant system;
4. Work light;
5. Foundation Bolts & Lever Pad;
6. Tool box;
Optional accessories
1. Steady Rest;
2. Follow Rest;
3. Carrier Roller;
4. 2-Axis or 3-Axis DRO;
1. 4-jaw chuck & flange;
2. Dead Centers;
3. Coolant system;
4. Work light;
5. Foundation Bolts & Lever Pad;
6. Tool box;
Optional accessories
1. Steady Rest;
2. Follow Rest;
3. Carrier Roller;
4. 2-Axis or 3-Axis DRO;
