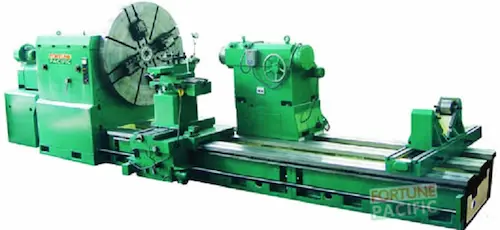

D2500 B1600 B2050 32t 40t 63t 3 Guideway huge Lathe
Large Size Heavy duty Universal Geared Turning Lathe Machine has three or four guideways with high rigidity, load and accuracy;
D2500 B1600 B2050 32t 40t 63t 3 Guideway huge Lathe Main spindle drive is DC inverter motor with three step hydraulic shift.
D2500 B1600 B2050 32t 40t 63t 3 Guideway huge Lathe Main spindle drive is DC inverter motor with three step hydraulic shift.
- D2500 B1600 B2050 32tons 40tons 63tons Large Size Heavy duty Universal Geared Turning LatheDownload
Technical parameters
| Model | Unit | D2500 | |
|---|---|---|---|
| Type | B1600 | B2050 | |
| Max swing over bed | mm(in) | 2500(98’’) | 2500(98’’) |
| Max swing over carriage | mm(in) | 2200(87’’) | 2200(87’’) |
| Width of the bed | mm(in) | 1600(63’’) | 2050(81’’) |
| Guideway number | 3 Guideway | 4 Guideway | |
| Max length of workpiece | mm(in) | 5000~14000 (197’’~551’’) | 6000~14000 (236’’~551’’) |
| Max weight of workpiece between centers | kg | 32000 | 40000; 63000 |
| Max torque of face plate | kNm | 80 | 90/100 |
| Max cutting capacity of single tool post | kg | 8000 | 8000/9000 |
| Total cutting capacity | kg | 16000 | 16000/18000 |
| Cone apex angle of center | 75° | 75° | |
| Section dimension of tool shank | mm(in) | 70x70(2.8’’x2.8’’) | 70x70(2.8’’x2.8’’) |
| Number and range of spindle speed | r/min | 0.8~160; stepless | 0.63~125; stepless |
| Taper bore in spindle | Metric 120 | Metric 125/160 | |
| Diameter of face plate | mm(in) | 2000(79’’) | 2000(79’’) |
| Range of longitudinal feed | mm/r | 18; 0.125~48 | 1~4000 |
| Range of cross slide feed | mm/r | 18; 0.063~24 | 1~2000 |
| Range of compound tool slide | mm/r | 18; 0.063~24 | |
| Rapid travel speed of longitudinal | mm/min | 3000 | 4000 |
| Rapid travel speed of transverse | mm/min | 1500 | 2000 |
| Max travel of cross slide | mm(in) | 825(32’’) | 850(33’’) |
| Max travel of compound tool slide | mm(in) | 600(24’’) | |
| Metric threads range | mm | 2~40 | |
| Inch threads range | TPI | 1~14 | |
| Module threads range | mm | 1.5~20 | |
| Diameter of tailstock sleeve | mm(in) | 320(13’’); 380(15’’) | 400(16’’); 530(21’’); 560(22’’) |
| Travel of sleeve | mm(in) | 300(12’’) | 300(12’’); 200(8’’) |
| Spindle taper bore of tailstock | Metric 100 | Metric 125 | |
| Rapid travel of tailstock | mm/min | 3000(120’’) | 2000(79’’) |
| Rapid travel of sleeve | mm/min | 664(26’’) | 50(2’’) |
| Main motor power | kW | DC 75/90 | DC 75/90/110 |
| Weight of the lathe with 8m | kg | 57500 | 108000 |
| Additional weight per 1m | kg | 1800 | 2300 |
| Overall dimension (L x W x H) (8m) | mm | 13560x2850x3050 | 14000x4100x3050 |
1. Large Size Heavy duty Universal Geared Turning Lathe Machine has three or four guideways with high rigidity, load and accuracy;
2. Main spindle drive is DC inverter motor with three step hydraulic shift that brings wide speed range of 1:200;
3. Drejebænk feed drive is connected with the main spindle drive, and carriage rapid traverse function and combination feed function is also available;
4. Drejebænk tailstock has built-in rotary type live spindle of heavy load capacity, and easy to operate with manual and motor drive moving system. Tailstock is motorized for easy operation;
5. Large Size Heavy duty Universal Geared Turning Lathe Machine Main spindle is supported by high precision, radial backlash adjustable double-row cylindrical roller bearings.
Equipments
1. 4-jaw chuck & flange;
2. Dead Centers;
3. Coolant system;
4. Work light;
5. Foundation Bolts & Lever Pad;
6. Tool box;
Optionals
1. Steady Rest;
2. Follow Rest;
3. Carrier Roller;
4. 2-Axis or 3-Axis DRO;
Applications
D2500 B1600 B2050 Drejebænk 32tons 40tons 63tons Universal Metal Turning Lathe is suitable for cutting various kinds of round workpiece, such as cylindrical surfaces, internal hole, taper and metric whitworth, module and diametric thread cutting.
Features of D2500 B1600 B2050 32tons 40tons 63tons Large Size Heavy duty Universal Geared Turning Lathe
1. Large Size Heavy duty Universal Geared Turning Lathe Machine has three or four guideways with high rigidity, load and accuracy;
2. Main spindle drive is DC inverter motor with three step hydraulic shift that brings wide speed range of 1:200;
3. Drejebænk feed drive is connected with the main spindle drive, and carriage rapid traverse function and combination feed function is also available;
4. Drejebænk tailstock has built-in rotary type live spindle of heavy load capacity, and easy to operate with manual and motor drive moving system. Tailstock is motorized for easy operation;
5. Large Size Heavy duty Universal Geared Turning Lathe Machine Main spindle is supported by high precision, radial backlash adjustable double-row cylindrical roller bearings.
1. Large Size Heavy duty Universal Geared Turning Lathe Machine has three or four guideways with high rigidity, load and accuracy;
2. Main spindle drive is DC inverter motor with three step hydraulic shift that brings wide speed range of 1:200;
3. Drejebænk feed drive is connected with the main spindle drive, and carriage rapid traverse function and combination feed function is also available;
4. Drejebænk tailstock has built-in rotary type live spindle of heavy load capacity, and easy to operate with manual and motor drive moving system. Tailstock is motorized for easy operation;
5. Large Size Heavy duty Universal Geared Turning Lathe Machine Main spindle is supported by high precision, radial backlash adjustable double-row cylindrical roller bearings.
Technical parameters
| Model | Unit | D2500 | |
|---|---|---|---|
| Type | B1600 | B2050 | |
| Max swing over bed | mm(in) | 2500(98’’) | 2500(98’’) |
| Max swing over carriage | mm(in) | 2200(87’’) | 2200(87’’) |
| Width of the bed | mm(in) | 1600(63’’) | 2050(81’’) |
| Guideway number | 3 Guideway | 4 Guideway | |
| Max length of workpiece | mm(in) | 5000~14000 (197’’~551’’) | 6000~14000 (236’’~551’’) |
| Max weight of workpiece between centers | kg | 32000 | 40000; 63000 |
| Max torque of face plate | kNm | 80 | 90/100 |
| Max cutting capacity of single tool post | kg | 8000 | 8000/9000 |
| Total cutting capacity | kg | 16000 | 16000/18000 |
| Cone apex angle of center | 75° | 75° | |
| Section dimension of tool shank | mm(in) | 70x70(2.8’’x2.8’’) | 70x70(2.8’’x2.8’’) |
| Number and range of spindle speed | r/min | 0.8~160; stepless | 0.63~125; stepless |
| Taper bore in spindle | Metric 120 | Metric 125/160 | |
| Diameter of face plate | mm(in) | 2000(79’’) | 2000(79’’) |
| Range of longitudinal feed | mm/r | 18; 0.125~48 | 1~4000 |
| Range of cross slide feed | mm/r | 18; 0.063~24 | 1~2000 |
| Range of compound tool slide | mm/r | 18; 0.063~24 | |
| Rapid travel speed of longitudinal | mm/min | 3000 | 4000 |
| Rapid travel speed of transverse | mm/min | 1500 | 2000 |
| Max travel of cross slide | mm(in) | 825(32’’) | 850(33’’) |
| Max travel of compound tool slide | mm(in) | 600(24’’) | |
| Metric threads range | mm | 2~40 | |
| Inch threads range | TPI | 1~14 | |
| Module threads range | mm | 1.5~20 | |
| Diameter of tailstock sleeve | mm(in) | 320(13’’); 380(15’’) | 400(16’’); 530(21’’); 560(22’’) |
| Travel of sleeve | mm(in) | 300(12’’) | 300(12’’); 200(8’’) |
| Spindle taper bore of tailstock | Metric 100 | Metric 125 | |
| Rapid travel of tailstock | mm/min | 3000(120’’) | 2000(79’’) |
| Rapid travel of sleeve | mm/min | 664(26’’) | 50(2’’) |
| Main motor power | kW | DC 75/90 | DC 75/90/110 |
| Weight of the lathe with 8m | kg | 57500 | 108000 |
| Additional weight per 1m | kg | 1800 | 2300 |
| Overall dimension (L x W x H) (8m) | mm | 13560x2850x3050 | 14000x4100x3050 |
Equipments
1. 4-jaw chuck & flange;
2. Dead Centers;
3. Coolant system;
4. Work light;
5. Foundation Bolts & Lever Pad;
6. Tool box;
Optionals
1. Steady Rest;
2. Follow Rest;
3. Carrier Roller;
4. 2-Axis or 3-Axis DRO;
1. 4-jaw chuck & flange;
2. Dead Centers;
3. Coolant system;
4. Work light;
5. Foundation Bolts & Lever Pad;
6. Tool box;
Optionals
1. Steady Rest;
2. Follow Rest;
3. Carrier Roller;
4. 2-Axis or 3-Axis DRO;
