| Model | Unit | VTC510 | |||
|---|---|---|---|---|---|
| Type | NA | NB | NC | ||
| Tool magazine | Front position Magazine | Disc type Magazine | |||
| CNC system | FAUNC 0i Mate-MD | Mitsubishi M70B | SIEMENS 828D | ||
| Worktable size | mm | 650×400 | 650×400 | 650×400 | |
| Max load of worktable | kg | 250 | 250 | 250 | |
| Table travel (X/Y/Z) | mm | 510/400/350 | 510/400/350 | 510/400/500 | |
| Distance from spindle nose to table | mm | 150~500 | 150~500 | 120~620 | |
| Distance from spindle axis to guideway | mm | 446 | 446 | 446 | |
| Rapid traverse (X/Y/Z) | m/min | 36/36/36 | 48/48/50 | 48/48/40 | |
| Acceleration (X/Y/Z) | g | 0.6/0.5/0.5 | 1.4/1.1/1.1 | 1.1/1/1 | |
| Main motor power | kW | 5.5/7.5 | 3.7/5.5 | 5.5/7.38 | |
| Max spindle speed | rpm | 10000 | 10000 | 10000 | |
| Spindle torque | Nm | 26(continuous)/ 36(60min) |
23.5(continuous)/ 35(30min) |
35(continuous)/ 60(30min) |
|
| Spindle taper bore | 7:24 taper N0.30 | 7:24 taper N0.30 | 7:24 taper N0.30 | ||
| No. of tools | 14 | 14 | 20 | ||
| Max tool diameter/length/weight | mm/mm/kg | Φ90/300/3 | Φ90/300/3 | Φ80/300/4 | |
| ATC time (tool - tool) | s | 1.9 | 1.9 | 1 | |
| Boring (normalized carbon steel) | mm | Φ25 | Φ25 | Φ25 | |
| Threading (normalized carbon steel) | mm | M16 | M16 | M16 | |
| Milling (normalized carbon steel) | cm3/min | 100 | 100 | 100 | |
| Positioning (X/Y/Z) | mm | 0.01/0.008/0.008 | 0.01/0.008/0.008 | 0.01/0.008/0.008 | |
| Repositioning (X/Y/Z) | mm | 0.005/0.004/0.004 | 0.005/0.004/0.004 | 0.005/0.004/0.004 | |
| Net weight | kg | 3000 | 3000 | 3000 | |
Applications

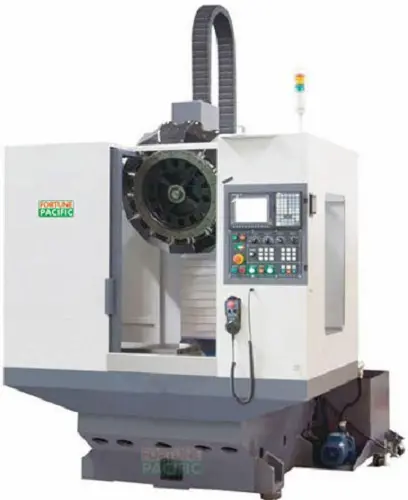

VTC510 CNC Vertical Tapping Center adopts FAUNC 0i Mate-MD, Mitsubishi M70B, SIMENS 828D CNC systems, and VTC510 CNC Vertical Tapping Center can precisely carry out milling, drilling, boring, reaming and tapping. VTC510 CNC Vertical Tapping Center is suitable for processing plates, disks cases, shells and moulds workpieces.
Features
1. High speed, rigid spindle of direct drive, up to 10000rpm;
2. Rapid feed reaches 50mm/min, acceleration up to 1.4g;
3. ATC device, quick, stable and reliable;
4. Compact design;
The term “machining center” describes almost any CNC milling and drilling machine that includes an automatic toolchanger and a table that clamps the workpiece in place.
CNC Tapping Center, which is able to pivot the tool and/or the part in order to tapping and drill at various orientations.
FORTUNE PACIFIC CNC Tapping Center manufacturers offer high quality CNC Tapping Center to meet all your CNC Tapping Center requirements.If you are looking for high quality CNC Tapping Center and reliable manufacturers, please click the links below to obtain detailed information, and send CNC Tapping Center inquiries.
FORTUNE PACIFIC high-productivity, high-speed tapping machining centres are compact, have a rigid design and build, and are equipped with linear guides, BT 30 direct-coupled spindles for improved power and accuracy, and twin dual index pallets for increased productivity.
1. High speed, rigid spindle of direct drive, up to 10000rpm;
2. Rapid feed reaches 50mm/min, acceleration up to 1.4g;
3. ATC device, quick, stable and reliable;
4. Compact design;
| Model | Unit | VTC510 | |||
|---|---|---|---|---|---|
| Type | NA | NB | NC | ||
| Tool magazine | Front position Magazine | Disc type Magazine | |||
| CNC system | FAUNC 0i Mate-MD | Mitsubishi M70B | SIEMENS 828D | ||
| Worktable size | mm | 650×400 | 650×400 | 650×400 | |
| Max load of worktable | kg | 250 | 250 | 250 | |
| Table travel (X/Y/Z) | mm | 510/400/350 | 510/400/350 | 510/400/500 | |
| Distance from spindle nose to table | mm | 150~500 | 150~500 | 120~620 | |
| Distance from spindle axis to guideway | mm | 446 | 446 | 446 | |
| Rapid traverse (X/Y/Z) | m/min | 36/36/36 | 48/48/50 | 48/48/40 | |
| Acceleration (X/Y/Z) | g | 0.6/0.5/0.5 | 1.4/1.1/1.1 | 1.1/1/1 | |
| Main motor power | kW | 5.5/7.5 | 3.7/5.5 | 5.5/7.38 | |
| Max spindle speed | rpm | 10000 | 10000 | 10000 | |
| Spindle torque | Nm | 26(continuous)/ 36(60min) |
23.5(continuous)/ 35(30min) |
35(continuous)/ 60(30min) |
|
| Spindle taper bore | 7:24 taper N0.30 | 7:24 taper N0.30 | 7:24 taper N0.30 | ||
| No. of tools | 14 | 14 | 20 | ||
| Max tool diameter/length/weight | mm/mm/kg | Φ90/300/3 | Φ90/300/3 | Φ80/300/4 | |
| ATC time (tool - tool) | s | 1.9 | 1.9 | 1 | |
| Boring (normalized carbon steel) | mm | Φ25 | Φ25 | Φ25 | |
| Threading (normalized carbon steel) | mm | M16 | M16 | M16 | |
| Milling (normalized carbon steel) | cm3/min | 100 | 100 | 100 | |
| Positioning (X/Y/Z) | mm | 0.01/0.008/0.008 | 0.01/0.008/0.008 | 0.01/0.008/0.008 | |
| Repositioning (X/Y/Z) | mm | 0.005/0.004/0.004 | 0.005/0.004/0.004 | 0.005/0.004/0.004 | |
| Net weight | kg | 3000 | 3000 | 3000 | |
VTC510 CNC Vertical Tapping Center adopts FAUNC 0i Mate-MD, Mitsubishi M70B, SIMENS 828D CNC systems, and VTC510 CNC Vertical Tapping Center can precisely carry out milling, drilling, boring, reaming and tapping. VTC510 CNC Vertical Tapping Center is suitable for processing plates, disks cases, shells and moulds workpieces.
Knee Type Milling Machine: Precision Versatility for Industrial Manufacturing
What is a Knee Type Milling Machine?
A knee type milling machine is a fundamental machine tool distinguished by its vertically adjustable worktable mounted on a "knee" casting. This knee moves precisely up and down a fixed column via a screw mechanism, enabling accurate Z-axis positioning crucial for diverse milling operations.
Working Principle
The core principle involves a rotating milling cutter removing material from a workpiece secured to the table. The adjustable knee mechanism allows controlled vertical movement (Z-axis), while the table provides longitudinal (X-axis) and transverse (Y-axis) travel. This 3-axis control facilitates complex machining of flat, angular, and contoured surfaces.
Key Applications
- Tool & Die Making: Precision molds, jigs, fixtures
- Prototyping: Rapid part development
- Maintenance Shops: Equipment repair & part fabrication
- General Machining: Slotting, drilling, facing, keyway cutting
- Aerospace & Automotive: Component manufacturing
Distinctive Features & Advantages
- Vertical Adjustability: Knee movement enables quick workpiece height changes
- Rigid Construction: Robust cast iron frame ensures stability
- Manual & CNC Options: Traditional control or computer numerical precision
- Turret Design (Common): Swiveling milling head for multi-angle machining
- Wide Workpiece Compatibility: Handles various sizes and shapes
Primary Classifications
- Vertical Knee Mill: Spindle axis perpendicular to table (most common)
- Horizontal Knee Mill: Spindle axis parallel to table (for heavy stock removal)
- Universal Knee Mill: Table swivels for complex angular cuts
- Turret Mill: Head rotates on turret for flexible positioning
Main Components
- Base & Column: Primary support structure
- Knee: Vertically moving saddle supporting the table
- Saddle & Table: Hold and position the workpiece (X/Y axes)
- Milling Head: Houses spindle, motor, and quill (Z-axis)
- Arbor/Spindle: Rotating shaft holding cutting tools
- Controls: Manual handwheels or CNC interface
Evolution & Industry Significance
Since their development in the late 19th century, knee-and-column mills revolutionized machining. The iconic Bridgeport design (1938) popularized the turret style. While CNC machining centers dominate high-volume production, knee mills remain indispensable for flexibility, ease of use, and cost-effectiveness in job shops, schools, and repair facilities worldwide.
Fortune Pacific: Your Knee Mill Solution
At Fortune Pacific, we engineer durable, high-precision knee type milling machines for demanding applications. Explore our range of vertical mills, horizontal mills, and CNC-ready models designed to enhance your workshop's capabilities. Discover the ideal machine for your metalworking, prototyping, or toolmaking needs.
